| Type | Pneumatic Actuator (Rack & Pinion / Scotch Yoke Optional) |
| Operation | Double Acting / Spring Return (Fail Close / Fail Open) |
| Rotation Angle | 90° Standard (120° / 180° Optional) |
| Air Supply Pressure | 2.5 – 8 bar (Max 10 bar) |
| Recommended Pressure | 5 – 6 bar |
| Torque Output | 10 Nm – 10,000+ Nm (Depending on Size) |
| Body Material | Aluminium Alloy (Anodized / Epoxy Coated) |
| Piston Material | Aluminium / Carbon Steel |
| Shaft Material | Alloy Steel / Stainless Steel (Optional) |
| Spring Material | High Carbon Spring Steel (Anti-Corrosion Coated) |
| Seal Material | NBR / Viton (Optional High Temp / Chemical Resistance) |
| Temperature Range | -20°C to +80°C (Standard), up to +150°C Optional |

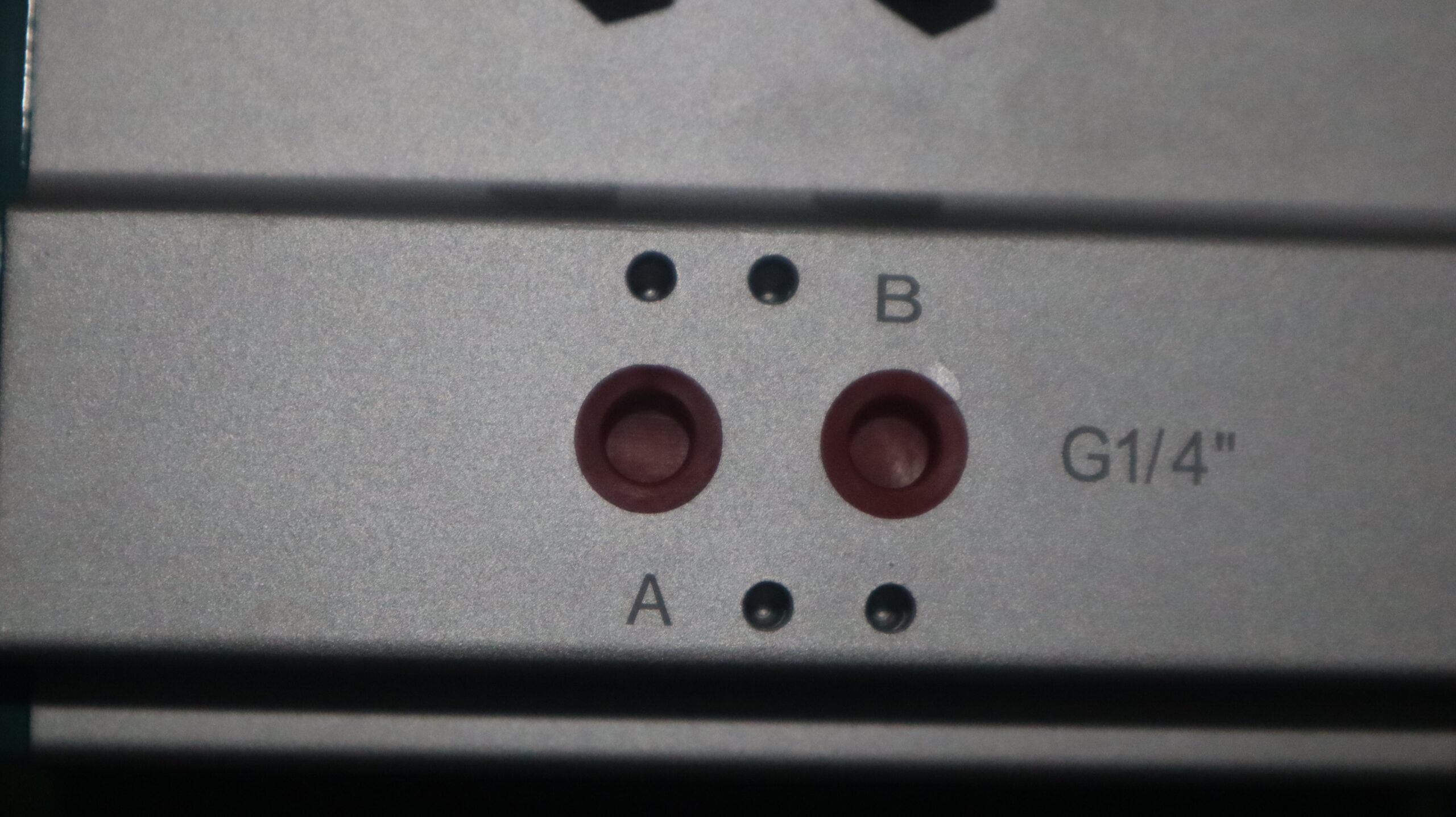

| Air Connection | NAMUR Standard (ISO 5211 Compatible) |
| Control Valve | 3/2 or 5/2 Way Solenoid Valve |

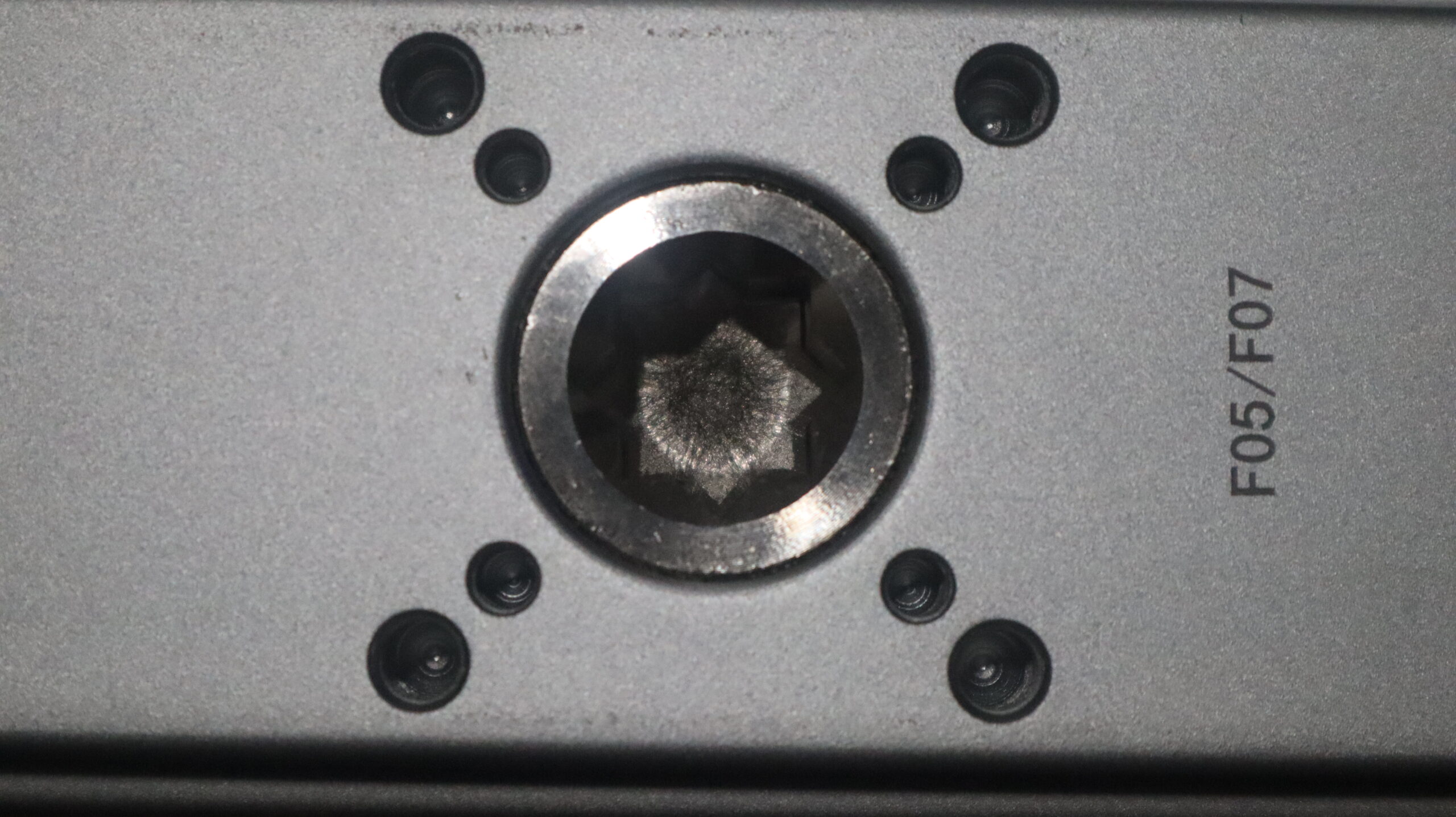

| Mounting Standard | ISO 5211 / DIN 3337 |
| Interface | NAMUR Top Interface for Accessories |
| Accessories | Solenoid Valve, Limit Switch Box, Positioner, FRL, Manual Override |
| Operation Time | 0.5 – 2 Seconds per 90° Rotation |
| Application | Ball Valve, Butterfly Valve, Plug Valve Automation |
| Industry Use | Oil & Gas, Water Treatment, Chemical, Industrial Automation |
| Feature | Fast Operation, Low Maintenance, Explosion Proof, Long Life |
Pneumatic actuator designed for fast and reliable valve automation, utilizing compressed air for efficient operation with high torque output, compact construction, and durable performance, suitable for industrial applications requiring precise control and safe operation in demanding environments.
