Gate Valve
WEISSMILLER Gate Valve is designed for reliable flow isolation in industrial piping systems. It is suitable for fully open or fully closed operation, providing low pressure drop and dependable shut-off performance for water, oil, gas, utility, and process applications.
Request Quotation
Product Overview

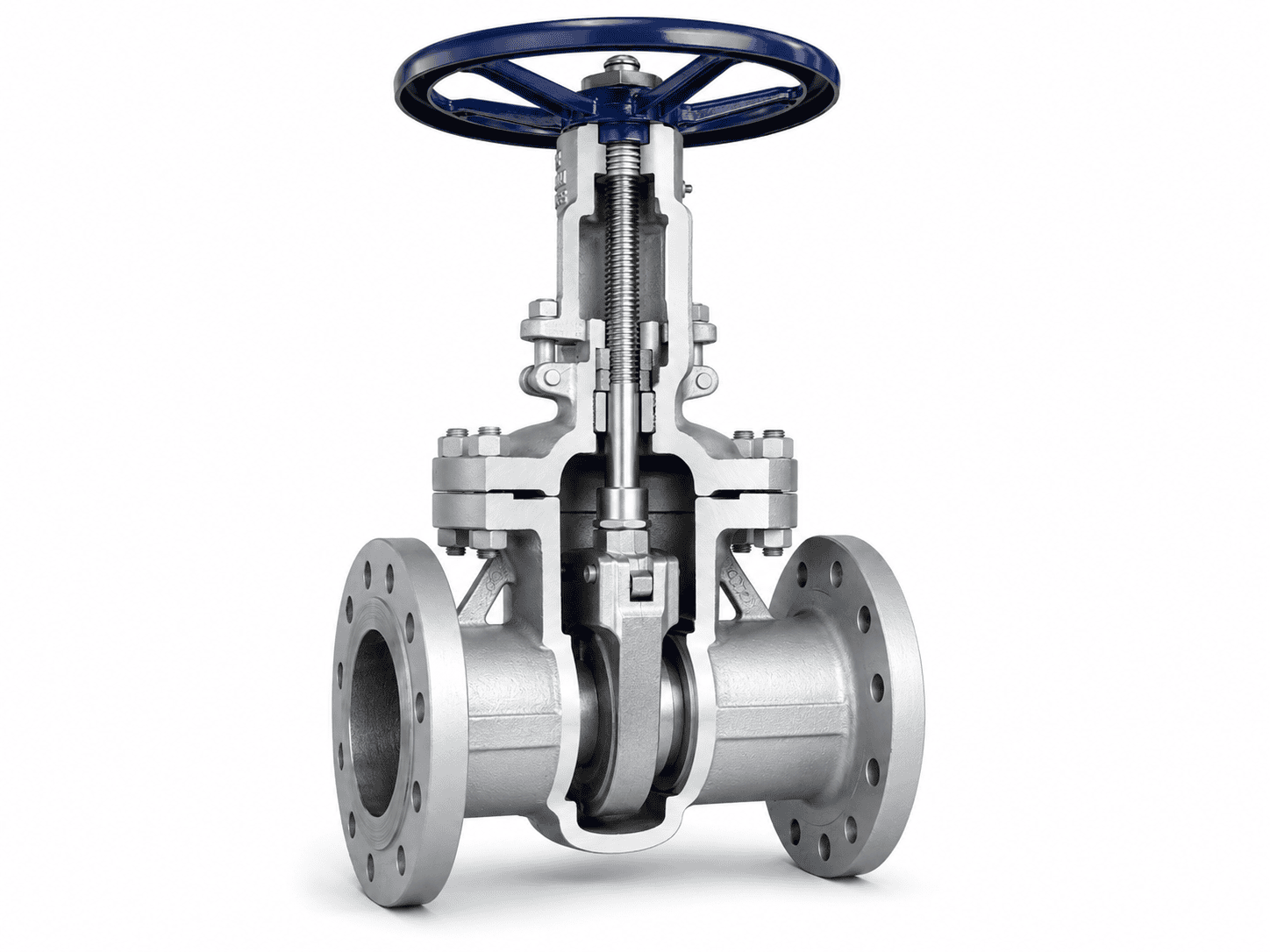

A gate valve is a linear motion valve used primarily for flow isolation. It operates by lifting or lowering a gate inside the valve body to allow or stop the flow of fluid through the pipeline.
WEISSMILLER Gate Valve is suitable for applications where the valve is normally used in fully open or fully closed position. It is commonly applied in water treatment, oil and gas, petrochemical, power plant, utility, and general industrial piping systems.
Key Features
Reliable Flow Isolation
Designed for fully open or fully closed operation in industrial piping systems.
Low Pressure Drop
Provides low flow resistance when the valve is fully open.
Strong Body Construction
Durable body design suitable for demanding industrial applications.
Multiple Gate Valve Types
Available in rising stem, non-rising stem, soft sealing, forged steel, and cast steel types.
Manual or Automated
Can be operated by handwheel, gearbox, electric actuator, or other operation methods based on project requirements.
Industrial Application
Suitable for water, oil, gas, utility, petrochemical, power plant, and process industry services.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Gate Valve |

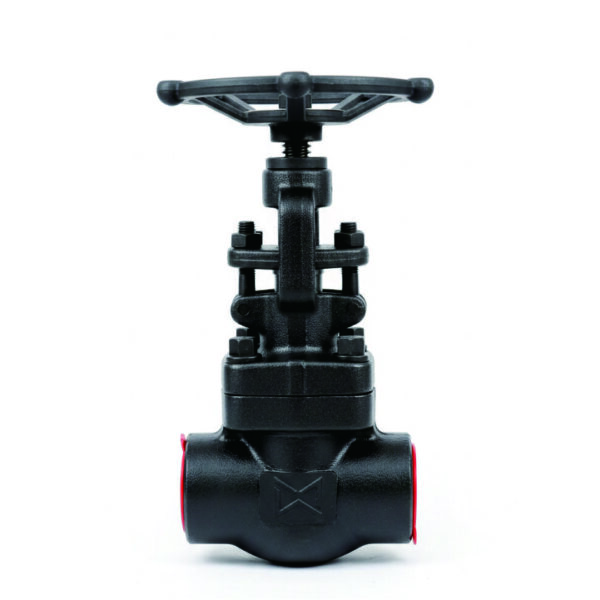

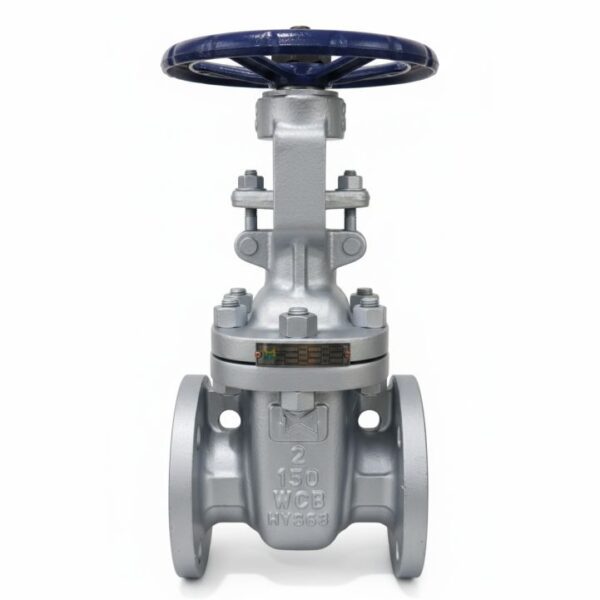

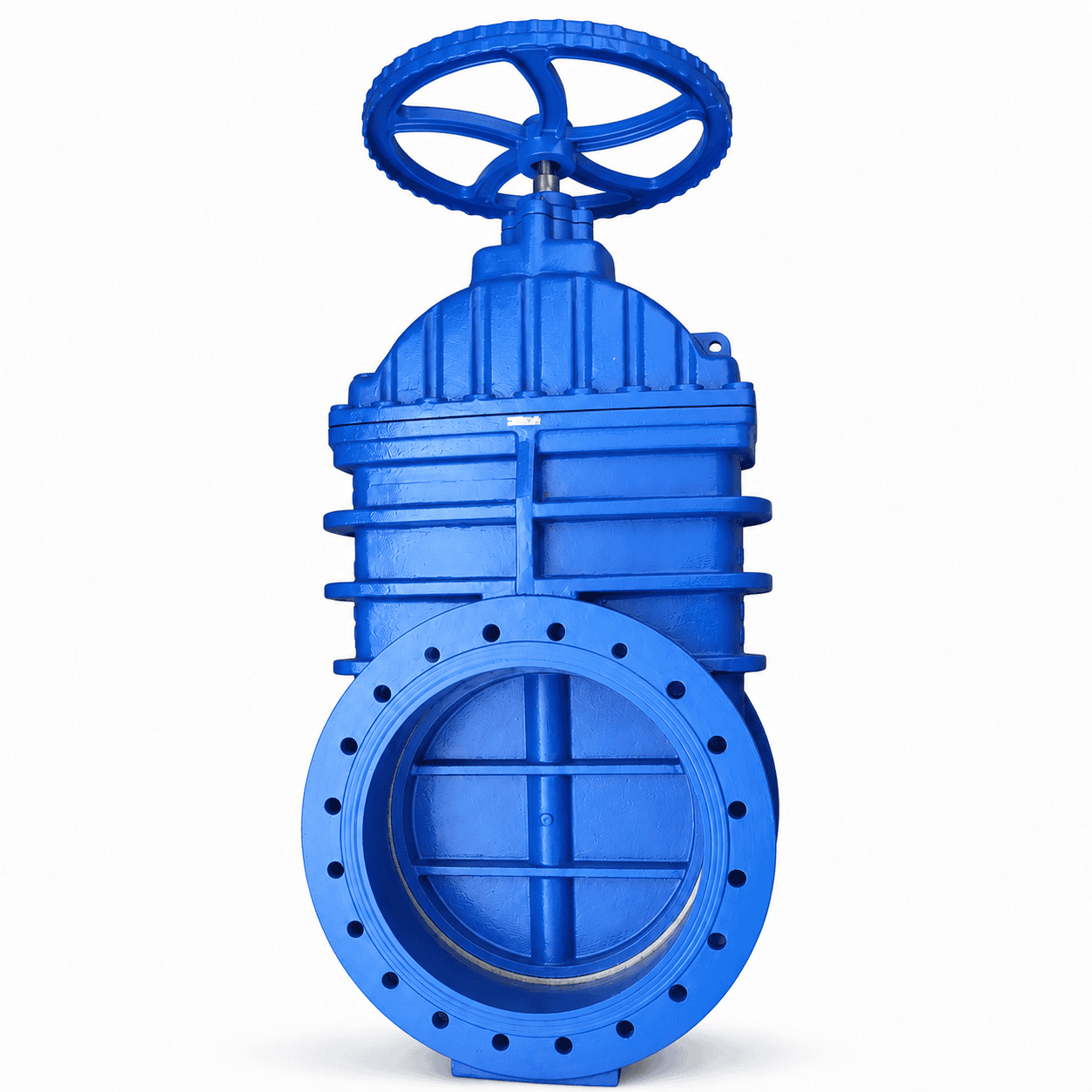

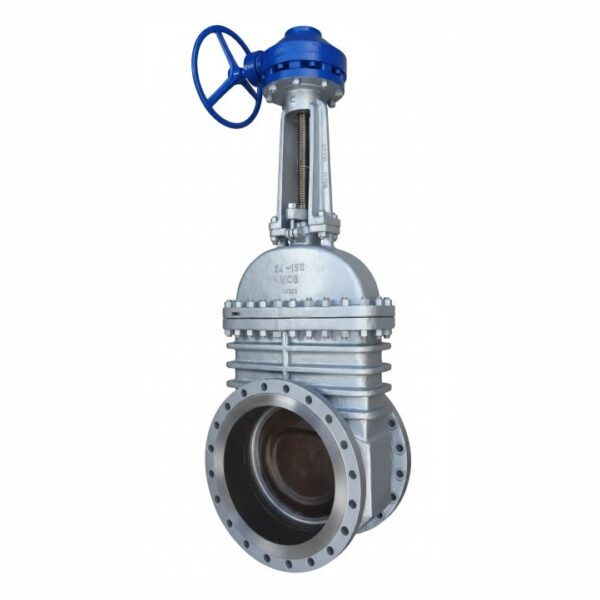

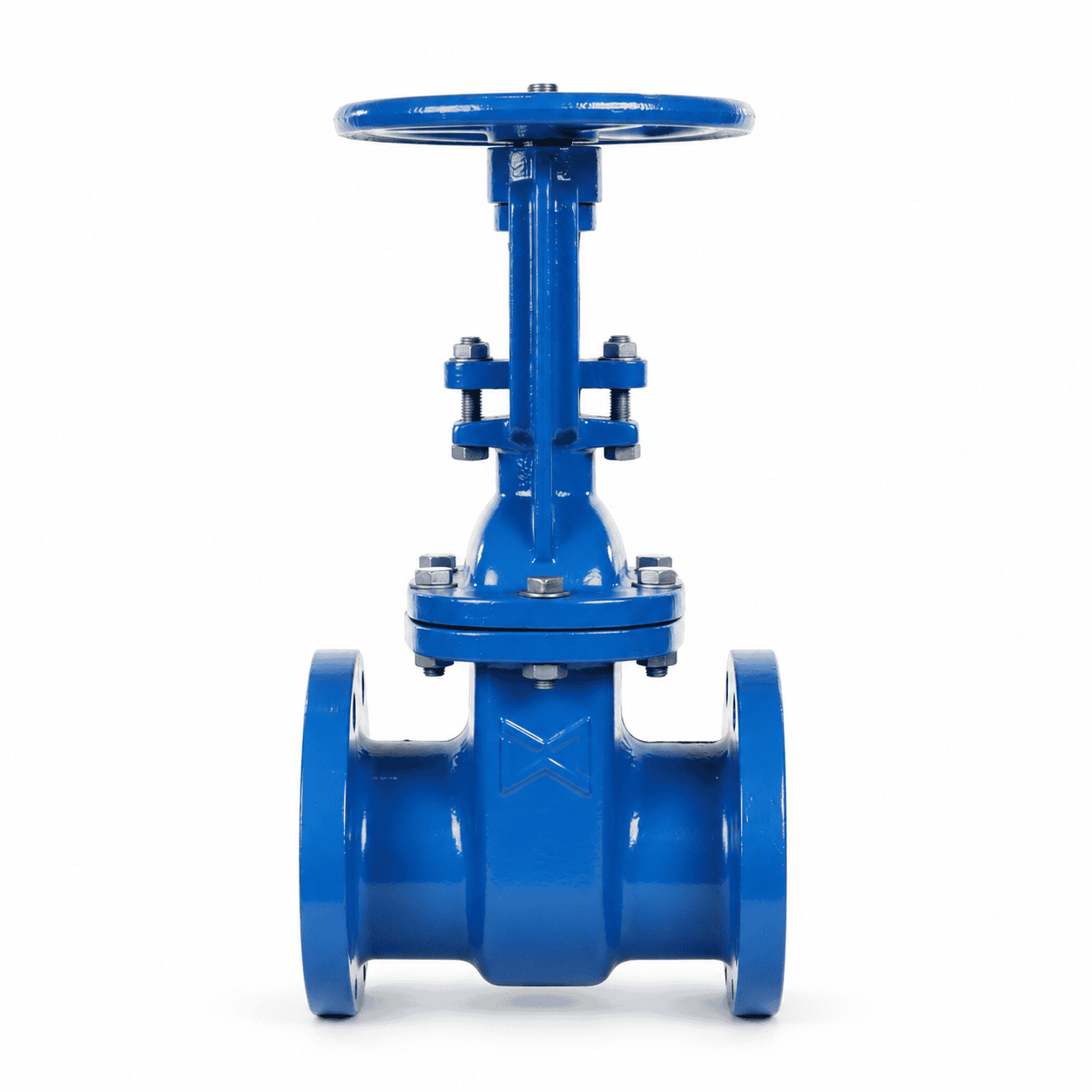

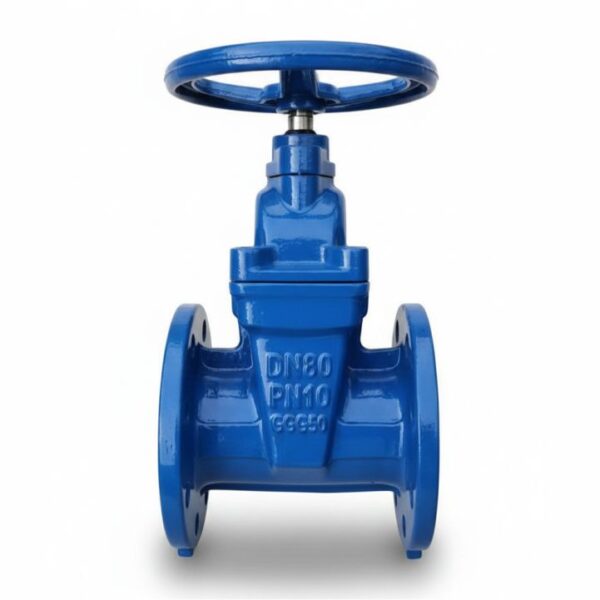

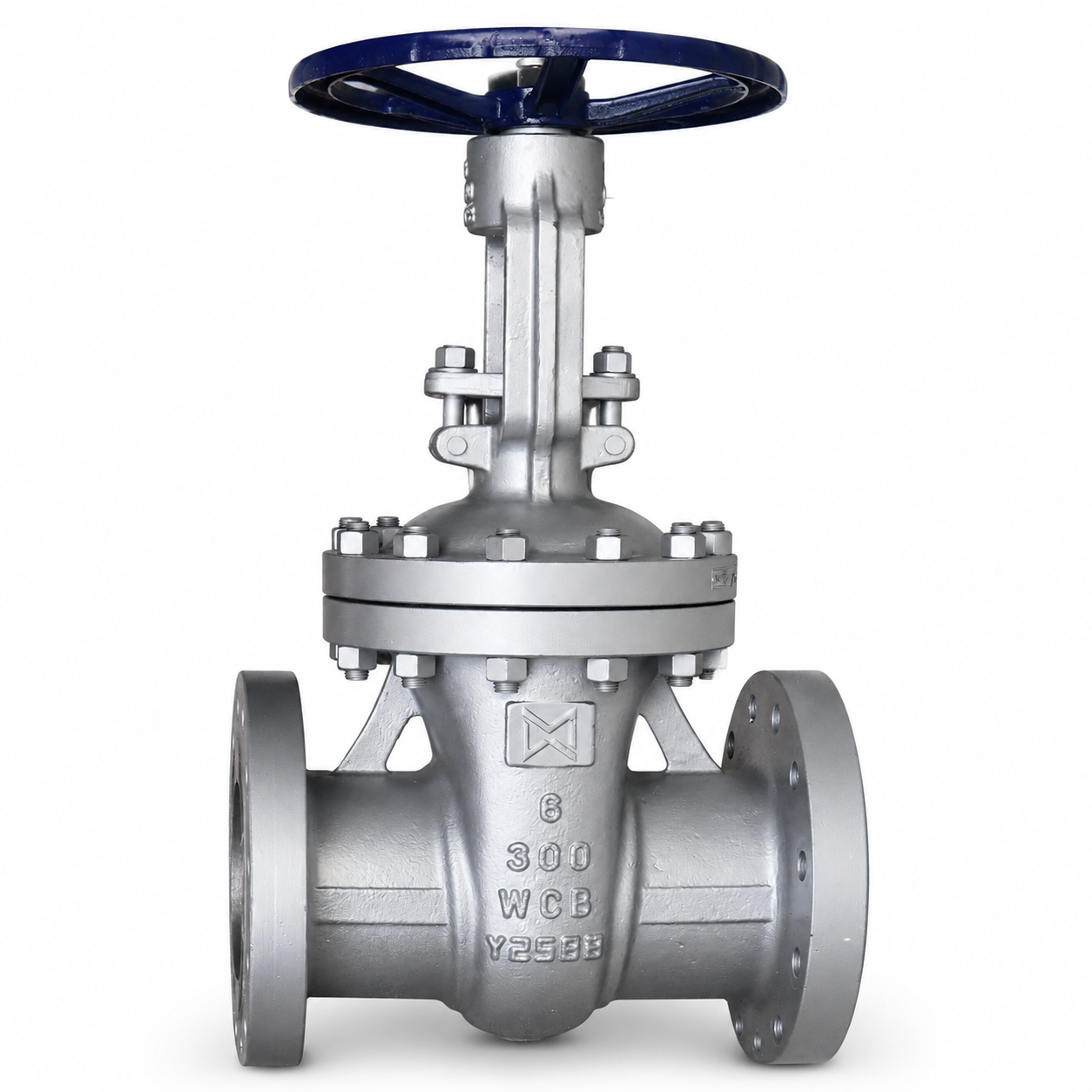

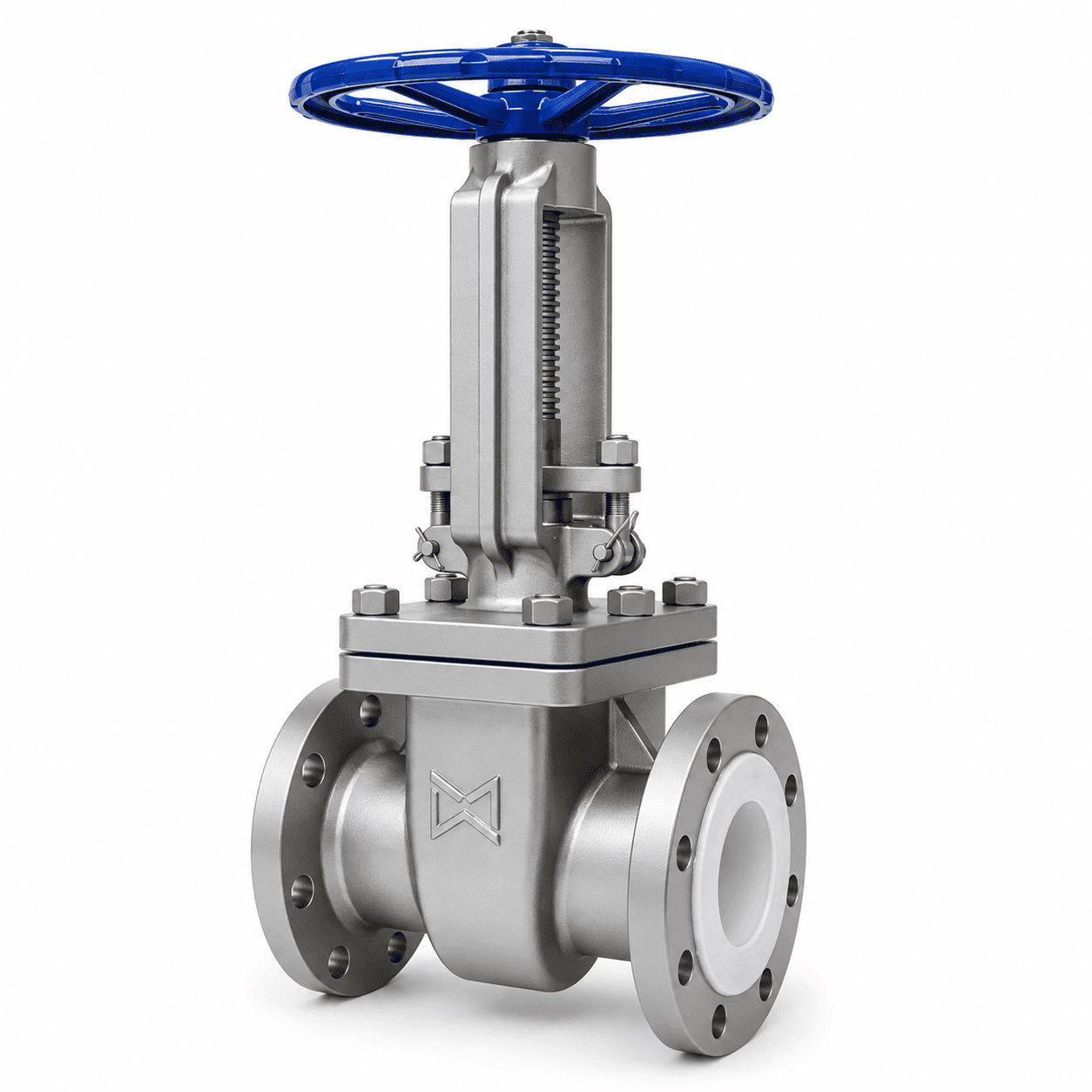

| Available Type | API Cast Steel Wedge Gate Valve, Forged Steel Gate Valve, Heavy Duty Large Size Flanged Gate Valve, Rising Stem Gate Valve, Non-Rising Stem Gate Valve, Soft Sealing Gate Valve |
| Body Material | Cast Steel / Forged Steel / Ductile Iron / Stainless Steel / Other Material by Request |
| Seat Material | Metal Seat / Soft Seat / Other Material by Application |
| Connection | Flanged / Threaded / Socket Weld / Butt Weld |
| Pressure Rating | PN10 / PN16 / ANSI Class 150 / ANSI Class 300 / Other Rating by Request |
| Operation | Handwheel / Gearbox / Electric Actuator |
| Application | Water, Oil, Gas, Utility, Petrochemical, Power Plant, Process Industry |
Applications
Related Products
Globe Valve
Valve for flow regulation, throttling, and shut-off applications in industrial systems.
Check Valve
Valve designed to prevent backflow and protect piping systems from reverse flow.
Electric Actuator
Electric actuator solution for automated valve operation and control.
Need Gate Valve for Your Project?
Contact our technical sales team for product recommendation, specification support, and quotation.
Contact Us
