Description
Electric actuator designed for precise and reliable valve automation, offering flexible control options, robust protection, and efficient performance across various industrial applications.

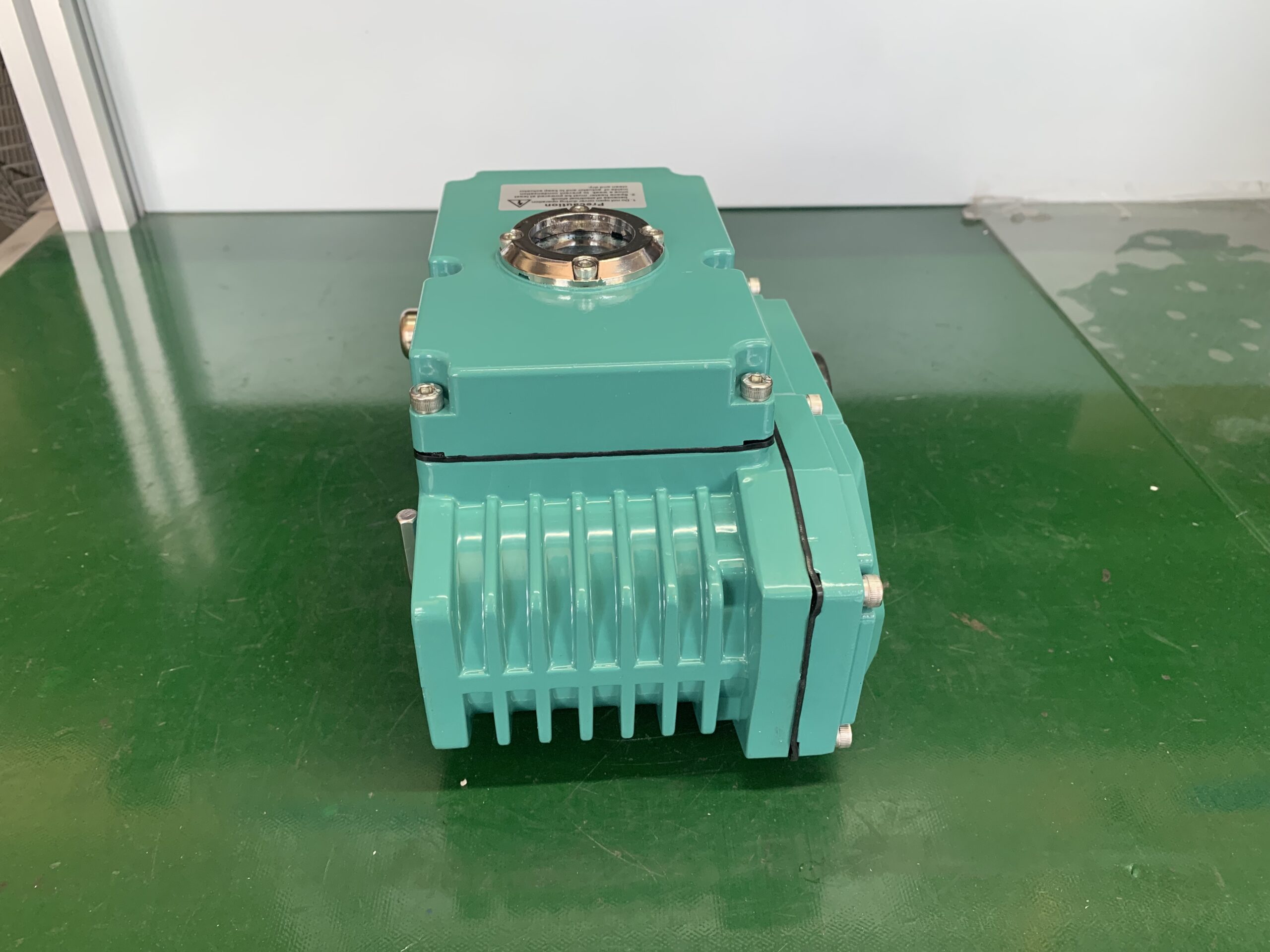

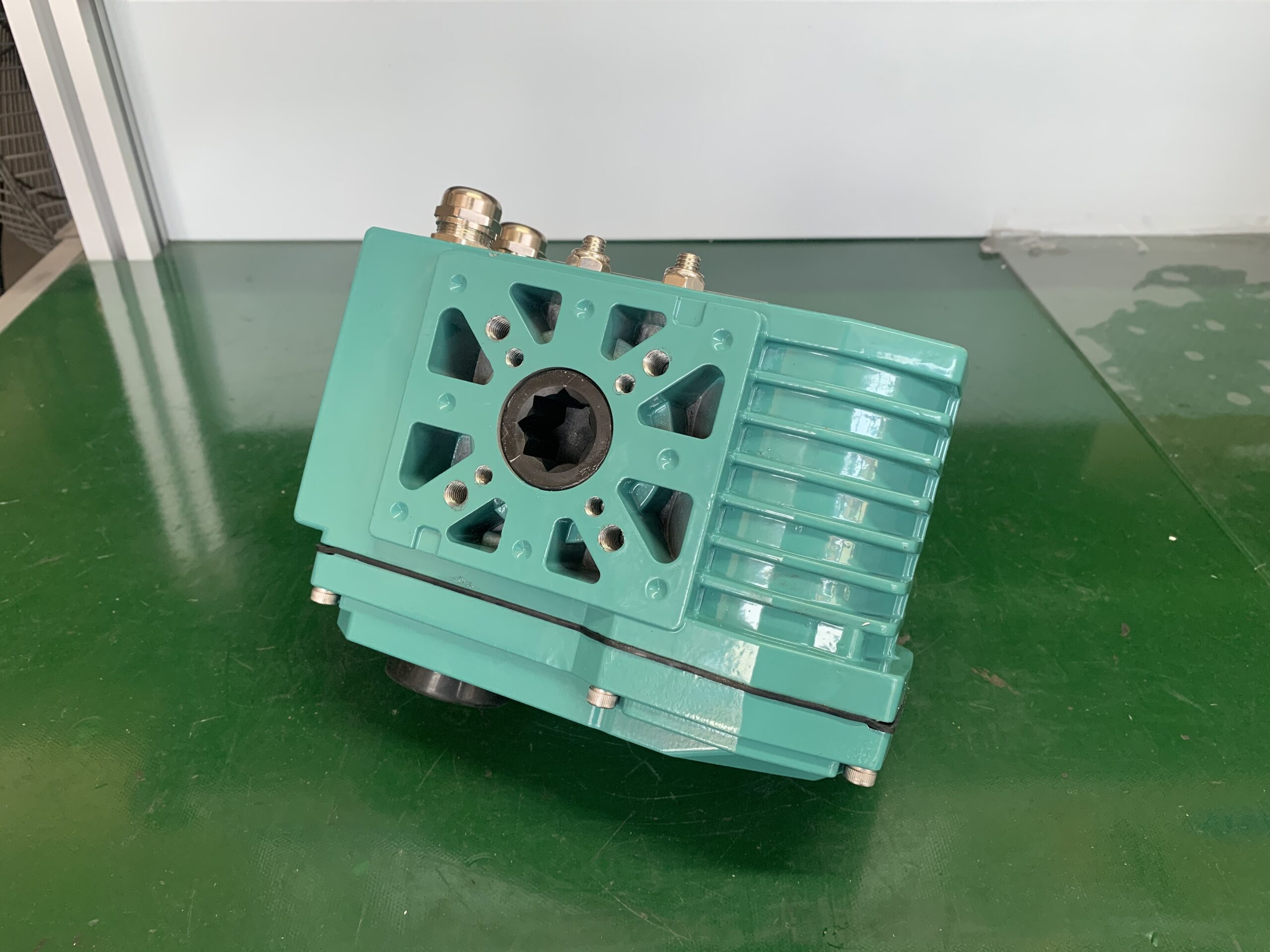

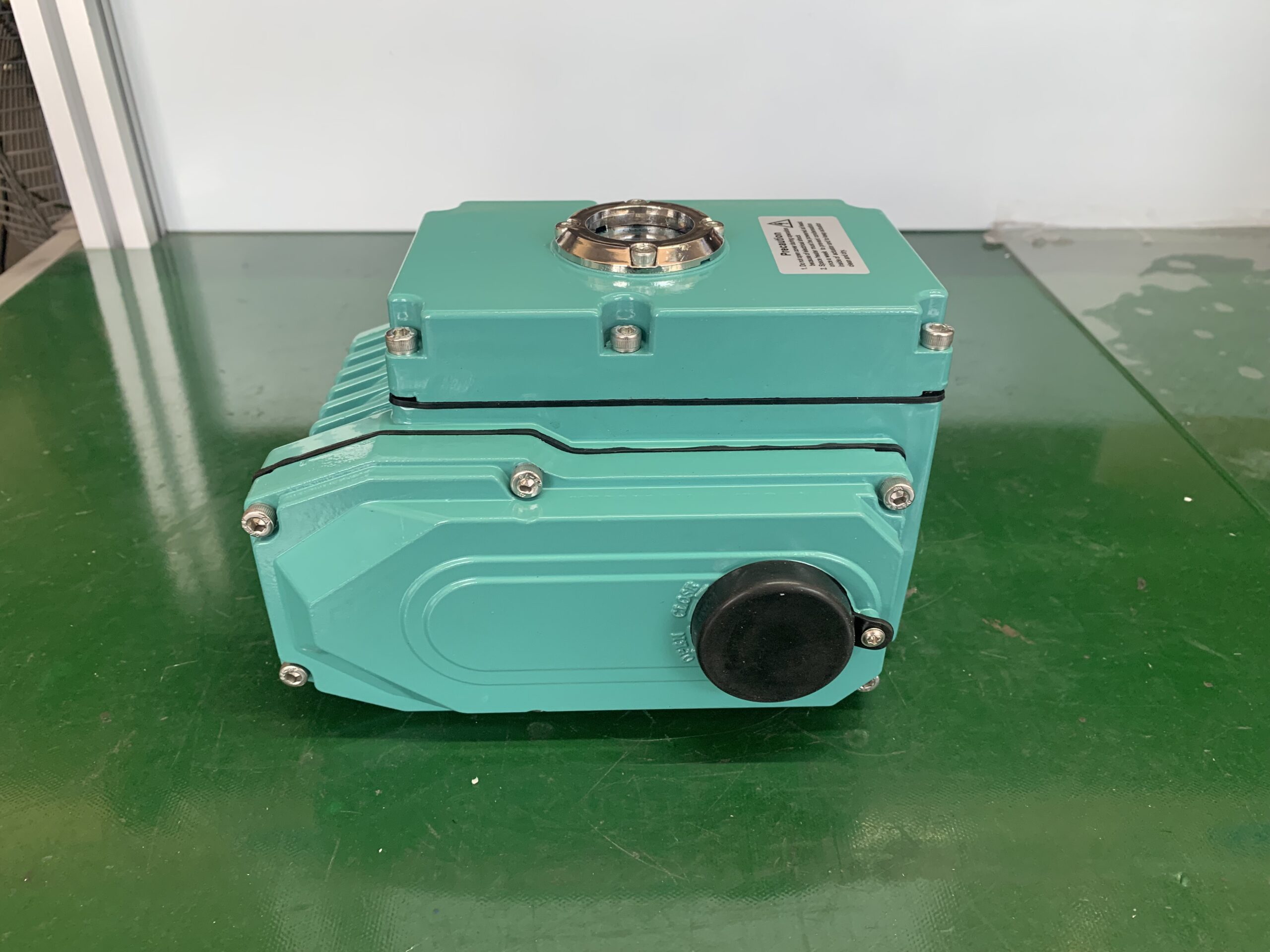

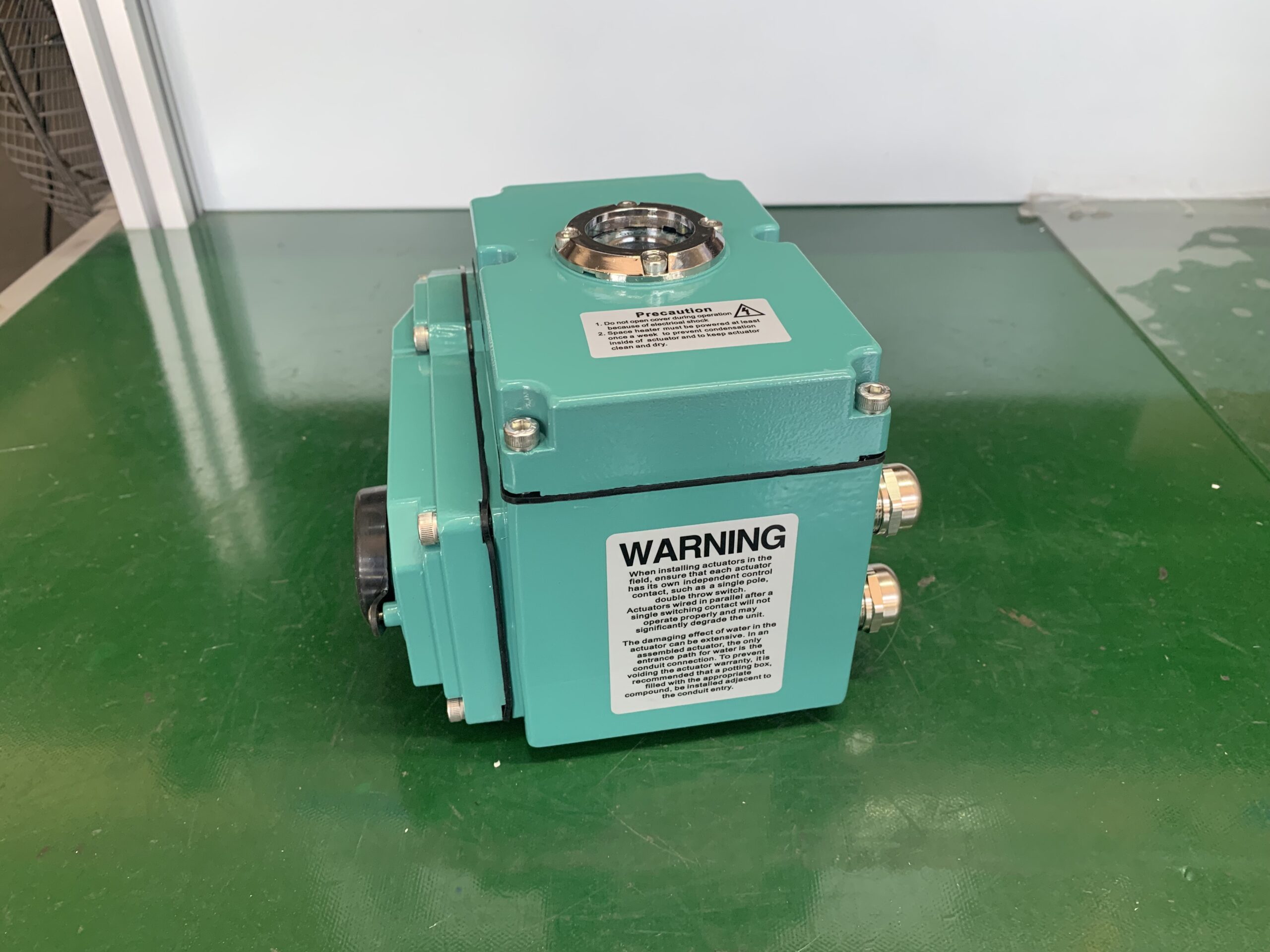

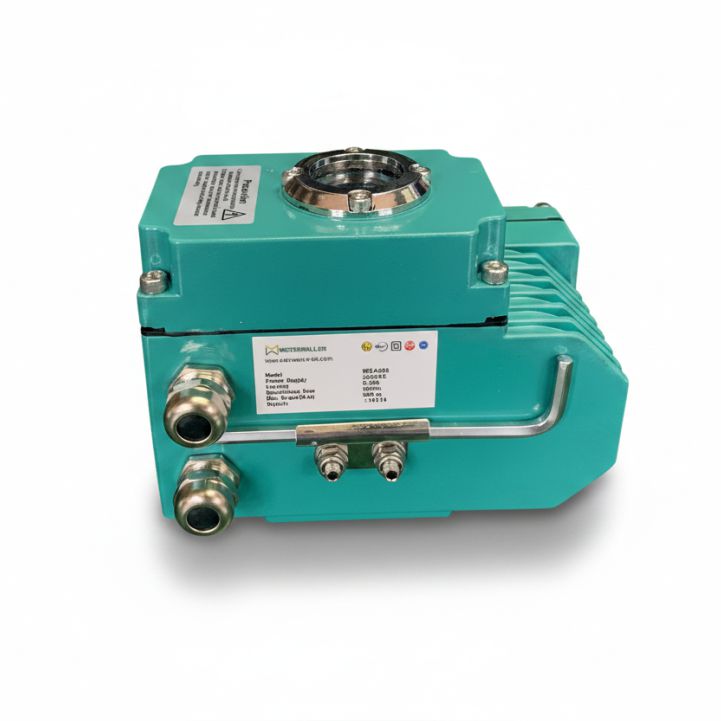

Electric Actuator
| Type | Electric Actuator |
| Power Supply | AC 220V / 380V, 50/60Hz (Optional: DC 24V) |
| Torque Range | 50 Nm – 2000 Nm |
| Control Signal | On/Off / Modulating (4–20 mA, 0–10V) |
| Operation | Quarter Turn / Multi Turn |
| Protection Class | IP67 / IP68 (Optional) |
| Ambient Temperature | -20°C to +70°C |
| Limit Switch | Open / Close Position Limit Switch |
| Manual Override | Handwheel / Manual Operation Available |
| Mounting Standard | ISO 5211 |
| Housing Material | Aluminum Alloy / Cast Iron |
| Application | Water Treatment, Oil & Gas, Power Plant, General Industry |
