Quarter-Turn Electric Actuator
WEA Series Electric Actuator for Quarter-Turn Valve Automation
WEISSMILLER Quarter-Turn Electric Actuator is designed for automatic operation of industrial valves such as butterfly valves, ball valves, and other quarter-turn valves. With electric motorized control, manual override support, and compact actuator construction, the WEA Series provides reliable valve automation for water, utility, and industrial piping systems.
Request Quotation
Product Overview
The WEA Series Quarter-Turn Electric Actuator converts electrical power into rotary movement for opening and closing valves. It is suitable for valve automation applications where stable electric operation is required without compressed air supply.
Based on the product nameplate, the sample model shown is WEA050 with 220VAC power supply, 0.9A current, 30 second open/close time, 500 N.m maximum torque, and 27 x 27 square output connection. The actuator is suitable for quarter-turn valve operation and can be paired with compatible butterfly valves, ball valves, and plug valves.
Key Features
Quarter-Turn Operation
Designed for 90-degree valve operation commonly used on butterfly valves, ball valves, and plug valves.
Electric Motorized Control
Operates valves using electric power, suitable for systems where pneumatic air supply is not available.
Manual Override
Equipped with manual override mechanism for emergency or maintenance operation when required.
Visual Position Indicator
Top indicator allows easy checking of valve open and close position during operation.
Compact Body Design
Compact actuator housing supports easier installation on valve assemblies and industrial piping systems.
Valve Automation Ready
Suitable for automated control of compatible quarter-turn valves in water and industrial applications.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Quarter-Turn Electric Actuator |
| Series | WEA Series |
| Brand | WEISSMILLER |
| Sample Model | WEA050 |
| Power Supply | 220VAC |
| Current | 0.9A |
| Open / Close Time | 30 sec |
| Max Torque | 500 N.m |
| Square Output | 27 x 27 |
| Operation | Electric Motorized Quarter-Turn Operation |
| Rotation Angle | 90° |
| Manual Operation | Manual Override Available |
| Position Indicator | Open / Close Visual Indicator |
| Compatible Valve | Butterfly Valve, Ball Valve, Plug Valve, and Other Quarter-Turn Valves |
| Application | Water Treatment, Utility Line, Industrial Piping, and Process Control |
Note: Technical data shown is based on sample model WEA050. Actuator model, torque, power supply, operating time, and output square size should be selected based on valve size, valve torque requirement, and project specification.
Product Details

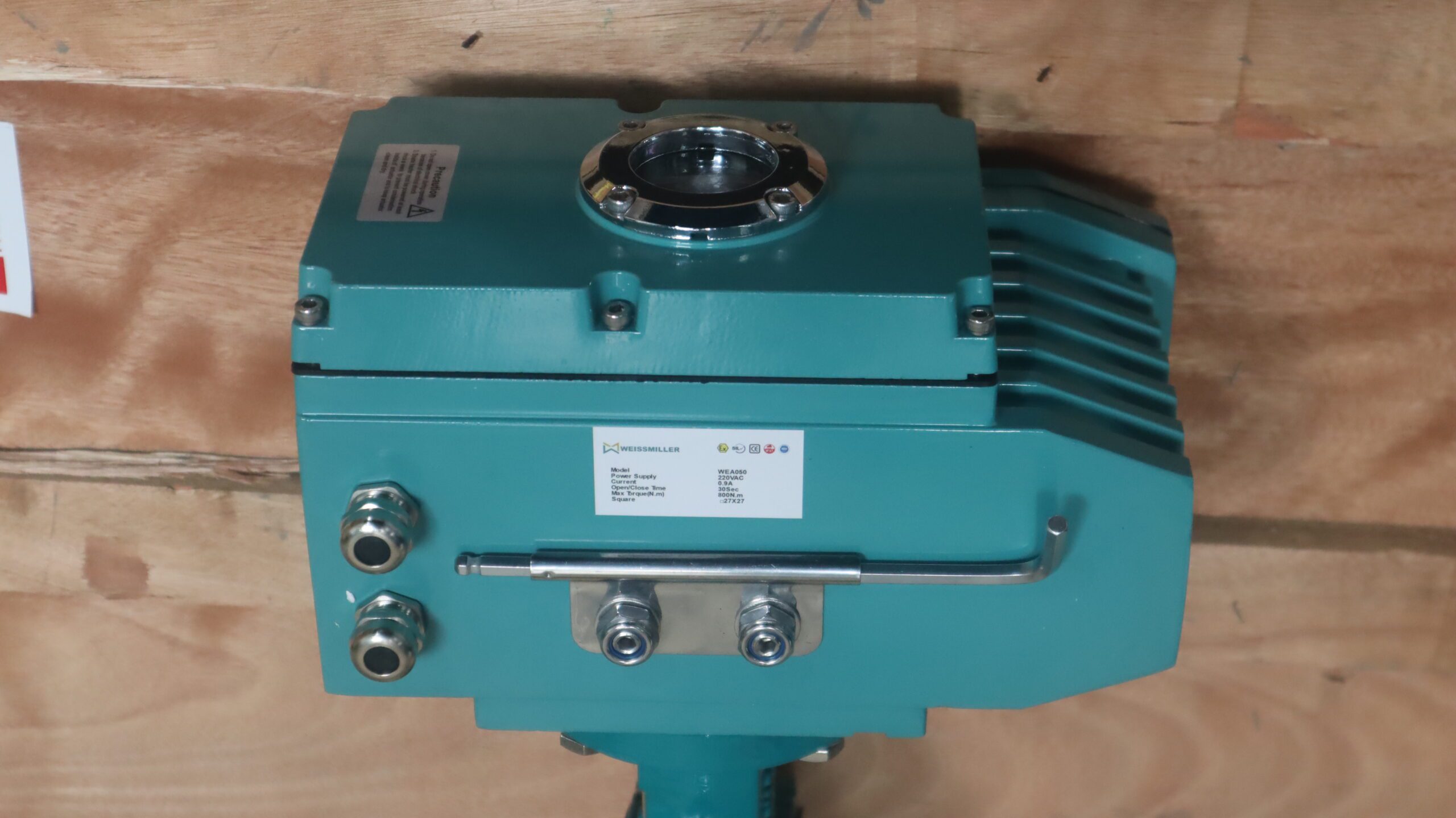

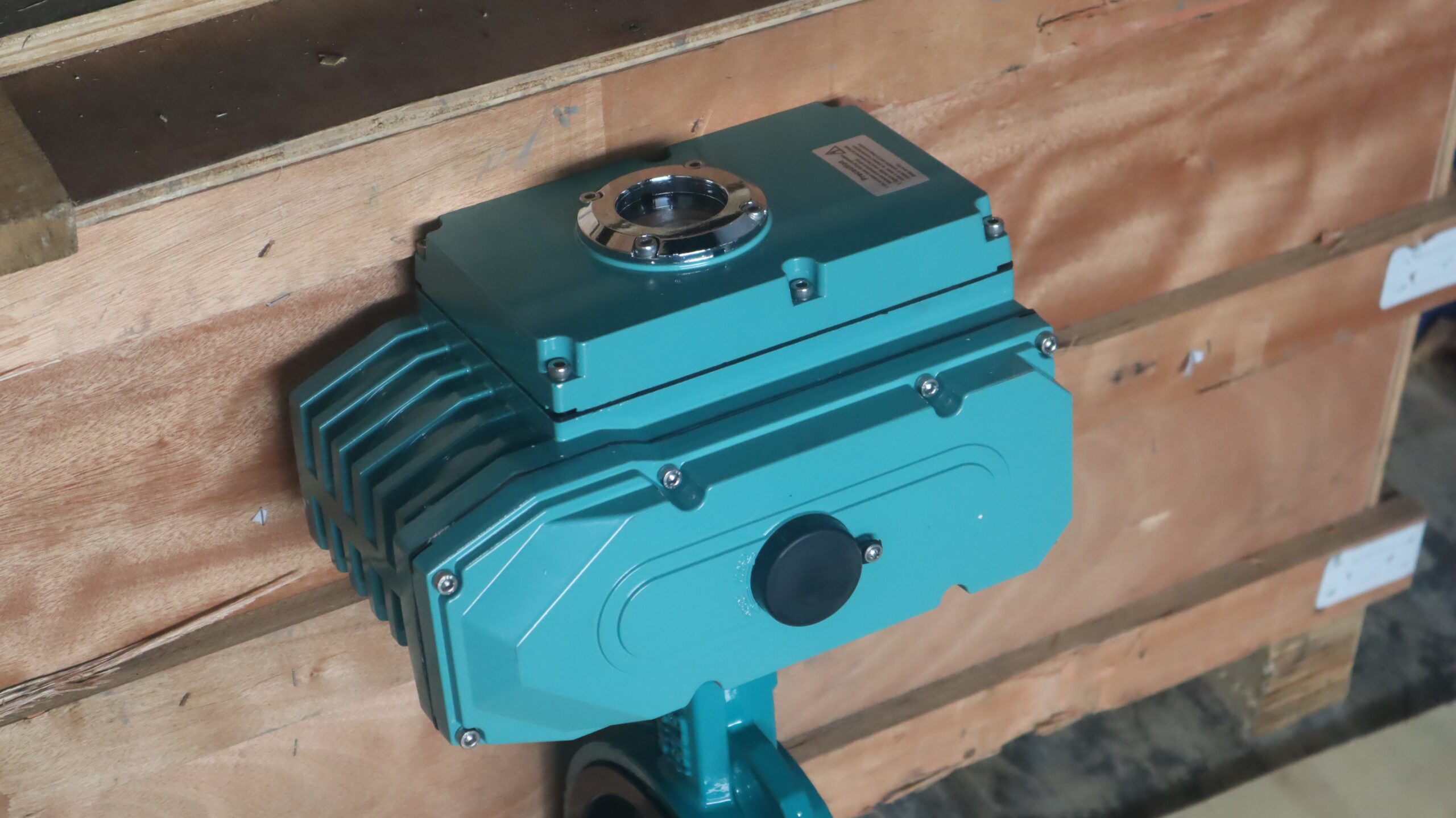

Additional product views showing the electric actuator body, visual position indicator, manual override mechanism, cable entry, output mounting area, and nameplate details for easier actuator selection and valve automation planning.
