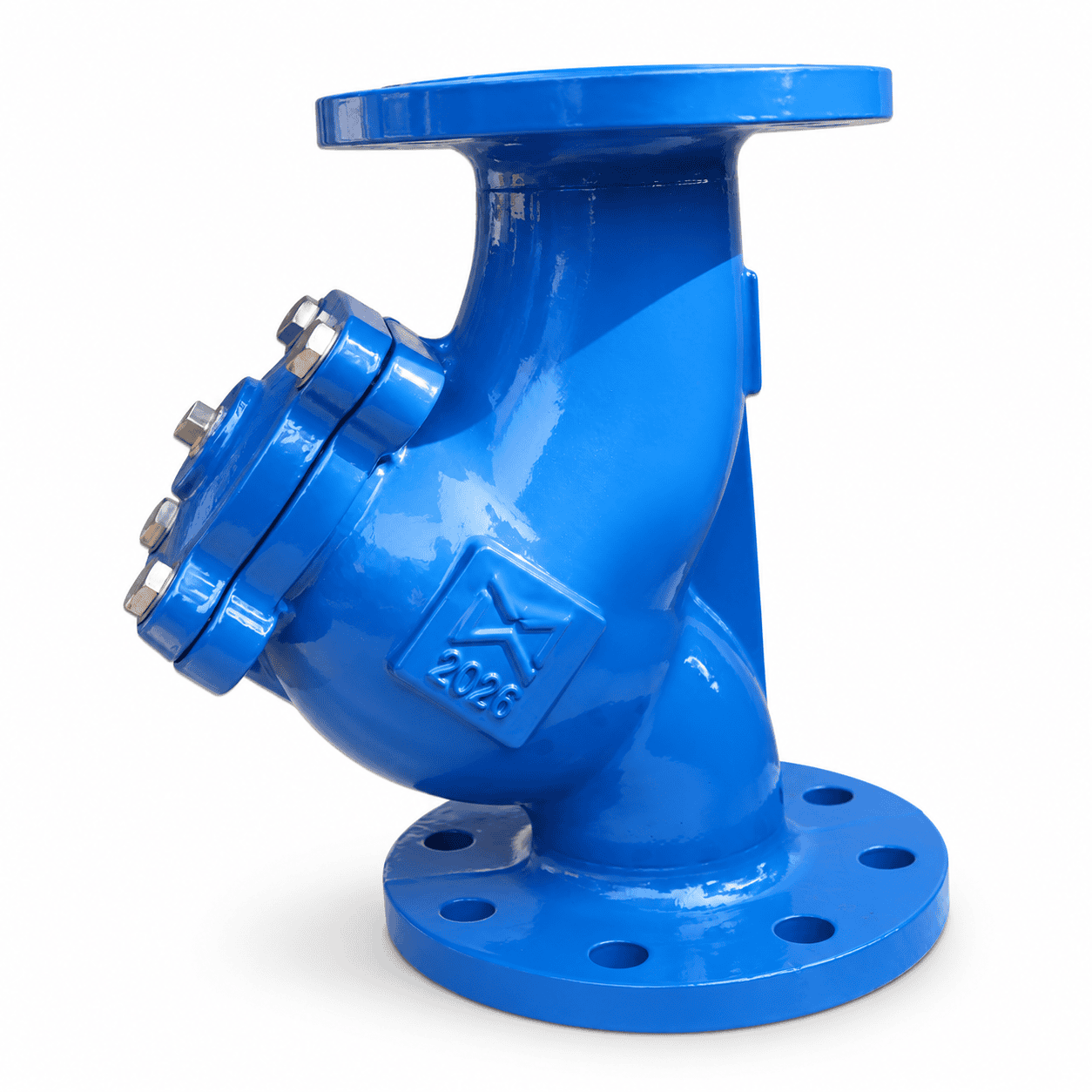

Flanged Y Strainer
3 Inch PN16 Flanged Y Strainer with DI Body and SS304 Screen
WEISSMILLER Flanged Y Strainer is designed for pipeline filtration and equipment protection in industrial piping systems. With ductile iron body construction, RF flanged connection, PN16 pressure rating, and SS304 screen, this strainer helps remove debris and solid particles from the flow before they reach pumps, valves, meters, and other downstream equipment.
Request Quotation
Product Overview
Flanged Y Strainer is a pipeline protection device used to filter unwanted solid particles from liquid flow. The Y-type body design allows fluid to pass through the strainer screen while debris is collected inside the screen chamber for cleaning and maintenance.
Based on the product nameplate, the sample product shown is a 3 Inch PN16 Y-Strainer with DI body, SS304 screen, and RF flange connection. The bolted cover design allows access to the screen for inspection and cleaning during maintenance.
Key Features
Y-Type Strainer Design
Designed to filter debris and solid particles from pipeline flow while maintaining compact installation.
DI Body Construction
Ductile iron body provides strong construction for water, utility, and general industrial piping applications.
SS304 Screen
Stainless steel screen helps capture unwanted particles and supports corrosion resistance in filtration service.
PN16 Pressure Rating
Suitable for PN16 pipeline systems requiring reliable filtration and downstream equipment protection.
RF Flanged Connection
Raised face flanged end connection supports secure installation to compatible pipeline flanges.
Bolted Cover Access
Bolted cover allows access to the internal screen for inspection, cleaning, and maintenance.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Flanged Y Strainer |
| Valve / Equipment Type | Y-Strainer |
| Brand | WEISSMILLER |
| Size | 3 Inch |
| Pressure Rating | PN16 |
| Working Pressure | PN16 / 16 bar |
| Connection | RF Flange |
| Body Material | DI / Ductile Iron |
| Cover Material | DI / Ductile Iron |
| Screen Material | SS304 Screen |
| Screen Type | SS304 Perforated / Mesh Screen |
| Cover Type | Bolted Cover |
| Screen Access | Removable Bolted Cover for Screen Inspection and Cleaning |
| Function | Pipeline Filtration and Equipment Protection |
| Suitable Media | Water, Clean Water, Utility Water, and General Non-Corrosive Fluid |
| Installation | Installed According to Flow Direction |
| Application | Water Treatment, Pump Protection, Utility Line, Industrial Piping, and Process Line |
Note: Mesh size, perforation size, gasket material, working temperature, drain plug size, and flange standard should be confirmed based on the final project requirement.
Product Details

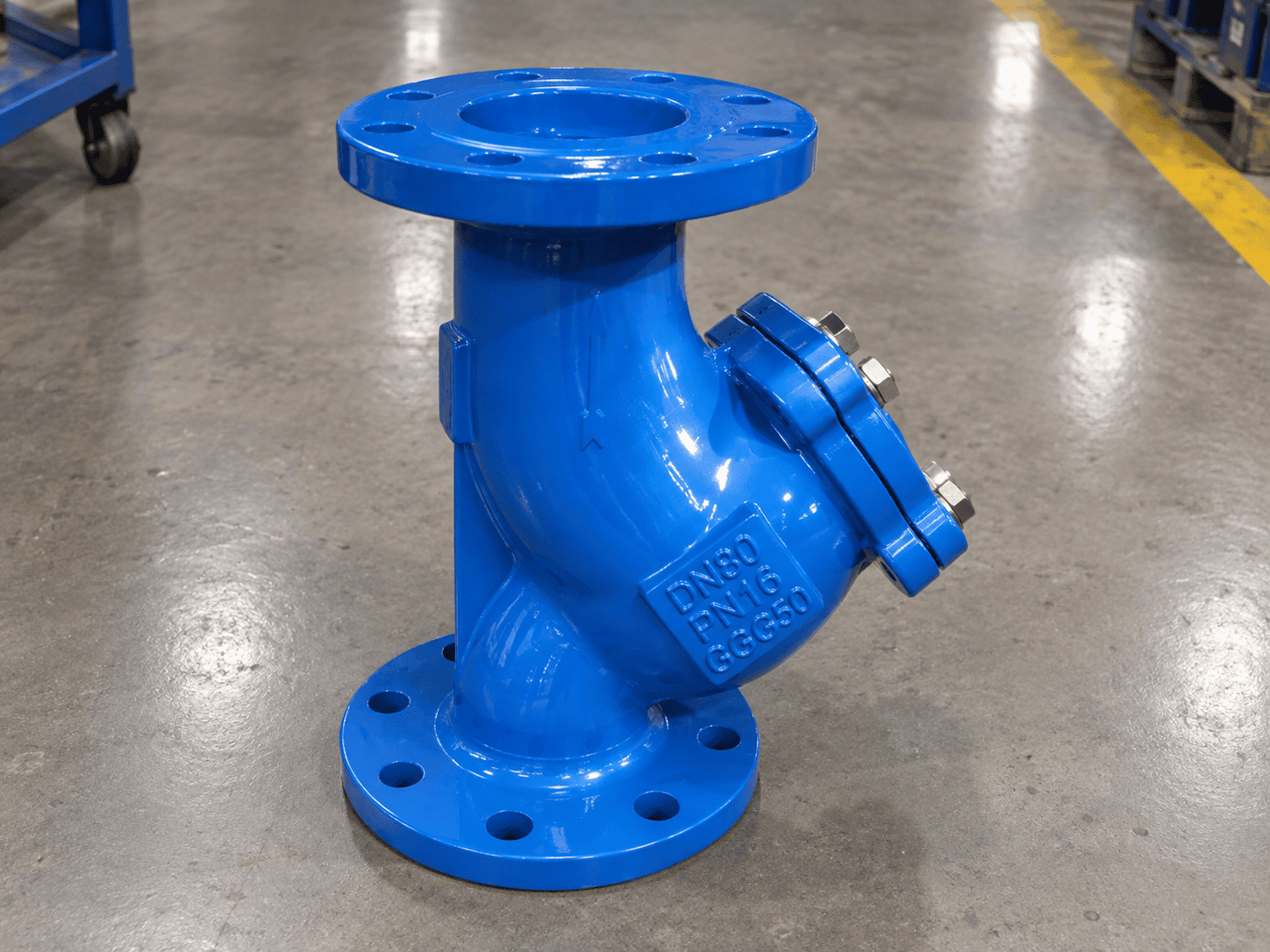

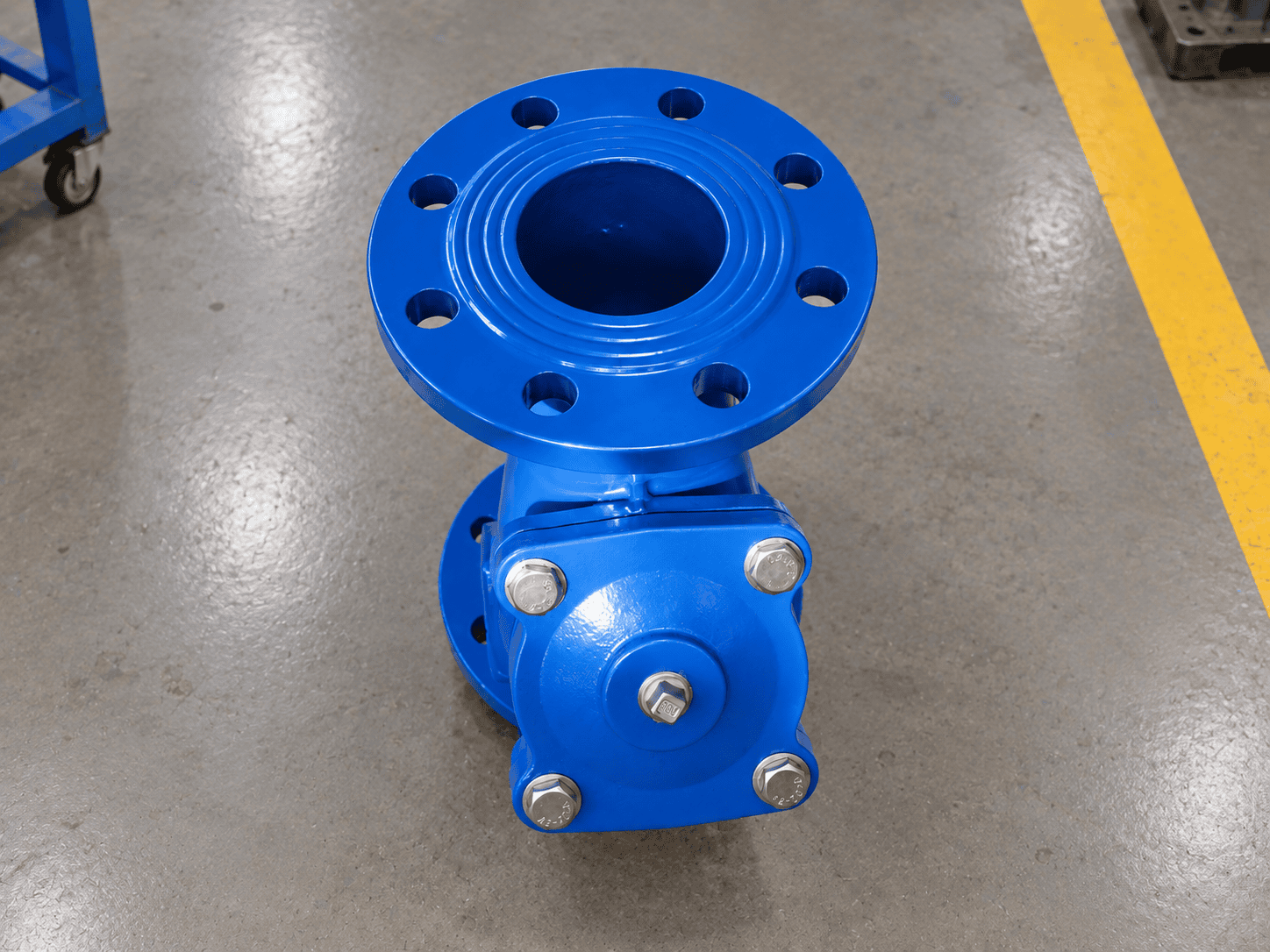

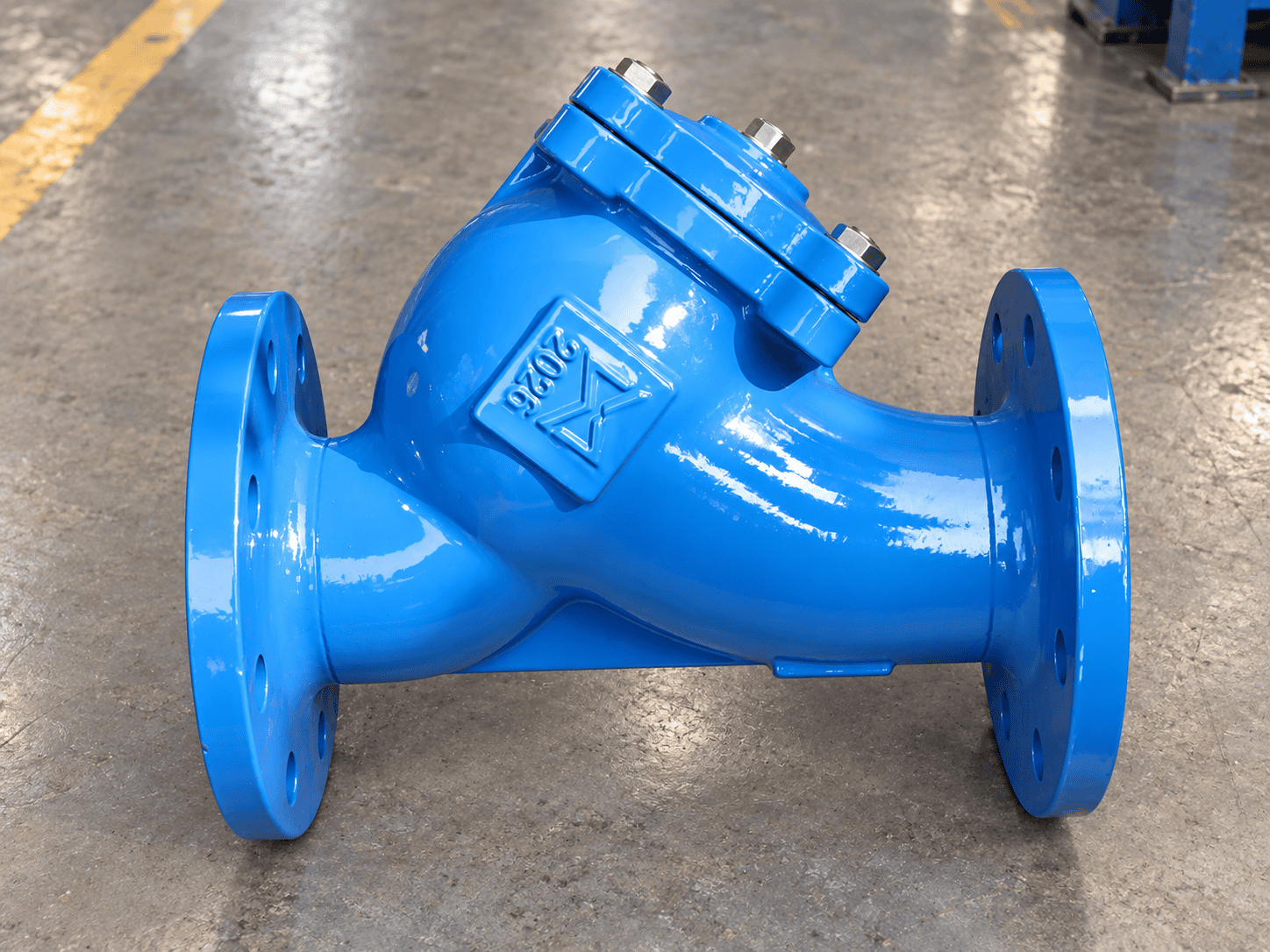

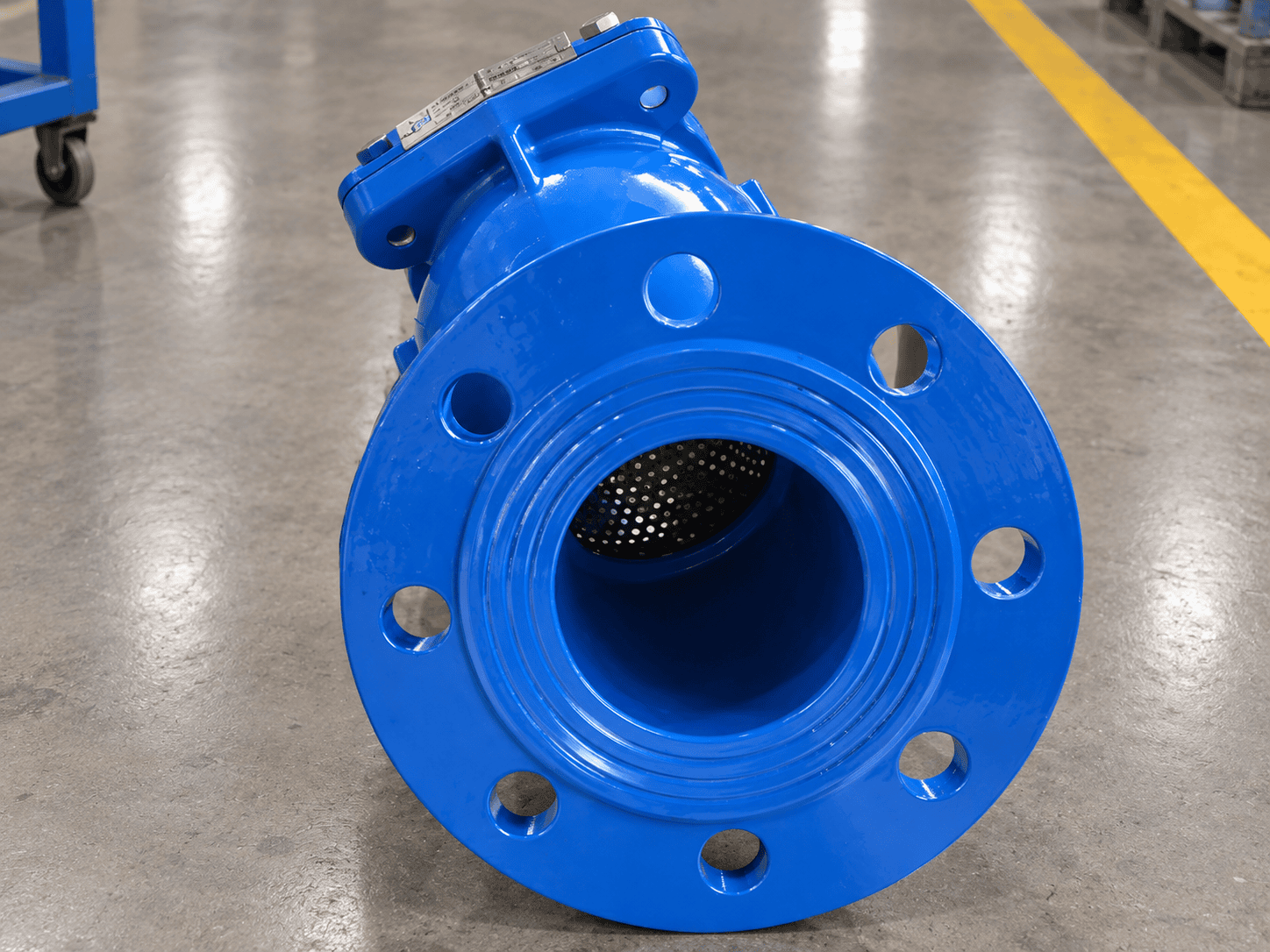

Additional product views showing the blue Y-type body, RF flanged ends, bolted cover, product nameplate, and internal SS304 screen for easier product identification and technical review.
Applications
Related Products
Gate Valve
Isolation valve used for fully open or fully closed flow control in industrial piping systems.
Check Valve
Non-return valve used to prevent reverse flow and protect pumps and pipeline equipment.
Butterfly Valve
Quarter-turn valve used for isolation and flow control in water and industrial applications.
Need Flanged Y Strainer?
Contact our technical sales team for Y strainer selection, screen requirement, flange compatibility review, material confirmation, and quotation.
