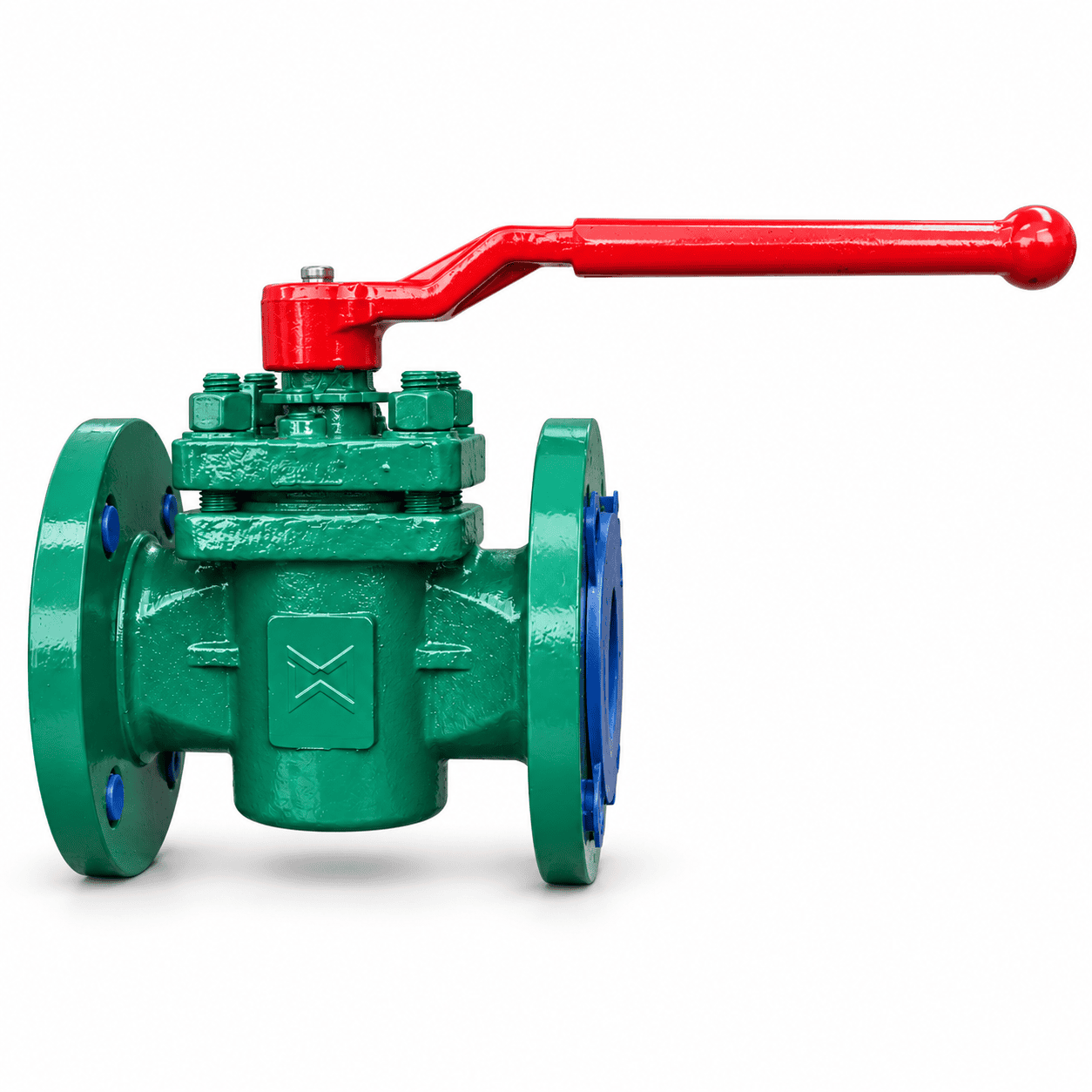

Plug Valve
WEISSMILLER Plug Valve is designed for reliable on-off flow isolation in industrial piping systems. Its compact quarter-turn construction provides fast operation, simple handling, and dependable shut-off performance for various industrial media and process applications.
Request Quotation
Product Overview
A plug valve is a quarter-turn valve that uses a cylindrical or tapered plug to control fluid flow through the valve body. By rotating the plug approximately 90 degrees, the flow passage can be opened or closed quickly.
WEISSMILLER Plug Valve can be supplied in different body materials, lining materials, pressure ratings, connection standards, and operating methods depending on project requirements and service conditions.
Key Features
Quarter-Turn Operation
Fast open and close operation with approximately 90-degree plug rotation.
Reliable Flow Isolation
Designed for dependable shut-off service in industrial piping and process applications.
Compact Construction
Simple valve construction provides compact installation and straightforward operation.
Various Material Options
Available with carbon steel, stainless steel, lined construction, and other materials based on service requirements.
Multiple Connection Standards
Available with flanged and other connection configurations depending on pipeline requirements.
Manual or Automated Operation
Can be operated by lever, gearbox, pneumatic actuator, or electric actuator depending on valve size and project requirement.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Plug Valve |
| Available Design | Lined Plug Valve / Lubricated Plug Valve / Non-Lubricated Plug Valve / Project-Based Design |
| Body Material | Carbon Steel / Stainless Steel / Ductile Iron / Other Material by Request |
| Plug Material | Carbon Steel / Stainless Steel / PTFE Lined / Other Material by Application |
| Lining / Seat Material | PTFE / PFA / Elastomer / Metal / Other Material by Application |
| Connection | Flanged / Threaded / Other Connection by Project Requirement |
| Pressure Rating | JIS / PN / ANSI Class / Other Rating by Requirement |
| Operation | Lever / Gearbox / Pneumatic Actuator / Electric Actuator |
| Function | On-Off Flow Isolation |
| Application | Chemical Processing, Water Treatment, Utility, Petrochemical, Industrial Process, and General Industry |
Note: Plug valve specification may vary depending on media, operating pressure, temperature, material compatibility, connection standard, and project requirement.
