5/2 Way Pneumatic Solenoid Valve
5/2 Way Pneumatic Solenoid Valve for Actuator Air Control
WEISSMILLER 5/2 Way Pneumatic Solenoid Valve is designed to control air supply direction for pneumatic actuator operation. With solenoid-operated directional control, 220V AC coil, IP65 protection, and 0.15–0.8 MPa working pressure range, this valve is suitable for automated valve systems using pneumatic actuators.
Request Quotation
Product Overview
Pneumatic Solenoid Valve is an actuator control accessory used to direct compressed air to pneumatic actuators. It allows the actuator to open and close valves automatically based on electrical control signals from a panel, PLC, or automation system.
Based on the product marking, the sample model shown is 4M310-08 with 0.15–0.8 MPa pressure range. The solenoid coil is marked EVI 7/9 with 220V AC, 6.0VA power consumption, 50/60Hz frequency, 100% ED duty cycle, and IP65 protection.
Key Features
5/2 Way Directional Control
Designed to control air flow direction for pneumatic actuator open and close operation.
220V AC Coil
Equipped with 220V AC solenoid coil for electrical control from automation panels or control systems.
0.15–0.8 MPa Pressure Range
Suitable for pneumatic actuator control applications using compressed air supply.
IP65 Coil Protection
Coil protection rating supports reliable operation in industrial valve automation environments.
DIN Connector
Transparent DIN connector supports wiring installation and easy visual checking of the coil connection.
Actuator Control Ready
Suitable for pneumatic actuated butterfly valves, ball valves, and other automated valve assemblies.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Pneumatic Solenoid Valve |
| Valve Type | 5/2 Way Directional Control Valve |
| Brand | WEISSMILLER |
| Sample Model | 4M310-08 |
| Pressure Range | 0.15–0.8 MPa |
| Operation | Solenoid Operated Pneumatic Directional Control |
| Coil Type | EVI 7/9 |
| Coil Voltage | 220V AC |
| Power Consumption | 6.0VA |
| Frequency | 50/60Hz |
| Duty Cycle | 100% ED |
| Coil Protection | IP65 |
| Connector Type | DIN Connector |
| Body Color | Black |
| Applicable Actuator | Pneumatic Actuator |
| Compatible Valve Assembly | Pneumatic Actuated Butterfly Valve, Ball Valve, and Other Quarter-Turn Valve Assemblies |
| Application | Actuator Air Control, Valve Automation, Pneumatic Control System, and Industrial Piping Automation |
Note: Port thread size, body material, manual override type, and operating temperature should be confirmed based on the actual installation requirement or final product datasheet.
Product Details

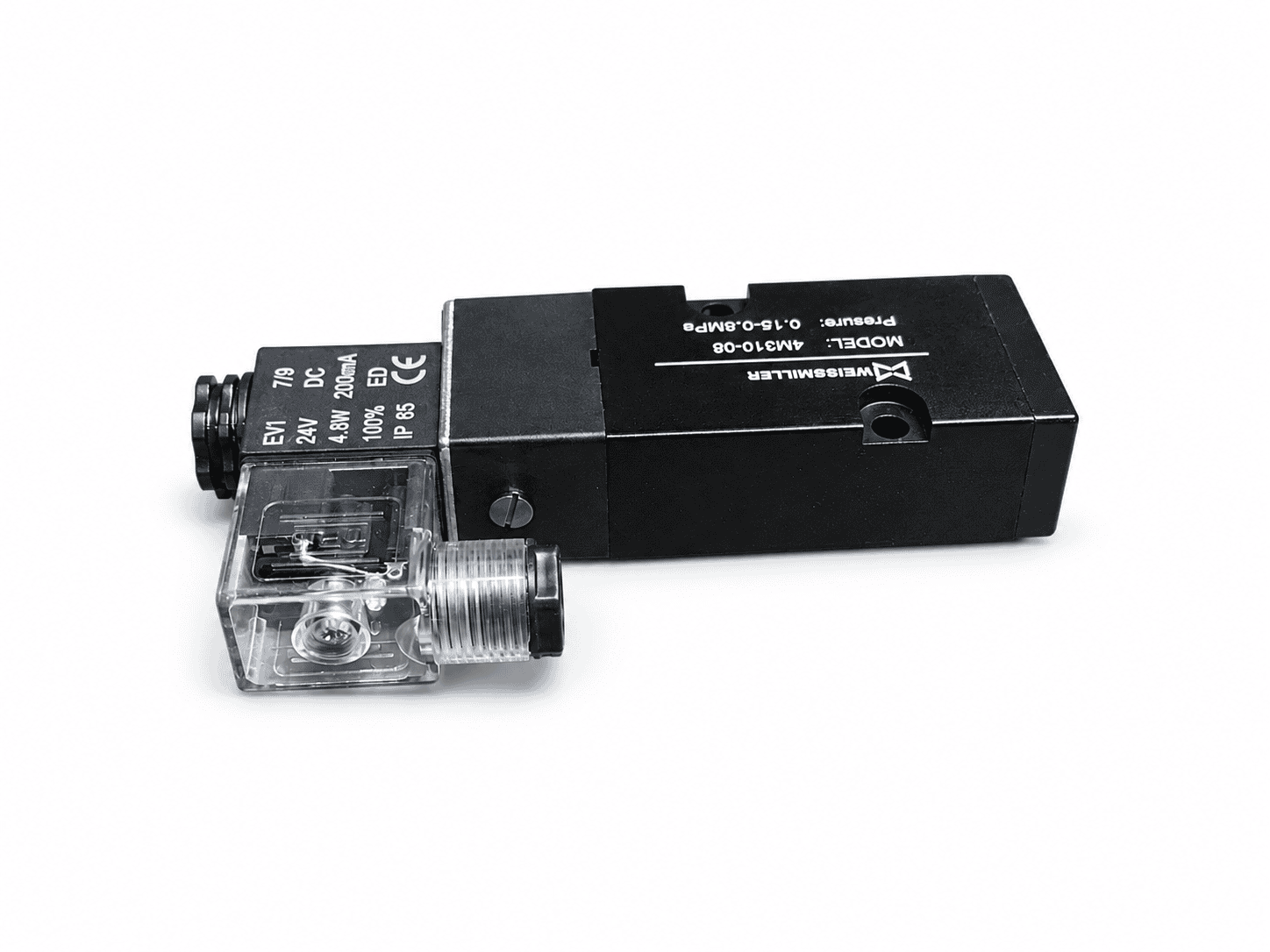

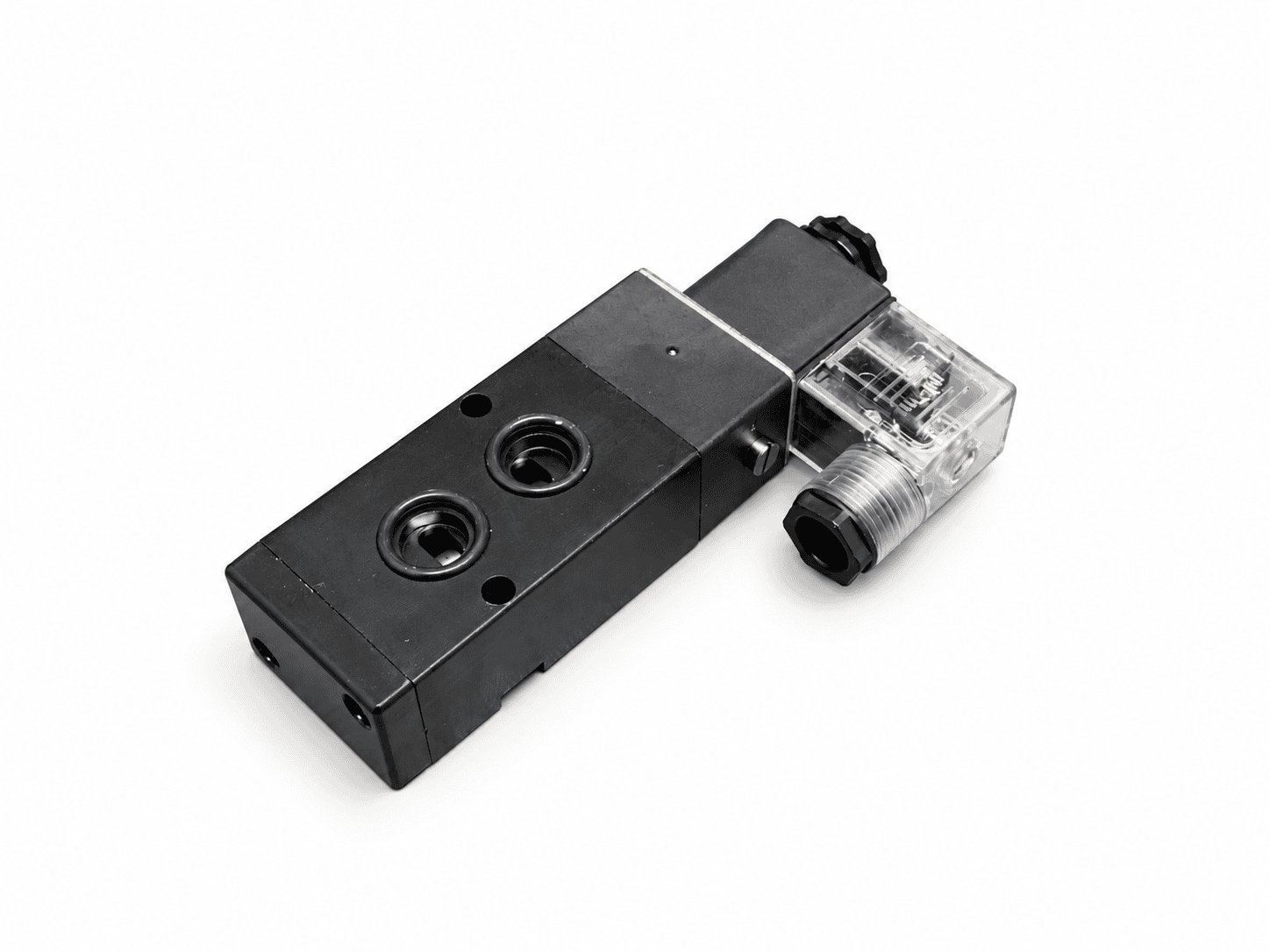

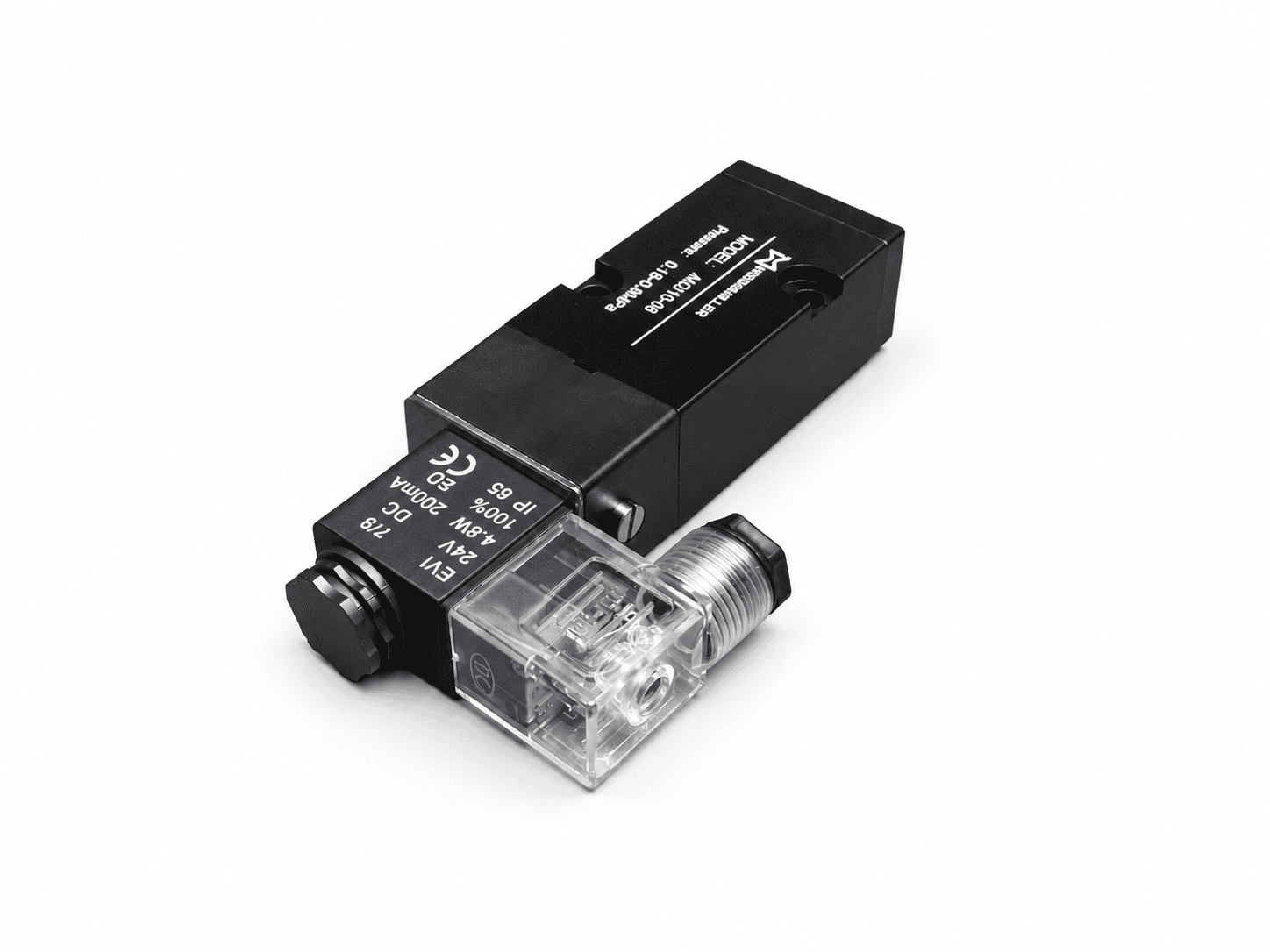

Additional product views showing the solenoid valve body, pneumatic ports, coil marking, transparent DIN connector, product model marking, and packaging accessories for easier product identification and installation planning.
Applications
