Valve Positioner for Pneumatic Control Valve Actuation
WEISSMILLER Valve Positioner is designed to improve positioning accuracy and control performance of pneumatic control valves. It receives a 4–20 mA DC control signal and adjusts pneumatic output to the actuator, helping the valve reach the required opening position for stable process control.
Request Quotation
Product Overview
Valve Positioner is an important accessory for pneumatic control valve assemblies. It helps control the actuator movement based on the input signal from the control system, allowing more accurate valve opening and stable flow, pressure, or process regulation.
Based on the product label, the sample model shown is YT-1000LDM. The unit is an electro-pneumatic positioner with 4–20 mA DC input signal, explosion-proof construction, -20 to 70°C ambient temperature range, and 1.4–7 kgf/cm² supply pressure. The product is also equipped with a pressure gauge for easier air pressure monitoring.
Key Features
Accurate Valve Positioning
Helps pneumatic control valves achieve the required opening position for stable process control.
4–20 mA DC Input Signal
Suitable for connection with common control systems, PLC, DCS, and industrial automation panels.
Electro-Pneumatic Operation
Converts electrical control signal into pneumatic actuator positioning for control valve operation.
Explosion-Proof Construction
Designed with explosion-proof marking for industrial environments requiring safer field operation.
Pressure Gauge Included
Integrated gauge supports easier monitoring of pneumatic supply pressure during installation and operation.
Pneumatic Control Valve Ready
Suitable for use with pneumatic diaphragm actuators and linear control valve assemblies.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Valve Positioner |
| Positioner Type | Electro-Pneumatic Positioner |
| Brand | WEISSMILLER |
| Model Number | YT-1000LDM |
| Input Signal | 4–20 mA DC |
| Explosion Proof | Ex d IIC T6 |
| Ambient Temperature | -20 ~ 70°C |
| Supply Pressure | 1.4–7 kgf/cm² |
| Approx. Supply Pressure | 0.14–0.7 MPa / 20–100 psi |
| Operation | Electrical Signal to Pneumatic Actuator Positioning |
| Accessories | Pressure Gauge Included |
| Housing Color | Black |
| Applicable Actuator | Pneumatic Diaphragm Actuator |
| Applicable Valve | Globe Control Valve and Other Pneumatic Control Valve Assemblies |
| Application | Valve Position Control, Flow Control, Pressure Control, and Industrial Process Control |
Note: Input signal is written as 4–20 mA DC for standard control signal application. Air connection size, cable entry size, output pressure range, IP rating, and detailed mounting configuration should be confirmed based on the final project requirement.
Product Details

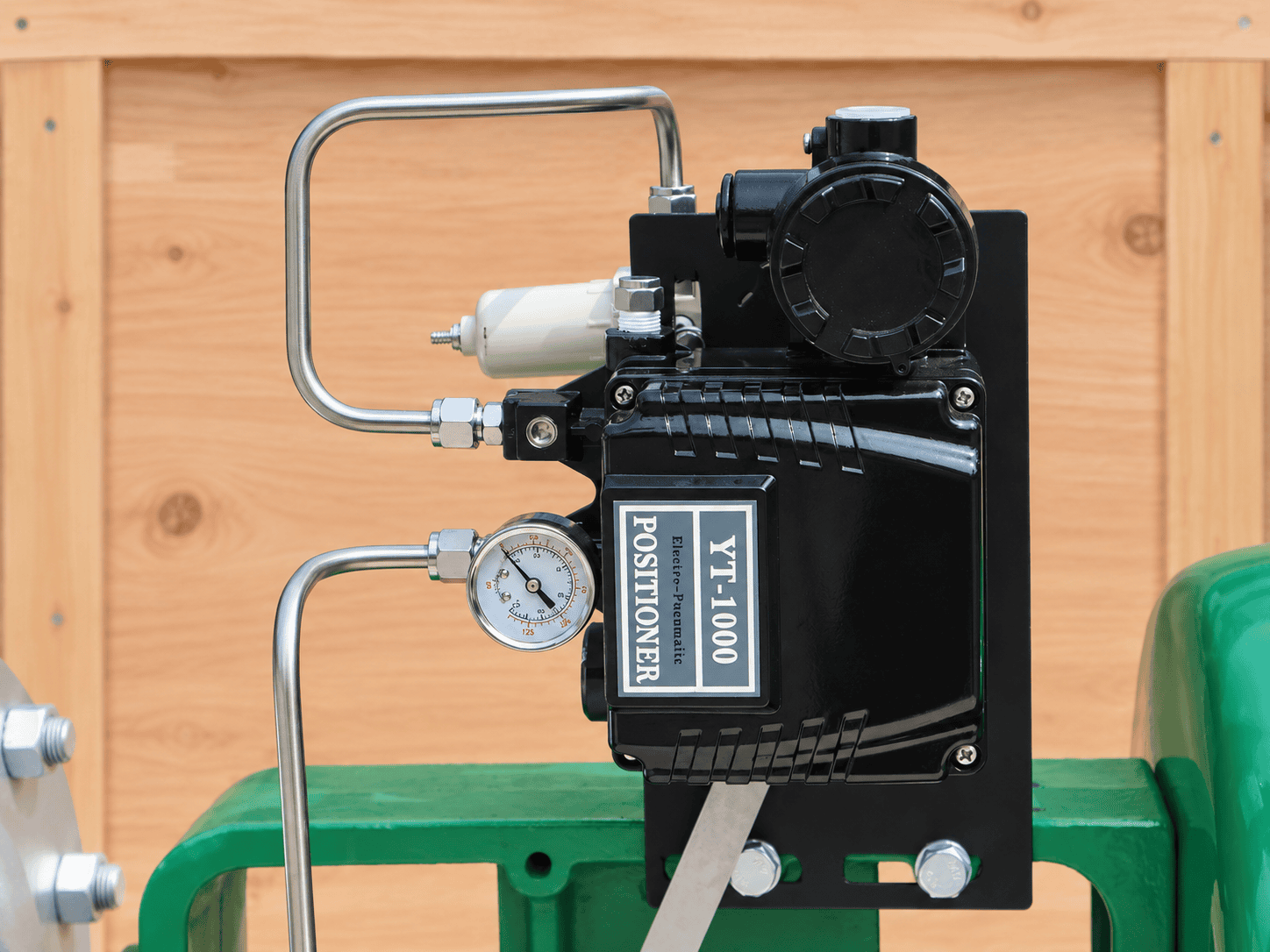

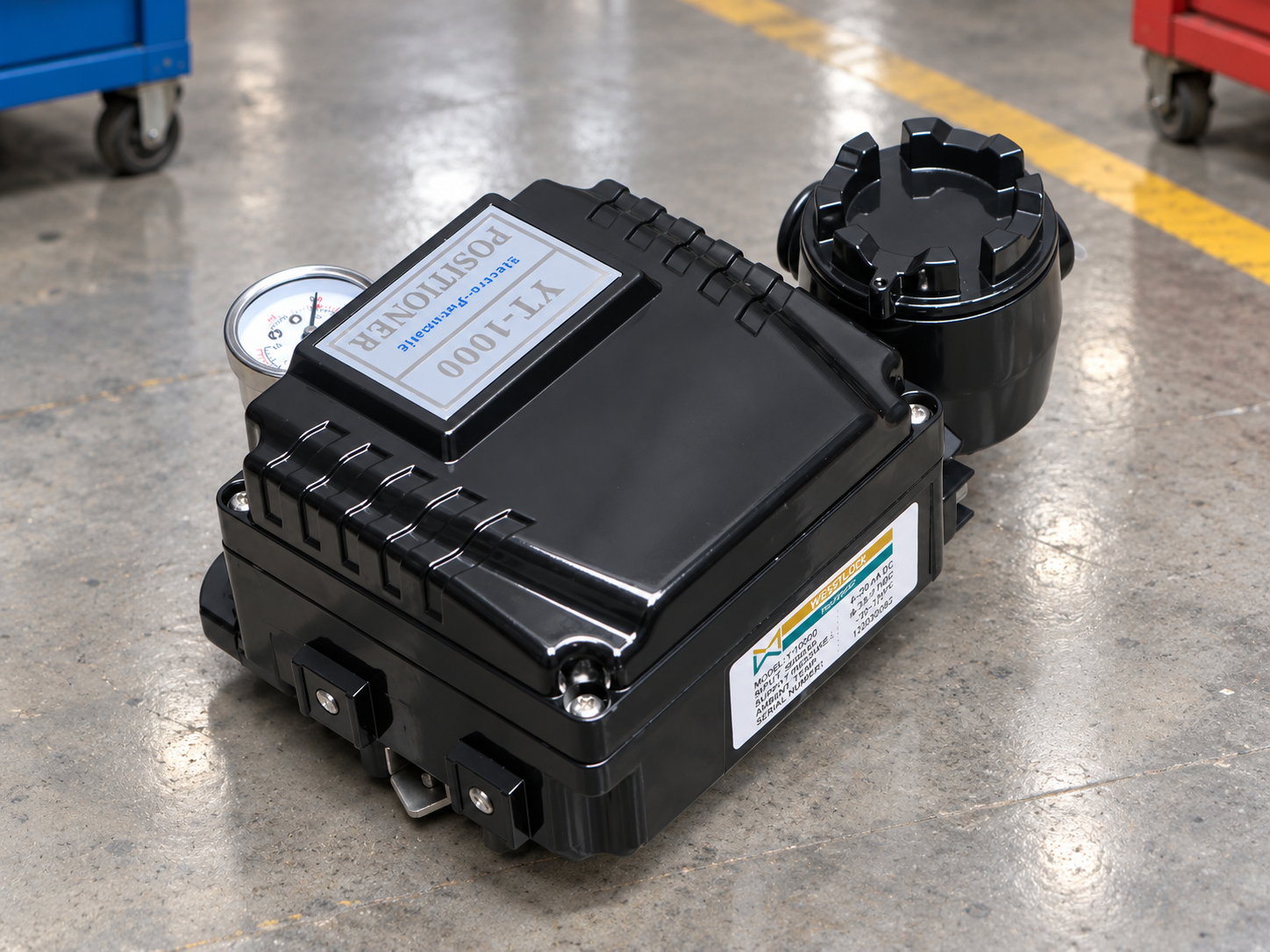

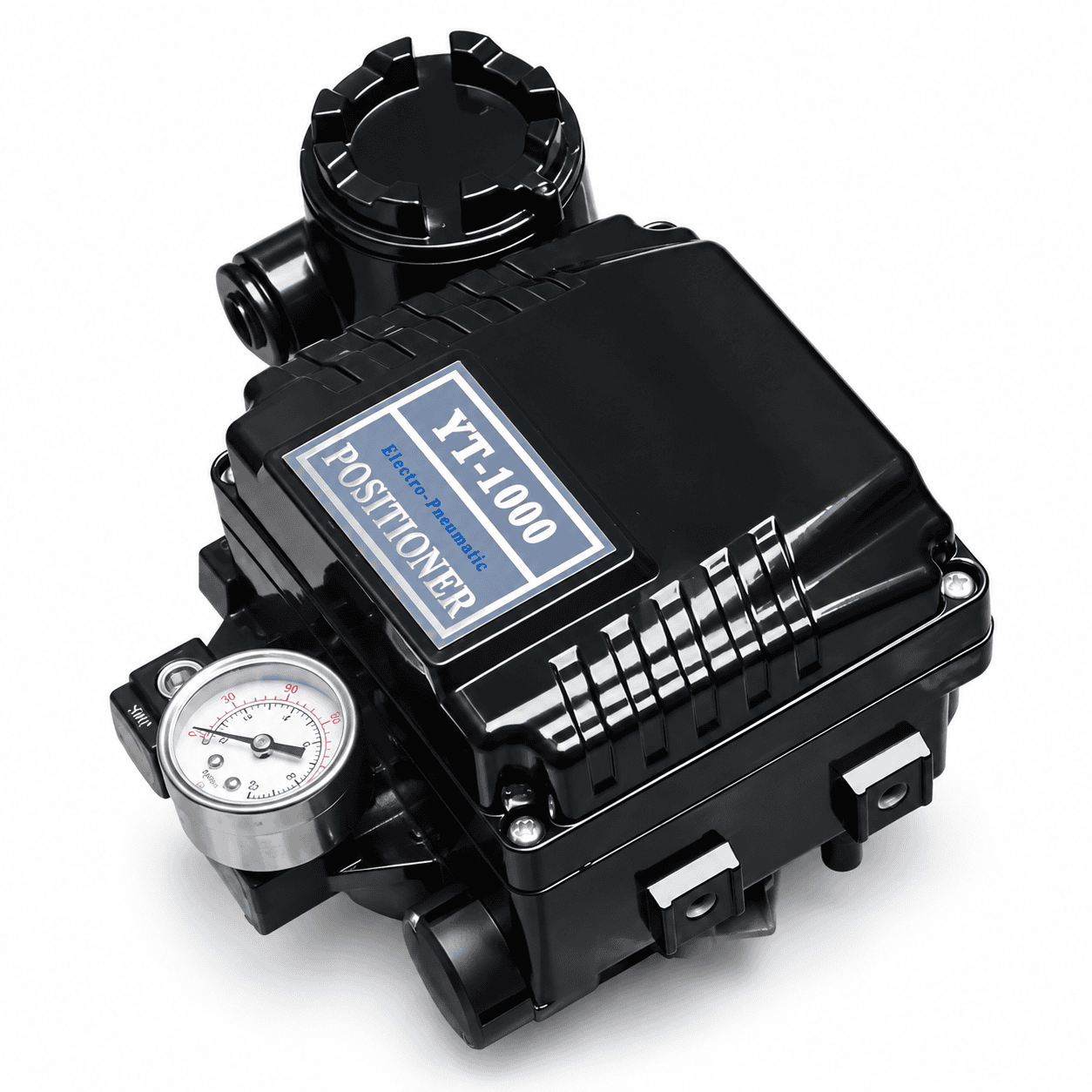

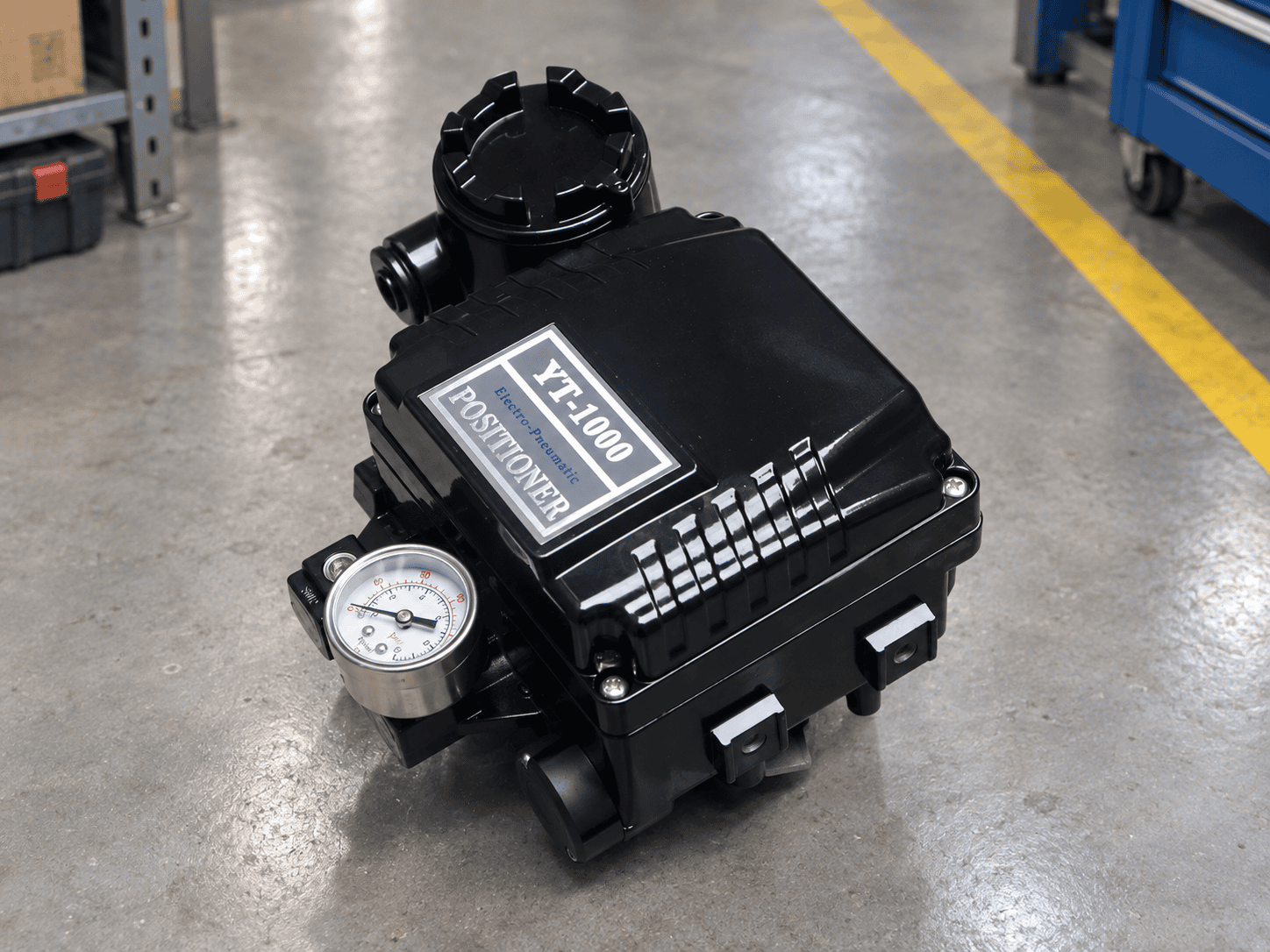

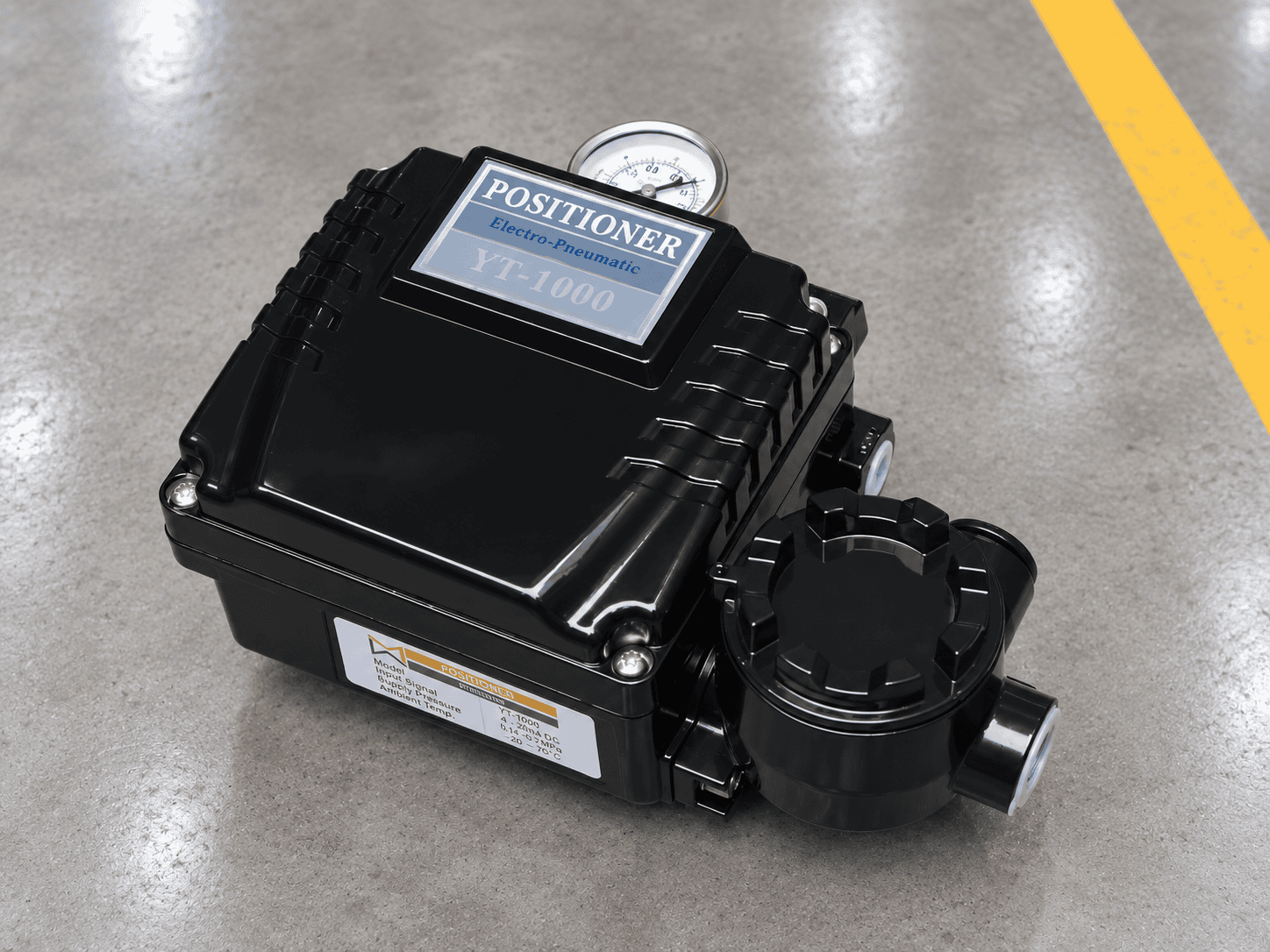

Additional product views showing the valve positioner housing, model label, pressure gauge, pneumatic connection ports, cover design, and product nameplate for easier product identification and technical review.
