Pneumatic Globe Control Valve
10 Inch Class 150 Pneumatic Globe Control Valve for Industrial Process Control

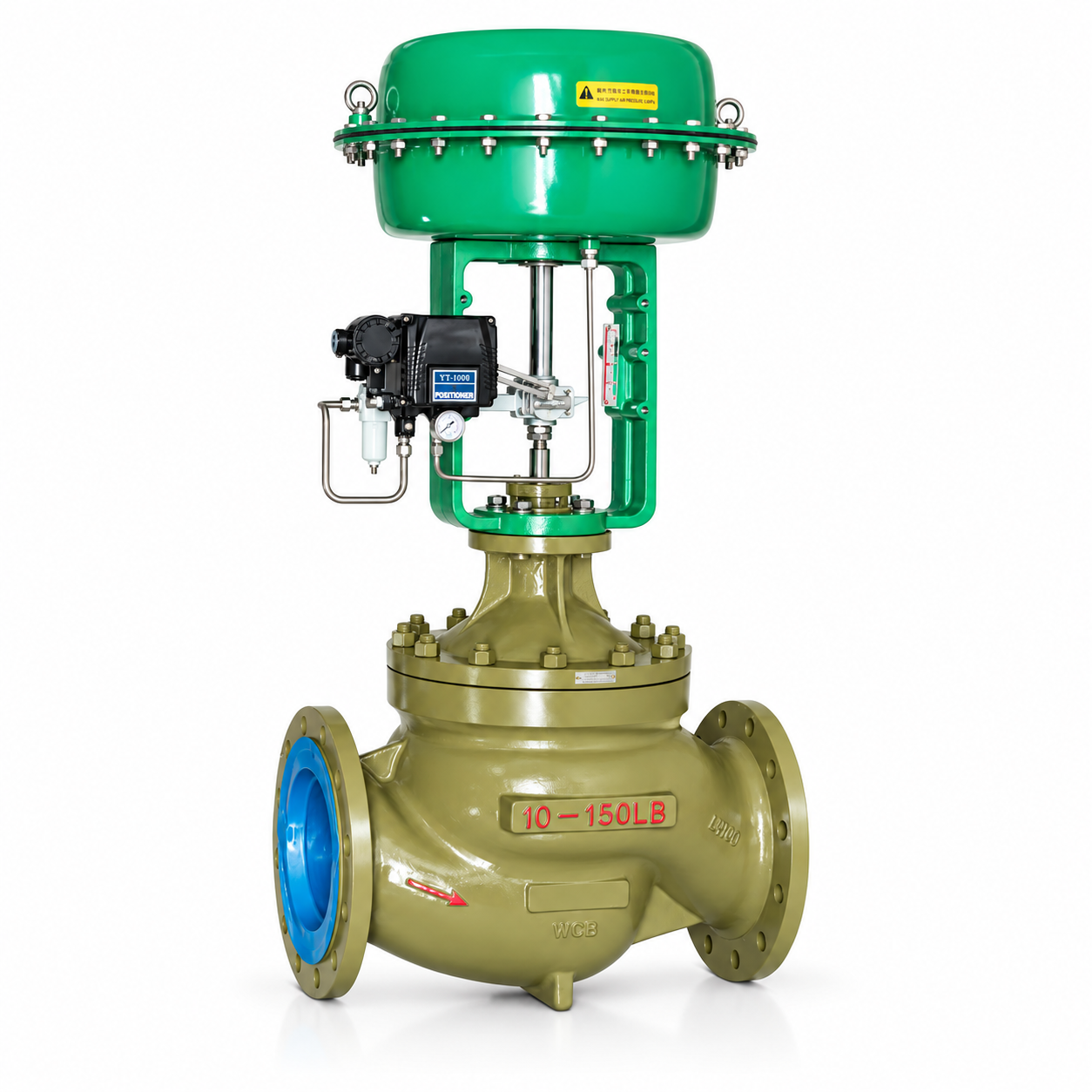

WEISSMILLER Pneumatic Globe Control Valve is designed for industrial process control applications requiring stable flow regulation, reliable shut-off performance, and pneumatic actuator operation. With WCB body construction, RF flanged connection, Class 150 pressure rating, and ZHB-56 pneumatic actuator, this valve is suitable for oil, water, and gas service.
Request Quotation
Product Overview
Pneumatic Globe Control Valve is used to regulate flow, pressure, and process conditions in industrial piping systems. The valve uses a globe body design with pneumatic actuator operation to provide controlled linear movement of the valve plug.
Based on the product drawing, the valve code is ZJHM-150LBC with DN250 / 10 Inch size, Class 150 rating, RF flanged end connection, rated flow coefficient Cv 1000, and rated stroke 100 mm. The valve is equipped with ZHB-56 pneumatic actuator and is applicable for oil, water, and gas media.
Key Features
Pneumatic Control Operation
Equipped with pneumatic actuator for automatic and modulating valve control in process applications.
Globe Valve Body Design
Globe type flow path supports stable throttling and process flow regulation performance.
Class 150 Rating
Designed with Class 150 pressure rating for industrial process piping applications.
RF Flanged Connection
Raised face flanged end connection supports secure installation to compatible pipeline flanges.
WCB Body Construction
WCB valve body provides strong carbon steel construction for general industrial service.
Oil, Water & Gas Service
Suitable for common industrial media including oil, water, and gas based on the product drawing.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Pneumatic Globe Control Valve |
| Valve Type | Pneumatic Control Valve |
| Brand | WEISSMILLER |
| Model / Code | ZJHM-150LBC |
| Size | DN250 / 10 Inch |
| Pressure Class | Class 150 |
| Nominal Pressure | 1.6 MPa |
| Connection | RF Flange |
| Flange Standard | GB/T 9113-2010 FM |
| Manufacturing Standard | ASME B16.5-2009 |
| Structure Length Standard | GB/T 17213-2005 |
| Inspection & Test Standard | GB/T 4213-2008 |
| Pressure-Temperature Rating Standard | GB/T 12224-2015 |
| Shell Test Pressure | 2.4 MPa |
| Seal Test Pressure | 1.76 MPa |
| Leakage Test Pressure | 0.35 MPa |
| Rated Flow Coefficient | Cv 1000 |
| Rated Stroke | 100 mm |
| Operating Temperature | < 250°C |
| Applicable Media | Oil, Water, Gas |
| Actuator Type | ZHB-56 Pneumatic Actuator |
| Operation | Pneumatic Modulating Control |
| Valve Body Material | WCB |
| Valve Cover Material | WCB |
| Valve Plug Material | CF8 |
| Sleeve Material | CF8 |
| Valve Stem Material | 06Cr19Ni10 |
| Pressure Sleeve Material | 20Cr13 |
| Packing | Flexible Graphite |
| Gasket | 304 + Graphite Spiral Wound Gasket |
| Bolt Material | 35CrMoA |
| Nut Material | 45 |
| Application | Flow Control, Pressure Control, Process Control, and Industrial Piping |
Note: Technical data is based on the product drawing for model ZJHM-150LBC. Positioner model, air supply pressure, control signal, and fail action should be confirmed based on the final project requirement.
Main Dimension
| Item | Dimension |
|---|---|
| DN | 250 |
| Face-to-Face Length / L | 680 mm |
| B | 32 mm |
| D | 405 mm |
| D1 | 362 mm |
| D2 | 324 mm |
| Overall Height / H | 1200 mm |
| Bolt Hole | 12-Ø26 |
Product Details

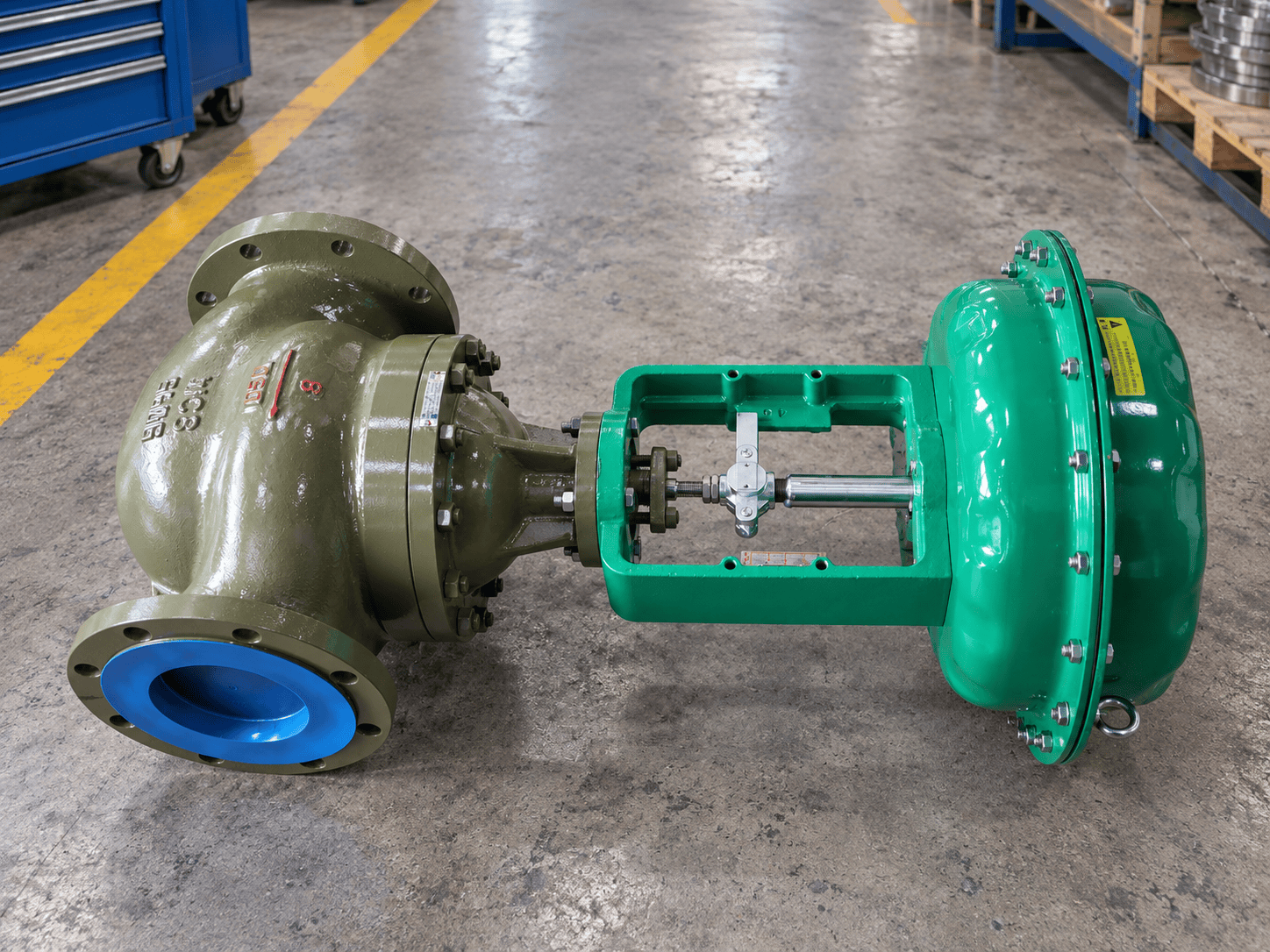

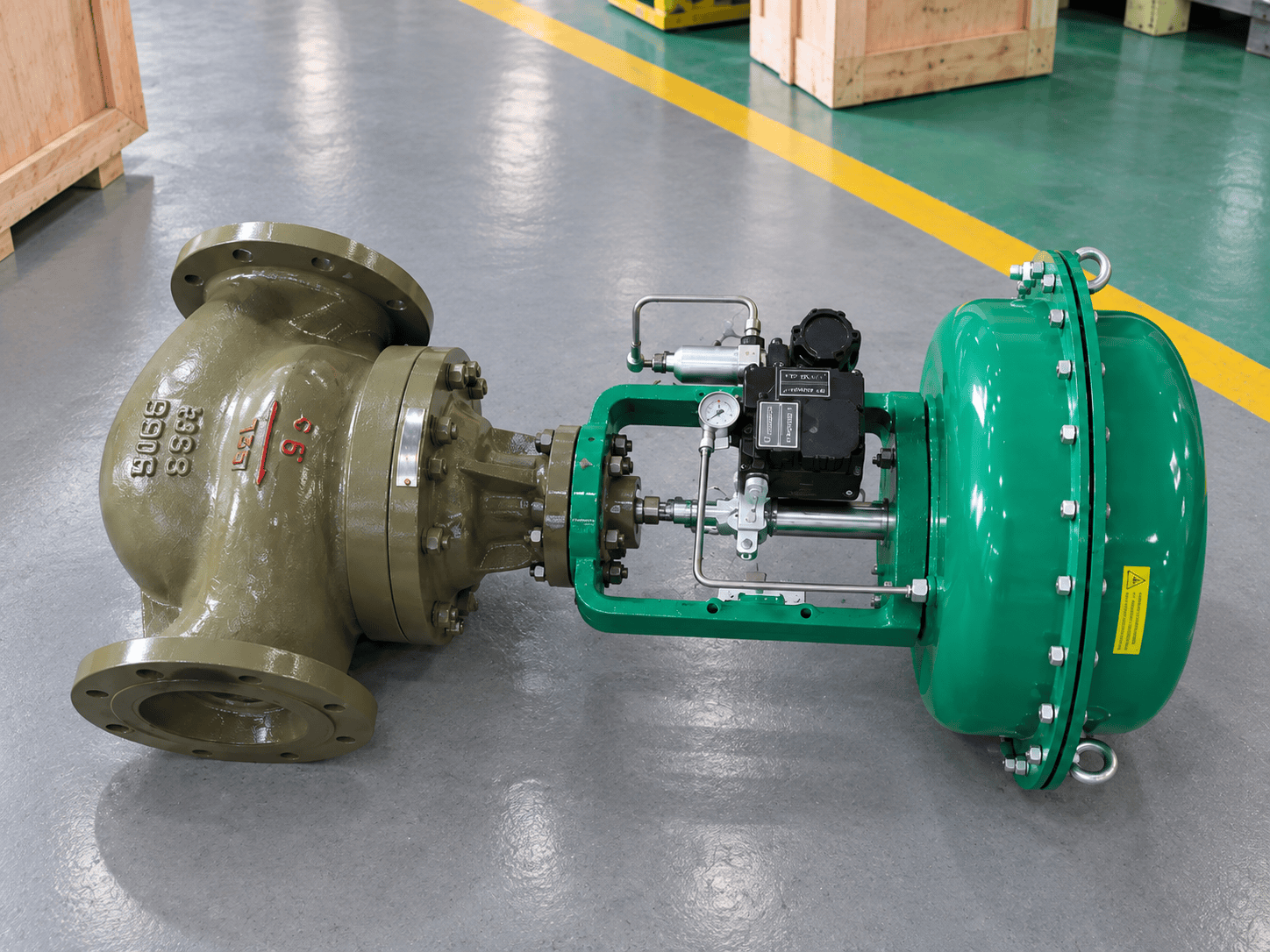

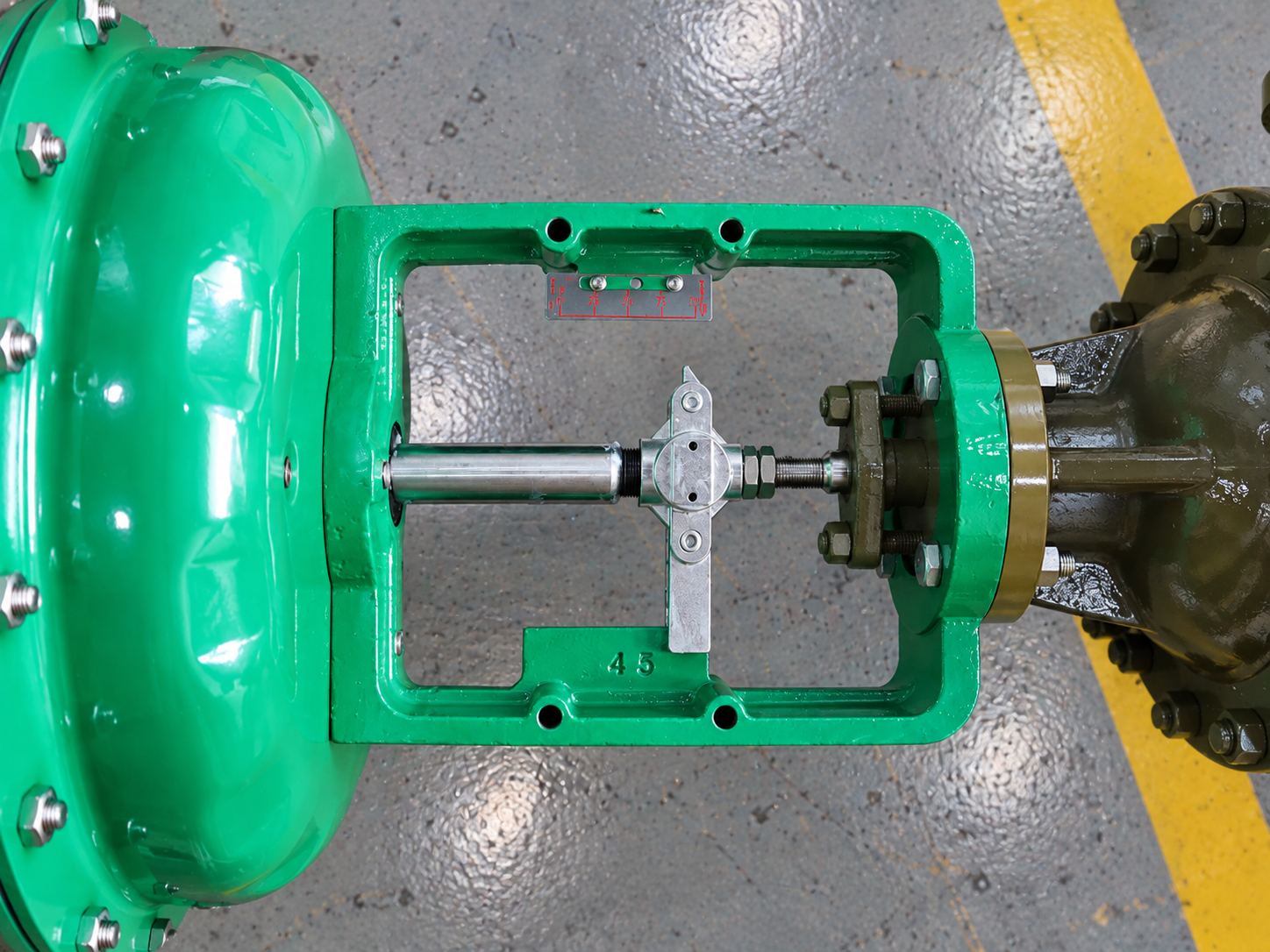

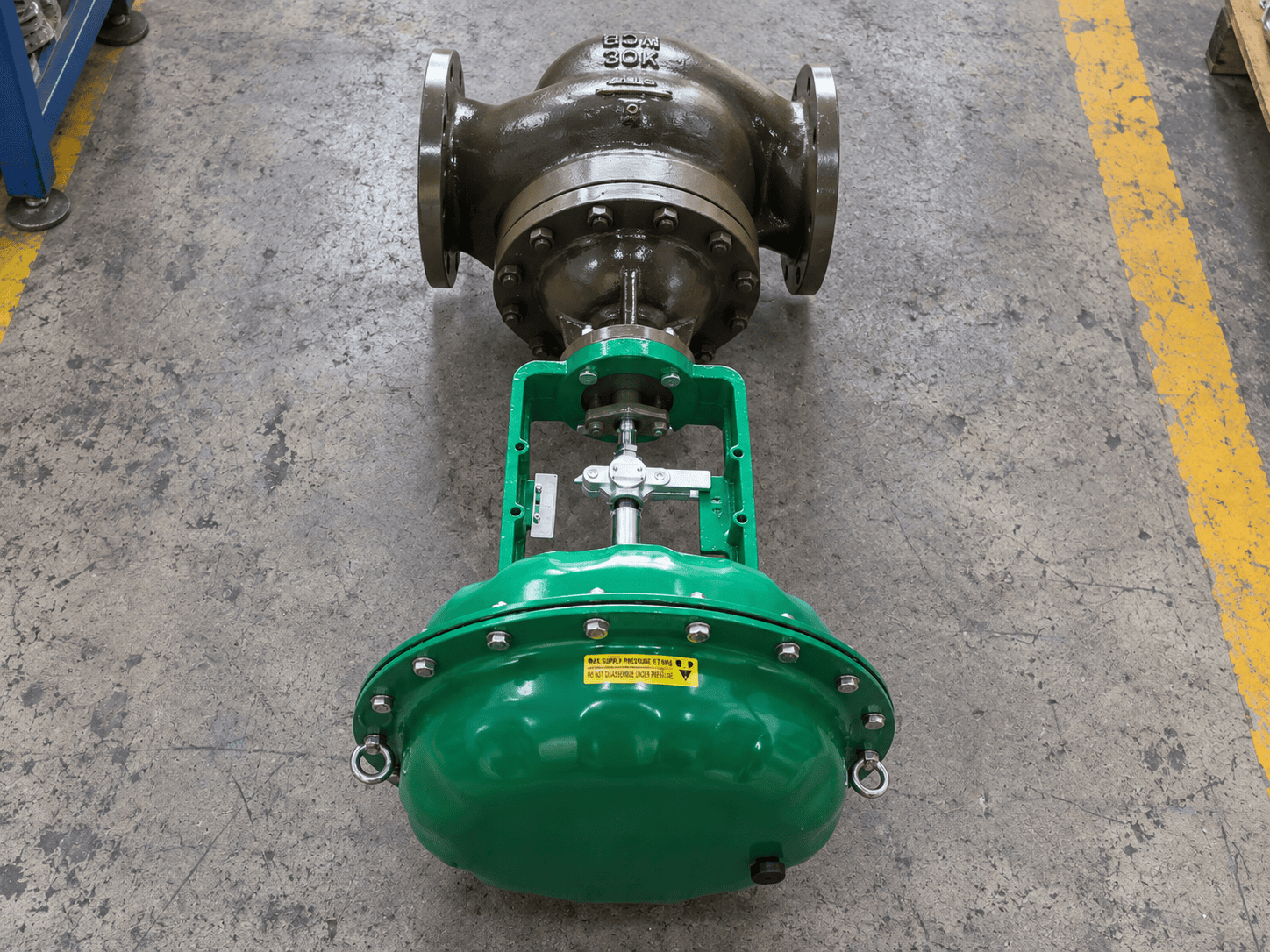

Additional product views showing the globe valve body, RF flanged connection, pneumatic diaphragm actuator, actuator linkage, positioner assembly, and valve nameplate for easier product identification and technical review.
