Air Filter Regulator Lubricator
AFC2000 FRL Air Preparation Unit for Pneumatic Systems
WEISSMILLER AFC2000 is a stacked Filter-Regulator-Lubricator unit designed for compressed air preparation in pneumatic systems. The unit combines air filtration, pressure regulation, and lubrication in one compact assembly.
Request Quotation
Product Overview

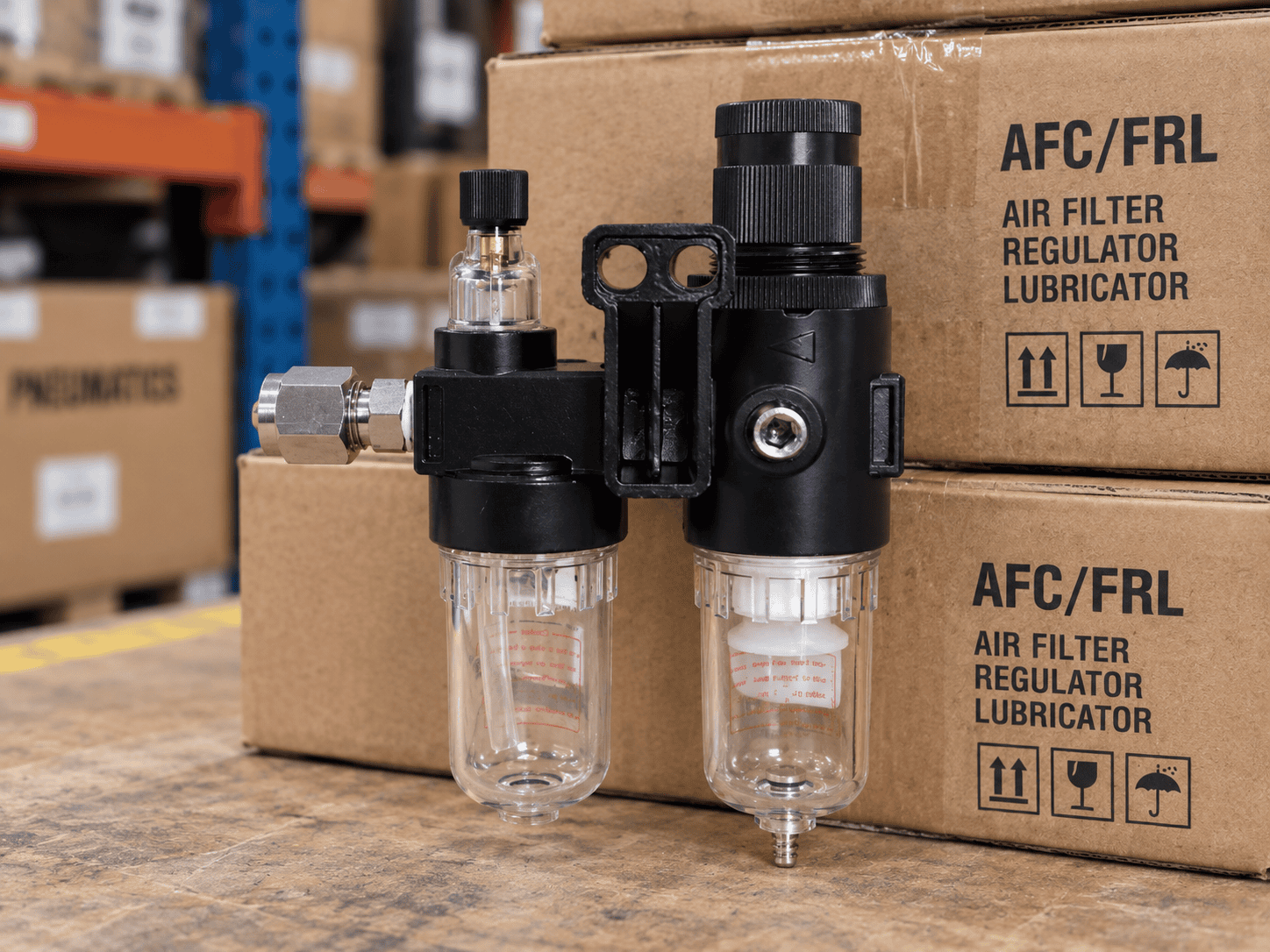

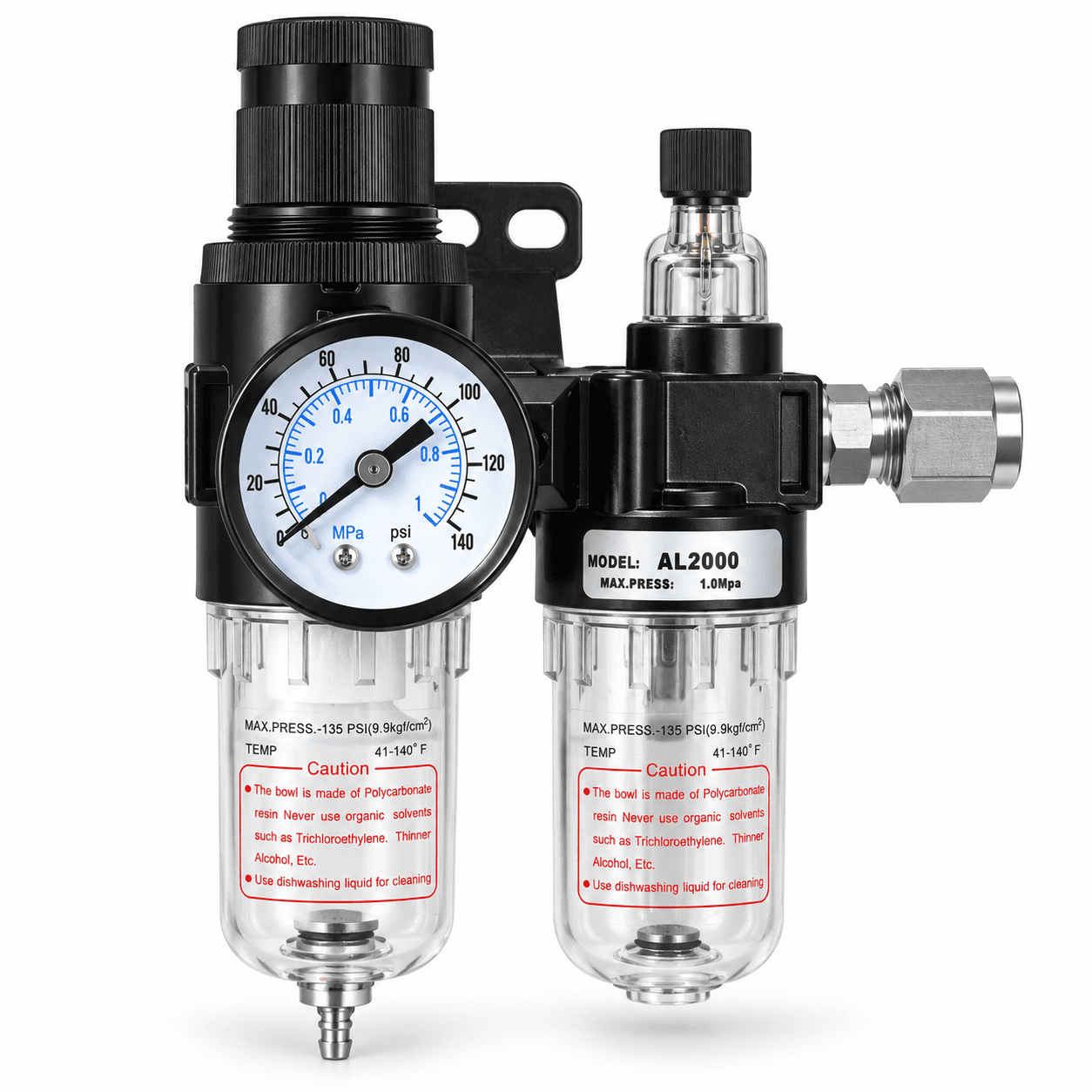

The WEISSMILLER AFC2000 is a stacked Filter-Regulator-Lubricator designed to prepare compressed air before it enters pneumatic equipment and control components.
The filter section removes contaminants from the air supply, the regulator controls downstream pressure, and the lubricator supplies oil mist to pneumatic components requiring lubrication.
Key Features
Three-in-One FRL Unit
Integrated filter, pressure regulator, and lubricator in one compact pneumatic air preparation assembly.
Air Filtration
Copper filter element provides filtration with available filtration ranges from 5 to 40 microns.
Pressure Regulation
Pressure adjustment knob allows regulated air pressure according to pneumatic system requirements.

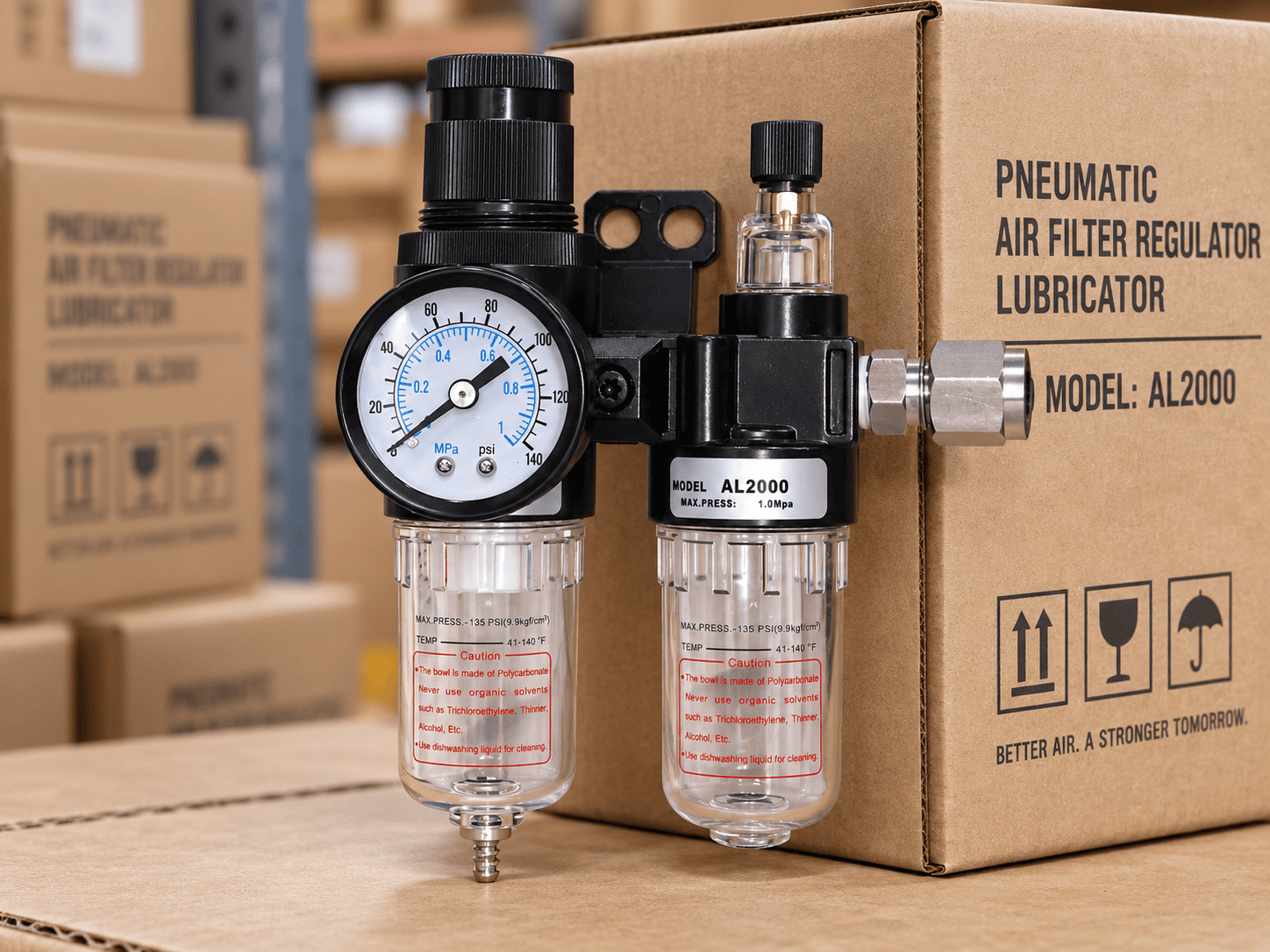

Pressure Gauge
Integrated analog pressure gauge provides convenient monitoring of regulated air pressure.
Lubrication System
Integrated lubricator supplies oil mist to downstream pneumatic components.
Compact Construction

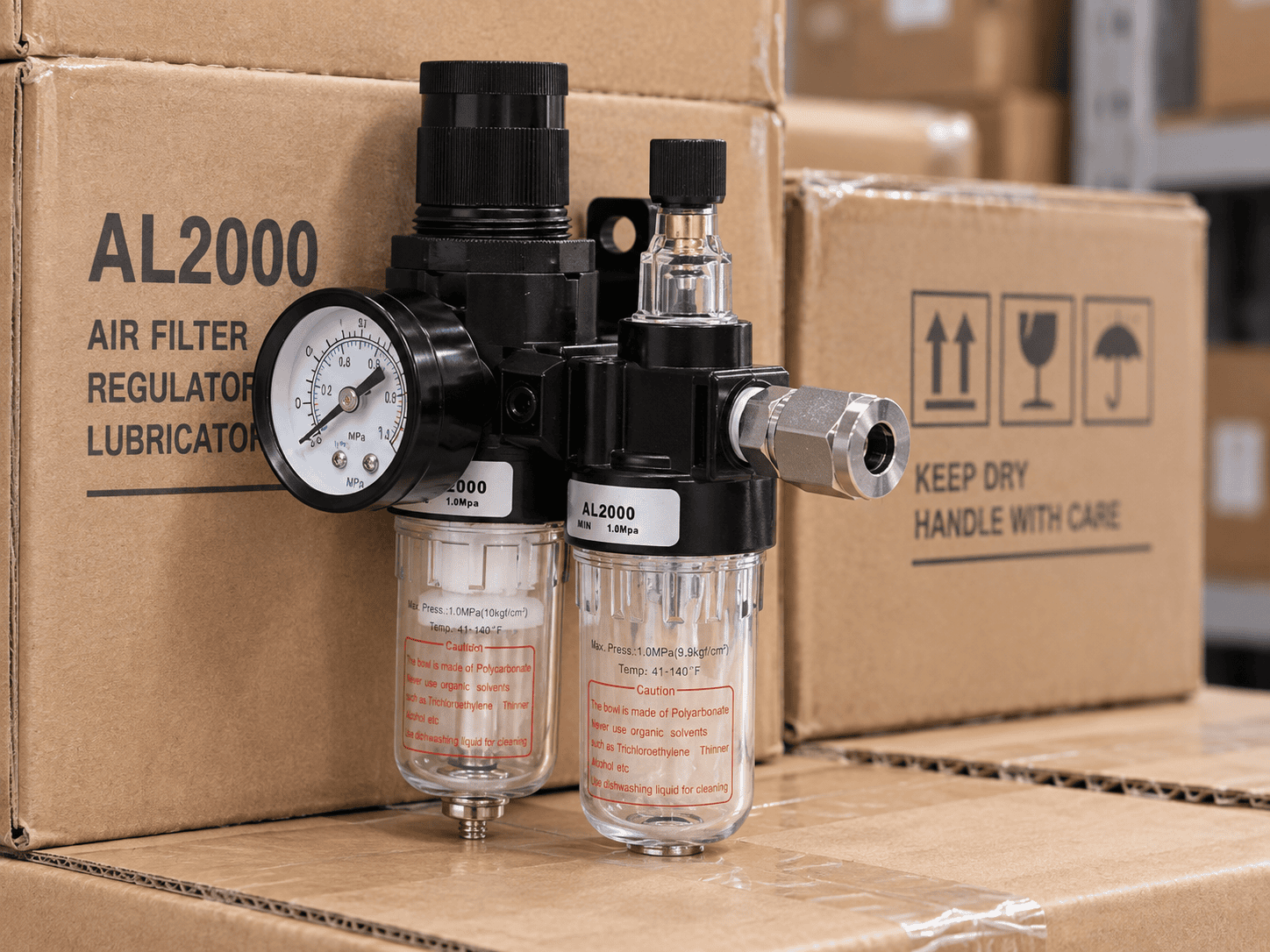

Aluminum alloy body and polycarbonate bowl provide a compact and practical configuration for pneumatic installations.
Technical Specification
| Item | Specification |
|---|---|
| Model | AFC2000 |
| Description | Stacked Filter-Regulator-Lubricator |
| Port Size | 1/4" NPT |
| Working Medium | Air |
| Flow Rate | 16 SCFM |
| Filtration | 5–40 Microns |
| Regulating Range | 7–125 PSI |
| Operating Temperature | 5–60°C |
| Maximum Pressure | 150 PSI |
| Recommended Oil | ISO VG 32 |
| Water Filter Cup Capacity | 15 CC |
| Water Supply Cup Capacity | 25 CC |
Materials of Construction
| Component | Material |
|---|---|
| Metal Body | Aluminum Alloy (Epoxy Coated) |
| Plastic Bowl | Polycarbonate |
| Body Shield | Painted Steel |
| Filter | Sintered Brass (40μ) or Plastic (5μ) |
Product Details
Applications
Related Products
Pneumatic Actuator
Pneumatic actuator for automated valve operation.
Positioner
Valve position control device for pneumatic control valve systems.
Solenoid Valve
Pneumatic air control component for actuator automation systems.
