2-Piece Flanged Ball Valve
WCB RF Flanged Ball Valve with SS316 Ball and PTFE Seat
WEISSMILLER 2-Piece Flanged Ball Valve is designed for reliable flow isolation in industrial piping systems. With A216 WCB body, SS316 ball, PTFE seat, RF flanged connection, Class 150 rating, and lever operation, this valve provides dependable shut-off performance for process piping, utility, and general industrial applications.
Request Quotation
Product Overview
2-Piece Flanged Ball Valve is a quarter-turn valve used for on-off flow isolation in industrial piping systems. The two-piece body construction provides a strong and practical valve design for reliable shut-off operation.
This valve is suitable for water, utility, process piping, oil and gas support systems, petrochemical, manufacturing, and general industrial fluid applications. The RF flanged connection supports secure installation between piping flanges, while the lever operation allows quick and simple manual open-close control.
Key Features
2-Piece Body
Two-piece body construction provides durable valve performance for industrial piping applications.
A216 WCB Body
Carbon steel WCB body provides strength and durability for suitable industrial service conditions.
SS316 Ball
Stainless steel SS316 ball supports corrosion resistance and reliable flow isolation.
PTFE Seat
PTFE seat provides dependable sealing performance for suitable fluid applications.
RF Flanged Connection
Raised Face flanged connection provides secure installation for Class 150 piping systems.
Lever Operation
Quarter-turn lever operation allows quick and simple open-close valve control.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | 2-Piece Flanged Ball Valve |
| Available Size | 1/2" – 12" / Other sizes available upon request |
| Example Size | 2" |
| Body Type | 2-Piece Body |
| Body Material | A216 WCB |
| Ball Material | SS316 |
| Seat Material | PTFE |
| Connection | Flange RF |
| Pressure Rating | Class 150 |
| Operation | Lever Operated |
| Application | Water, Utility, Process Piping, Petrochemical, Manufacturing, and General Industrial Fluid |
Product Details

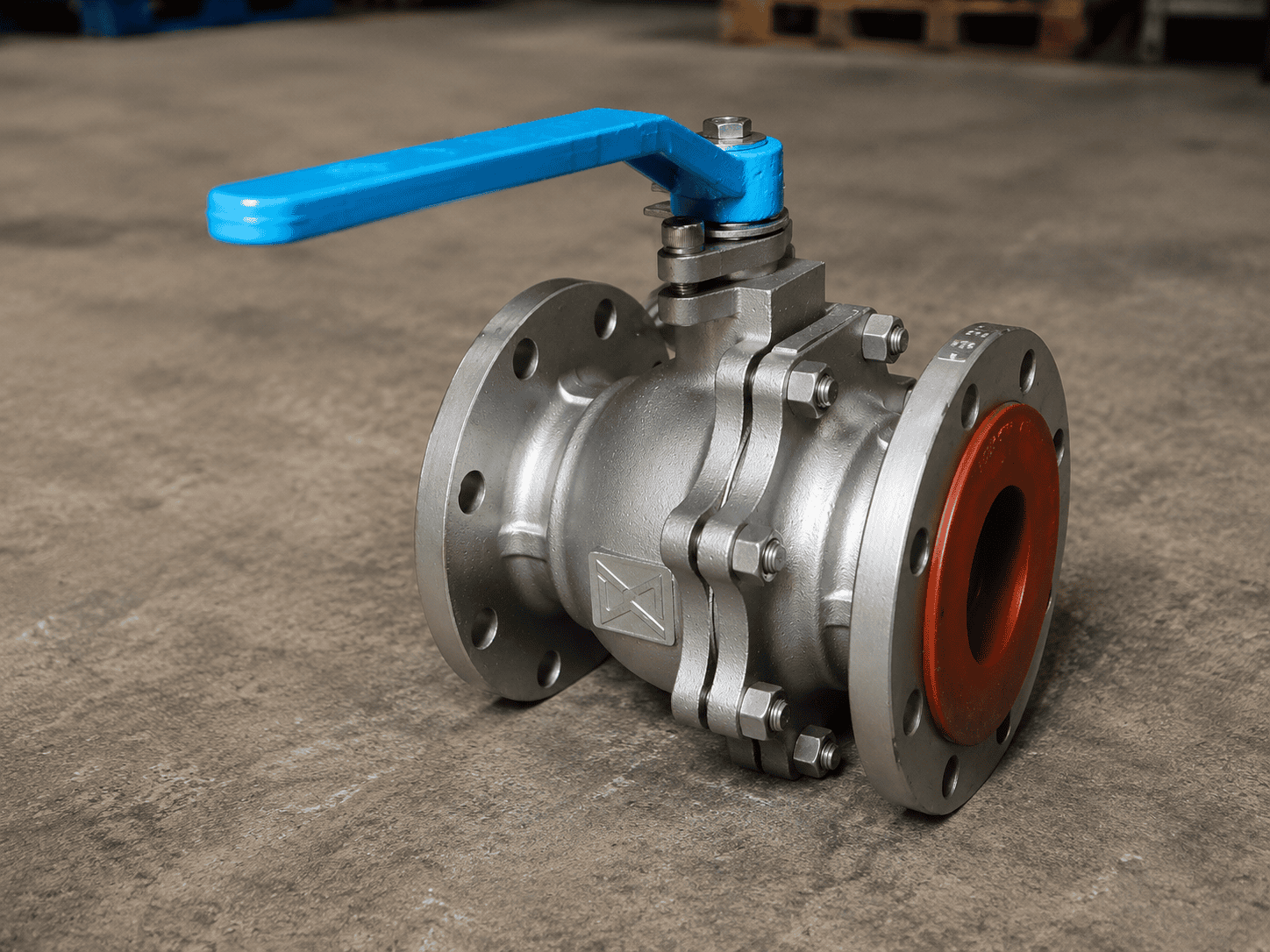

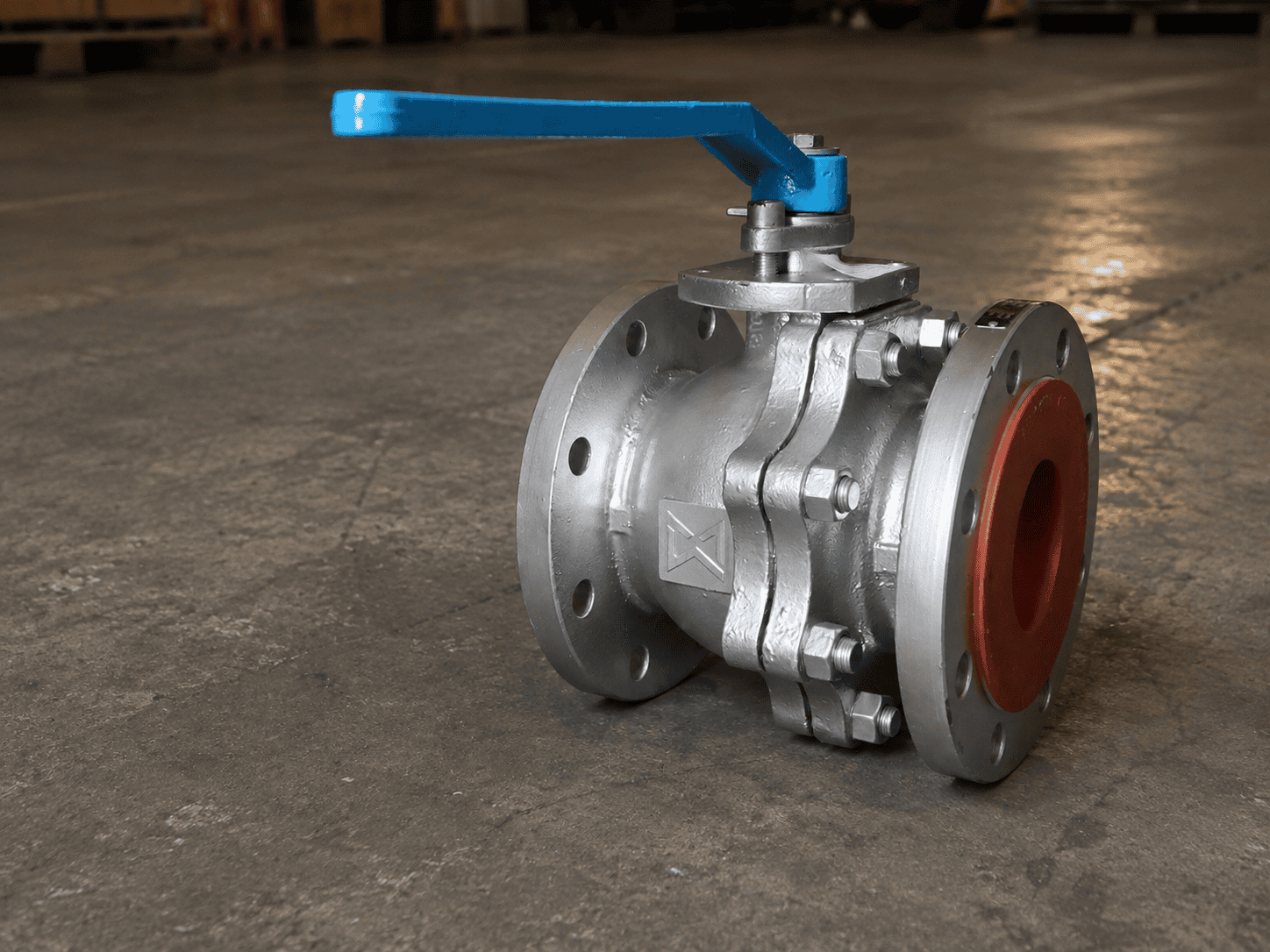

Additional product views showing the two-piece body construction, RF flanged connection, lever operation, bolted body design, and body marking details for easier product identification and technical reference.
Applications
