Floating Flanged Ball Valve
WCB Flanged Ball Valve with SS316 Ball and PTFE Seat
WEISSMILLER Floating Flanged Ball Valve is designed for reliable on-off flow isolation in industrial piping systems. With WCB body, SS316 ball, PTFE seat, flanged connection, PN16 pressure rating, and floating ball design, this valve provides dependable shut-off performance for water, utility, process piping, and general industrial applications.
Request Quotation
Product Overview
Floating Flanged Ball Valve is a quarter-turn valve used for on-off flow isolation in industrial piping systems. The floating ball design allows the ball to press against the seat under line pressure, supporting reliable sealing performance during operation.
This valve is suitable for water systems, utility piping, process piping, manufacturing, and general industrial fluid service. The flanged connection provides secure installation between piping flanges, while the lever operation allows simple manual open-close control.
Key Features
Floating Ball Design
Floating ball construction supports reliable shut-off performance for on-off flow isolation.
WCB Body
Carbon steel WCB body provides strength and durability for suitable industrial service conditions.
SS316 Ball
Stainless steel SS316 ball provides reliable operation and corrosion resistance for suitable applications.
PTFE Seat
PTFE seat provides dependable sealing performance and low-friction operation.
Flanged Connection
Flanged end connection provides secure installation for industrial piping systems.
PN16 Rating
Suitable for piping systems requiring PN16 pressure rating compatibility.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Floating Flanged Ball Valve |
| Valve Type | Floating Ball Valve |
| Available Size | DN15 – DN200 / Other sizes available upon request |
| Example Size | DN80 |
| Body Material | WCB |
| Ball Material | SS316 |
| Seat Material | PTFE |
| Connection | F-Flange / Flanged Type |
| Pressure Rating | PN16 |
| Operation | Lever Operated |
| Application | Water, Utility, Process Piping, Industrial Fluid, Manufacturing, and General Industrial Service |
Product Details

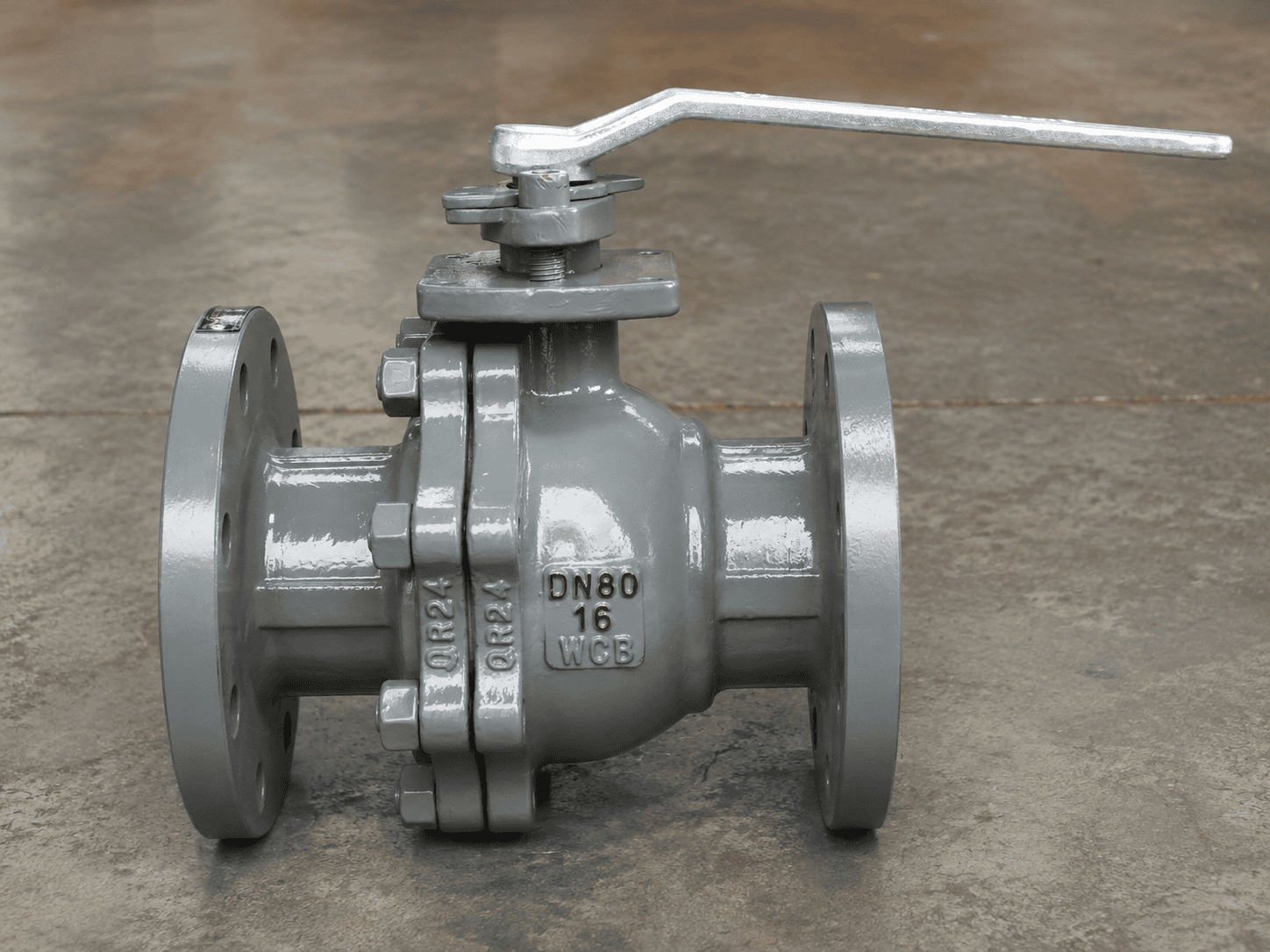

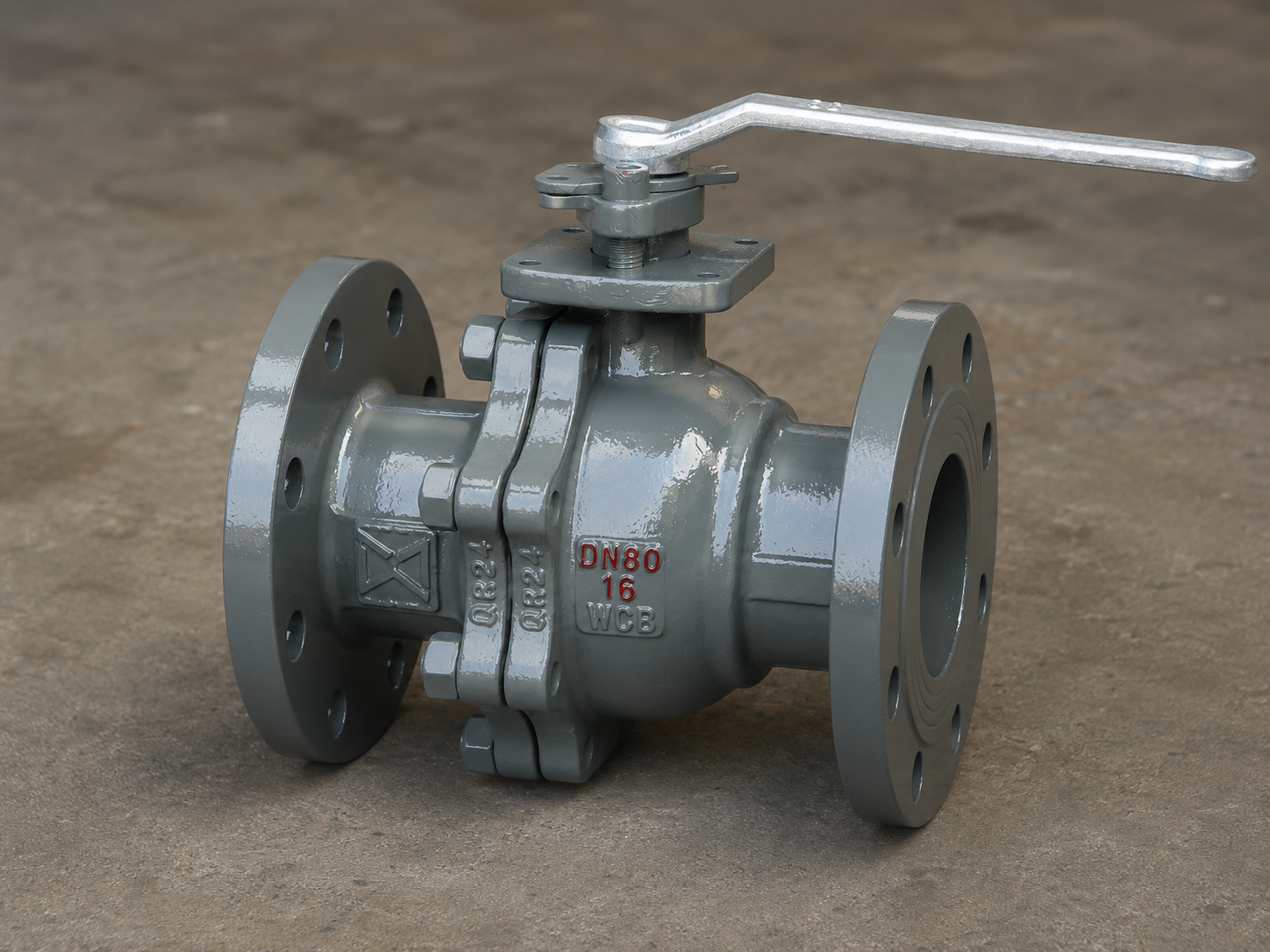

Additional product views showing the floating ball valve construction, flanged connection, lever operation, body marking, flange face, and nameplate details for easier product identification and technical reference.
