Pneumatic Actuated Flanged Ball Valve
WCB RF Flanged Ball Valve with PN16 Rating and Pneumatic Actuator
WEISSMILLER Pneumatic Actuated Flanged Ball Valve is designed for automated flow isolation in industrial piping systems. With WCB body, RF flanged connection, PN16 pressure rating, and pneumatic actuator operation, this valve provides reliable shut-off performance and efficient automation for process, utility, and general industrial applications.
Request Quotation
Product Overview
Pneumatic Actuated Flanged Ball Valve is a quarter-turn valve assembly designed for automated on-off flow isolation. The pneumatic actuator enables remote valve operation and supports integration with plant automation or pneumatic control systems.
This valve is suitable for industrial piping systems requiring fast operation, reliable shut-off, and automated control. The RF flanged connection provides secure installation between piping flanges, while the WCB body construction provides durable performance for suitable industrial service conditions.
Key Features
Pneumatic Actuator
Enables automated valve opening and closing for industrial control and remote operation systems.
WCB Body
Carbon steel WCB body provides strength and durability for suitable process and utility applications.
RF Flanged Connection
Raised Face flanged connection provides secure installation for industrial piping systems.
PN16 Rating
Designed for piping systems requiring PN16 pressure rating compatibility.
Floating Ball Design
Floating ball valve construction supports reliable on-off shut-off performance.
Automation Package
Can be supplied with accessories such as limit switch box, solenoid valve, air filter regulator, and pneumatic tubing.
Valve Specification
| Item | Specification |
|---|---|
| Product Type | Pneumatic Actuated Flanged Ball Valve |
| Valve Type | Floating Ball Valve |
| Available Size | DN50 – DN300 / Other sizes available upon request |
| Example Size | DN125 |
| Body Material | WCB |
| Ball Material | SS304 + Cr / As per specification |
| Seat Material | PTFE / As per specification |
| Connection | RF Flange |
| Pressure Rating | PN16 |
| Operation | Pneumatic Actuator |
| Application | Water, Utility, Process Piping, Industrial Fluid, Manufacturing, and General Industrial Service |
Pneumatic Actuator Specification
| Item | Specification |
|---|---|
| Actuator Type | Pneumatic Rotary Actuator |
| Model | WPA140DA |
| Operation Type | Double Acting |
| Mounting Standard | EN ISO 5211 |
| Operating Pressure | 4 – 8 bar |
| Operating Temperature | -20°C to 80°C |
| Control Type | On-Off Control / As per control package configuration |
| Accessories | Limit Switch Box, Solenoid Valve, Air Filter Regulator, and Pneumatic Tubing by package configuration |
Product Details

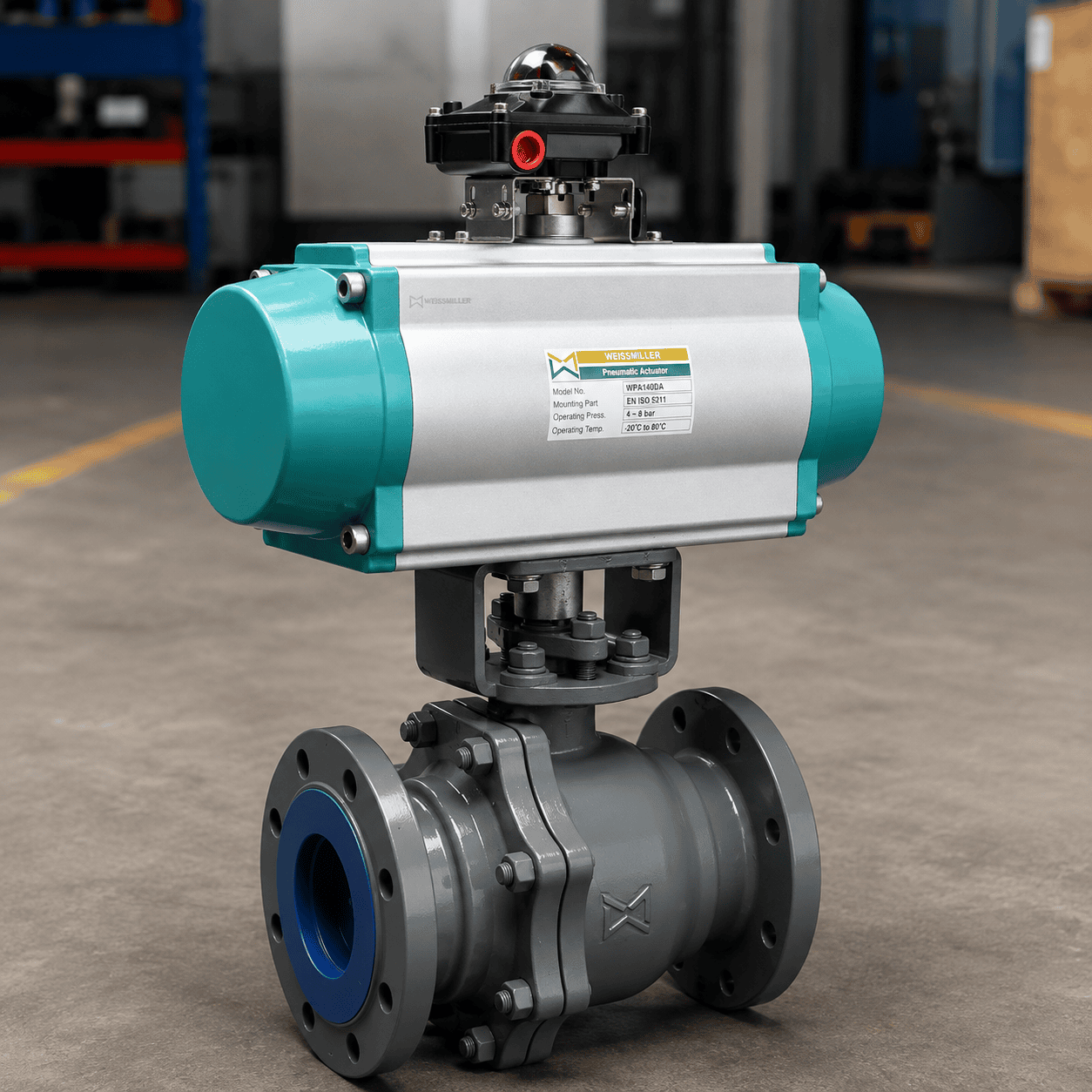

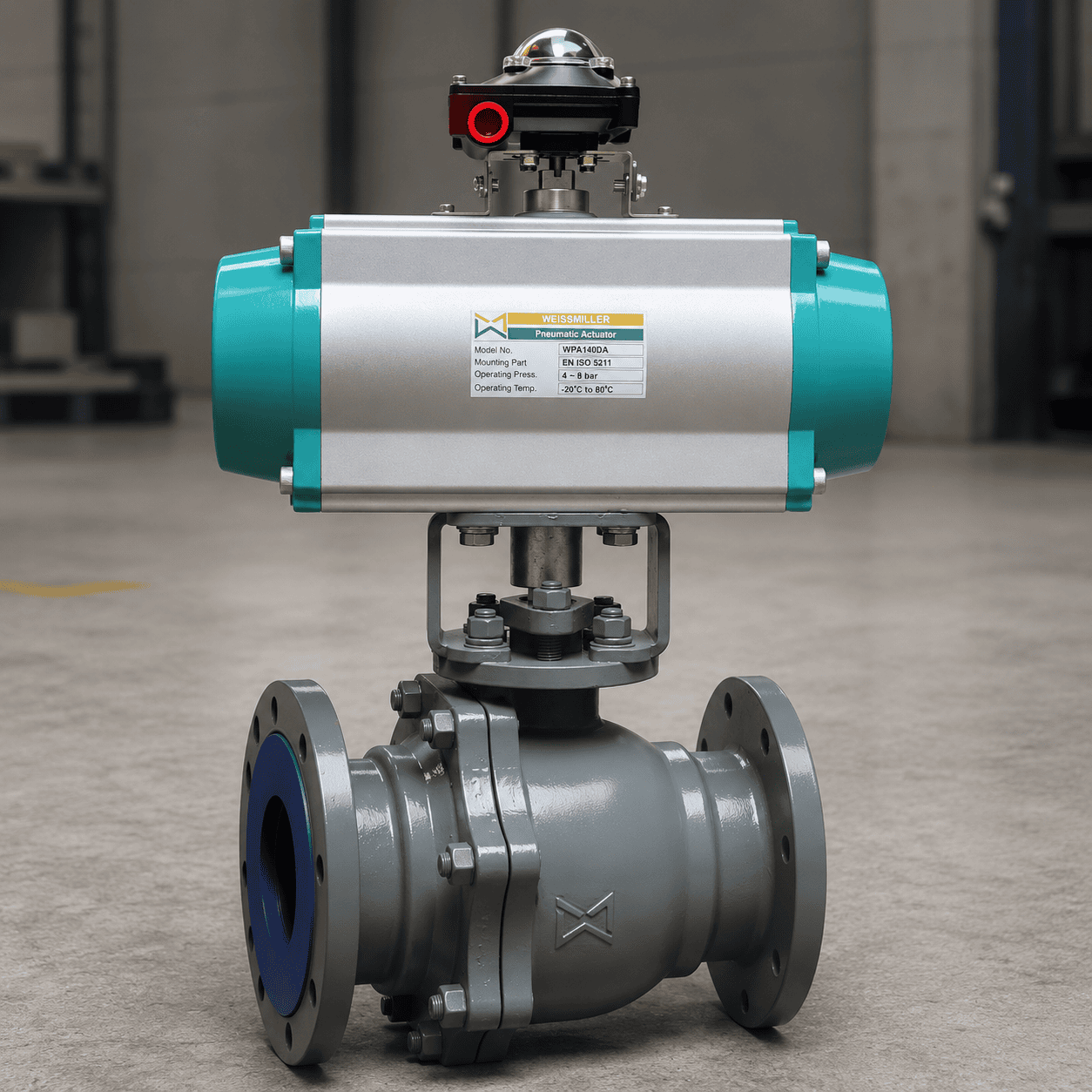

Additional product views showing the pneumatic actuator, RF flanged ball valve body, actuator mounting bracket, pneumatic accessories, body marking, and nameplate details for easier product identification and technical reference.
