Pneumatic V-Type Segment Ball Valve
CF8M Flanged Segment Ball Valve with JIS 10K Rating
WEISSMILLER Pneumatic V-Type Segment Ball Valve is designed for automated flow control and reliable throttling performance in industrial process systems. With CF8M body, flanged connection, JIS 10K rating, V-type segment ball design, and pneumatic actuator package, this valve provides accurate flow regulation and dependable operation for suitable industrial applications.
Request Quotation
Product Overview
Pneumatic V-Type Segment Ball Valve is a control valve designed for regulating flow in process piping systems. The V-type segment ball design provides improved control characteristics compared with standard on-off ball valves, making it suitable for throttling and modulating applications.
This valve is equipped with a pneumatic actuator and accessories for automated valve operation. It is suitable for water treatment, chemical process, utility systems, pulp and paper, manufacturing, and general industrial process applications requiring flow control and automated operation.
Key Features
V-Type Segment Ball
V-type ball design supports better flow regulation and throttling performance for process control applications.
Pneumatic Actuator
Pneumatic actuator package enables automated valve operation for process control systems.
CF8M Body
Stainless steel CF8M body provides corrosion resistance for suitable industrial service conditions.
Flanged Connection
Flanged end connection provides secure installation between piping flanges.
JIS 10K Rating
Designed for piping systems requiring JIS 10K flange and pressure rating compatibility.
Control Valve Application
Suitable for industrial systems requiring automated flow control and modulating valve operation.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Pneumatic V-Type Segment Ball Valve |
| Valve Type | Segment Ball Valve / V Type |
| Available Size | DN50 – DN300 / Other sizes available upon request |
| Example Size | 4" / 100A |
| Body Material | CF8M |
| Ball Material | SS316 V-Ball / SS316-based material by specification |
| Seat Material | Metal Seat / SS316-based seat by specification |
| Connection | Flanged Type |
| Pressure Rating | JIS 10K |
| Operation | Pneumatic Actuator |
| Accessories | Limit Switch Box, Solenoid Valve, Air Filter Regulator, and pneumatic tubing as package configuration |
| Application | Flow Control, Water Treatment, Chemical Process, Utility, Pulp & Paper, Manufacturing, and General Industrial Process |
Pneumatic Actuator Package
| Item | Specification |
|---|---|
| Actuator Type | Pneumatic Rotary Actuator |
| Operation Type | Double Acting / Spring Return by project requirement |
| Control Type | On-Off / Modulating control by configuration |
| Air Supply | Instrument air supply as per actuator requirement |
| Limit Switch Box | Open-close position feedback |
| Solenoid Valve | Air direction control for actuator operation |
| Air Filter Regulator | Air pressure filtering and regulation for pneumatic system |
Product Details

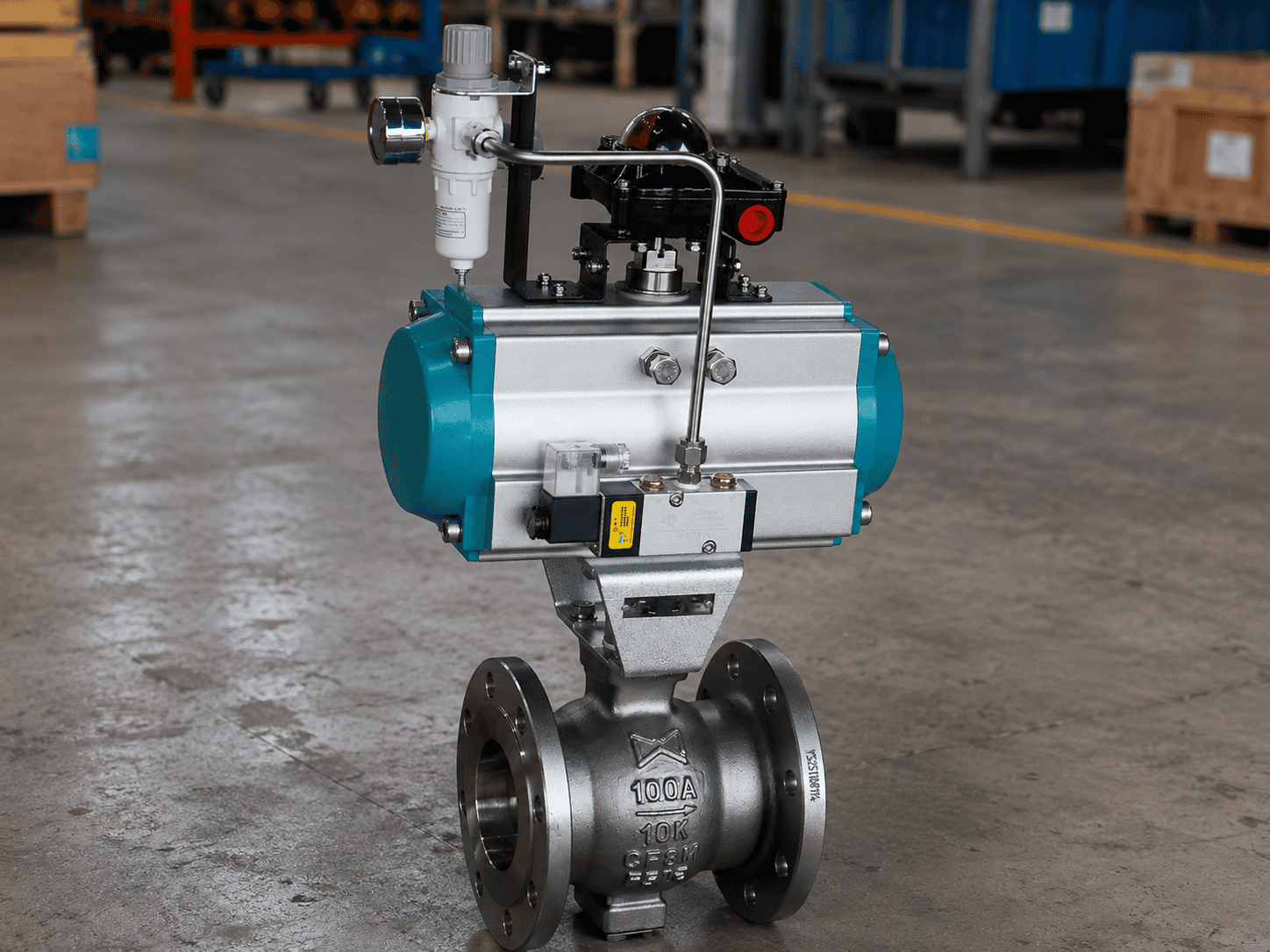

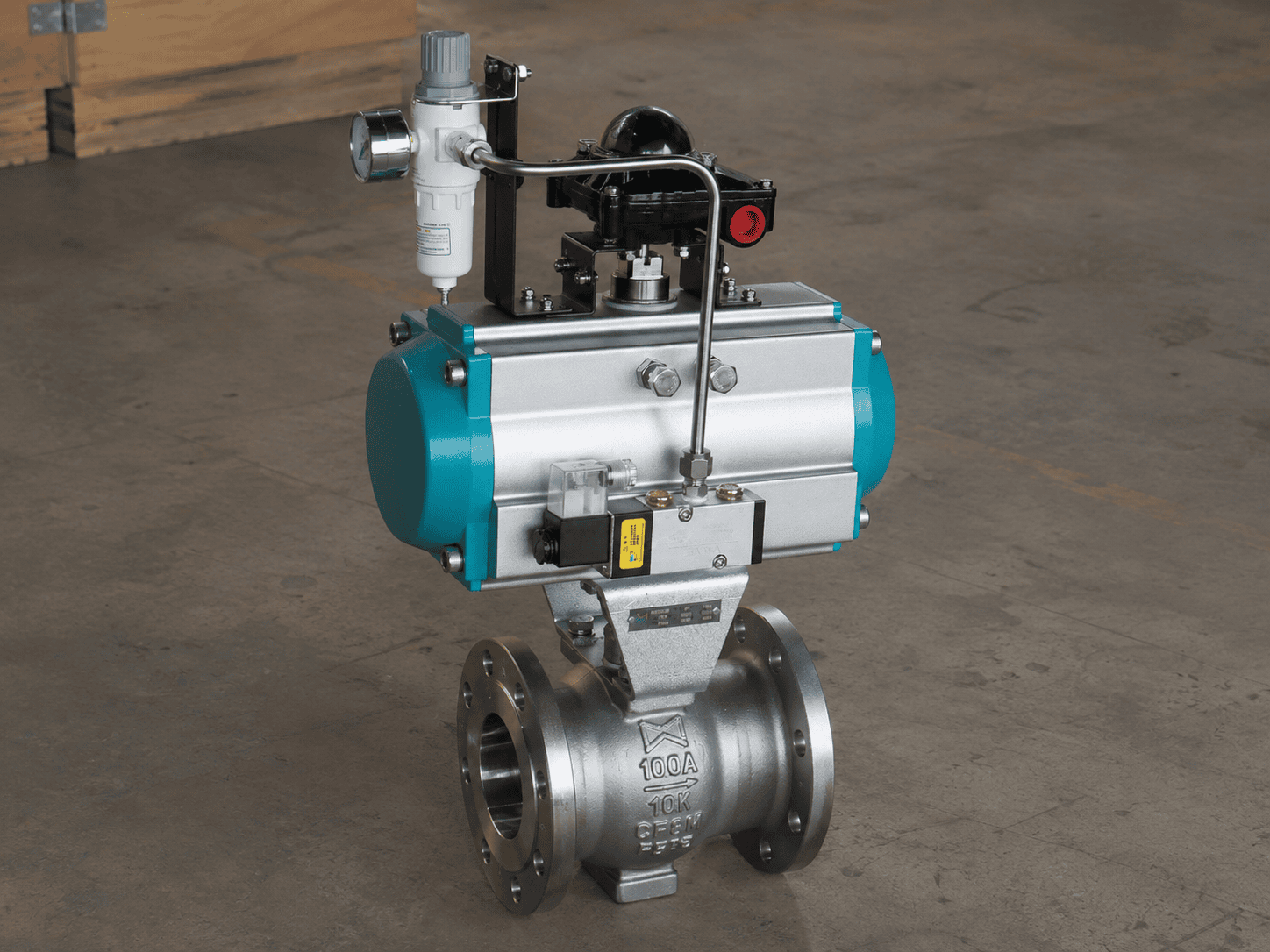

Additional product views showing the pneumatic actuator package, V-type segment ball valve body, flanged connection, valve nameplate, accessories, and tubing arrangement for easier product identification and technical reference.
Applications
Related Products
Pneumatic Actuated Ball Valve
Ball valve with pneumatic actuator for automated open-close operation.
Flanged Ball Valve
Flanged ball valve for reliable flow isolation in industrial piping systems.
Control Valve
Industrial control valve solution for flow regulation and process automation.
Need Pneumatic V-Type Segment Ball Valve?
Contact our technical sales team for valve selection, actuator sizing, control requirement, specification support, and quotation.
