Trunnion Mounted Flanged Ball Valve
A105 Flanged Ball Valve with Class 600 Rating
WEISSMILLER Trunnion Mounted Flanged Ball Valve is designed for reliable flow isolation in higher pressure industrial piping systems. With A105 body material, flanged connection, and Class 600 pressure rating, this valve provides durable shut-off performance for oil and gas, petrochemical, power plant, utility, and process applications.
Request Quotation
Product Overview
Trunnion Mounted Flanged Ball Valve is a ball valve designed for reliable on-off flow isolation in medium to high pressure piping systems. The trunnion mounted design helps support the ball during operation, making it suitable for larger sizes, higher pressure classes, and demanding industrial service.
This valve is commonly used in oil and gas, petrochemical, power plant, utility, process piping, and general industrial applications. The flanged body design provides secure installation between piping flanges, while the robust construction supports long-term performance in suitable operating conditions.
Key Features
Trunnion Mounted Design
Supports the ball during operation and helps provide stable performance for higher pressure applications.
A105 Body
Forged carbon steel A105 body provides strength and durability for industrial piping service.
Class 600 Rating
Suitable for piping systems requiring higher pressure class compared with standard Class 150 or Class 300 valves.
Flanged Connection
Flanged end connection provides secure installation for industrial piping systems.
Reliable Shut-Off
Designed to provide dependable flow isolation for suitable industrial fluid applications.
Automation Ready
Valve top mounting design can support gear operation or actuator installation based on project requirements.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Trunnion Mounted Flanged Ball Valve |
| Available Size | 2" and other sizes available upon request |
| Example Size | 2" |
| Pressure Rating | Class 600 |
| Body Material | A105 |
| Ball Material | Stainless Steel / Other material by specification |
| Seat Material | PTFE / RPTFE / Other seat material by application |
| Connection | Flanged Type |
| Operation | Gear Operated / Actuator Ready / As per project requirement |
| Application | Oil & Gas, Petrochemical, Power Plant, Utility, Process Piping, and General Industrial Fluid |
Product Details

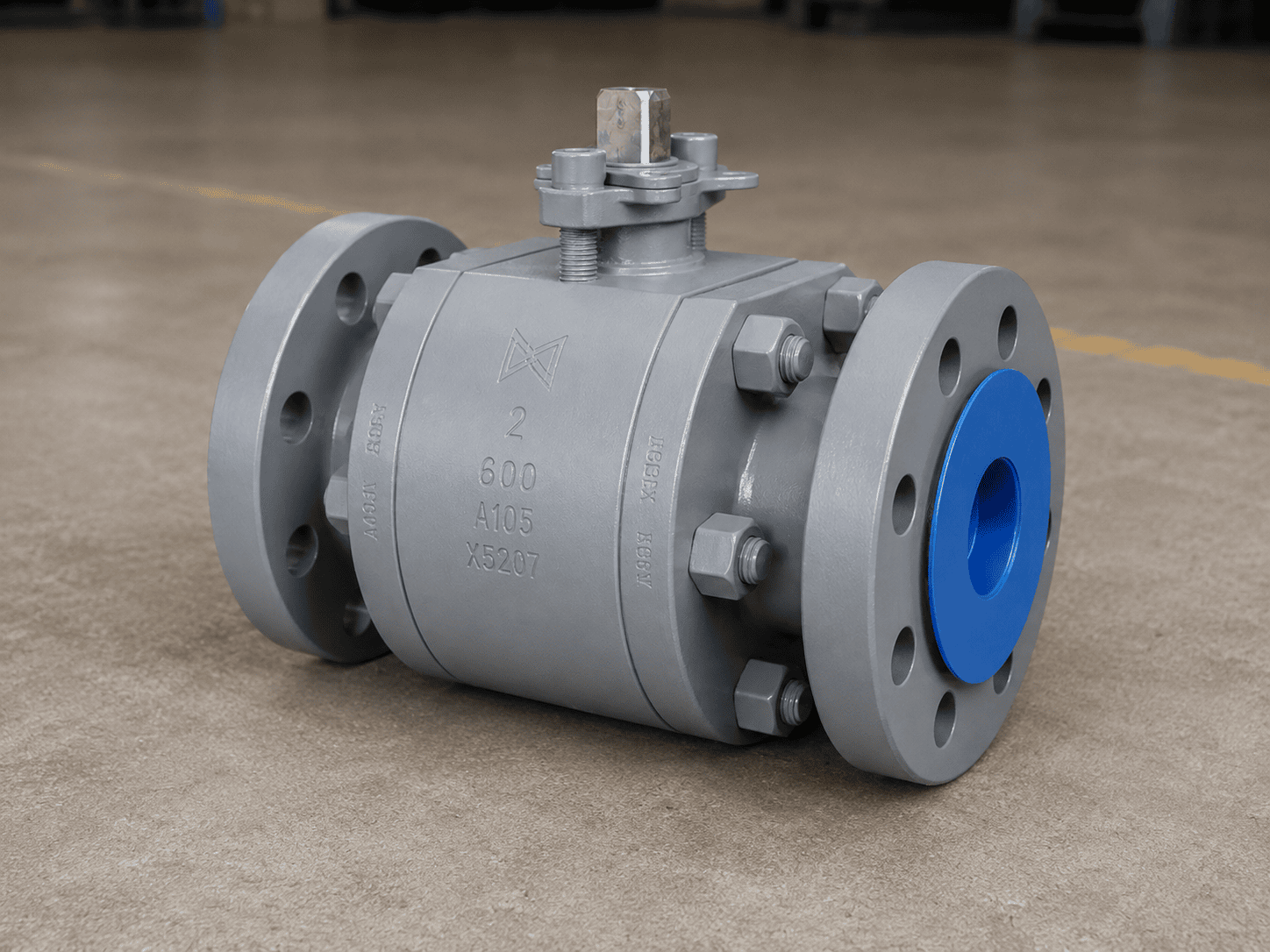

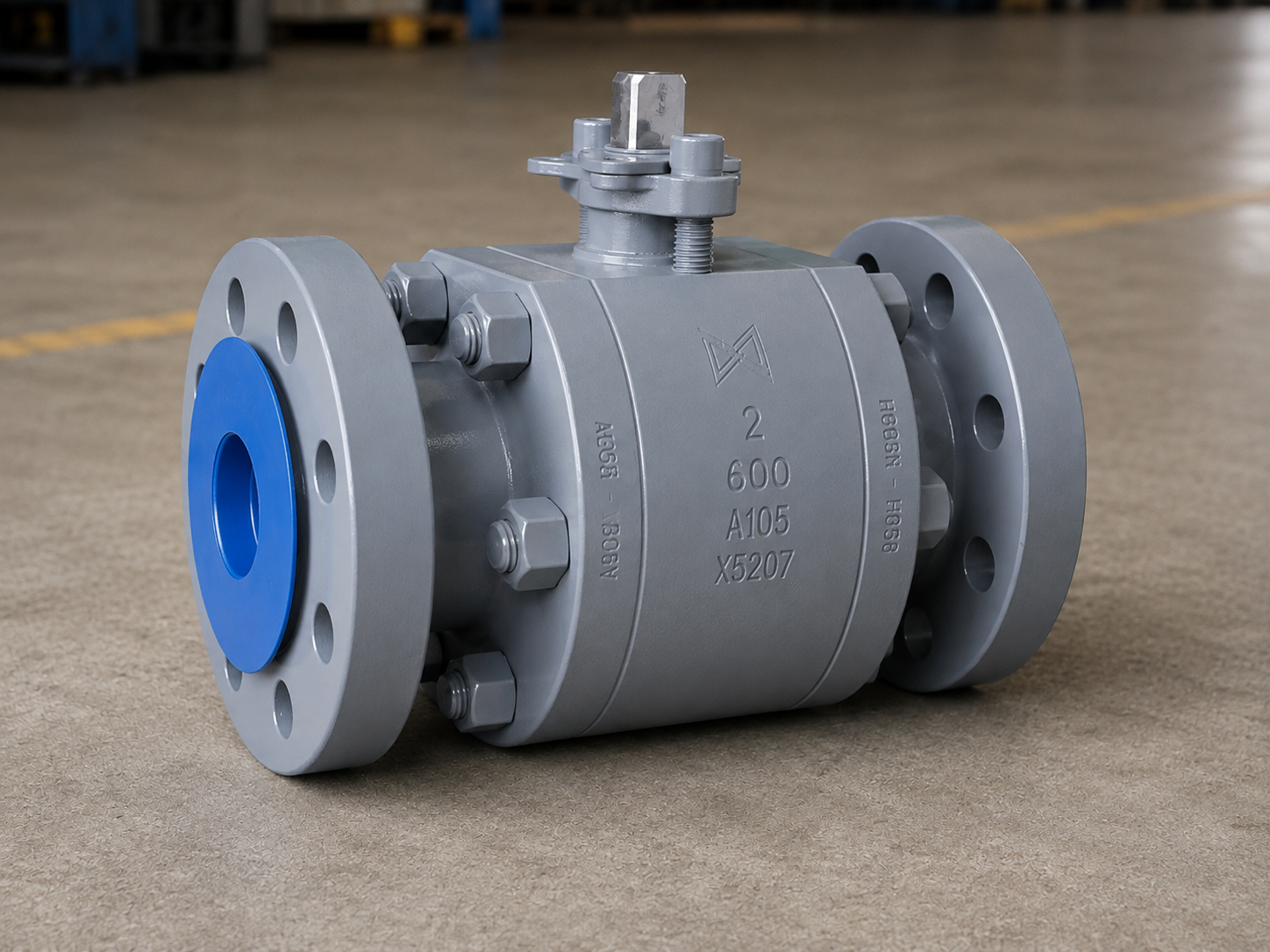

Additional product views showing the trunnion mounted body construction, flanged connection, bolted body design, top mounting area, body marking, and valve construction details for easier product identification and technical reference.
