CF8M PTFE Seated Universal Butterfly Valve
WEISSMILLER CF8M PTFE Seated Universal Butterfly Valve is designed for reliable flow isolation and regulation in industrial piping systems. With CF8M stainless steel body, PTFE seat, and universal flange compatibility, this valve provides corrosion resistance, tight sealing performance, and flexible installation for various industrial applications.
Request Quotation
Product Overview
CF8M PTFE Seated Universal Butterfly Valve is a quarter-turn valve used to control or isolate fluid flow in piping systems. The CF8M stainless steel body provides corrosion resistance, while the PTFE seat supports reliable sealing and chemical compatibility for suitable applications.
The universal class body design supports installation across multiple flange standards, making it suitable for projects that require flexible piping compatibility. This valve is commonly used in chemical process, water treatment, utility systems, HVAC, and general industrial fluid service.
Key Features
CF8M Stainless Steel Body
Stainless steel CF8M body provides corrosion resistance and durability for suitable industrial applications.
PTFE Seat
PTFE seat provides tight sealing performance and improved chemical resistance.
Universal Class Design
Designed to support multiple flange standards such as JIS 5K, JIS 10K, and 150LB depending on configuration.
Lever Operation
Manual lever operation allows quick and simple open-close control for industrial piping systems.
Quarter-Turn Operation
Operates with a simple 90-degree disc rotation for efficient valve opening and closing.
Industrial Application
Suitable for chemical process, water treatment, utility, HVAC, and general industrial fluid service.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | CF8M PTFE Seated Universal Butterfly Valve |
| Available Size | DN50 – DN300 / Other sizes available upon request |
| Pressure Rating | JIS 5K / JIS 10K / 150LB / Other rating available upon request |
| Body Material | CF8M Stainless Steel |
| Disc Material | CF8M / Stainless Steel / Other material by request |
| Seat Material | PTFE |
| Connection | Universal Lug / Wafer Type |
| Operation | Lever Operated / Gearbox Option |
| Application | Chemical Process, Water Treatment, Utility, HVAC, Process Industry, and General Industrial Fluid |
Product Details

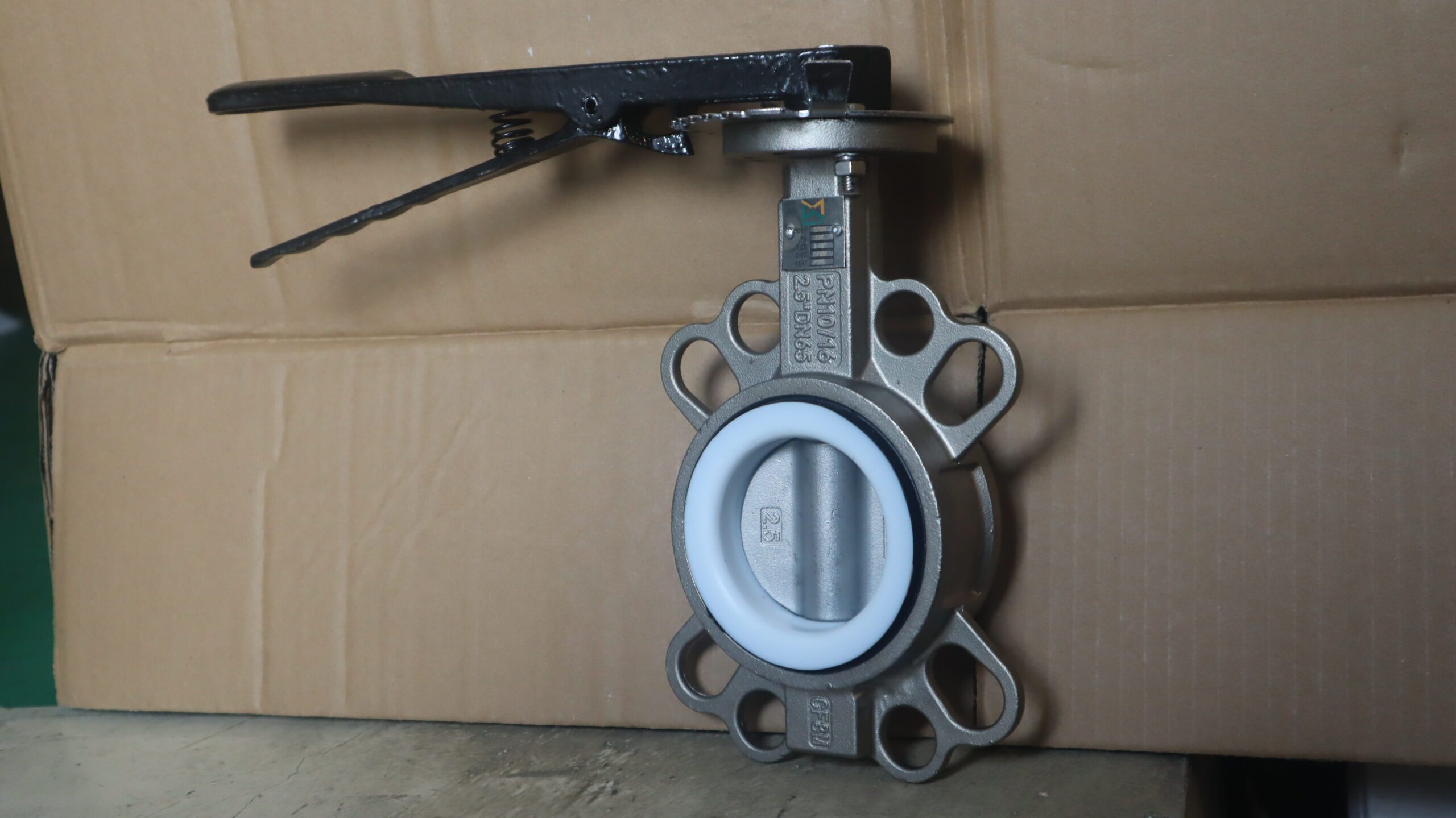

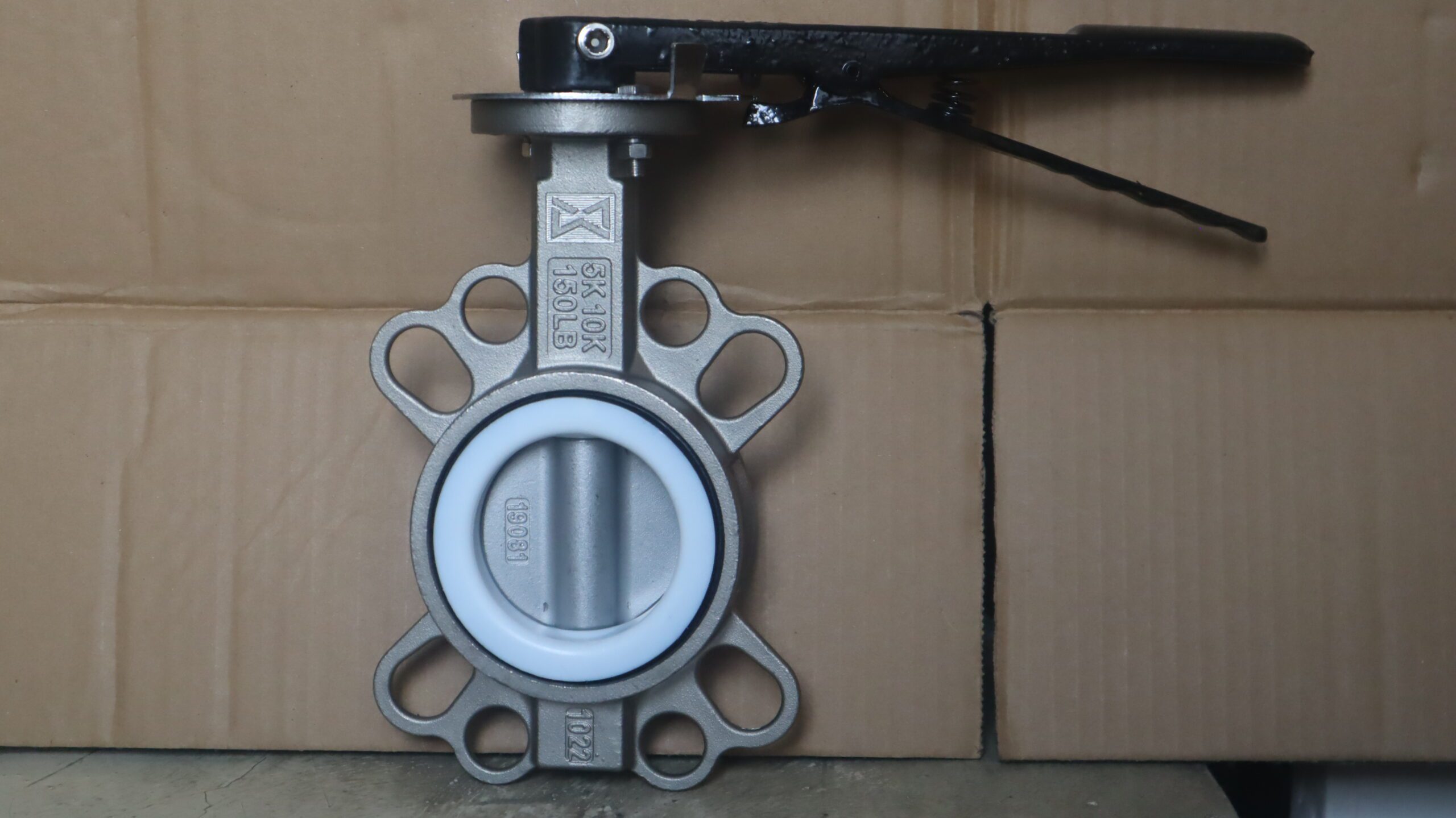

Additional product views showing the universal body design, lever operation, PTFE sealing area, stainless steel construction, and product marking details for easier product identification and technical reference.
Applications
Related Products
Universal Class Butterfly Valve
Universal butterfly valve with flexible flange compatibility for industrial piping systems.
PTFE Lined Wafer Butterfly Valve
Butterfly valve with PTFE lining for chemical and corrosive fluid service.
Stainless Steel PTFE Seated Wafer Butterfly Valve
Stainless steel wafer butterfly valve with PTFE seat for corrosive and industrial fluid service.
Need CF8M PTFE Seated Universal Butterfly Valve?
Contact our technical sales team for product recommendation, specification support, and quotation.
Contact Us
