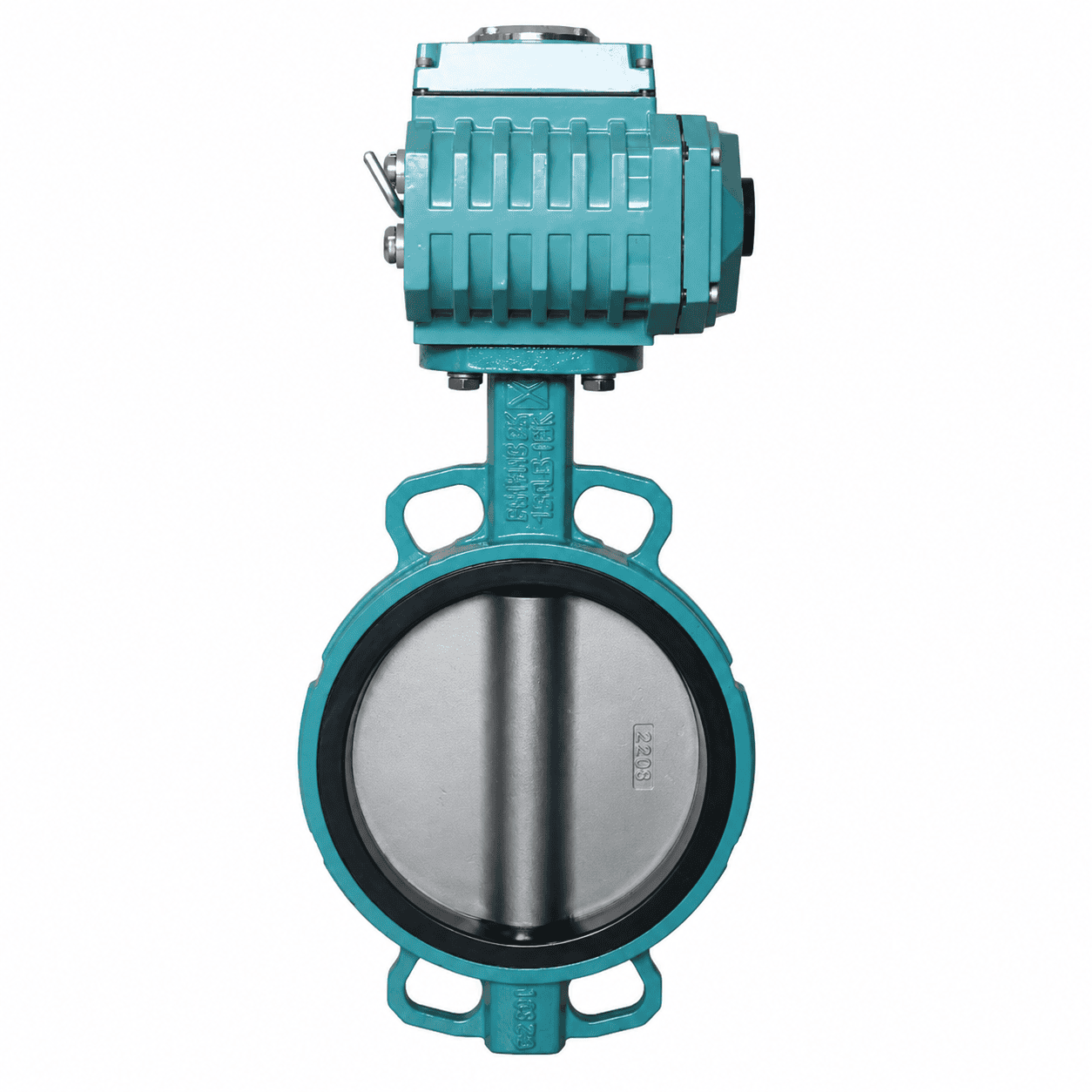

Electric Actuated Wafer Butterfly Valve
WEISSMILLER Electric Actuated Wafer Butterfly Valve is designed for automated flow isolation and regulation in industrial piping systems. Combined with an electric actuator, this valve provides reliable open-close operation, remote control capability, and efficient performance for water, utility, HVAC, and industrial applications.
Request Quotation
Product Overview
Electric Actuated Wafer Butterfly Valve is a quarter-turn valve assembly designed for automated valve operation. The electric actuator allows the valve to be opened and closed electrically, making it suitable for systems that require remote operation, automatic control, or integration with control panels.
This valve is commonly used in water treatment, utility systems, HVAC, building services, process industry, and general industrial piping. The wafer type body allows compact installation between pipe flanges, while the electric actuator supports consistent and controlled valve operation.
Key Features
Electric Actuator Operation
Electric actuator enables automatic open-close operation and supports remote valve control.
Wafer Type Design
Compact wafer body design allows efficient installation between piping flanges.
SS316 Disc
Stainless steel SS316 disc supports corrosion resistance and reliable performance in suitable service conditions.
EPDM Seat
EPDM seat provides dependable sealing performance for water, utility, and general industrial applications.
Remote Control Ready
Suitable for automated systems, control panels, and industrial process control applications.
Industrial Application
Suitable for water treatment, HVAC, utility systems, building services, and general industrial piping.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Electric Actuated Wafer Butterfly Valve |
| Available Size | DN50 – DN600 / Other sizes available upon request |
| Pressure Rating | JIS 10K / Other rating available upon request |
| Body Material | Ductile Iron / Other material available upon request |
| Disc Material | SS316 / Other material by request |
| Seat Material | EPDM / Other material by application |
| Connection | Wafer Type |
| Operation | Electric Actuator |
| Application | Water Treatment, Utility, HVAC, Building Services, Process Industry, and General Industrial Fluid |
Electric Actuator Specification
| Item | Specification |
|---|---|
| Actuator Type | Electric Actuator |
| Model | WEA060 |
| Power Supply | 220VAC |
| Current | 0.9A |
| Open / Close Time | 30 sec |
| Max Torque | 800 N.m |
| Square | 27 x 27 |
Product Details
Additional product views showing the electric actuator, wafer body design, valve construction, actuator label, and nameplate details for easier product identification and technical reference.
