Gear Operated Flanged Butterfly Valve
WEISSMILLER Gear Operated Flanged Butterfly Valve is designed for reliable flow isolation and regulation in industrial piping systems. With flanged end connection, ductile iron body, CF8M disc, EPDM seat, and gearbox operation, this valve provides stable performance, easy operation, and dependable sealing for various industrial applications.
Request Quotation
Product Overview
Gear Operated Flanged Butterfly Valve is a quarter-turn valve used to control or isolate fluid flow in piping systems. The flanged body design provides secure installation to piping flanges, while the gearbox operation allows smoother and easier valve opening or closing.
This valve is commonly used in water treatment, utility systems, HVAC, manufacturing, process piping, and general industrial applications. The EPDM seat provides reliable sealing performance, while the CF8M disc supports corrosion resistance in suitable service conditions.
Key Features
Flanged End Connection
Flanged body design provides secure and stable installation in industrial piping systems.
Gearbox Operation
Gear operated mechanism allows smoother and easier opening or closing for medium to large valve sizes.
Ductile Iron Body
DI body construction provides strength and durability for general industrial applications.
CF8M Disc
Stainless steel CF8M disc supports corrosion resistance and reliable flow control performance.
EPDM Seat
EPDM seat provides dependable sealing performance for water, utility, and general service applications.
Quarter-Turn Operation
Operates with a simple 90-degree disc rotation for efficient open-close control.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Gear Operated Flanged Butterfly Valve |
| Available Size | DN50 – DN600 / Other sizes available upon request |
| Pressure Rating | PN16 / Other rating available upon request |
| Body Material | DI / Ductile Iron |
| Disc Material | CF8M Stainless Steel |
| Seat Material | EPDM |
| Connection | Flanged Type |
| Operation | Gearbox / Handwheel Operation |
| Application | Water, Utility, HVAC, Process Industry, and General Industrial Fluid |
Product Details

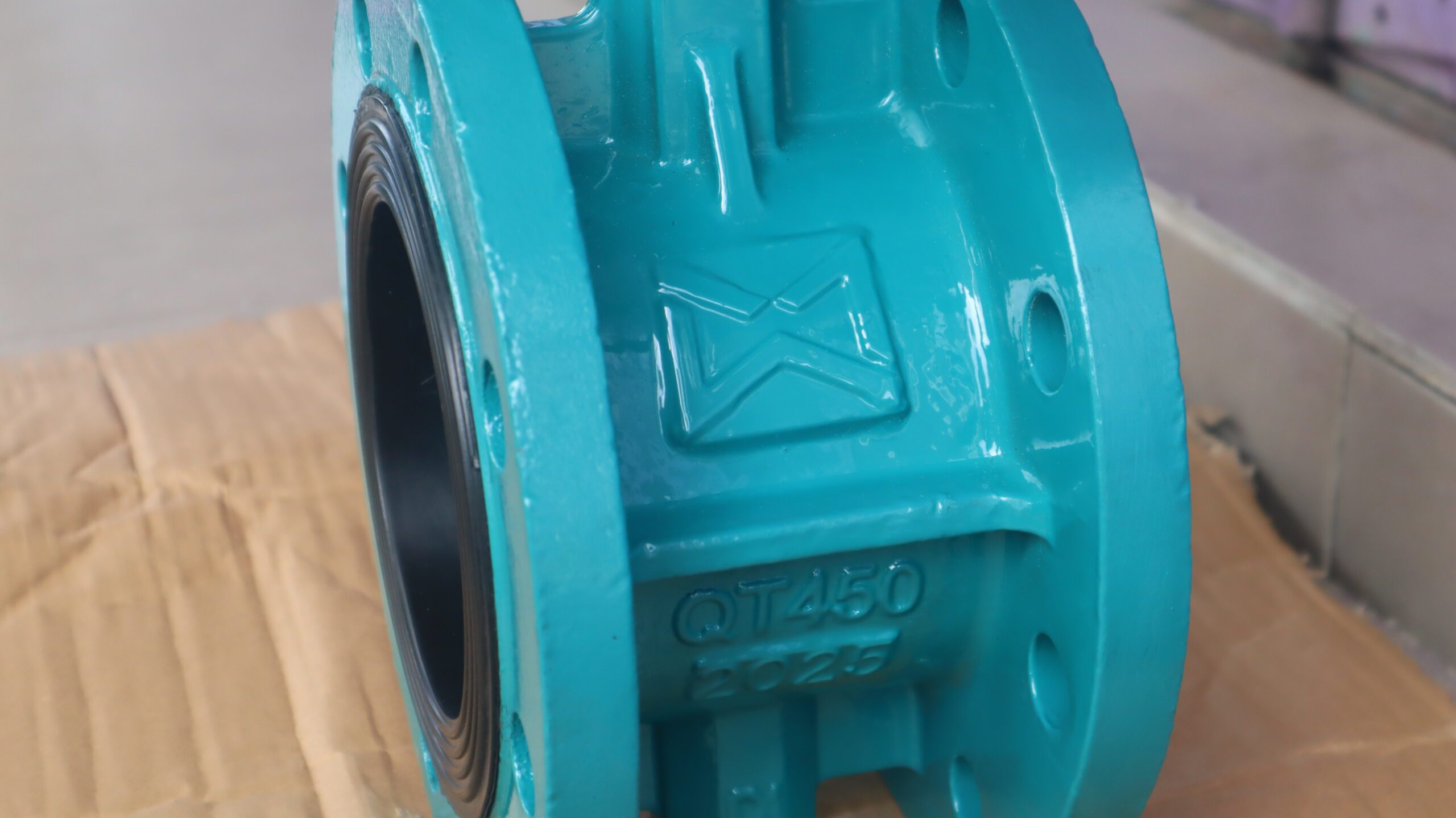

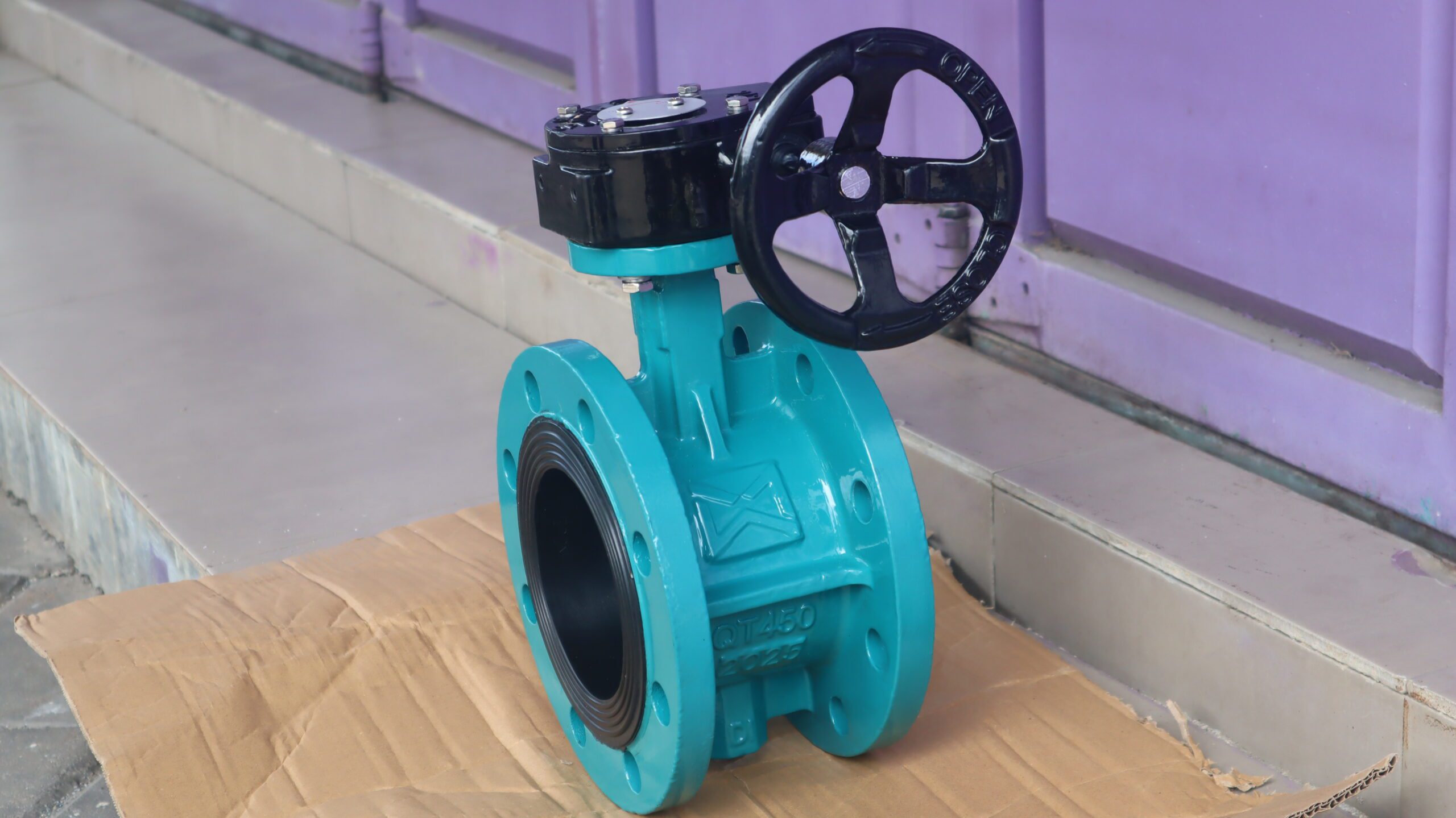

Additional product views showing the flanged body design, gearbox operation, EPDM sealing area, CF8M disc, and nameplate details for easier product identification and technical reference.
