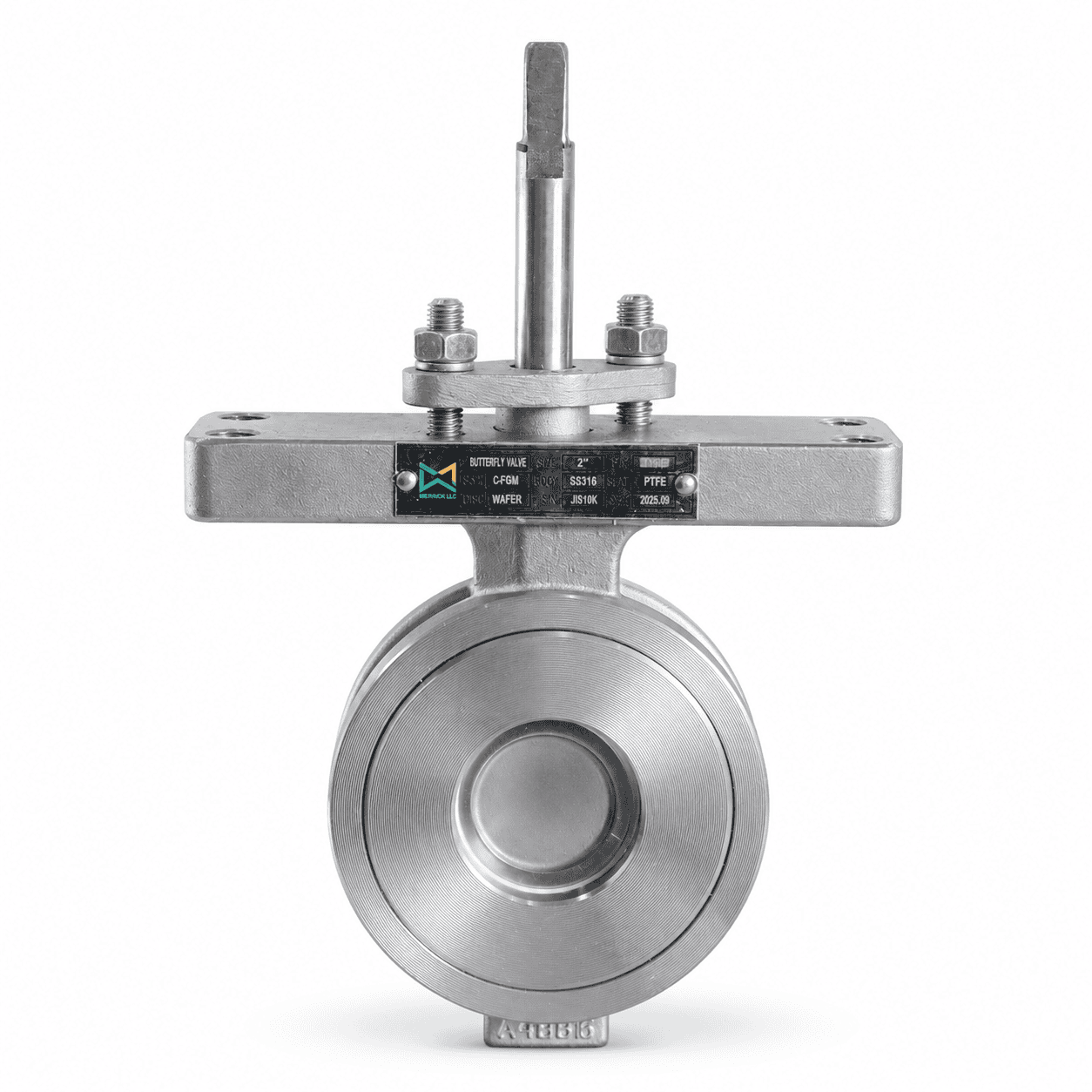

High Performance Wafer Butterfly Valve
CF8M Wafer Butterfly Valve with SS316 Disc and PTFE Seat
WEISSMILLER High Performance Wafer Butterfly Valve is designed for reliable flow isolation and control in industrial piping systems. With CF8M body, SS316 disc, PTFE seat, wafer connection, and JIS 10K rating, this valve provides dependable sealing performance, corrosion resistance, and compact installation for suitable industrial applications.
Request Quotation
Product Overview
Lever Operated Wafer Butterfly Valve is a quarter-turn valve designed for flow isolation and basic flow control in industrial piping systems. The wafer body design provides compact installation between flanges, making it suitable for limited-space piping layouts.
This valve is suitable for water treatment, utility systems, chemical process, manufacturing, and general industrial fluid applications. The CF8M body and SS316 disc provide corrosion resistance, while the PTFE seat supports reliable sealing performance for suitable service conditions.
Key Features
CF8M Body
Stainless steel CF8M body provides corrosion resistance for suitable industrial service conditions.
SS316 Disc
Stainless steel SS316 disc supports reliable operation and resistance against corrosion.
PTFE Seat
PTFE seat provides dependable sealing performance and chemical resistance for compatible fluid service.
Wafer Connection
Compact wafer body design allows efficient installation between piping flanges.
JIS 10K Rating
Suitable for piping systems requiring JIS 10K flange and pressure rating compatibility.
Lever Operation
Manual lever operation allows quick and simple open-close control for smaller valve sizes.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | High Performance Wafer Butterfly Valve | Available Size | DN50 – DN300 / Other sizes available upon request |
| Example Size | 2" |
| Body Material | CF8M |
| Disc Material | SS316 |
| Seat Material | PTFE |
| Connection | Wafer Type |
| Pressure Rating | JIS 10K |
| Operation | Lever Operated |
| Application | Water Treatment, Utility, Chemical Process, Manufacturing, and General Industrial Fluid |
Product Details

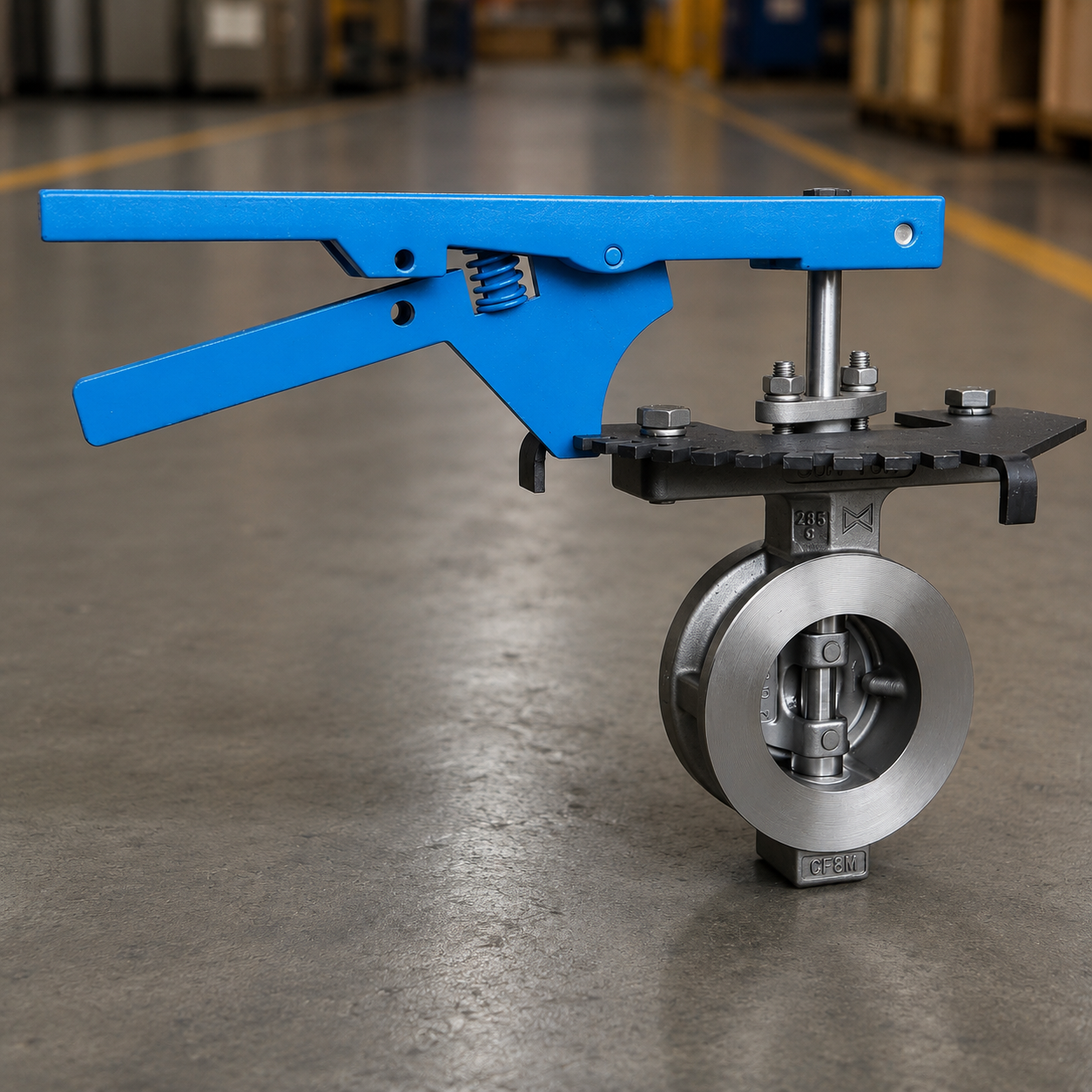

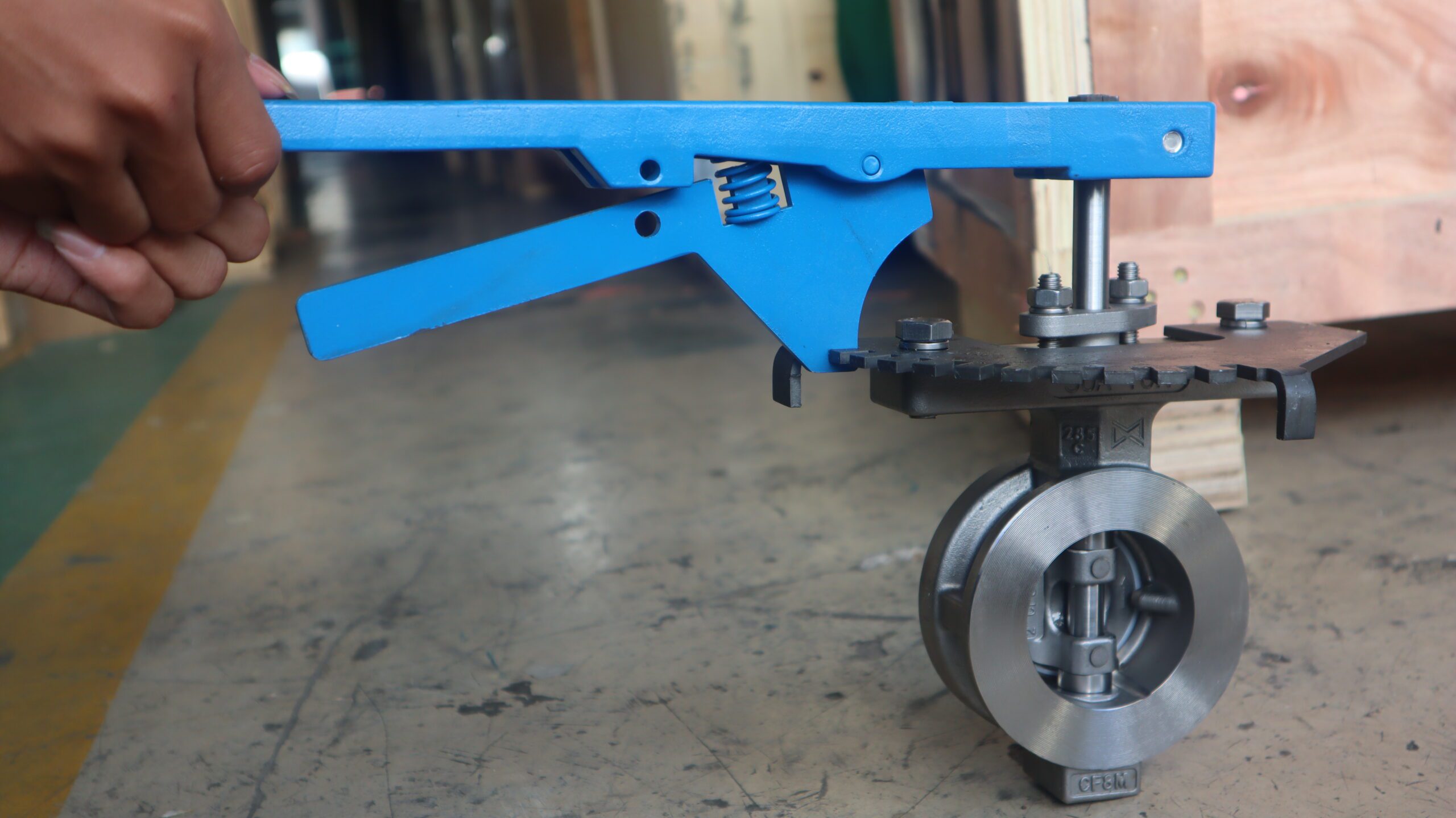

Additional product views showing the wafer body design, lever mechanism, stainless steel disc, PTFE seat, flange contact area, and nameplate details for easier product identification and technical reference.
