Pneumatic Actuated Wafer Butterfly Valve with Accessories
WEISSMILLER Pneumatic Actuated Wafer Butterfly Valve with Accessories is designed for automated flow isolation and regulation in industrial piping systems. This valve assembly is equipped with a pneumatic actuator, limit switch box, and solenoid valve to support reliable automatic operation, valve position indication, and control system integration.
Request Quotation
Product Overview
Pneumatic Actuated Wafer Butterfly Valve with Accessories is a complete automated valve package designed for industrial flow control applications. The butterfly valve provides flow isolation and regulation, while the pneumatic actuator enables automatic open-close operation using compressed air.
This assembly is also equipped with a limit switch box for valve position indication and a solenoid valve for pneumatic air signal control. It is suitable for water treatment, utility systems, process automation, industrial piping, HVAC, and general industrial applications.
Key Features
Complete Valve Assembly
Integrated package consisting of butterfly valve, pneumatic actuator, limit switch box, and solenoid valve.
Pneumatic Actuator Operation
Enables automatic valve opening and closing using compressed air supply.
Limit Switch Box
Provides valve open-close position indication for control panel or automation system monitoring.
Solenoid Valve Control
Controls pneumatic air supply to the actuator for automated valve operation.
CF8 Valve Body
Stainless steel CF8 body supports corrosion resistance and reliable operation in suitable applications.
Wafer Type Design
Compact wafer body design allows efficient installation between piping flanges.
Valve Specification
| Item | Specification |
|---|---|
| Product Type | Pneumatic Actuated Wafer Butterfly Valve with Accessories |
| Available Size | DN50 – DN600 / Other sizes available upon request |
| Pressure Rating | JIS 10K / Other rating available upon request |
| Body Material | CF8 Stainless Steel |
| Disc Material | Stainless Steel / Other material by request |
| Seat Material | EPDM / PTFE / Other material by application |
| Connection | Wafer Type |
| Operation | Pneumatic Actuator |
| Accessories | Limit Switch Box and Solenoid Valve |
| Application | Water Treatment, Utility, HVAC, Process Automation, Industrial Piping, and General Industrial Fluid |
Pneumatic Actuator Specification
| Item | Specification |
|---|---|
| Actuator Type | Pneumatic Actuator |
| Mounting Part | EN ISO 5211 |
| Operating Pressure | 4 – 8 bar |
| Operating Temperature | -20°C to 80°C |
| Operation Type | Double Acting |
Accessories Specification
| Item | Specification |
|---|---|
| Limit Switch Box | Valve Position Indicator |
| Limit Switch Box Model | WVM-APL-210 |
| Function | Open / Close Valve Position Indication |
| Solenoid Valve | Pneumatic Air Control Valve |
| Solenoid Valve Model | 4M310-08 |
| Solenoid Valve Pressure | 0.15 – 0.8 MPa |
Product Details

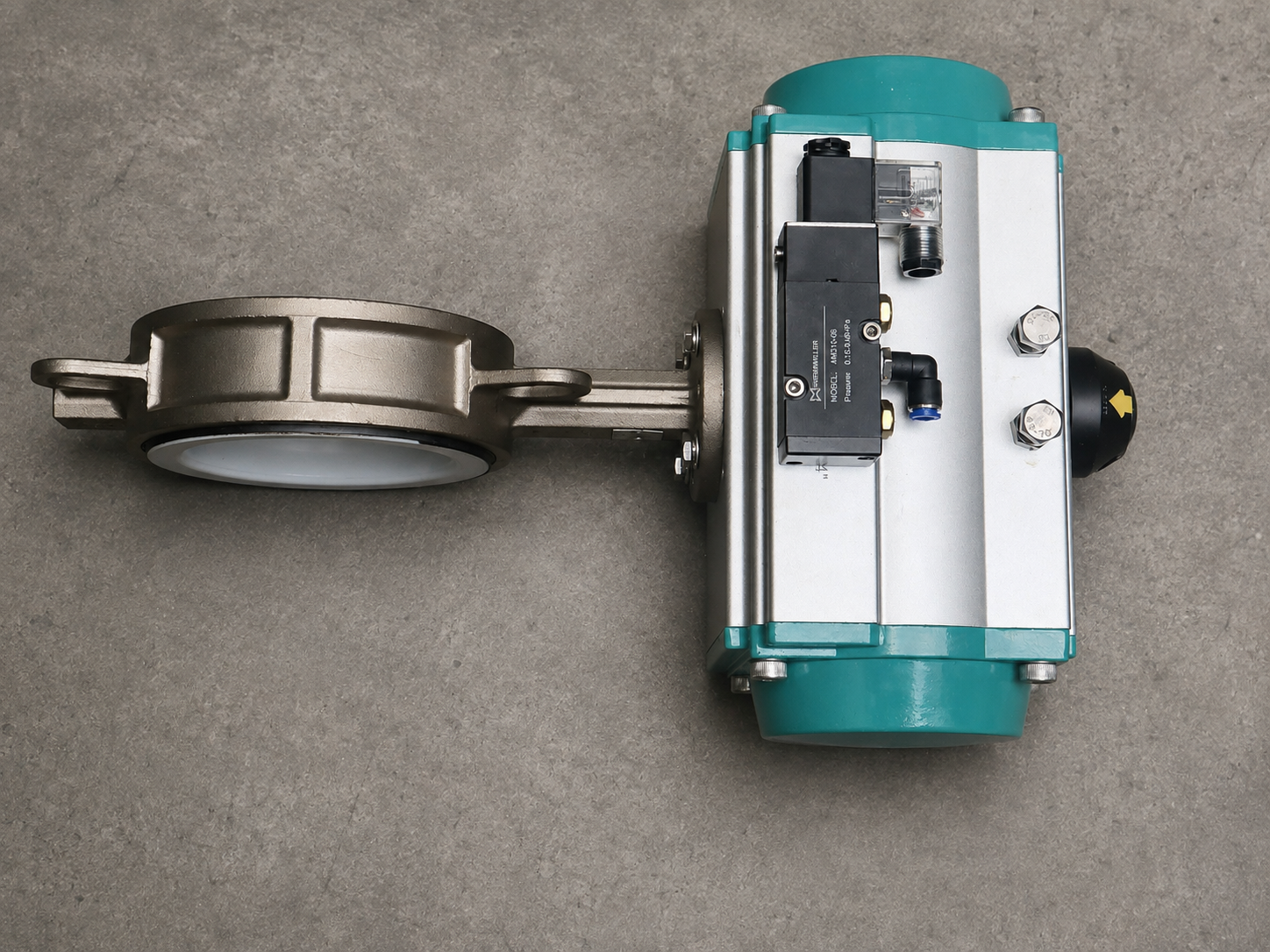

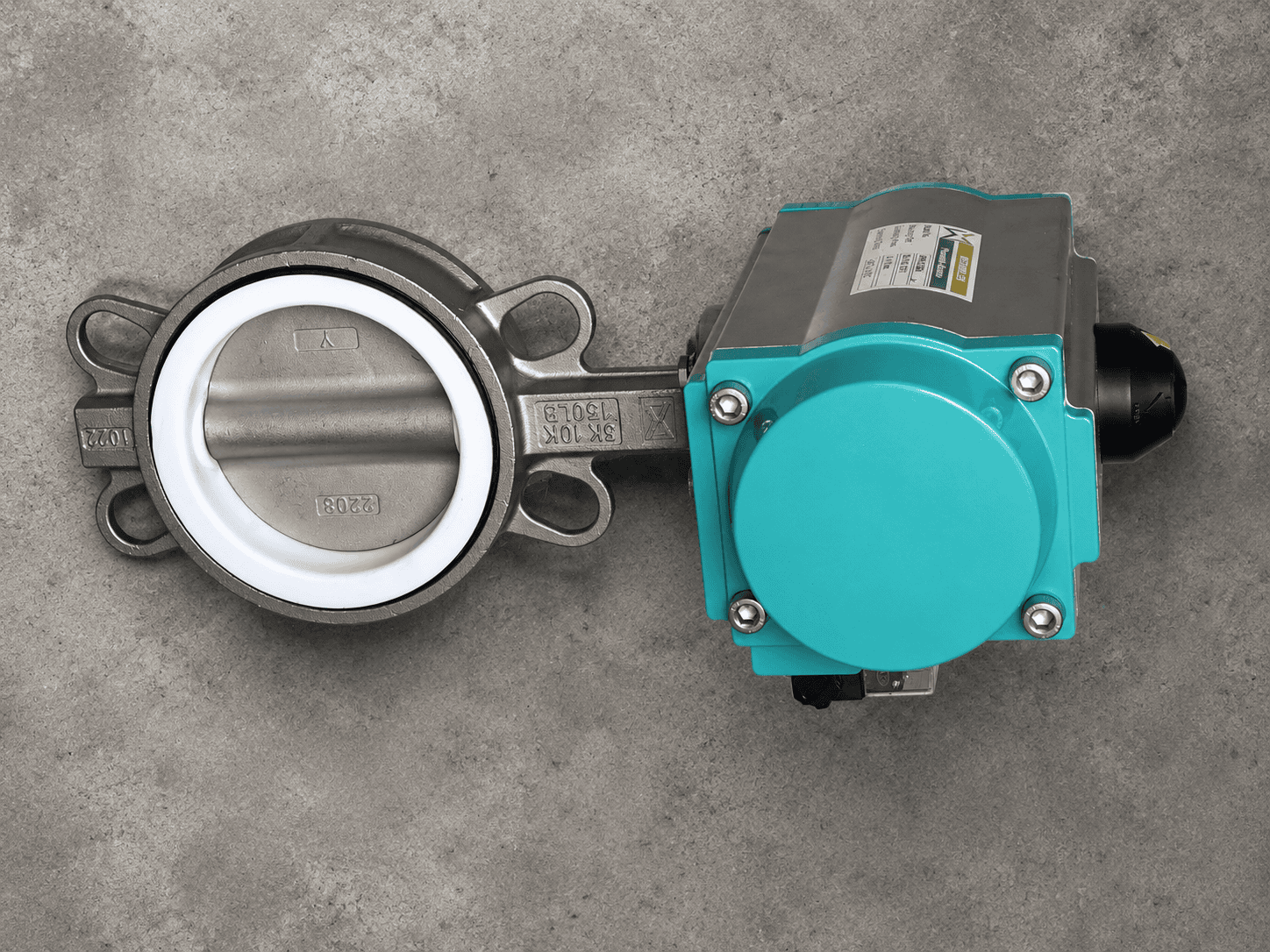

Additional product views showing the pneumatic actuator, wafer butterfly valve construction, limit switch box, solenoid valve, and product marking details for easier product identification and technical reference.
