Stainless Steel Wafer Butterfly Valve
WEISSMILLER Gear Operated Stainless Steel Wafer Butterfly Valve is designed for reliable flow isolation and regulation in industrial piping systems. With stainless steel construction, wafer connection, and gearbox operation, this valve provides durable performance, smooth operation, and dependable sealing for various industrial applications.
Request Quotation
Product Overview
Gear Operated Stainless Steel Wafer Butterfly Valve is a quarter-turn valve used to control or isolate fluid flow in piping systems. The stainless steel body and disc construction support corrosion resistance and durability for suitable industrial fluid service.
The wafer type body allows compact installation between pipe flanges, while the gearbox operation provides smoother and easier valve opening and closing. This valve is suitable for water treatment, utility systems, chemical process, industrial piping, and general process applications.
Key Features
Stainless Steel Construction
CF8M stainless steel construction supports corrosion resistance and reliable performance in suitable applications.
Wafer Type Design
Compact wafer body design allows efficient installation between piping flanges.
Gearbox Operation
Gear operated mechanism provides smoother and easier opening or closing for medium to large valve sizes.
Reliable Flow Isolation
Designed for dependable shut-off and flow regulation in industrial piping systems.
10K Rating
Available with 10K pressure rating configuration for suitable piping system requirements.
Industrial Application
Suitable for water treatment, utility, chemical process, and general industrial fluid service.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Gear Operated Stainless Steel Wafer Butterfly Valve |
| Available Size | DN50 – DN600 / Other sizes available upon request |
| Example Size | 8" / DN200 / 200A |
| Pressure Rating | 10K / Other rating available upon request |
| Body Material | CF8M Stainless Steel |
| Disc Material | CF8M Stainless Steel |
| Seat Material | Metal Seat / Soft Seat option by application |
| Connection | Wafer Type |
| Operation | Gearbox / Gear Operated |
| Application | Water Treatment, Utility, Chemical Process, Industrial Piping, and General Industrial Fluid |
Product Details

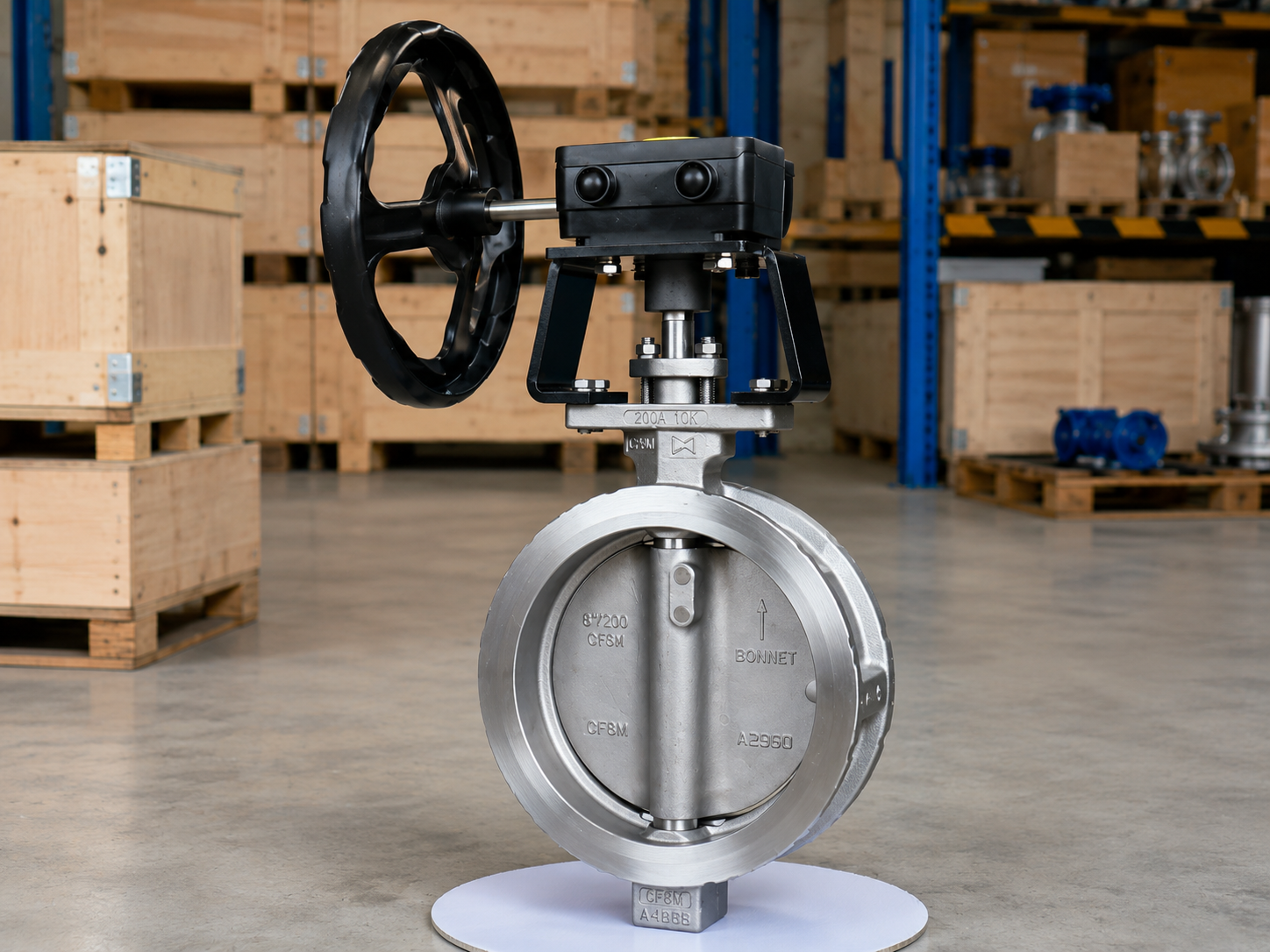

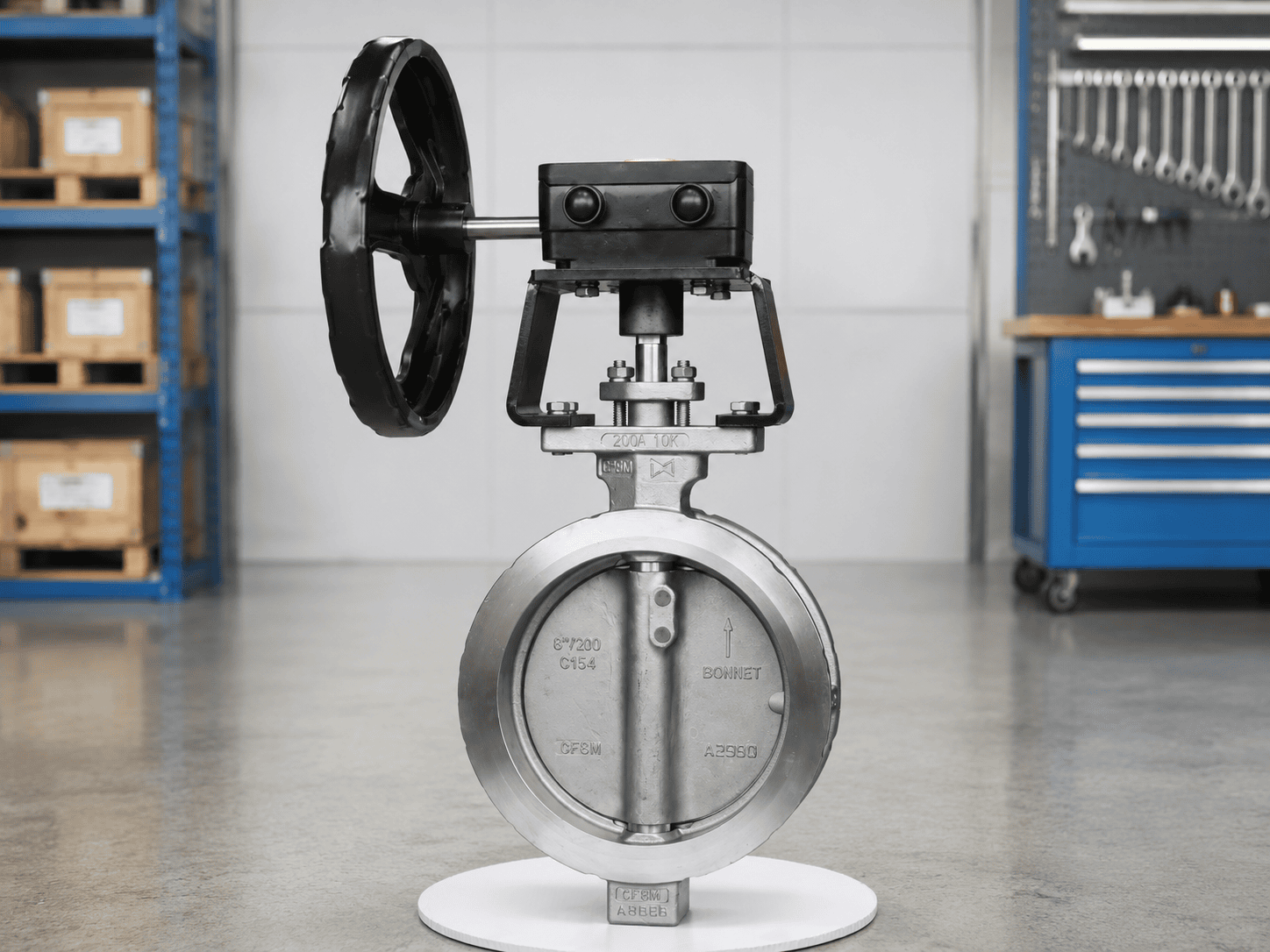

Additional product views showing the stainless steel body construction, wafer connection, gearbox operation, disc design, and casting markings for easier product identification and technical reference.
