Triple Offset Wafer Butterfly Valve
WEISSMILLER Triple Offset Wafer Butterfly Valve is designed for reliable flow isolation in demanding industrial piping systems. With wafer connection, WCB body, SS304 disc, and high-pressure rating options, this valve provides durable performance, tight shut-off capability, and efficient operation for industrial applications.
Request Quotation
Product Overview
Triple Offset Wafer Butterfly Valve is a high-performance butterfly valve designed for reliable shut-off and flow isolation in industrial piping systems. The triple offset design helps reduce seat friction during operation and supports improved sealing performance compared with conventional butterfly valve designs.
This valve is commonly used in oil and gas, petrochemical, power plant, utility systems, process industry, and general industrial applications. The wafer body design provides compact installation between piping flanges, while the gear-operated mechanism allows smoother valve opening and closing for larger sizes.
Key Features
Triple Offset Design
Designed to reduce seat friction during operation and support reliable shut-off performance.
Wafer Connection
Compact wafer-style connection allows efficient installation between piping flanges.
WCB Body
Carbon steel WCB body provides strength and durability for demanding industrial service.
SS304 Disc
Stainless steel disc supports corrosion resistance and stable performance in suitable applications.
Gear Operation
Gear-operated mechanism allows smoother and easier open-close control for medium to large valve sizes.
Industrial Service
Suitable for high-performance isolation service in industrial piping and process systems.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Triple Offset Wafer Butterfly Valve |
| Available Size | DN50 – DN600 / Other sizes available upon request |
| Pressure Rating | JIS 20K / Other rating available upon request |
| Body Material | WCB / Other material available upon request |
| Disc Material | SS304 / Other stainless steel option available upon request |
| Seat Material | Metal Seat / Other seat material by application |
| Connection | Wafer Type |
| Operation | Gearbox / Gear Operated |
| Application | Oil & Gas, Petrochemical, Power Plant, Utility, Process Industry, and General Industrial Fluid |
Product Details

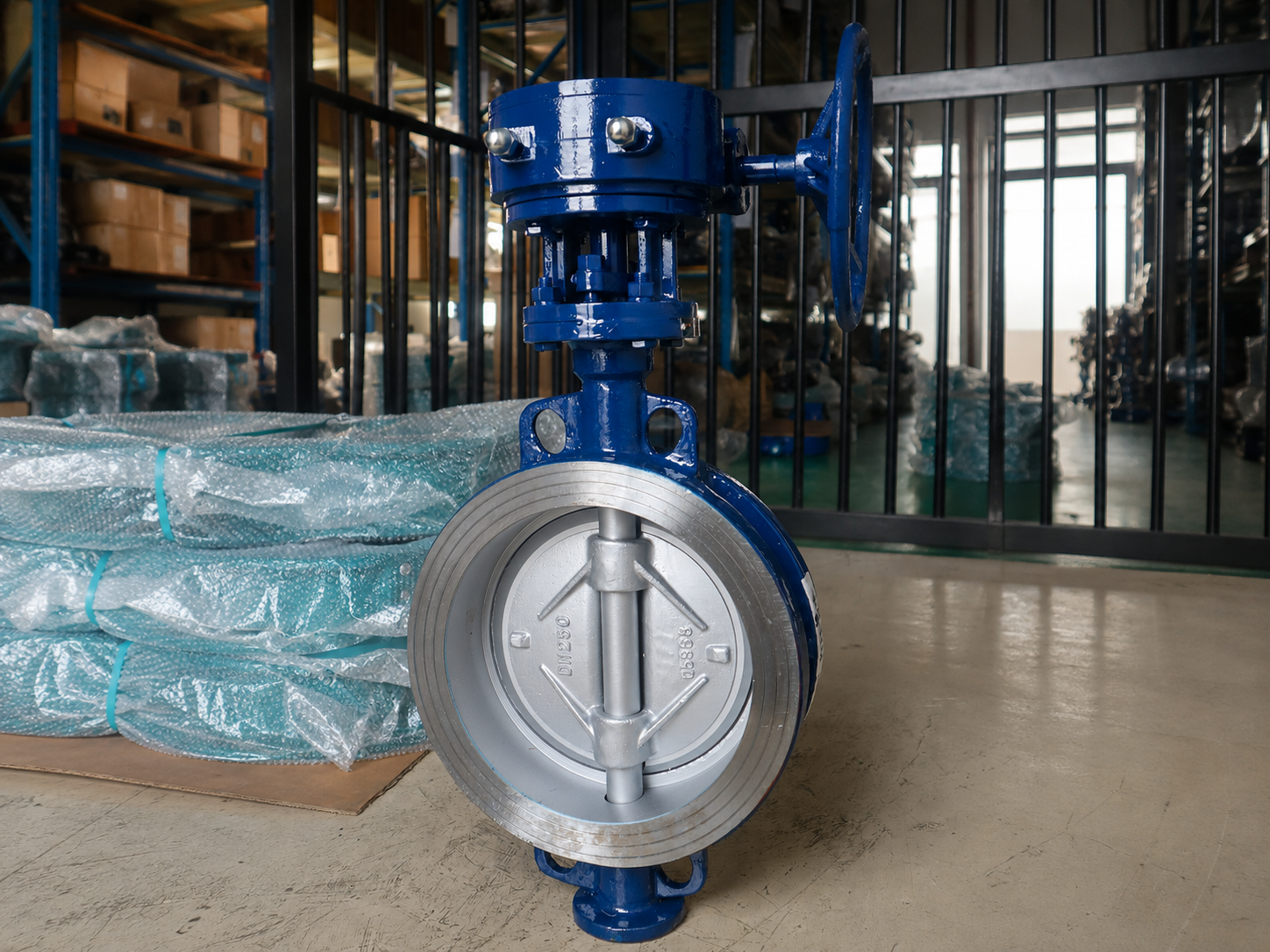

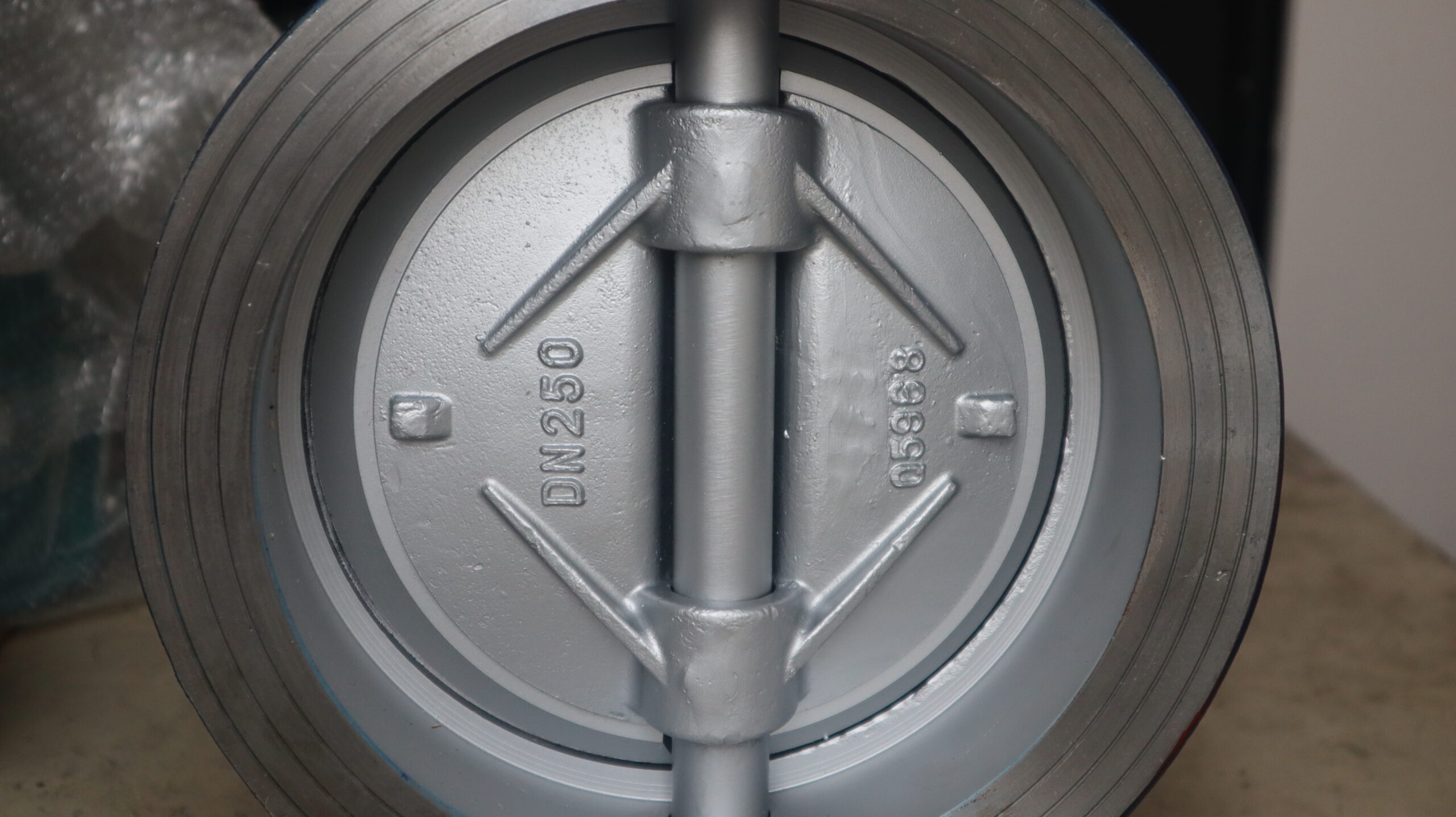

Additional product views showing the wafer body design, triple offset construction, gear operation, SS304 disc, and nameplate details for easier product identification and technical reference.
