Gear Operated Wafer Butterfly Valve
WEISSMILLER Gear Operated Wafer Butterfly Valve is designed for reliable flow isolation and regulation in industrial piping systems. With compact wafer body design and gearbox operation, this valve provides smooth operation, efficient sealing performance, and reliable service for various industrial applications.
Request Quotation
Product Overview
Gear Operated Wafer Butterfly Valve is a quarter-turn valve used to control or isolate fluid flow in piping systems. The gearbox operation allows smoother and easier valve opening or closing, especially for medium to large valve sizes where lever operation may require higher effort.
This valve is available in various sizes, pressure ratings, body materials, disc materials, and seat materials to suit different project requirements. It is commonly used in water treatment, HVAC, utility systems, process piping, and general industrial applications.
Key Features
Gearbox Operation
Equipped with gearbox operation for smoother and easier opening or closing of medium to large butterfly valve sizes.
Wafer Type Design
Compact wafer-style body design for installation between piping flanges with efficient space usage.
Reliable Sealing
Designed to provide stable sealing performance for industrial flow isolation and regulation.
Multiple Material Options
Available with various body, disc, and seat material options to suit different application requirements.
Quarter-Turn Operation
Operates with a simple 90-degree disc rotation for efficient open and close control.
Industrial Application
Suitable for water treatment, HVAC, utility systems, manufacturing, and general industrial piping.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Gear Operated Wafer Butterfly Valve |
| Available Size | DN50 – DN600 / Other sizes available upon request |
| Pressure Rating | PN10 / PN16 / JIS 10K / Other rating available upon request |
| Body Material | Cast Iron / Ductile Iron / Carbon Steel / Stainless Steel |
| Disc Material | Ductile Iron / CF8 / CF8M / Stainless Steel / Other material by request |
| Seat Material | EPDM / NBR / PTFE / Viton / Other material by application |
| Connection | Wafer Type |
| Operation | Gearbox / Gear Operated |
| Application | Water, Utility, HVAC, Process Industry, and General Industrial Fluid |
Product Details

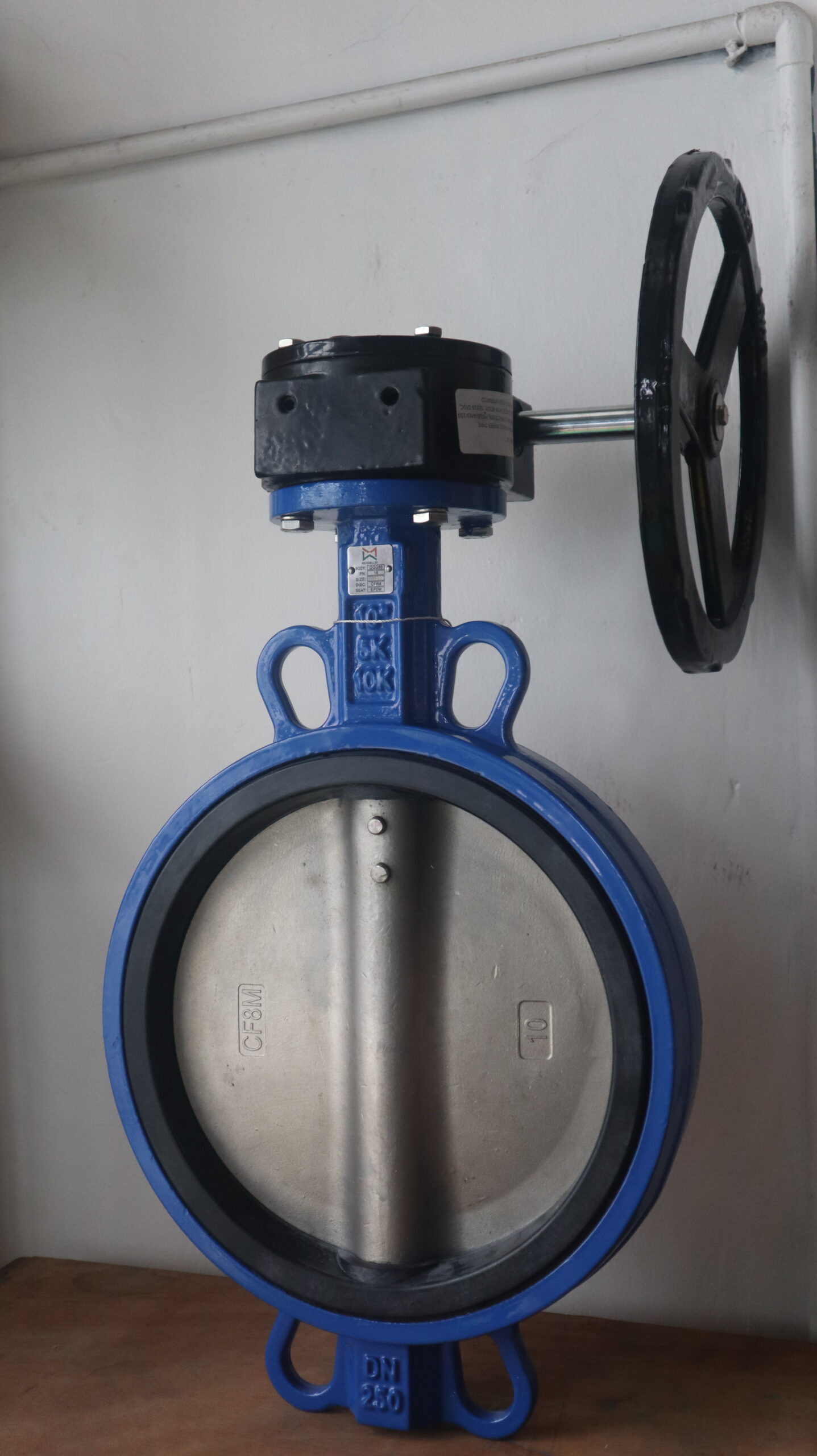

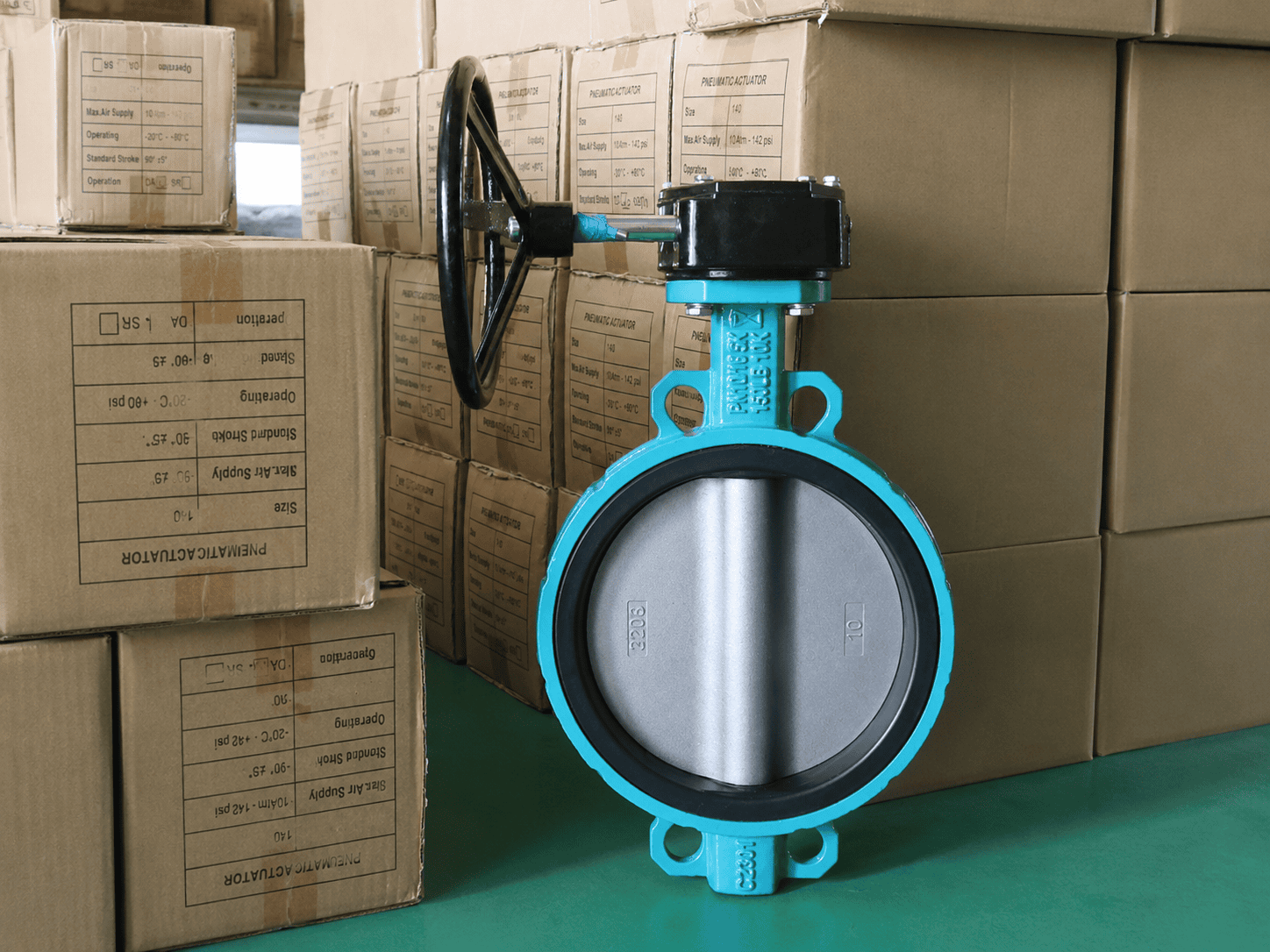

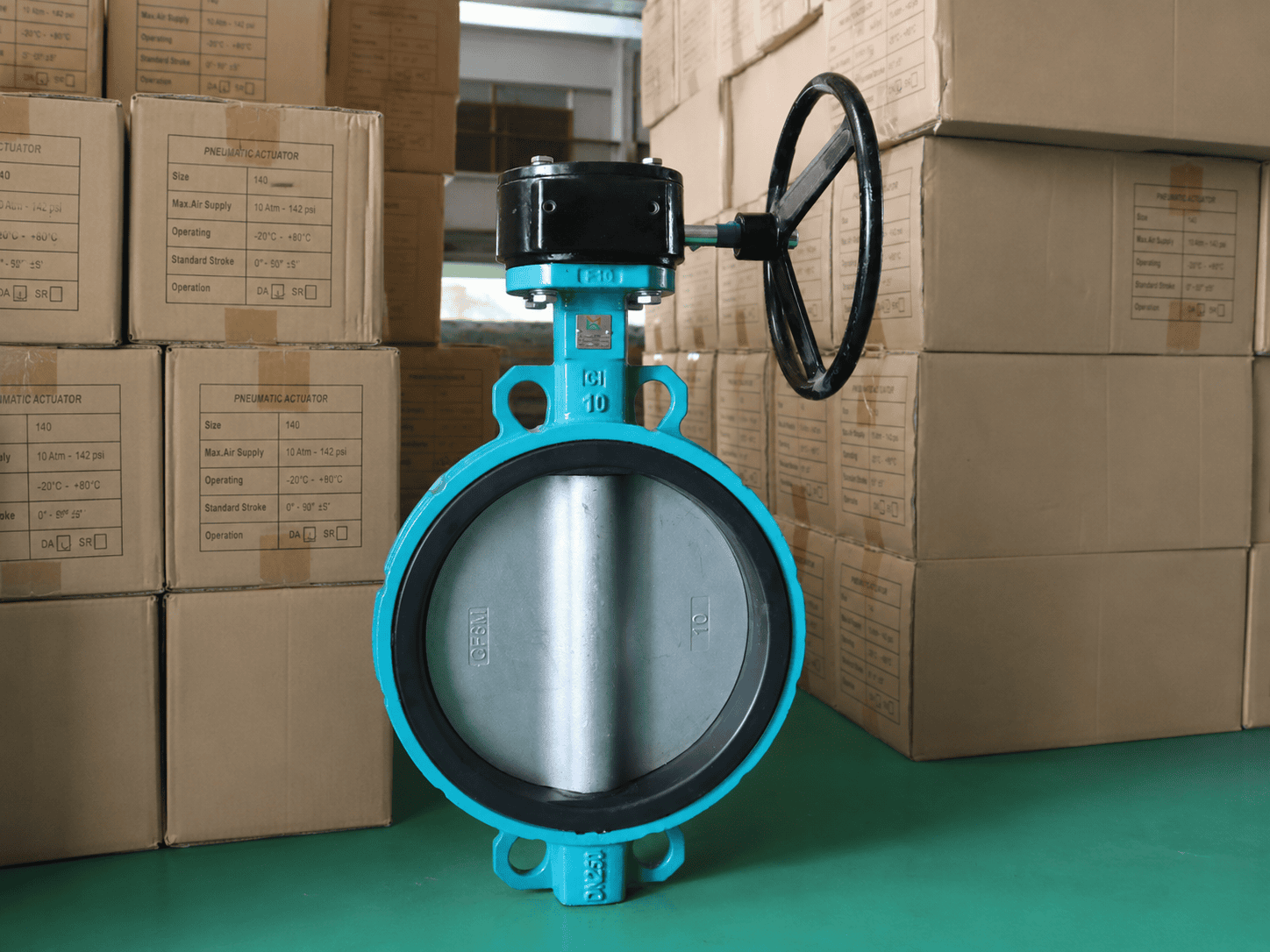

Additional product views showing the valve construction, wafer body design, gearbox operation, and nameplate details for easier product identification and technical reference.
Applications
