Stainless Steel Flanged Foot Valve with Strainer
Flanged Foot Valve with Integrated Strainer for Pump Suction Line Protection

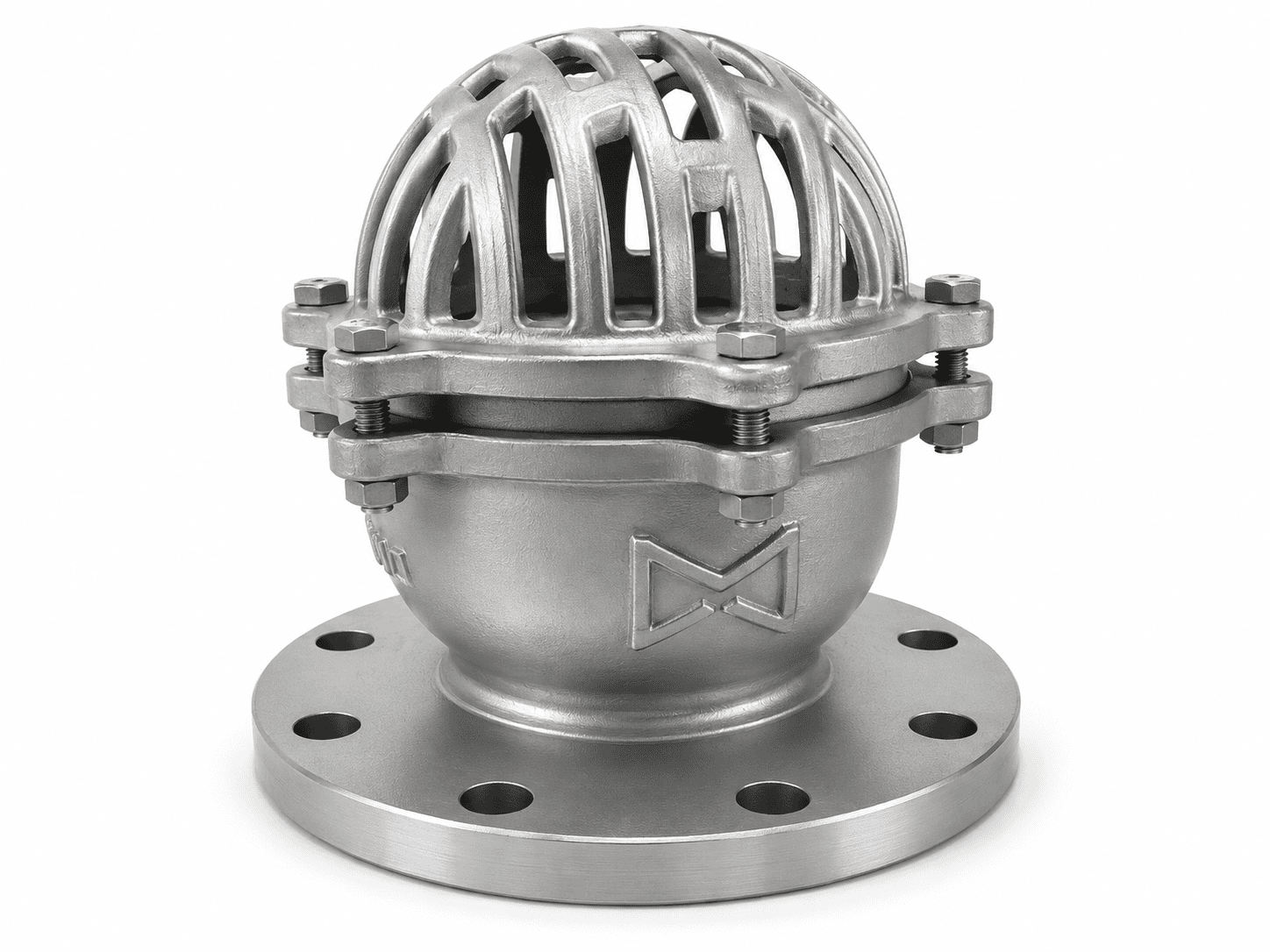

WEISSMILLER Stainless Steel Flanged Foot Valve with Strainer is designed for pump suction line applications, combining automatic reverse flow prevention with an integrated strainer basket to help protect the pump from coarse particles and debris. Based on the drawing, the main construction includes body, disc, cylindrical pin, and seat components.
Request Quotation
Product Overview
Stainless Steel Flanged Foot Valve with Strainer is a suction line valve installed at the end of the pump suction pipe. It works automatically by flow pressure, allowing forward flow into the suction line and helping prevent reverse flow when the pump stops.
The integrated strainer basket helps reduce the entry of coarse debris into the piping system. The drawing shows a flanged top connection, internal disc, cylindrical pin, seat area, and lower strainer section, making it suitable for water intake, utility water, irrigation, and pump protection applications.
Key Features

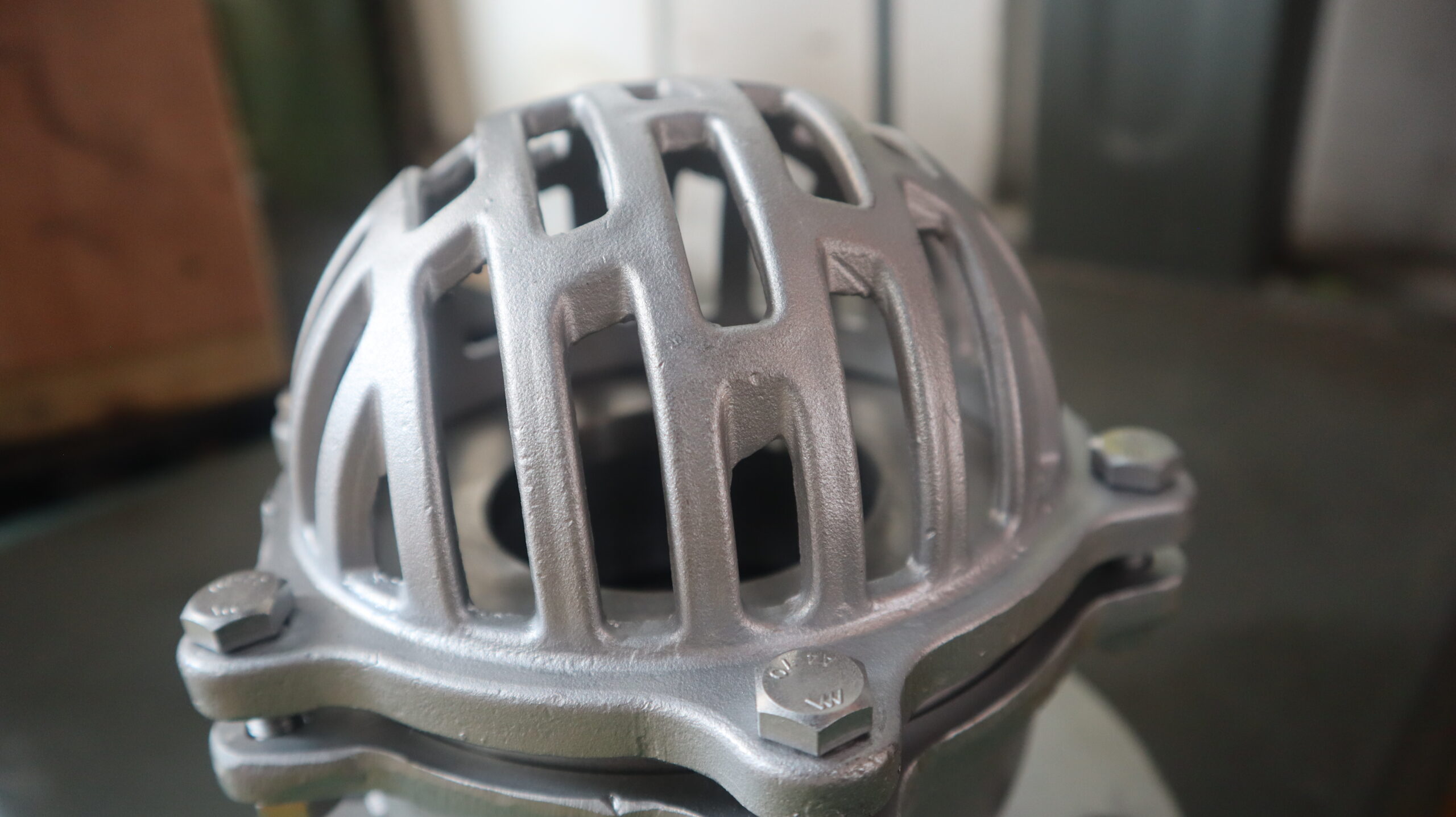

Integrated Strainer Basket
Built-in strainer section helps protect the suction line and pump from coarse particles and debris.
Automatic Check Function
Internal disc operates automatically by flow pressure to help prevent reverse flow in the suction line.
Flanged Connection
Flanged end connection provides secure installation at the end of the pump suction pipe.
Bolted Construction
Bolted body and strainer assembly supports inspection and maintenance access.
Disc and Seat Design
The drawing identifies disc and seat components as part of the internal sealing construction.
Suction Line Protection
Designed for pump suction applications where reverse flow prevention and debris screening are required.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Stainless Steel Flanged Foot Valve with Strainer |
| Valve Type | Foot Valve / Suction Check Valve |
| Brand | WEISSMILLER |
| Connection | Flanged Connection |
| Operation | Automatic by Flow Pressure |
| Function | Reverse Flow Prevention and Suction Line Protection |
| Main Components | Body, Disc, Cylindrical Pin, Seat |
| Strainer Type | Integrated Basket / Dome Strainer |
| Installation | End of Pump Suction Pipe |
| Size Available in Drawing | DN100 and DN150 |
| DN100 Drawing Reference | D1: 98 mm, d: 151 mm |
| DN150 Drawing Reference | D1: 148 mm, d: 212 mm |
| Body Material | Stainless Steel / Cast Stainless Steel Available Upon Request |
| Disc Material | Stainless Steel Available Upon Request |
| Seat Material | Rubber / Metal Seat Available Upon Request |
| Cylindrical Pin Material | Stainless Steel Available Upon Request |
| Pressure Rating | Available Upon Request |
| Flange Standard | Available Upon Request |
| Suitable Media | Water, Clean Water, Raw Water, and Utility Water |
| Application | Pump Suction Line, Water Treatment, Irrigation, Utility Water System, and Industrial Water Supply |
Note: Drawing reference shows DN100 and DN150 dimensional data, including D1 and d dimensions. Pressure rating, flange standard, and detailed material grades are not shown in the drawing and should be confirmed based on project requirement.

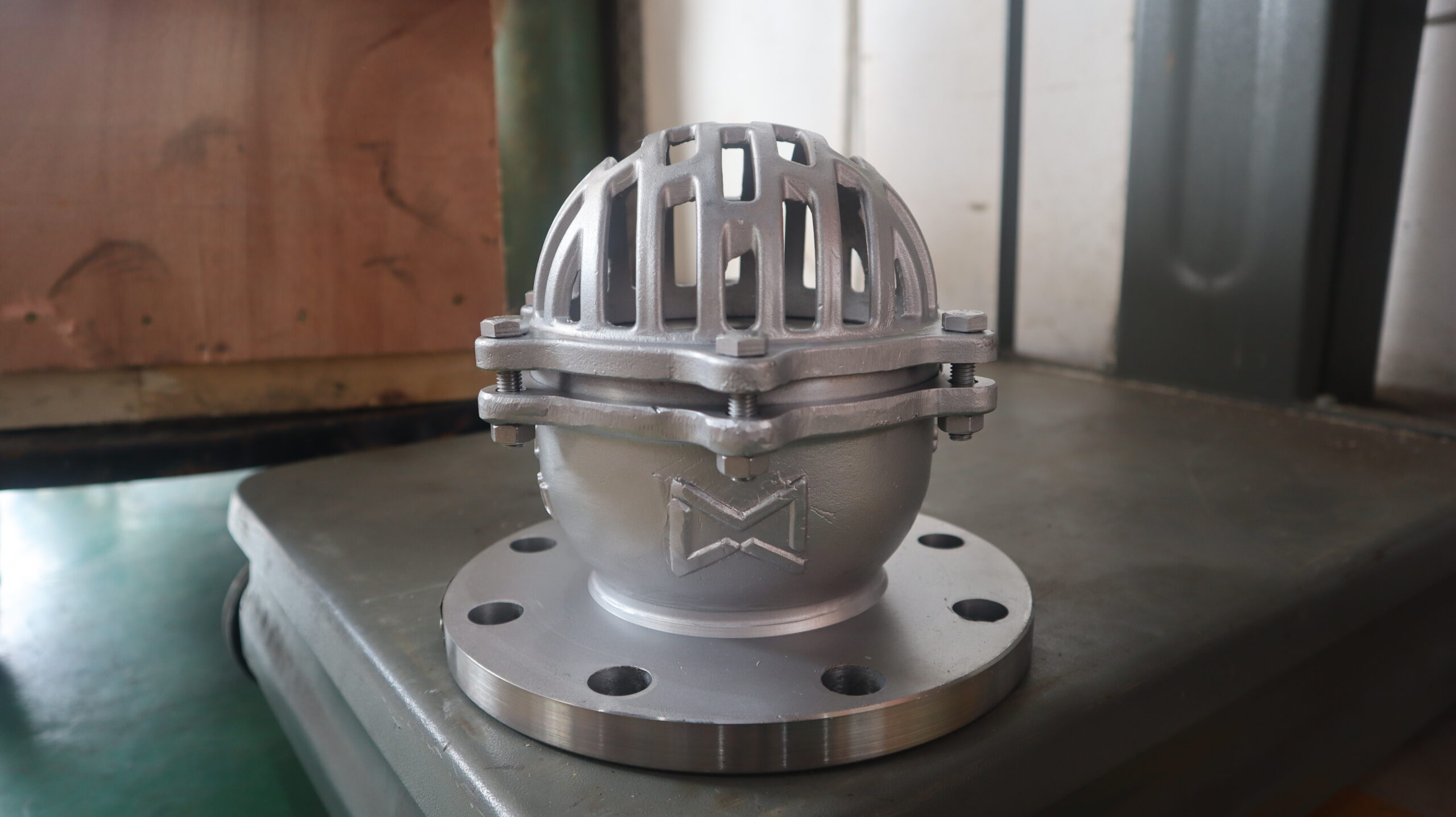

Drawing Reference
The drawing illustrates the foot valve construction with flanged connection, internal disc, cylindrical pin, seat, and lower integrated strainer section. The available size references shown in the drawing are DN100 and DN150.
| DN | D1 | d |
|---|---|---|
| DN100 | 98 mm | 151 mm |
| DN150 | 148 mm | 212 mm |
Applications
