Stainless Steel Flanged Swing Check Valve
JIS 10K Stainless Steel Swing Check Valve for Reverse Flow Prevention
WEISSMILLER Stainless Steel Flanged Swing Check Valve is designed to prevent reverse flow in industrial piping systems. With swing disc construction, bolted cover design, and RF flanged connection, this valve is suitable for water, utility, and general industrial fluid applications.
Request Quotation
Product Overview
Stainless Steel Flanged Swing Check Valve is a non-return valve used to allow flow in one direction and prevent backflow when the line pressure drops or reverse flow occurs. The swing disc opens automatically by flow pressure and closes by reverse flow or gravity.
Based on the product marking and nameplate, this valve is supplied in DN250 / 10" size with SCS14 body and disc material, RF flange connection, and JIS 10K pressure rating. The bolted cover construction allows access to the internal disc area for inspection and maintenance.
Key Features
Swing Disc Design
Swing check construction allows automatic opening and closing based on flow direction and line pressure.
Stainless Steel Construction
SCS14 body and disc material provide corrosion resistance for water, utility, and industrial fluid service.
JIS 10K Rating
Designed with JIS 10K pressure rating for industrial piping applications requiring reliable non-return performance.
RF Flanged Connection
Raised face flanged connection supports secure installation between pipeline flanges.
Bolted Cover Design
Bolted cover construction provides access for internal inspection and maintenance.
Flow Direction Marking
Flow direction arrow is marked on the valve body to support correct installation orientation.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Stainless Steel Flanged Swing Check Valve |
| Valve Type | Swing Check Valve / Non-Return Valve |
| Brand | WEISSMILLER |
| Size | 250A / DN250 / 10" |
| Body Material | SCS14 |
| Disc Material | SCS14 |
| Seat Material | Available Upon Request |
| Connection | RF Flange |
| Pressure Rating | JIS 10K |
| Cover Type | Bolted Cover |
| Operation | Automatic by Flow Pressure |
| Flow Direction | Marked on Body |
| Function | Reverse Flow Prevention |
| Date Marking | 2026.04 |
| Suitable Media | Water, Clean Water, Utility Water, and General Industrial Fluid |
| Application | Water Treatment, Utility Line, Pump Discharge Line, Industrial Piping, and Process Line |
Note: Seat material is not clearly readable from the product photo and should be confirmed based on project requirement.
Product Details

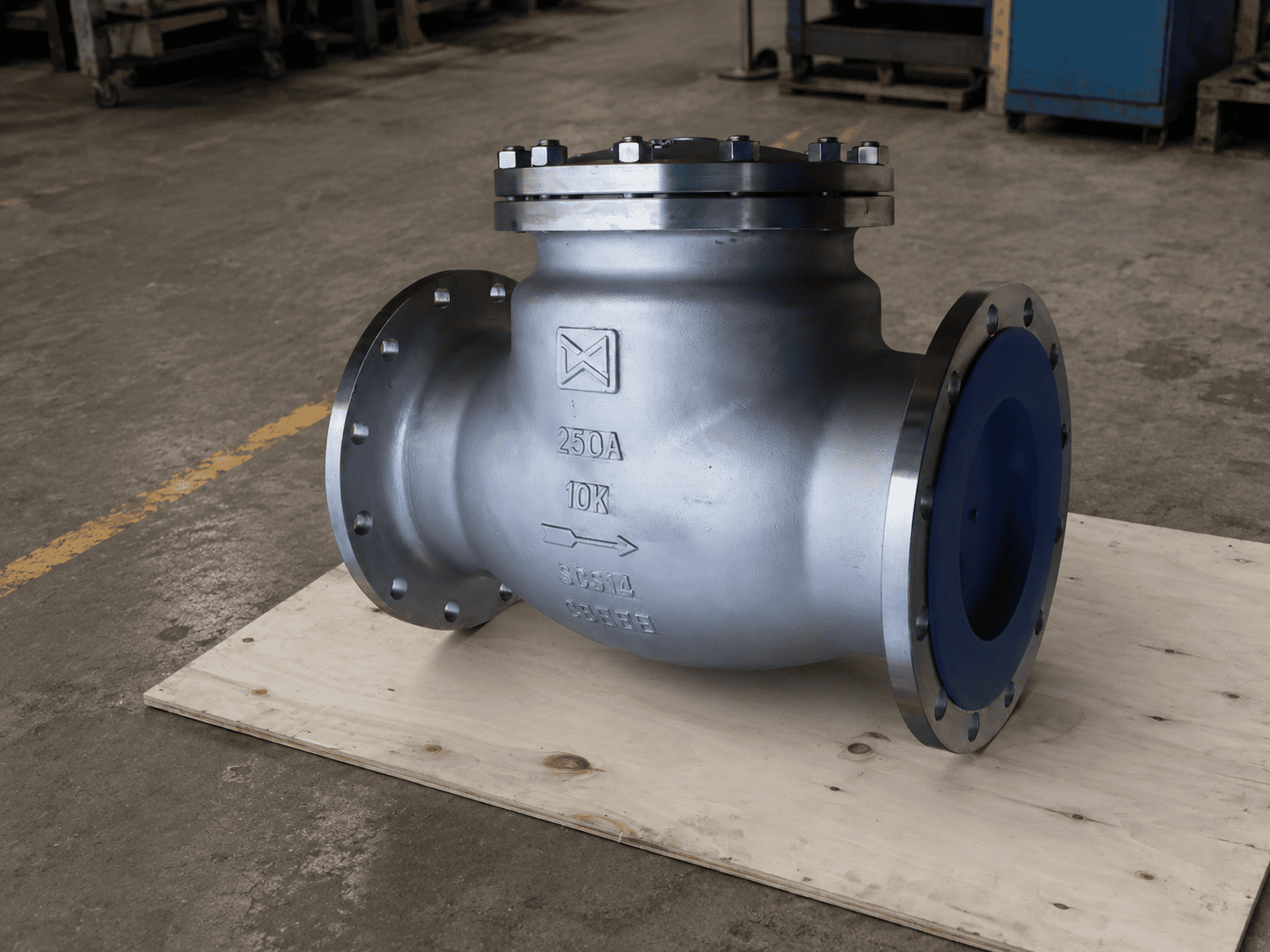

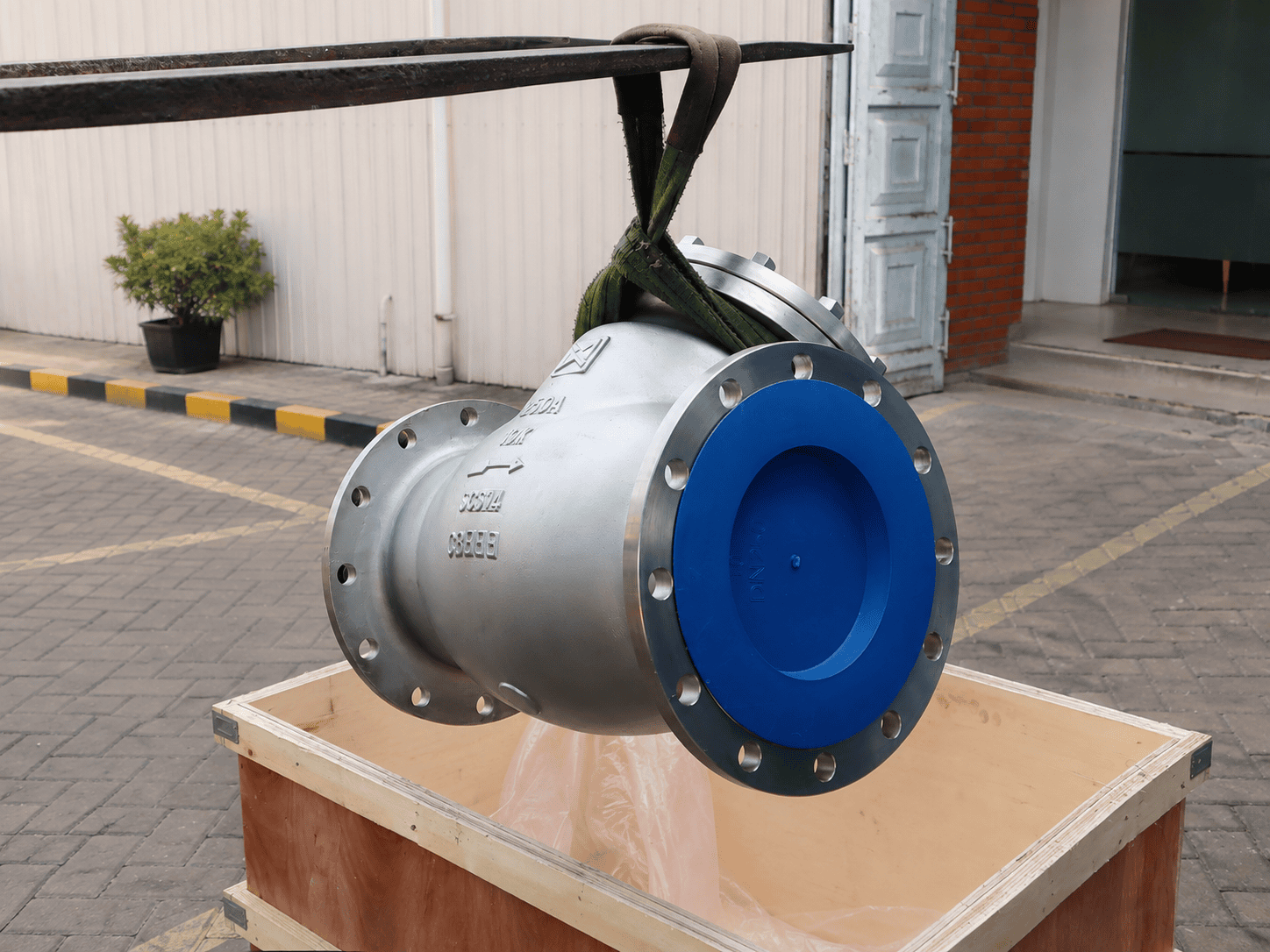

Additional product views showing the stainless steel body, RF flange connection, bolted cover construction, flow direction marking, body casting marking, and nameplate details for easier product identification.
