Cast Iron Flanged Gate Valve JIS 10K
Cast Iron Gate Valve with JIS 10K Rating, Brass Seat, and Flanged Connection
WEISSMILLER Cast Iron Flanged Gate Valve JIS 10K is designed for shut-off and isolation service in water, clean water, utility, and general industrial piping systems. With cast iron body, brass seat, flanged connection, and handwheel operation, this valve provides reliable open-close performance for water treatment, building utility, pump line, and plant service applications.
Request Quotation
Product Overview
Cast Iron Flanged Gate Valve JIS 10K is a manually operated gate valve used for full open and full close operation. The gate valve construction allows low flow resistance when fully open, making it suitable for isolation service in water and utility piping systems.
This valve is equipped with a cast iron body, cast iron disc, brass seat, and flanged end connection. The handwheel operation provides simple and reliable control for water treatment facilities, pump stations, building utility systems, and general industrial water applications.
Key Features
Cast Iron Body
CI body construction provides reliable performance for water, clean water, and utility service applications.
JIS 10K Rating
Suitable for piping systems requiring JIS 10K pressure rating compatibility.
Brass Seat
Brass seat provides suitable sealing performance for water and general utility applications.
Flanged Connection
Flanged end connection provides secure installation between piping flanges.
Handwheel Operation
Manual handwheel operation provides simple open-close control for isolation service.
Water Service Application
Suitable for water treatment, pump line, building utility, and general industrial water systems.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Cast Iron Flanged Gate Valve JIS 10K |
| Valve Type | Gate Valve |
| Brand | WEISSMILLER |
| Size Range | DN50 – DN300 / 2" – 12" Available Upon Request |
| Example Size | DN100 / 4" |
| Body Material | CI / Cast Iron |
| Disc Material | CI / Cast Iron |
| Seat Material | Brass |
| Connection | Flanged End |
| Flange Face | FF Flange |
| Pressure Rating | JIS 10K |
| Operation | Handwheel Operated |
| Temperature Range | -29°C to 425°C |
| Service Type | Shut-Off / Isolation Service |
| Suitable Media | Water, Clean Water, Utility Line, and General Industrial Water Service |
| Application | Water Treatment, Building Utility, Pump Line, Industrial Water Line, and General Plant Service |
Product Details

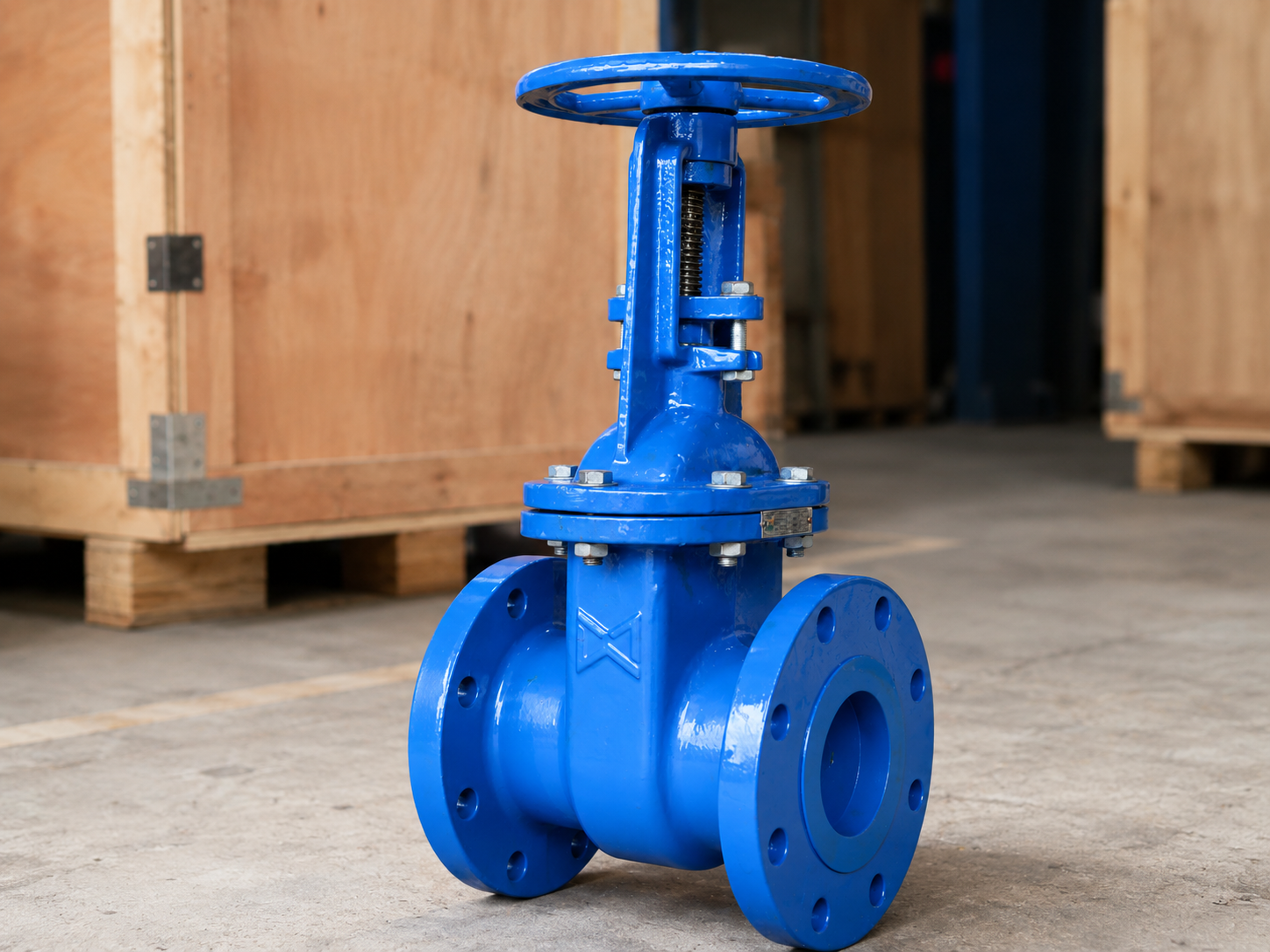

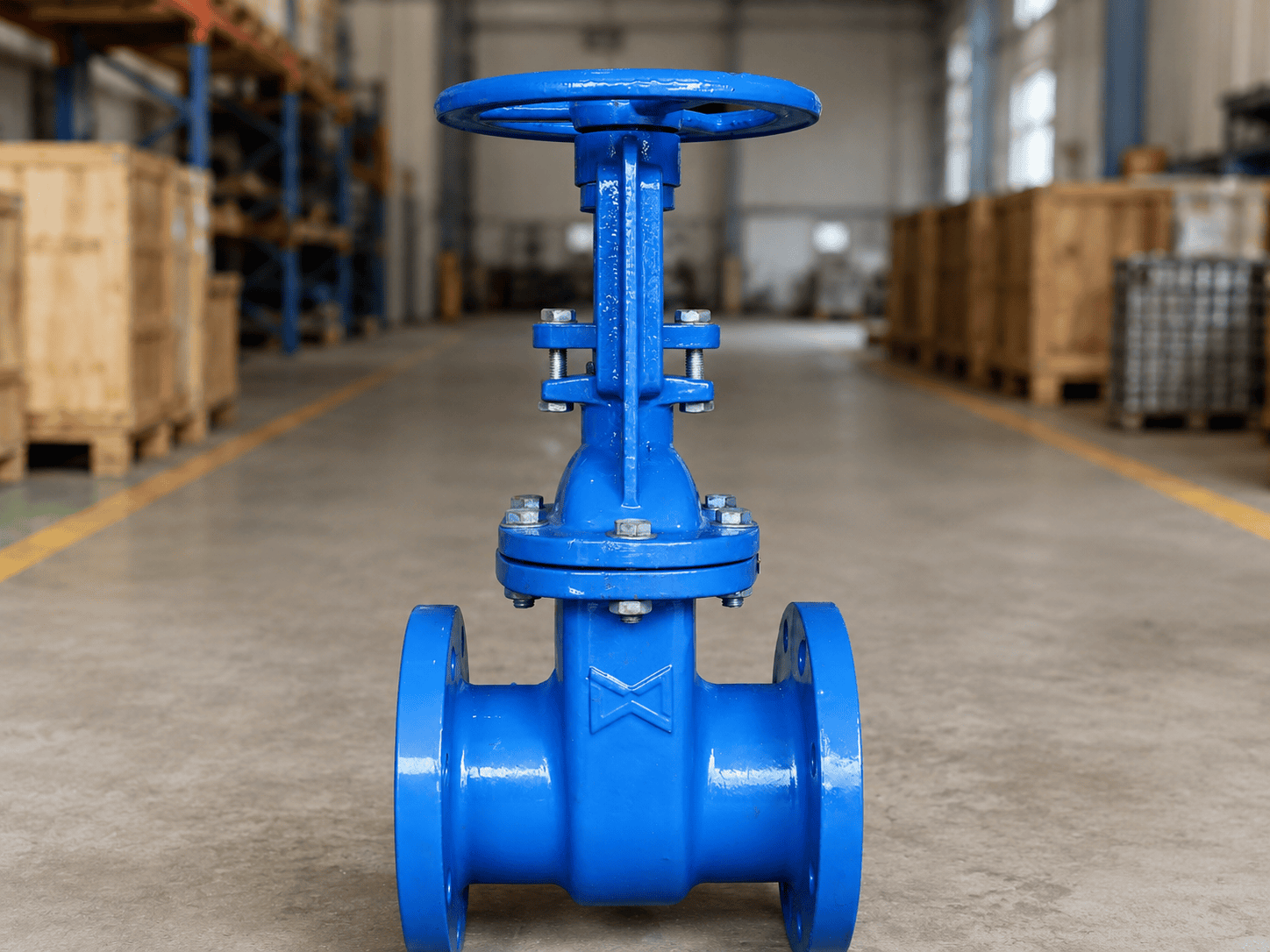

Additional product views showing the cast iron body, flanged end connection, handwheel operation, body marking, flange drilling, brass seat area, and nameplate detail for easier product identification and technical reference.
