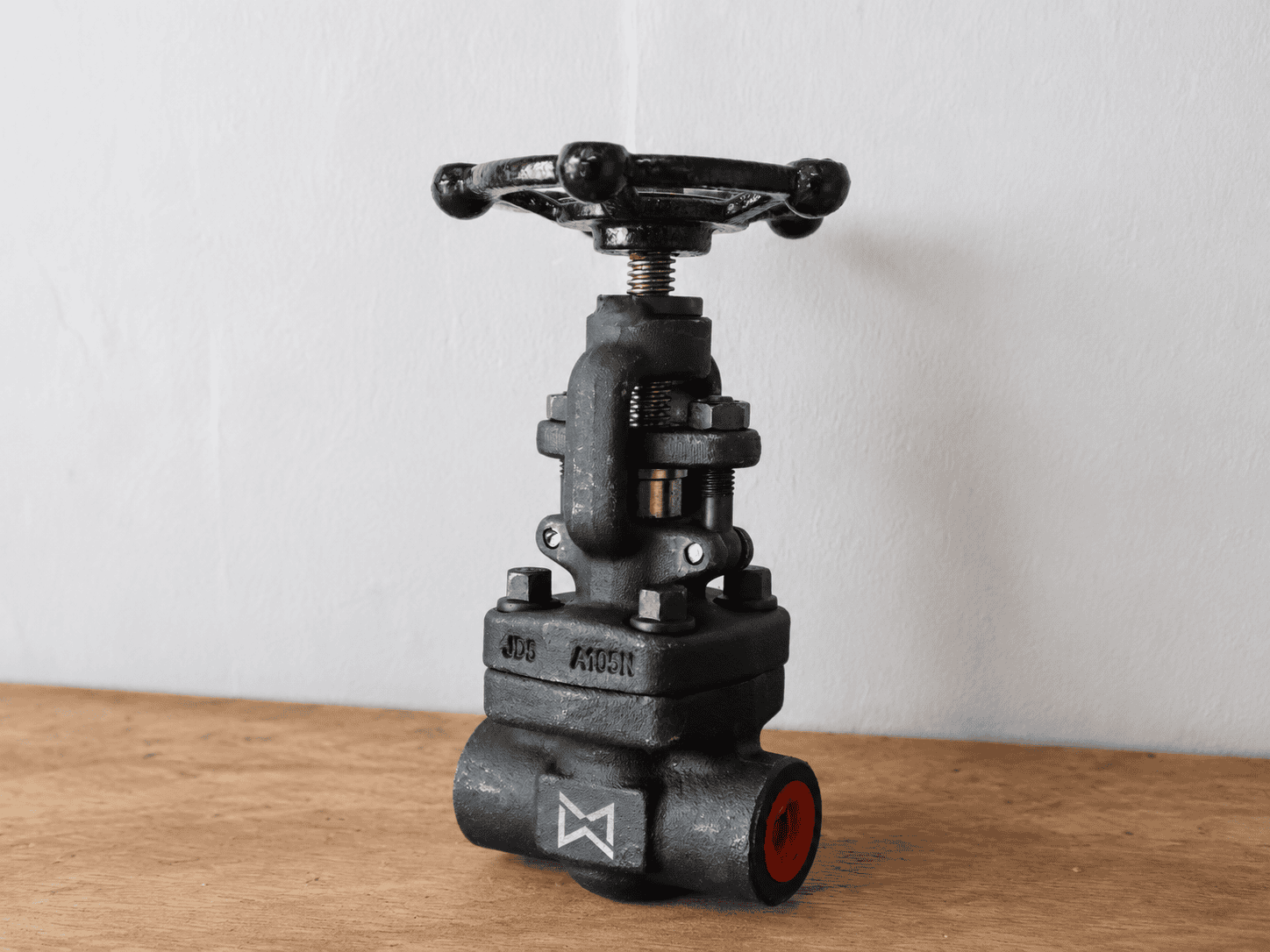

Forged Steel OS&Y Gate Valve
Forged Steel Body, OS&Y Rising Stem Design, Handwheel Operated
WEISSMILLER Forged Steel OS&Y Gate Valve is designed for high-pressure shut-off and isolation service in industrial piping systems. With forged steel body construction, outside screw and yoke rising stem design, and handwheel operation, this valve provides reliable performance for steam, oil, gas, water, utility line, and process piping applications.
Request Quotation
Product Overview
Forged Steel OS&Y Gate Valve is a compact and robust valve designed for full open and full close operation. Gate valves are commonly used for shut-off and isolation service where minimum pressure drop is required when the valve is fully open.
The OS&Y outside screw and yoke construction provides visible rising stem movement during valve operation. This makes the valve position easier to identify while supporting reliable manual operation in high-pressure industrial piping systems.
Key Features
Forged Steel Construction
Forged body construction provides compact design, high strength, and durability for demanding service.
OS&Y Design
Outside screw and yoke design provides visible rising stem movement during valve opening and closing.
Rising Stem
Rising stem construction helps indicate valve position clearly during operation.
High Pressure Service
Suitable for high-pressure piping applications depending on selected class rating and material configuration.
Connection Options
Available with SW, NPT, or BW connection options to suit different piping requirements.
Handwheel Operation
Manual handwheel operation provides reliable open-close control for isolation service.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Forged Steel OS&Y Gate Valve |
| Valve Type | Gate Valve |
| Brand | WEISSMILLER |
| Body Construction | Forged Steel |
| Body Material | A105 / F22 / F11 / F316 Available Option |
| Disc / Wedge Material | A105 / F22 / F316 Available Option |
| Seat Material | 13Cr / STL / SS304 / SS316 Available Option |
| Stem Material | 13Cr / F6a / SS410 / SS316 Available Option |
| Connection | SW / NPT / BW Available Option |
| Pressure Rating | Class 800 / Class 1500 / Class 2500 Available Option |
| Design Type | OS&Y / Outside Screw and Yoke |
| Stem Type | Rising Stem |
| Bonnet Type | Bolted Bonnet / Welded Bonnet Available Option |
| Operation | Handwheel Operated |
| Service Type | Shut-Off / Isolation Service |
| Suitable Media | Steam, Oil, Gas, Water, Utility Line, and Process Fluid |
Product Details

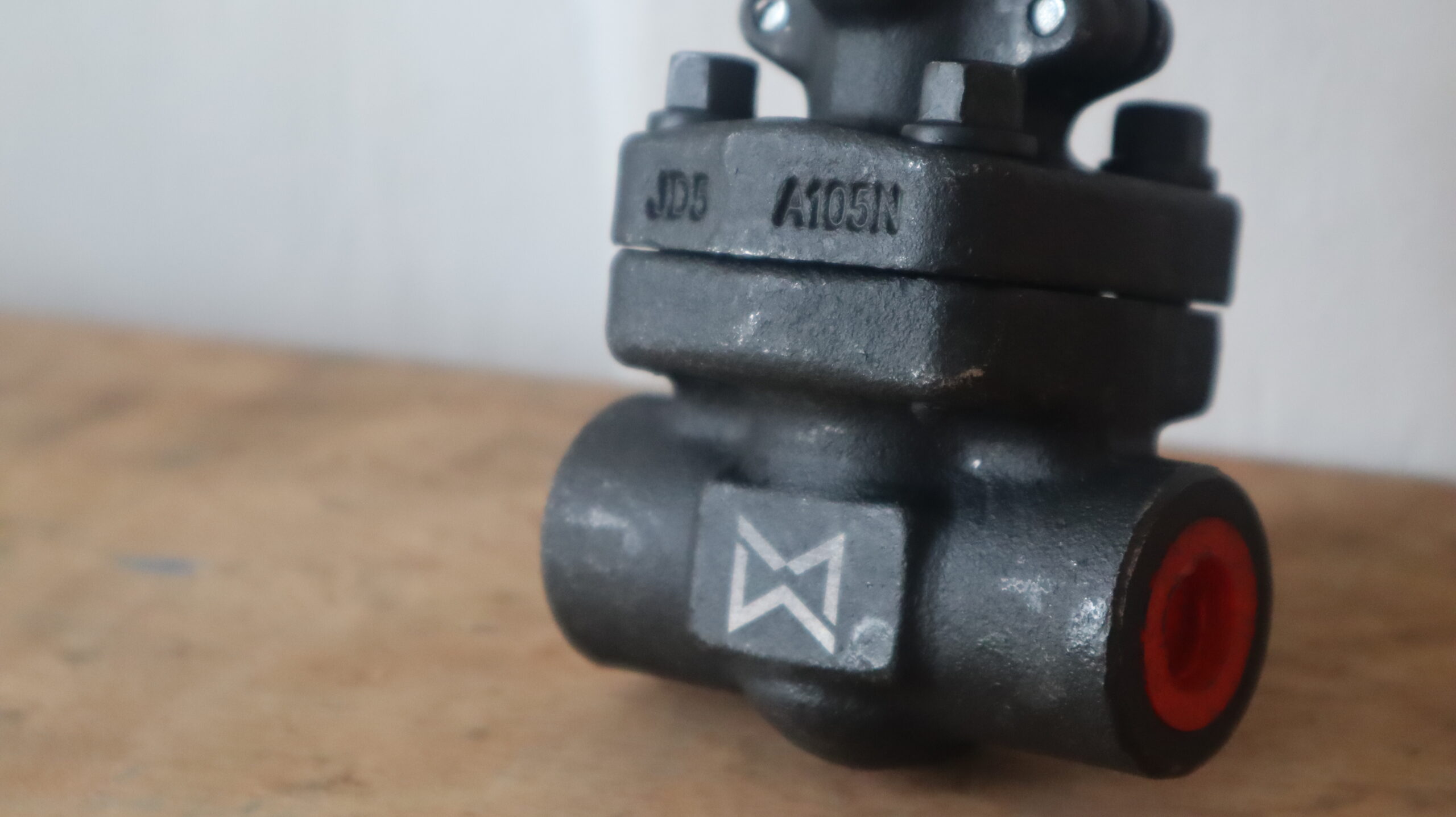

Additional product views showing the forged steel compact body, OS&Y rising stem mechanism, handwheel operation, bonnet construction, end connection detail, body logo marking, and general valve construction for easier product identification and technical reference.
