10K Butt Weld Globe Valve
WCB Butt Weld Globe Valve with Handwheel Operation

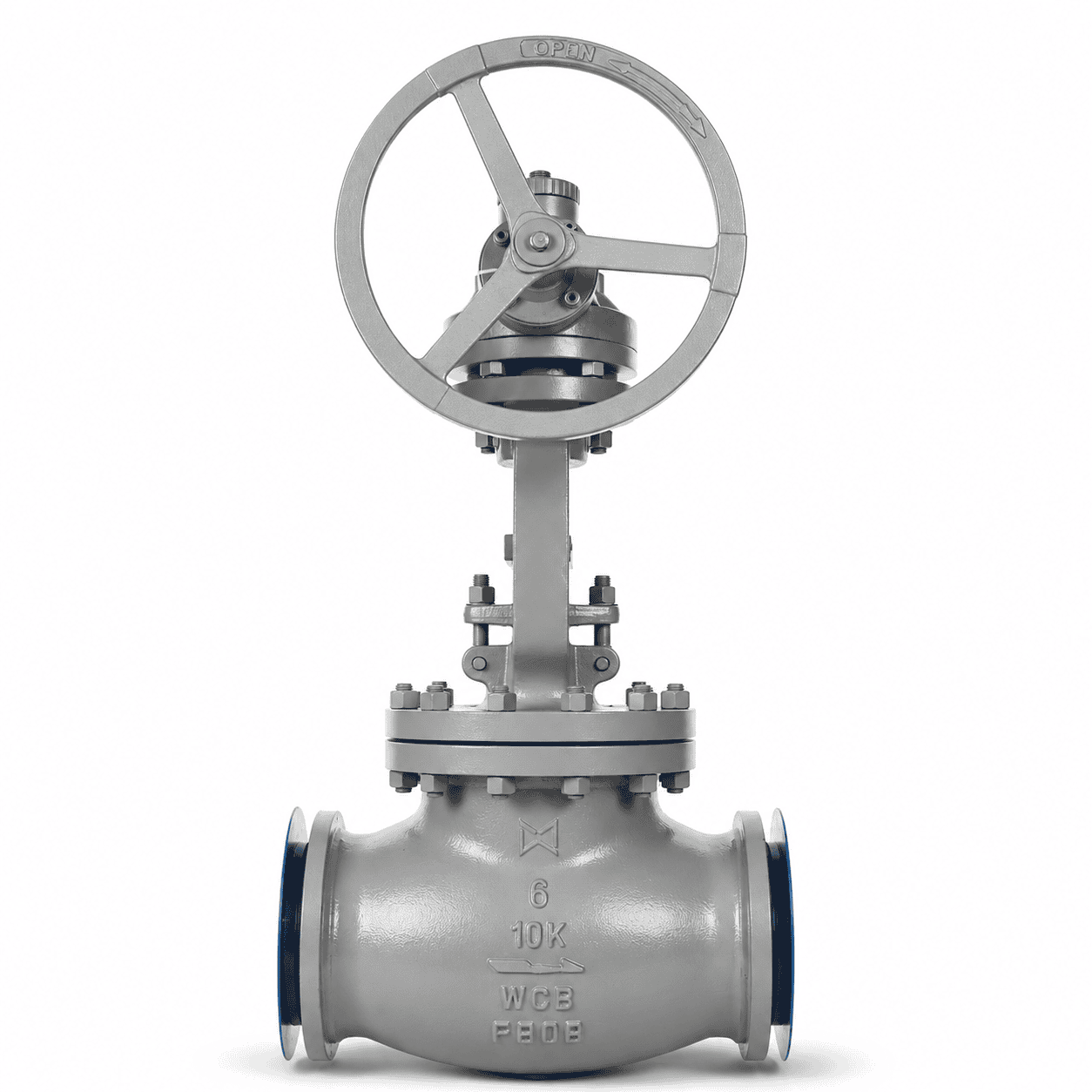

WEISSMILLER 10K Butt Weld Globe Valve is designed for flow isolation and throttling service in industrial piping systems. With WCB body, butt weld end connection, 10K pressure rating, bolted bonnet construction, and handwheel operation, this valve provides reliable flow control performance for water, utility, process piping, and general industrial applications.
Request Quotation![WEISSMILLER 10K Butt Weld Globe Valve](https://edelweiss-uk.com/wp-content/uploads/2026/08/BW-Globe-Valve.png")
Product Overview
10K Butt Weld Globe Valve is a linear motion valve commonly used for regulating, throttling, and shut-off service in piping systems. The globe valve design provides better flow control capability compared with gate valves, making it suitable for applications that require controlled fluid movement.
This valve is suitable for water systems, utility service, process piping, manufacturing, plant operation, and general industrial fluid applications. The butt weld end connection provides a permanent welded joint to the pipeline, while the handwheel operation allows smooth manual control.
Key Features
Globe Valve Design
Suitable for flow isolation, throttling, and controlled flow regulation in industrial piping systems.
WCB Body
WCB cast steel body provides strength and durability for suitable industrial service conditions.
Butt Weld Connection
Butt weld end connection provides a strong and permanent welded joint to the pipeline.
10K Rating
Suitable for piping systems requiring 10K pressure rating compatibility.
Handwheel Operation
Manual handwheel operation allows smooth opening, closing, and flow regulation.
Bolted Bonnet Construction
Bolted bonnet construction supports durable valve assembly and practical maintenance access.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | 10K Butt Weld Globe Valve |
| Valve Type | Globe Valve |
| Example Size | 6" |
| Available Size | Other sizes available upon request |
| Body Material | WCB |
| Connection | Butt Weld / BW End |
| Pressure Rating | 10K |
| Operation | Handwheel Operated |
| Bonnet Type | Bolted Bonnet |
| Stem Type | Rising Stem / Outside Screw and Yoke |
| Body Marking | 6" / 10K / WCB / F008 |
| Disc Material | Available upon request |
| Seat Material | Available upon request |
| Stem Material | Available upon request |
| Application | Water, Utility, Process Piping, Flow Regulation, Industrial Fluid, and General Industrial Service |
Product Details

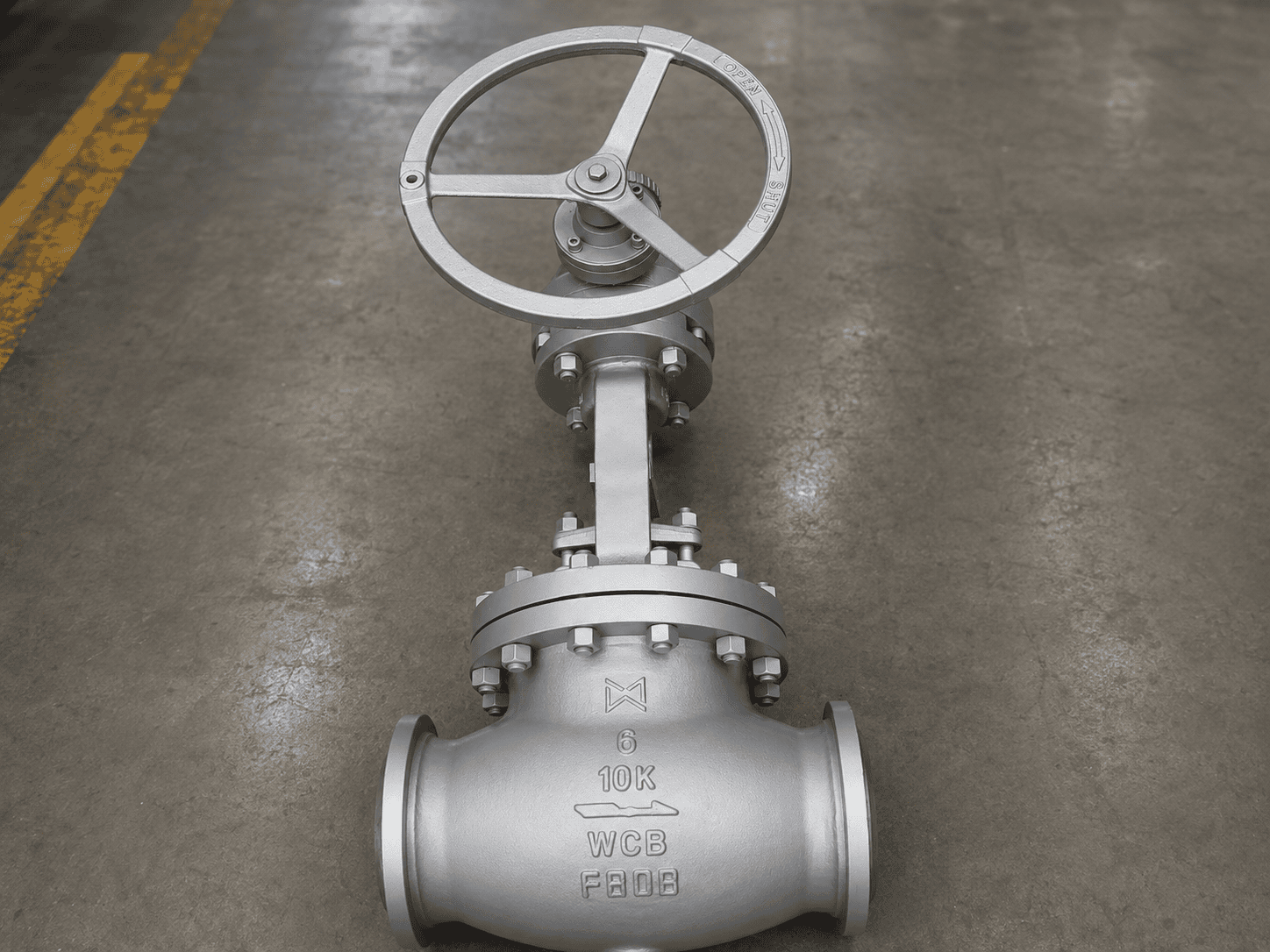

Additional product views showing the butt weld end connection, WCB body marking, handwheel operation, bolted bonnet construction, rising stem arrangement, outside screw and yoke structure, and valve body construction for easier product identification and technical reference.
Applications
