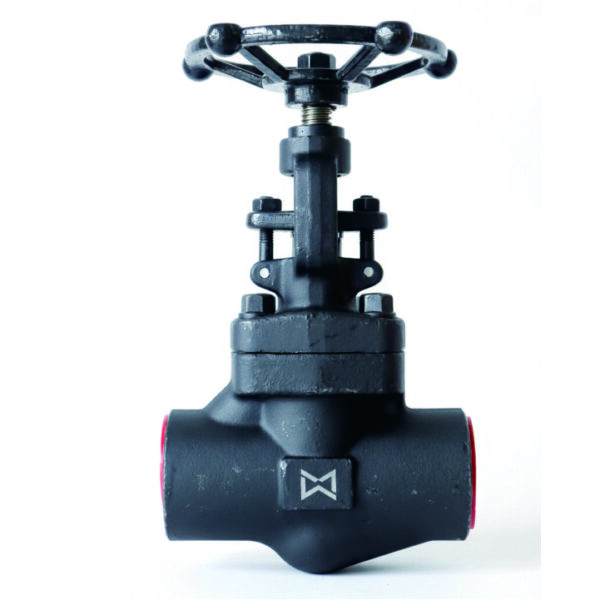

800LB Forged Steel Globe Valve
A105 Body, 13Cr Trim, Socket Weld Connection, Handwheel Operation
WEISSMILLER 800LB Forged Steel Globe Valve is designed for reliable shut-off and flow regulation service in high-pressure industrial piping systems. With A105 forged steel body, 13Cr disc and seat, Class 800LB pressure rating, compact body construction, and handwheel operation, this valve provides dependable performance for oil, gas, steam, water, utility, and process piping applications.
Request Quotation
Product Overview
800LB Forged Steel Globe Valve is a compact high-pressure valve used for flow regulation, throttling, and shut-off service. The globe valve design provides better flow control capability compared with gate valves, making it suitable for applications that require controlled fluid movement.
This valve is suitable for small-bore industrial piping systems where strong forged construction, reliable sealing, and compact installation are required. The handwheel operation allows smooth manual control, while the forged A105 body provides durability for demanding service conditions.
Key Features
Forged Steel Construction
A105 forged steel body provides strength, durability, and reliable performance for high-pressure service.
Globe Valve Design
Suitable for shut-off, throttling, and flow regulation in industrial piping systems.
800LB Pressure Class
Designed for piping systems requiring Class 800LB pressure rating compatibility.
13Cr Trim
13Cr disc and seat materials support reliable sealing and improved wear resistance.
Socket Weld Connection
Socket weld end connection provides a strong welded joint for compact high-pressure piping systems.
Handwheel Operation
Manual handwheel operation allows smooth opening, closing, and controlled flow adjustment.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Forged Steel Globe Valve |
| Valve Type | Globe Valve |
| Brand | WEISSMILLER |
| Size | 1-1/2" |
| Pressure Rating | Class 800LB |
| Body Material | A105 |
| Disc Material | 13Cr |
| Seat Material | 13Cr |
| Trim | 13Cr |
| Connection | Socket Weld (SW) |
| Operation | Handwheel Operated |
| Bonnet Design | Bolted Bonnet |
| Service Type | Shut-Off / Flow Regulation / Throttling Service |
| Marked Date | 2024.12 |
| Application | Oil, Gas, Steam, Water, Utility Line, Process Piping, and General Industrial Service |
Product Details

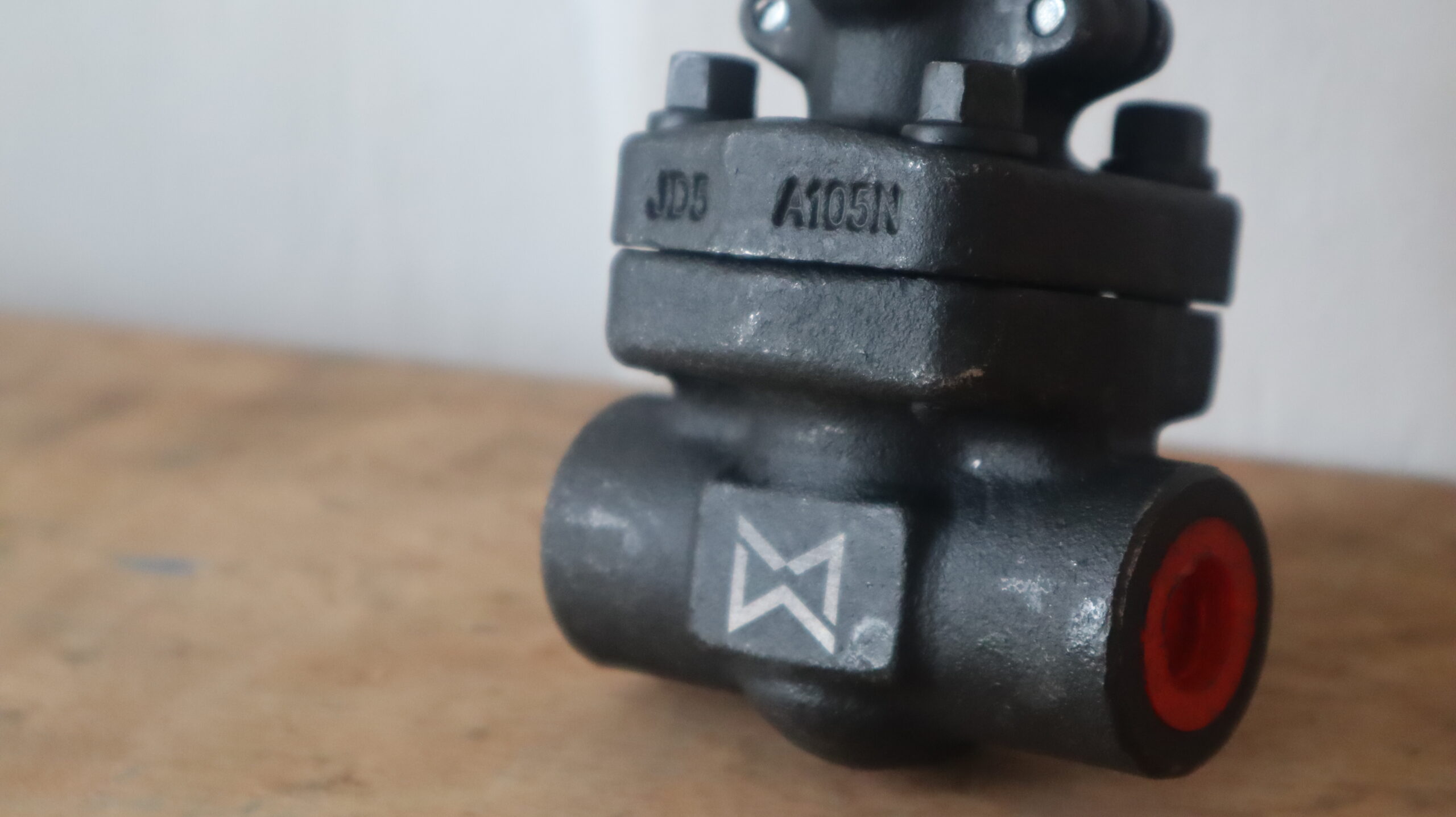

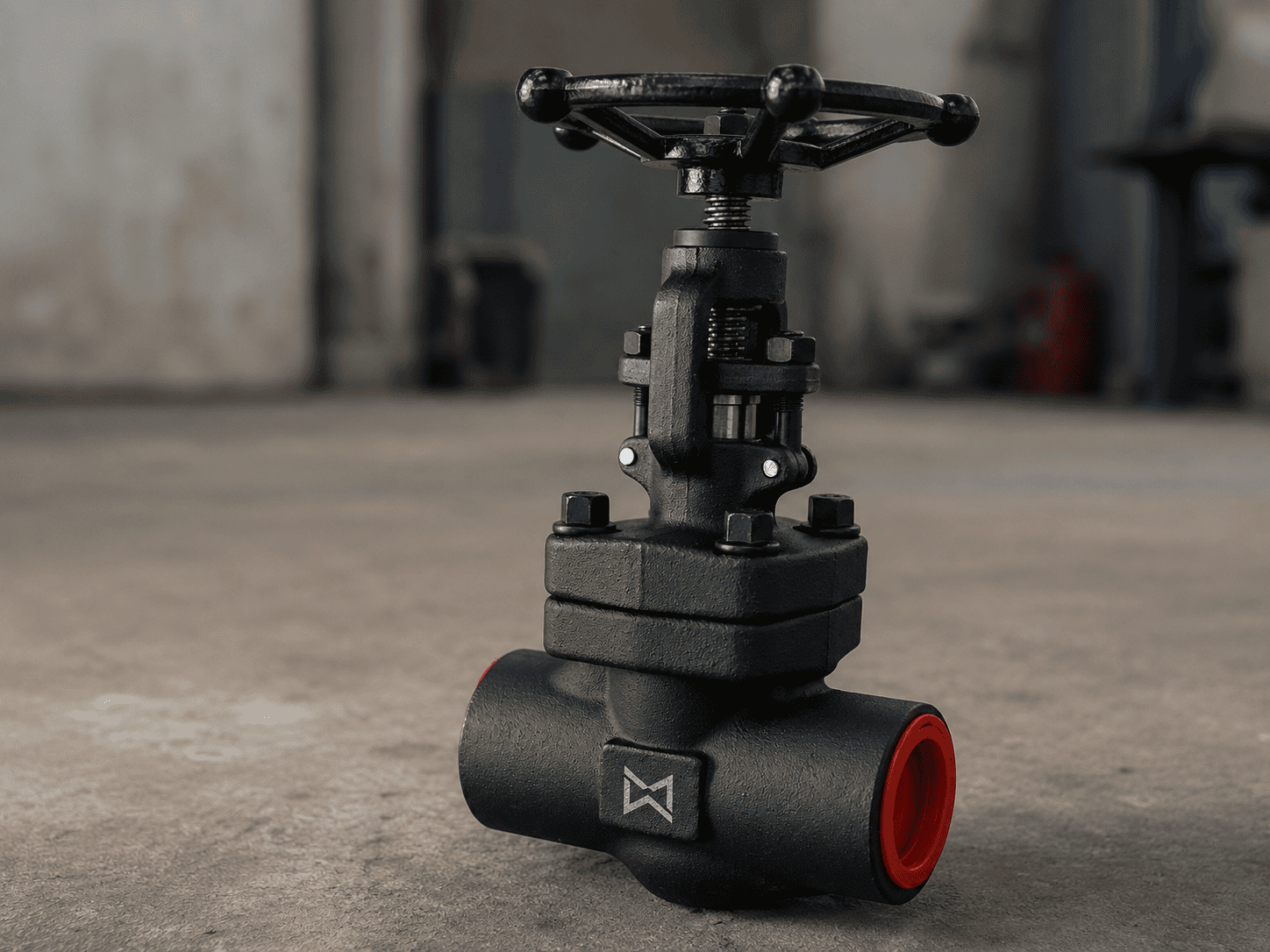

Additional product views showing the forged steel body, handwheel operation, bolted bonnet construction, stem arrangement, socket weld connection, body marking, and compact small-bore valve design for easier product identification and technical reference.
