RF Flanged Globe Valve
DI RF Flanged Globe Valve with DI + 13CR Disc and 13CR Seat
WEISSMILLER RF Flanged Globe Valve is designed for flow isolation and throttling service in industrial piping systems. With DI body, DI + 13CR disc, 13CR seat, RF flanged connection, and PN10 pressure rating, this valve provides reliable flow control performance for water, utility, process piping, and general industrial applications.
Request Quotation
Product Overview
RF Flanged Globe Valve is a linear motion valve used for regulating, throttling, and shut-off service in piping systems. The globe valve design provides better flow control capability compared with gate valves, making it suitable for applications where controlled fluid movement is required.
This valve is suitable for water systems, utility service, process piping, manufacturing, plant operation, and general industrial fluid applications. The RF flanged connection provides secure installation between piping flanges, while the handwheel operation allows smooth and reliable manual control.
Key Features
Globe Valve Design
Suitable for flow isolation, throttling, and controlled flow regulation in industrial piping systems.
DI Body
Ductile iron body provides strength and durability for suitable industrial and utility applications.
DI + 13CR Disc
Disc construction with 13CR material supports reliable operation and improved wear resistance.
13CR Seat
13CR seat material supports sealing performance for suitable service conditions.
RF Flanged Connection
Raised Face flanged connection provides secure installation for industrial piping systems.
PN10 Rating
Suitable for piping systems requiring PN10 pressure rating compatibility.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | RF Flanged Globe Valve |
| Valve Type | Globe Valve |
| Available Size | DN50 – DN300 / Other sizes available upon request |
| Example Size | DN50 |
| Body Material | DI |
| Disc Material | DI + 13CR |
| Seat Material | 13CR |
| Connection | RF Flange |
| Pressure Rating | PN10 |
| Operation | Handwheel Operated |
| Application | Water, Utility, Process Piping, Flow Regulation, Manufacturing, and General Industrial Service |
Product Details

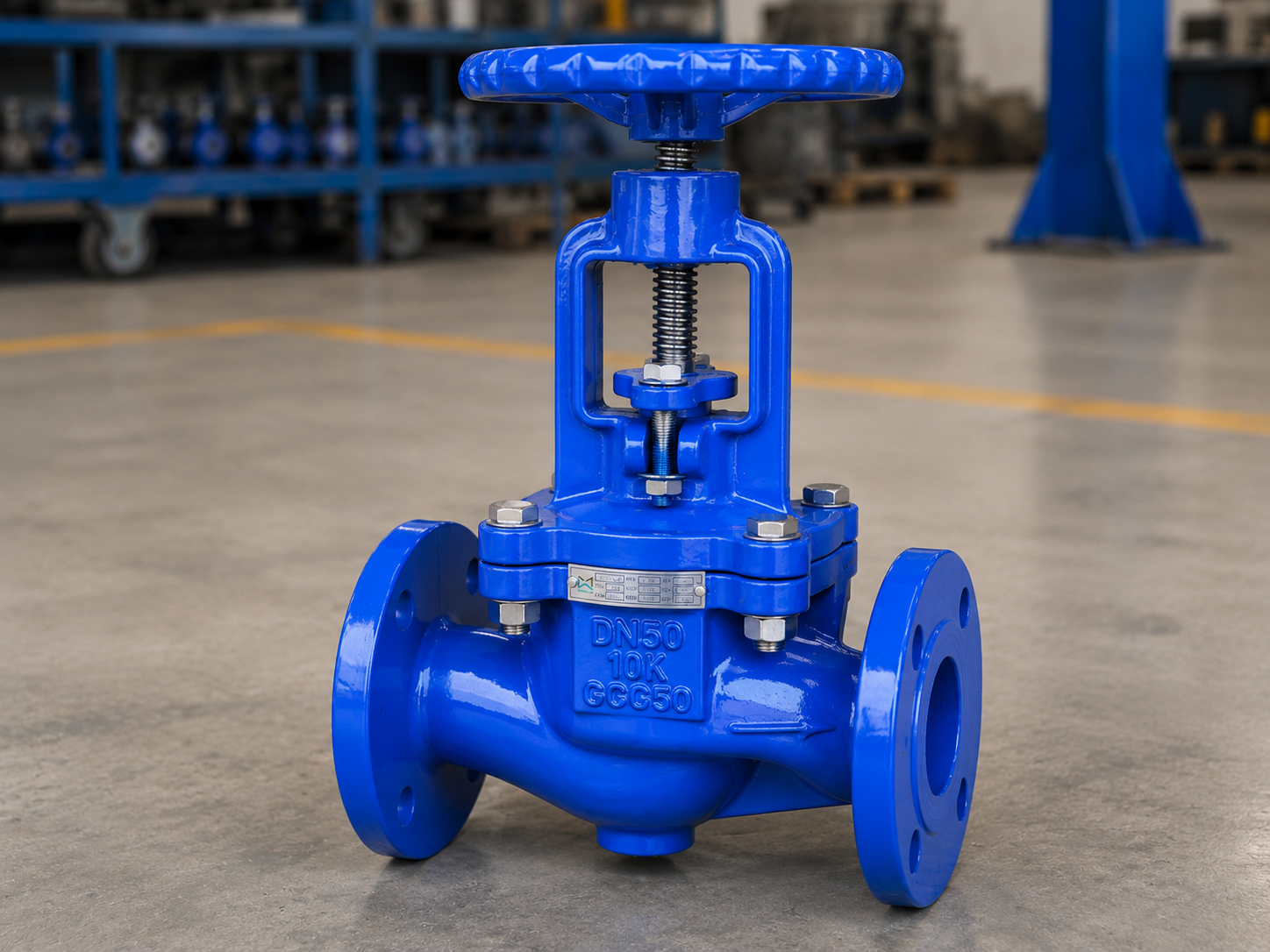

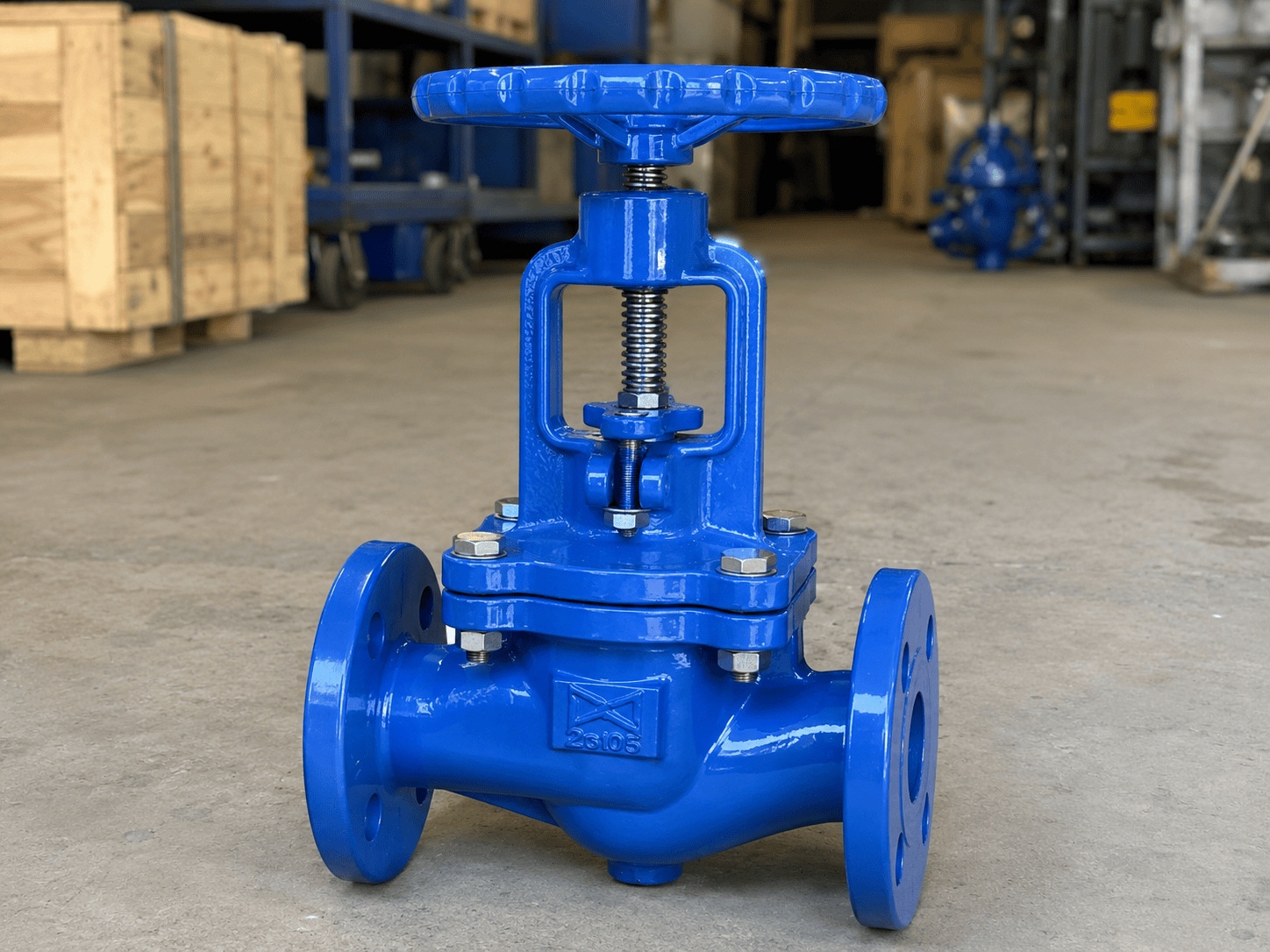

Additional product views showing the RF flanged body design, handwheel operation, bonnet construction, stem arrangement, body marking, and nameplate details for easier product identification and technical reference.
