Pneumatic Knife Gate Valve – CF8 Body
12 Inch JIS 10K Pneumatic Knife Gate Valve with CF8 Body, SS304 Gate, PTFE Seat, and Electro-Pneumatic Positioner

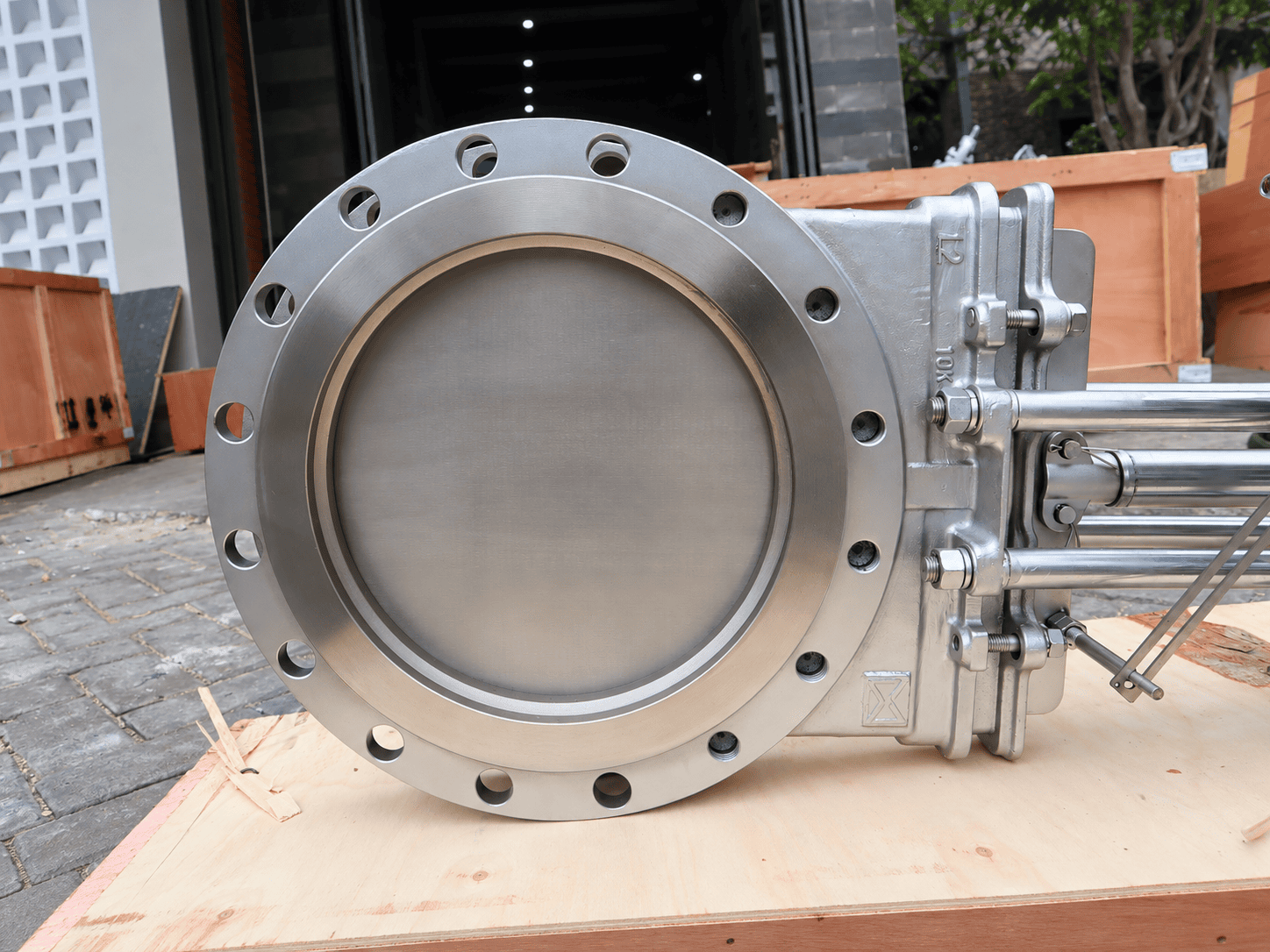

WEISSMILLER Pneumatic Knife Gate Valve is designed for automated flow isolation and valve positioning in industrial piping systems. The valve combines a stainless steel CF8 body, SS304 gate, PTFE seat, pneumatic cylinder actuator, and electro-pneumatic positioner in one complete assembly.
Request Quotation
Product Overview
This WEISSMILLER Pneumatic Knife Gate Valve is supplied as an integrated valve and actuator assembly for automated industrial process applications.
The unit features a CF8 valve body, SS304 gate, PTFE seat, JIS 10K pressure rating, pneumatic cylinder actuator, pressure indication, pneumatic tubing, and YT-1000 electro-pneumatic positioner.
Key Features
Pneumatic Operation
Pneumatic cylinder actuator provides automated linear movement of the knife gate.
CF8 Body
Stainless steel CF8 body provides durable construction for compatible industrial process applications.
SS304 Gate
Stainless steel SS304 gate provides reliable mechanical strength and corrosion resistance.
PTFE Seat
PTFE seating provides low-friction sealing characteristics for compatible process media.
Electro-Pneumatic Positioner
Equipped with a YT-1000 positioner for controlled pneumatic actuator positioning.
Complete Pneumatic Assembly
Supplied with pneumatic tubing, pressure indication, actuator, and valve positioning components.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Knife Gate Valve |
| Size | 12 Inch / DN300 |
| Body Material | CF8 |
| Gate / Disc Material | SS304 |
| Seat Material | PTFE |
| Connection | Flanged |
| Pressure Rating | JIS 10K |
| Operation | Pneumatic Actuated |
| Actuator Type | Pneumatic Cylinder Actuator |
| Positioner | YT-1000 Electro-Pneumatic Positioner |
| Position Indication | 0 – 100% |
| Accessories | Pressure Gauge & Pneumatic Tubing |
| Manufacturing Date | 2025.09 |
Pneumatic Control System
Pneumatic Cylinder
Converts compressed-air pressure into linear movement for opening and closing the knife gate.

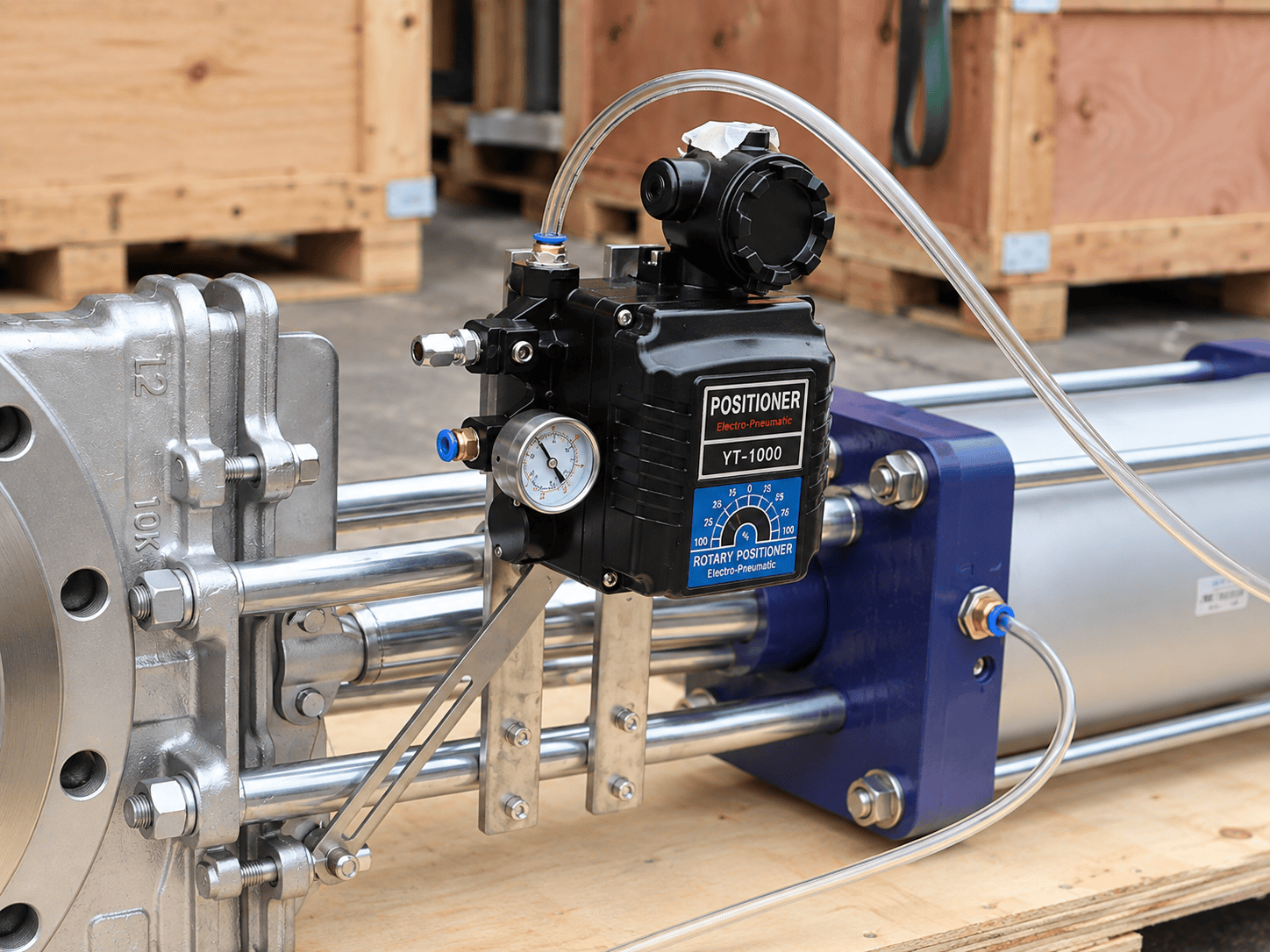

YT-1000 Positioner
Electro-pneumatic positioner provides controlled actuator positioning according to the control signal.
Pressure Gauge
Provides local indication of pneumatic operating pressure.
Pneumatic Tubing
Integrated tubing distributes compressed air between the control components and actuator.
Product Details
Applications
