SS304 Flanged Knife Gate Valve
DN200 PN10 Knife Gate Valve with SS304 Body, SS304 + CR Gate, SS304 Metal Seat, and RF Flanged Connection
WEISSMILLER SS304 Flanged Knife Gate Valve is designed for reliable flow isolation in industrial piping systems. Its knife-style gate construction provides direct shut-off operation, while the stainless steel body and metal seat support durable industrial service.
Request Quotation
Product Overview

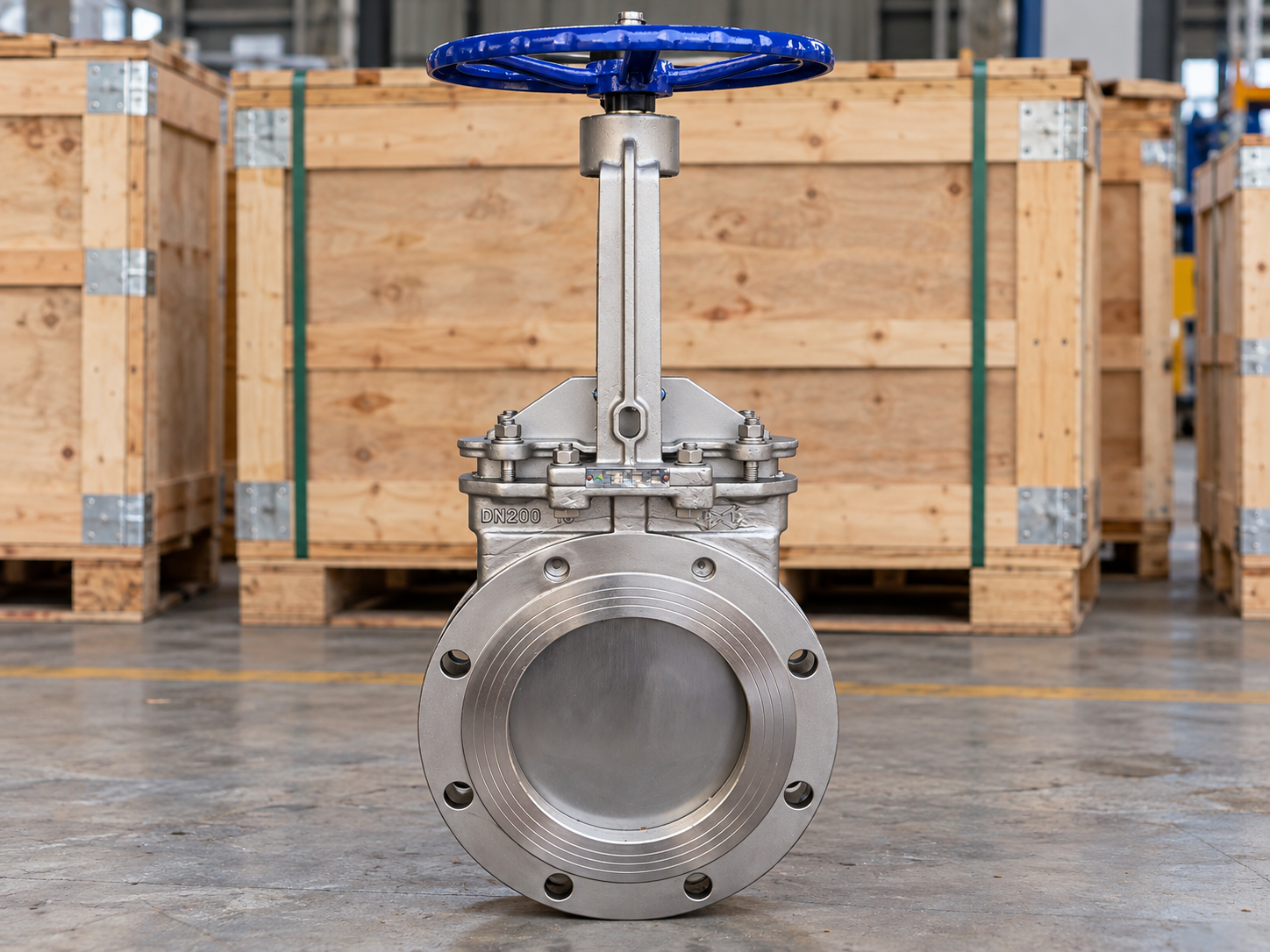

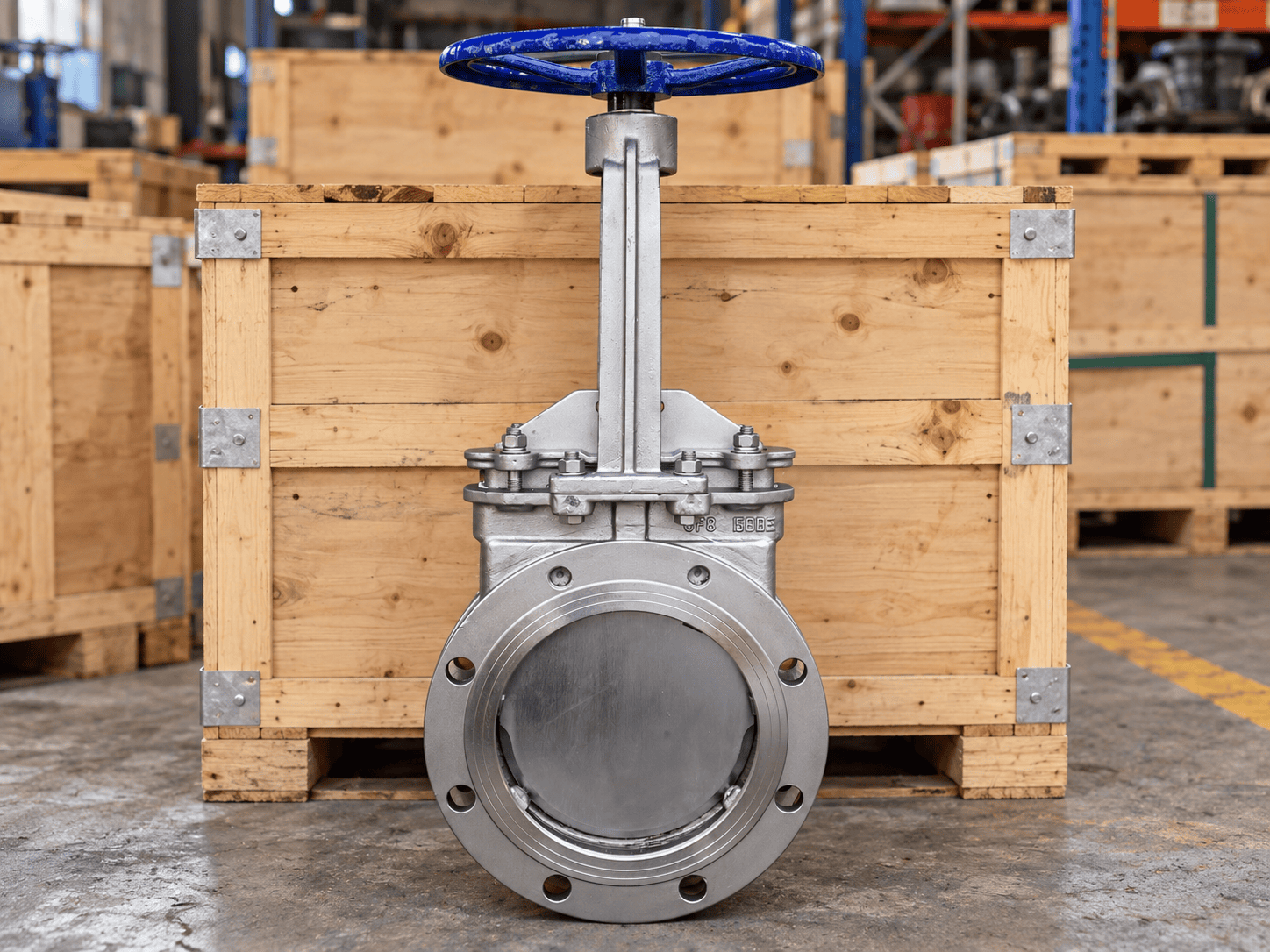

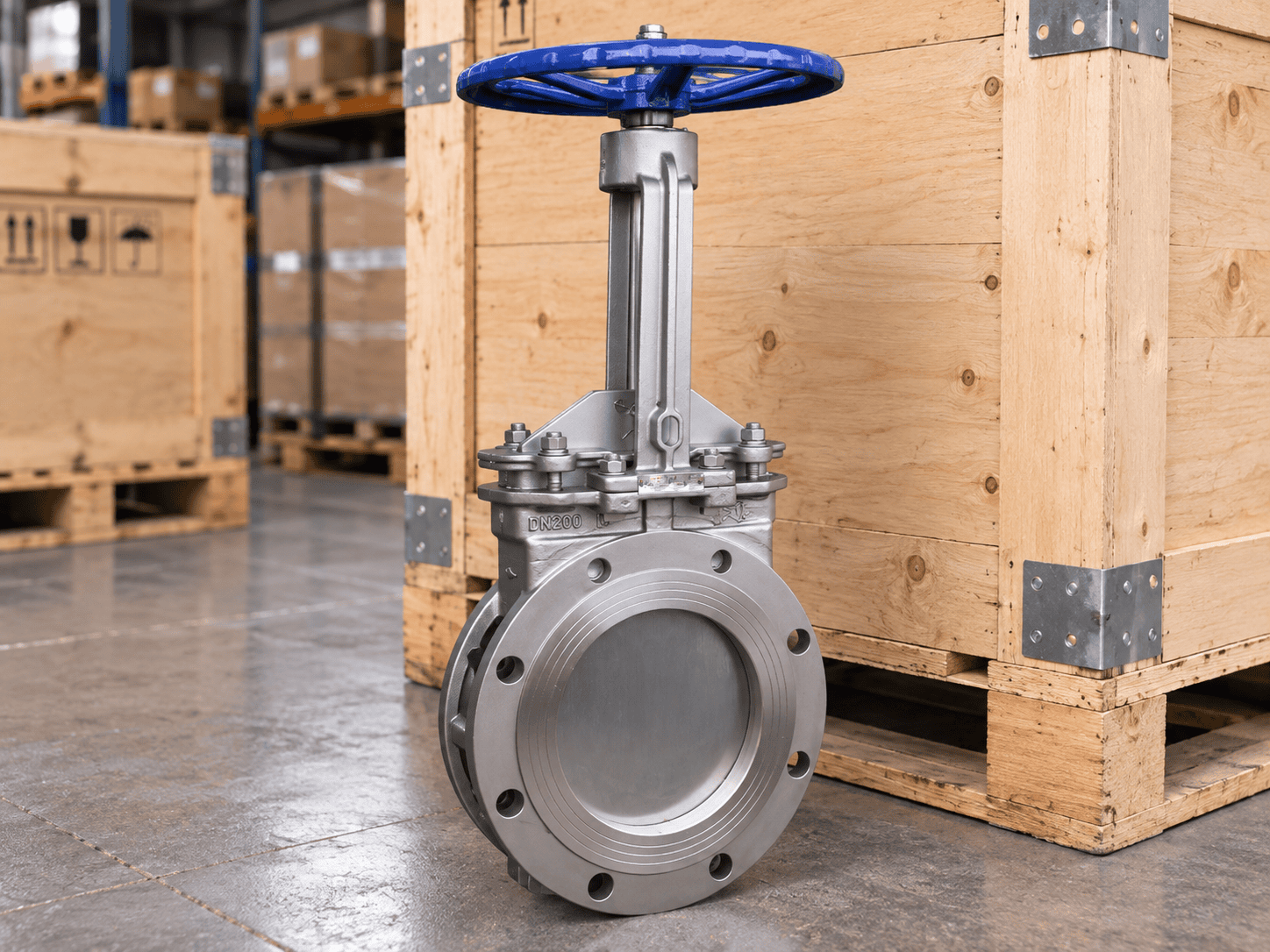

This WEISSMILLER Knife Gate Valve features an SS304 body, SS304 + CR gate, SS304 metal seat, and RF flanged connection. The valve is manually operated using a handwheel and rising stem mechanism.
The supplied unit is DN200 with PN10 pressure rating and is intended for industrial isolation applications where a robust stainless steel knife gate valve construction is required.
Key Features
SS304 Body
Stainless steel SS304 body provides durable construction for compatible industrial process applications.
Knife Gate Design
Knife-style gate provides direct linear shut-off movement for flow isolation.
SS304 + CR Gate

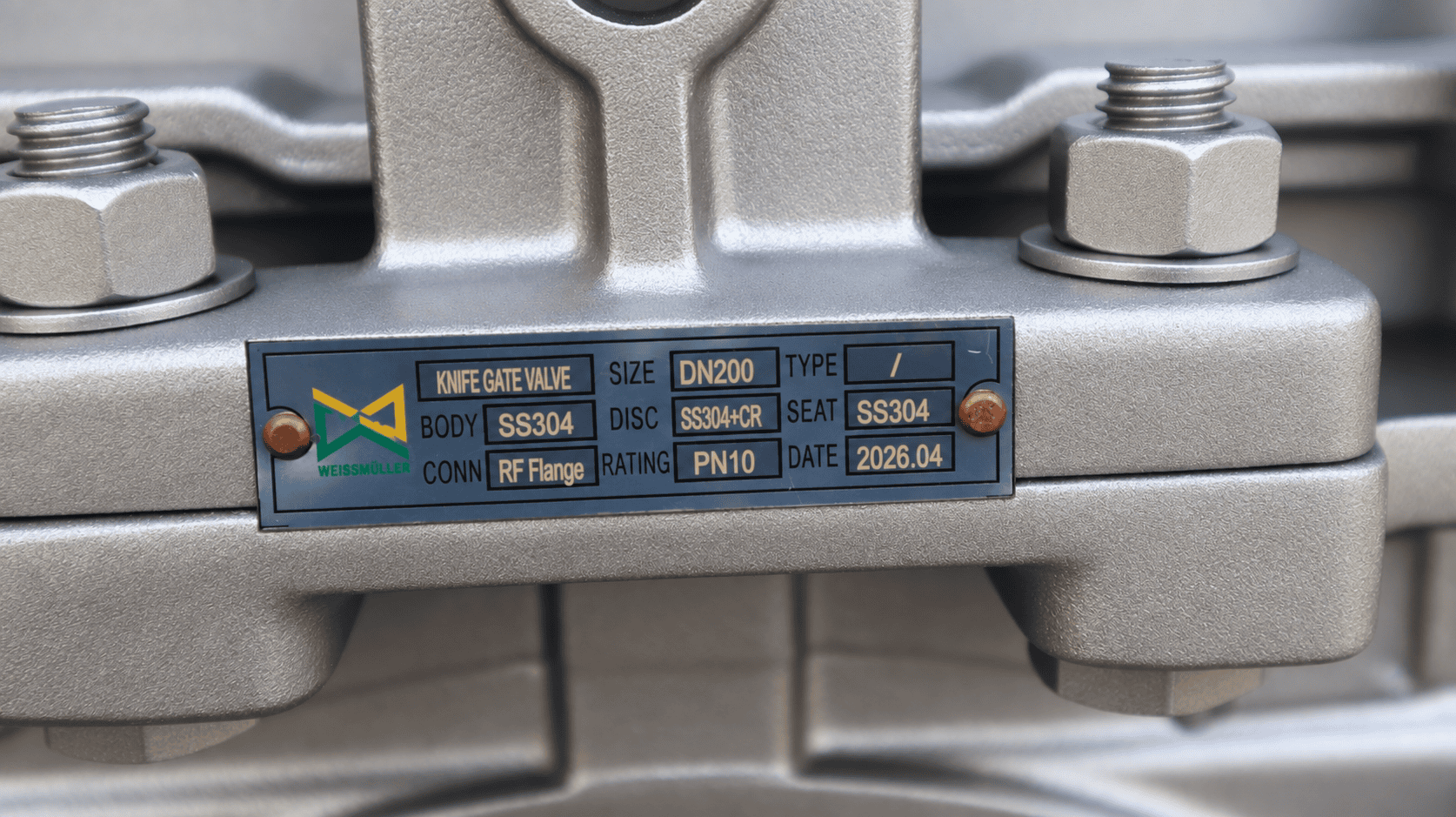

Gate material is specified as SS304 + CR according to the product nameplate.
Metal Seat
SS304 metal seating construction provides a robust sealing arrangement for industrial service.
RF Flanged Connection
Raised face flanged connection provides secure installation into compatible piping systems.
Manual Operation
Handwheel with rising stem mechanism provides controlled manual opening and closing.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Knife Gate Valve |
| Size | DN200 / 8 Inch |
| Body Material | SS304 |
| Gate / Disc Material | SS304 + CR |
| Seat Material | SS304 |
| Seat Type | Metal Seat |
| Connection | RF Flange |
| Pressure Rating | PN10 |
| Operation | Manual Handwheel |
| Stem Arrangement | Rising Stem |
| Manufacturing Date | 2026.04 |
Product Details
Applications
