Pneumatic Diaphragm Actuator
Pneumatic Diaphragm Actuator for Linear Control Valve Operation
WEISSMILLER Pneumatic Diaphragm Actuator is designed for linear control valve operation. Using pneumatic air pressure and diaphragm movement, this actuator provides reliable stem movement for globe control valves and other linear control valve assemblies in industrial process applications.
Request Quotation
Product Overview
Pneumatic Diaphragm Actuator is a linear motion actuator commonly used for control valve applications. The actuator converts pneumatic air pressure into linear stem movement to open, close, or modulate the valve according to process control requirements.
This actuator type is typically installed on globe control valves and other linear control valve assemblies. It is suitable for process systems requiring stable valve modulation, accurate control response, and compatibility with pneumatic control accessories such as positioner and air filter regulator.
Key Features
Linear Motion Operation
Designed to provide straight-line stem movement for globe control valves and other linear control valve types.
Pneumatic Diaphragm Design
Uses pneumatic air pressure acting on a diaphragm to generate actuator movement for valve control.
Control Valve Compatible
Suitable for control valve assemblies used in process control, flow control, pressure control, and temperature control applications.
Positioner Ready
Can be combined with valve positioner for modulating control and improved valve positioning accuracy.
Yoke Mounted Construction
Designed for installation on linear valve yoke assemblies with stem connection to the valve plug.
Industrial Application
Suitable for industrial process piping systems requiring pneumatic valve automation and stable control performance.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Pneumatic Diaphragm Actuator |
| Brand | WEISSMILLER |
| Actuator Motion | Linear Motion |
| Operation Type | Pneumatic Diaphragm Type |
| Valve Compatibility | Globe Control Valve and Linear Control Valve |
| Function | Control Valve Operation and Modulating Control |
| Mounting Type | Yoke Mounted |
| Stem Movement | Linear Stem Movement |
| Control Accessory | Positioner, Air Filter Regulator, Solenoid Valve, and Limit Switch |
| Suitable Valve Type | Control Valve / Globe Control Valve |
| Application | Process Control, Flow Control, Pressure Control, Temperature Control, and Industrial Automation |
Note: Model number, air supply pressure, stroke, spring range, fail action, diaphragm size, and operating temperature should be confirmed based on the actual nameplate or project technical requirement.
Product Details

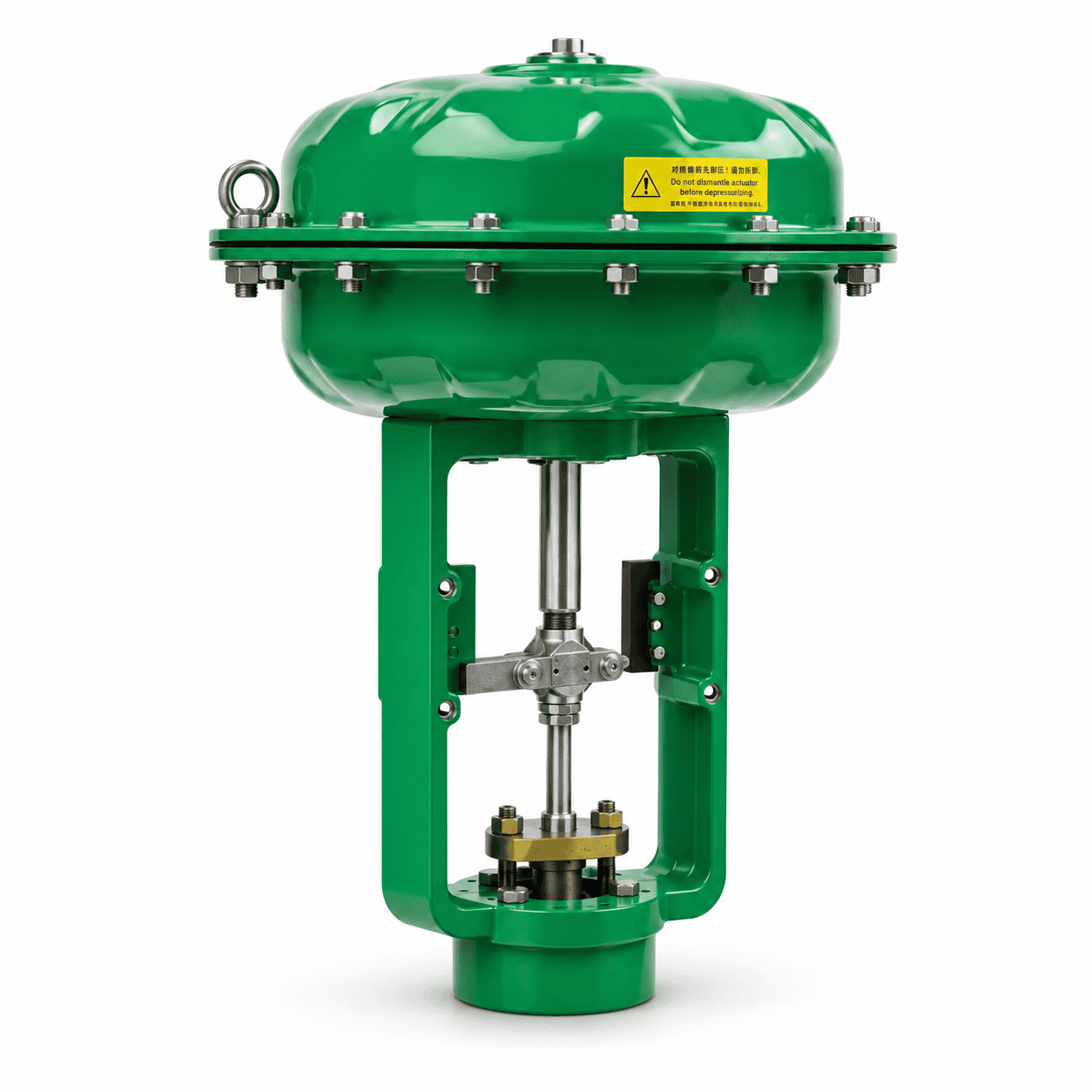

The product image shows a pneumatic diaphragm actuator with diaphragm casing, yoke structure, linear stem arrangement, and control valve mounting configuration. This actuator is intended for linear valve operation rather than quarter-turn valve automation.
Applications
Related Products
Globe Control Valve
Linear control valve assembly commonly paired with pneumatic diaphragm actuator for process control applications.
Valve Positioner
Control accessory used to improve actuator positioning accuracy and modulating valve performance.
Rack & Pinion Pneumatic Actuator
Pneumatic actuator for quarter-turn valve automation, available for butterfly valve and ball valve applications.
Need Pneumatic Diaphragm Actuator?
Contact our technical sales team for actuator selection, control valve compatibility review, stroke confirmation, accessory selection, and quotation.
