Electric Actuated Triple Offset Wafer Butterfly Valve
WEISSMILLER Electric Actuated Triple Offset Wafer Butterfly Valve is designed for automated flow isolation in demanding industrial piping systems. With triple offset valve design, wafer connection, WCB body, SS316 disc, JIS 10K rating, and electric actuator operation, this valve provides reliable shut-off performance, durable construction, and efficient automation for industrial applications.
Request Quotation
Product Overview
Electric Actuated Triple Offset Wafer Butterfly Valve is a high-performance butterfly valve assembly designed for automated shut-off and flow control. The triple offset construction helps reduce seat friction during operation and supports reliable sealing performance in demanding service conditions.
Combined with an electric actuator, this valve is suitable for systems requiring remote operation, automatic open-close control, and integration with control panels or plant automation systems. It is commonly used in oil and gas, petrochemical, power plant, utility, process industry, and general industrial piping applications.
Key Features
Triple Offset Design
Helps reduce seat friction during operation and supports reliable shut-off performance for demanding applications.
Electric Actuator Operation
Enables automatic valve opening and closing for remote operation and control system integration.
WCB Body
Carbon steel WCB body provides strength and durability for industrial process applications.
SS316 Disc
Stainless steel SS316 disc supports corrosion resistance and stable performance in suitable media.
Wafer Connection
Compact wafer body design allows efficient installation between piping flanges.
Automation Ready
Suitable for automated industrial systems requiring reliable open-close valve control.
Valve Specification
| Item | Specification |
|---|---|
| Product Type | Electric Actuated Triple Offset Wafer Butterfly Valve |
| Available Size | DN50 – DN600 / Other sizes available upon request |
| Example Size | 24" |
| Pressure Rating | JIS 10K / Other rating available upon request |
| Body Material | WCB |
| Disc Material | SS316 |
| Seat Material | Metal Seat / Other seat material by application |
| Connection | Wafer Type |
| Valve Type | Triple Offset |
| Operation | Electric Actuator |
| Application | Oil & Gas, Petrochemical, Power Plant, Utility, Process Industry, and General Industrial Fluid |
Electric Actuator Specification
| Item | Specification |
|---|---|
| Actuator Type | Electric Actuator |
| Power Supply | AC 220V / 380V, 50/60Hz / Optional DC 24V |
| Torque Range | 50 Nm – 2000 Nm / Based on valve size and torque requirement |
| Operation Type | On-Off / Open-Close Control |
| Manual Override | Handwheel Operation |
| Application | Automated valve operation for industrial piping and process control systems |
Product Details

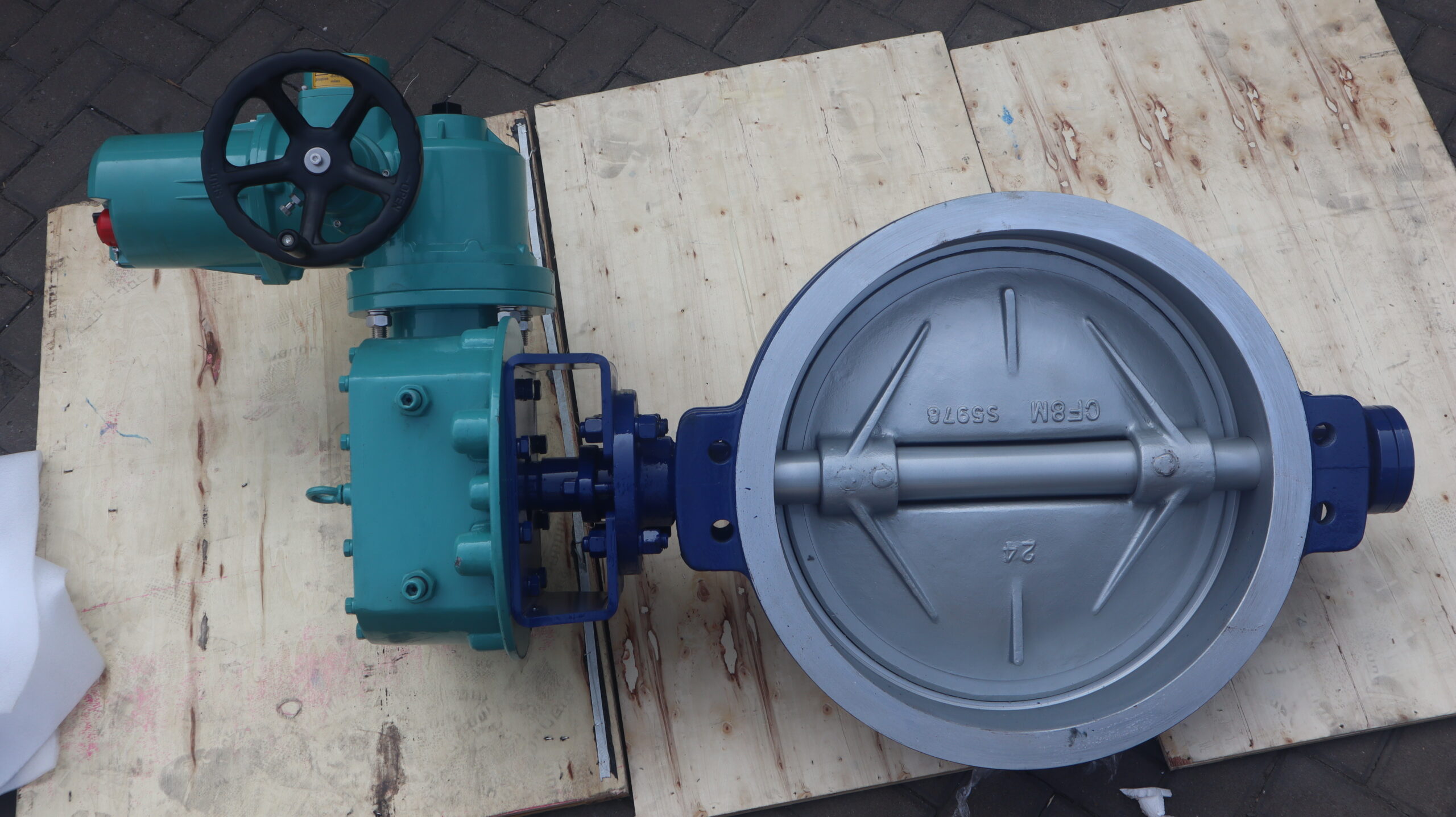

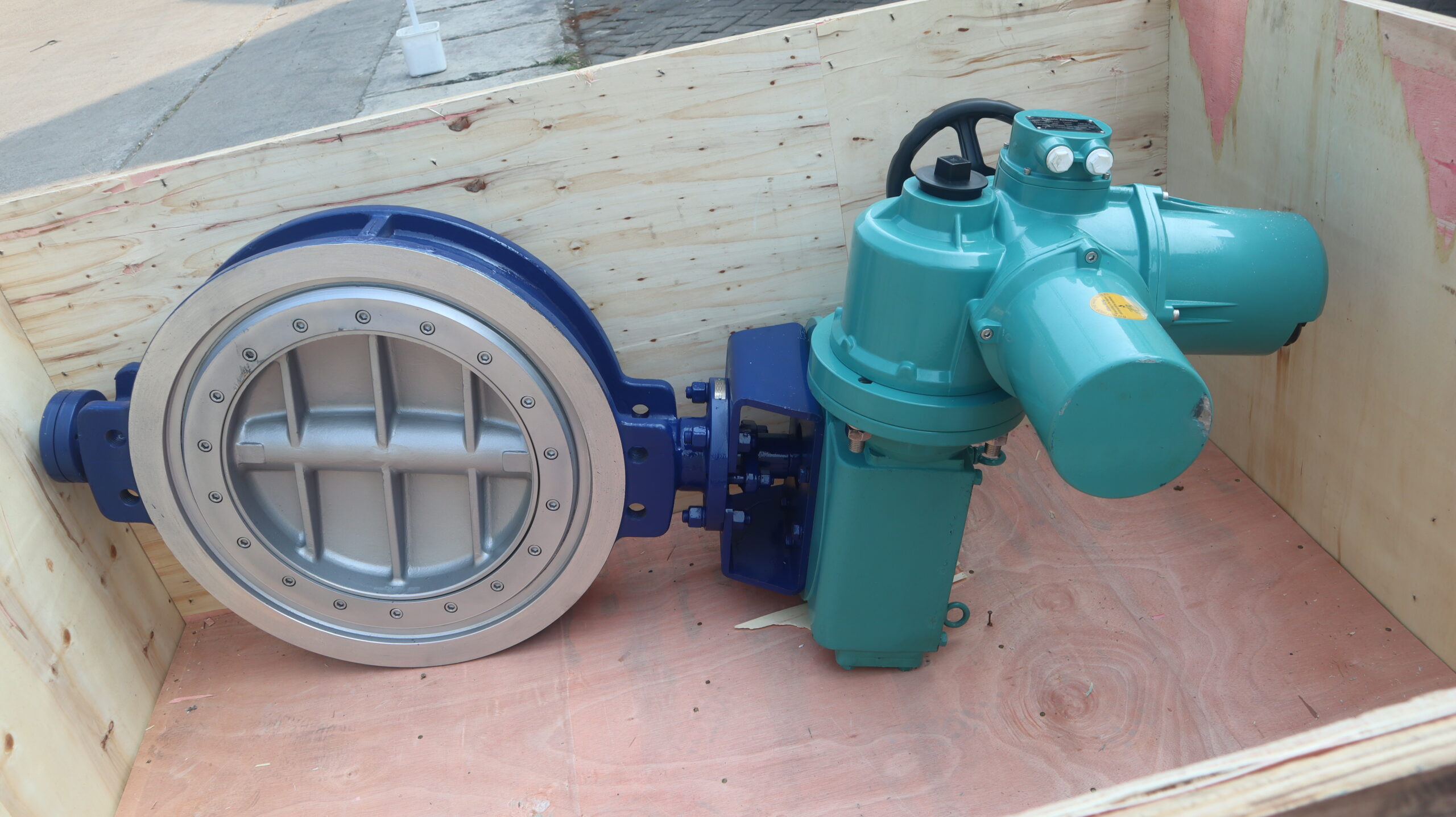

Additional product views showing the electric actuator, triple offset valve construction, wafer body design, manual override handwheel, and valve nameplate details for easier product identification and technical reference.
Applications
