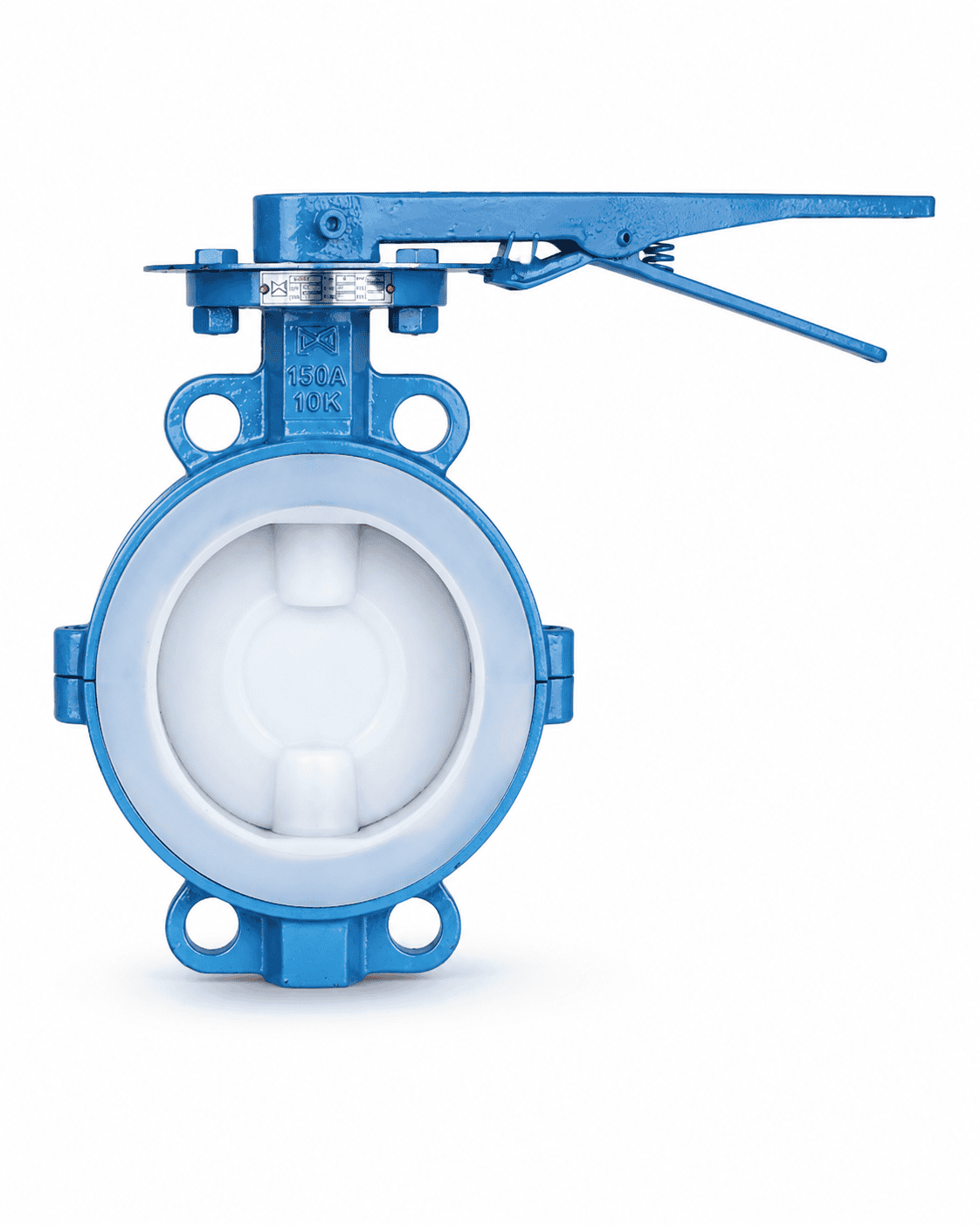

PFA Seated Wafer Butterfly Valve
WCB Wafer Butterfly Valve with SS316 + PFA Disc and PFA Seat
WEISSMILLER PFA Seated Wafer Butterfly Valve is designed for reliable flow isolation in industrial piping systems requiring chemical resistance and compact installation. With WCB body, SS316 + PFA disc, PFA seat, wafer connection, and JIS 10K rating, this valve provides dependable sealing performance for suitable industrial and chemical service applications.
Request Quotation
Product Overview
PFA Seated Wafer Butterfly Valve is a quarter-turn valve designed for flow isolation and basic flow control in industrial piping systems. The wafer body design allows compact installation between flanges, making it suitable for space-efficient piping arrangements.
This valve is suitable for water treatment, chemical process, utility systems, manufacturing, and general industrial fluid applications. The SS316 + PFA disc and PFA seat support improved chemical resistance for compatible media and service conditions.
Key Features
WCB Body
Carbon steel WCB body provides strength and durability for suitable industrial service conditions.
SS316 + PFA Disc
Stainless steel disc with PFA material supports corrosion resistance for compatible chemical applications.
PFA Seat
PFA seat provides sealing performance and chemical resistance for suitable fluid service.
Wafer Connection
Compact wafer type body allows efficient installation between piping flanges.
JIS 10K Rating
Suitable for piping systems requiring JIS 10K flange and pressure rating compatibility.
Lever Operation
Manual lever operation allows quick and simple open-close control.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | PFA Seated Wafer Butterfly Valve |
| Valve Type | Butterfly Valve |
| Available Size | DN50 – DN300 / Other sizes available upon request |
| Example Size | 6" / 150A |
| Body Material | WCB |
| Disc Material | SS316 + PFA |
| Seat Material | PFA |
| Connection | Wafer Type |
| Pressure Rating | JIS 10K |
| Operation | Lever Operated |
| Application | Water Treatment, Chemical Process, Utility, Industrial Fluid, Manufacturing, and General Industrial Service |
Product Details

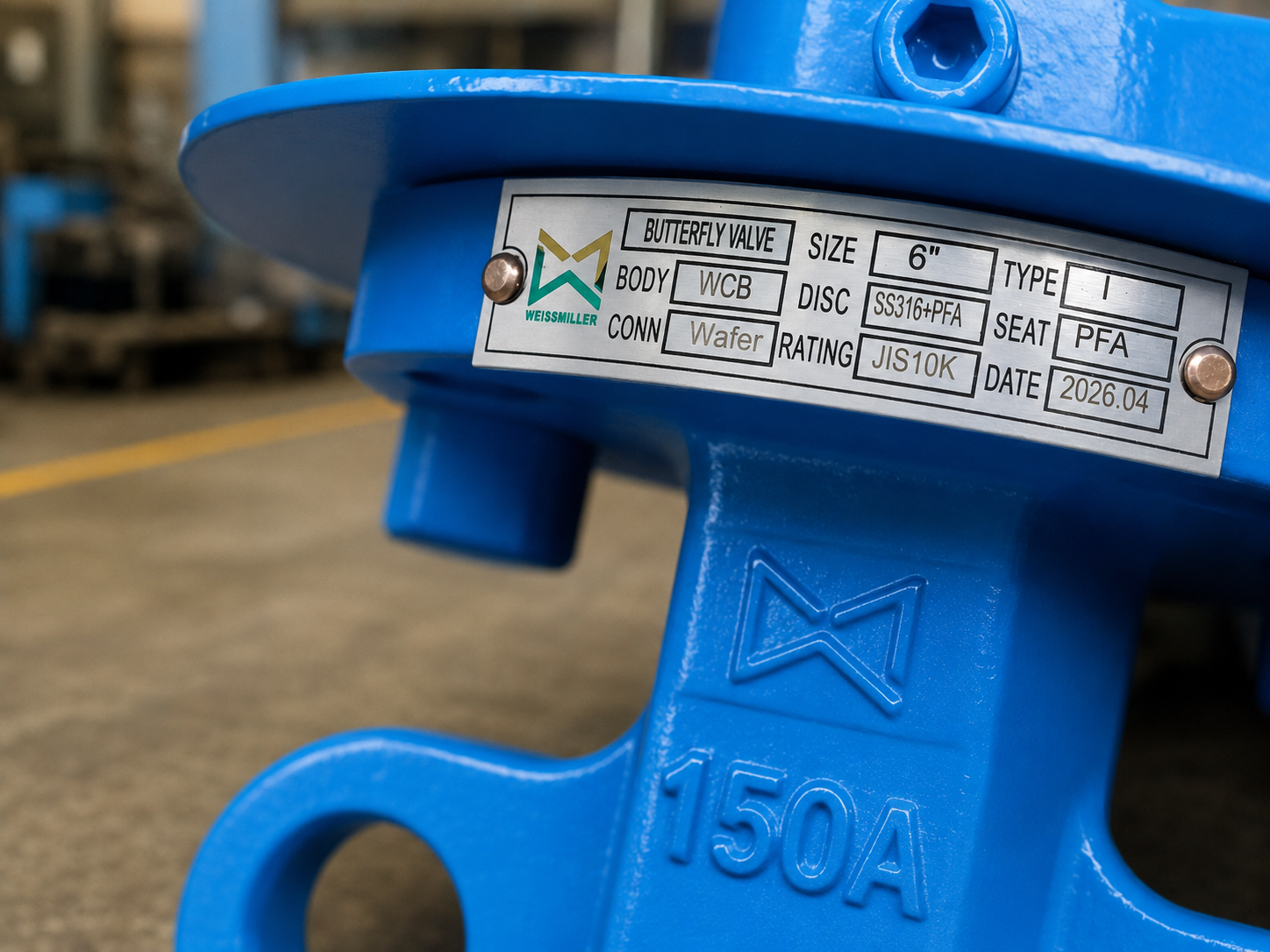

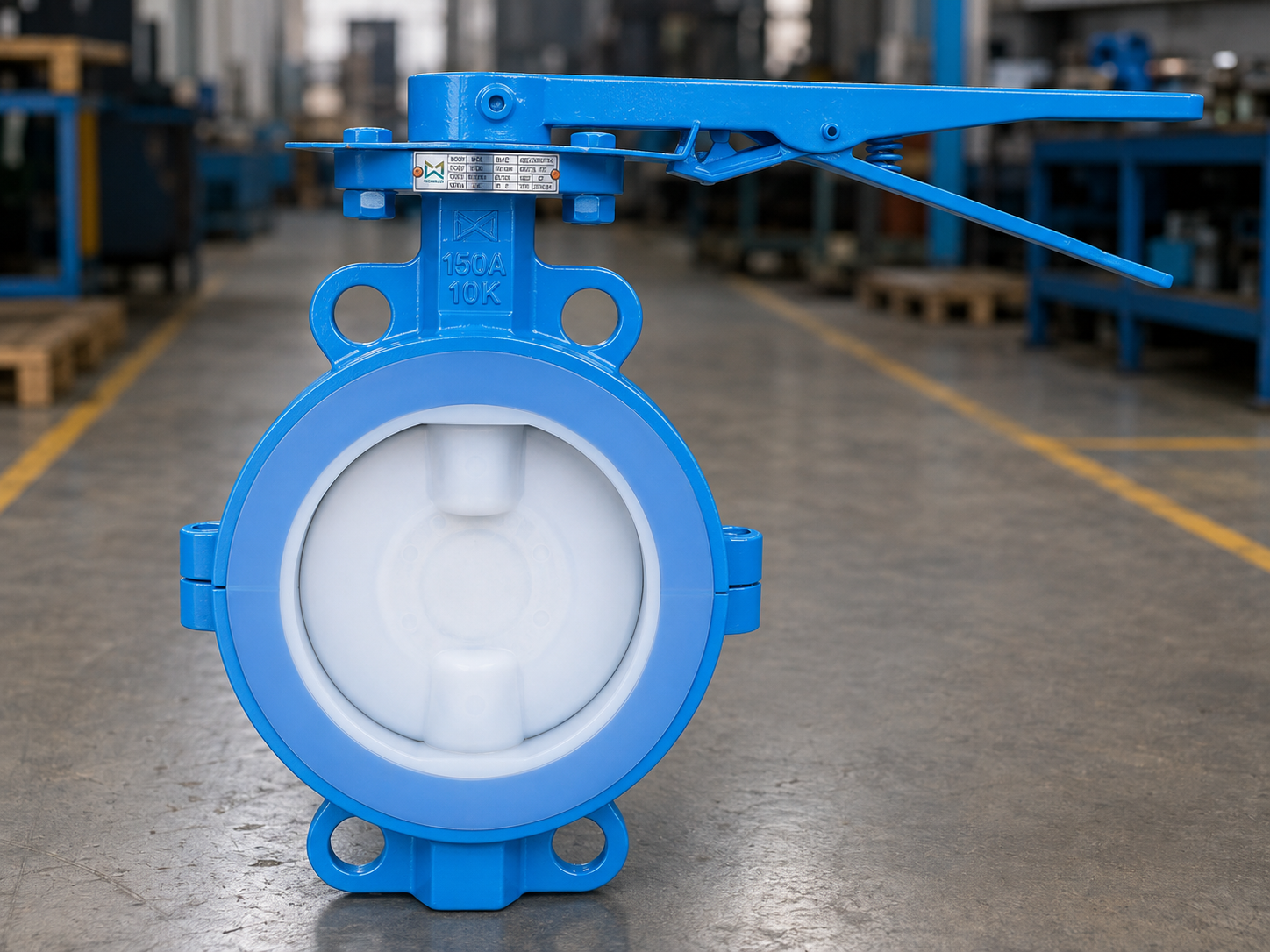

Additional product views showing the wafer body design, lever mechanism, PFA seat area, SS316 + PFA disc, nameplate detail, and valve construction for easier product identification and technical reference.
