Universal Class Butterfly Valve
WEISSMILLER Universal Class Butterfly Valve is designed for reliable flow isolation and regulation in industrial piping systems. With universal flange compatibility, lever operation, compact body design, and dependable sealing performance, this valve is suitable for water, utility, HVAC, and general industrial applications.
Request Quotation
Product Overview
Universal Class Butterfly Valve is a quarter-turn valve used to control or isolate fluid flow in piping systems. The universal flange design allows flexible installation across different piping flange standards, making it suitable for projects that require broader compatibility.
This valve is commonly used in water treatment, utility systems, HVAC, building services, manufacturing, and general industrial piping. The lever operation provides quick open-close control, while the compact butterfly valve design helps reduce installation space and weight.
Key Features
Universal Flange Compatibility
Designed to support multiple flange standards such as JIS 5K, JIS 10K, PN10, and PN16 depending on configuration.
Lever Operation
Manual lever operation allows quick and simple open-close control for industrial piping systems.
Compact Design
Lightweight and compact butterfly valve body design allows easy installation in limited piping space.
Reliable Sealing
Designed to provide dependable sealing performance for flow isolation and regulation applications.
Quarter-Turn Operation
Operates with a simple 90-degree disc rotation for efficient valve opening and closing.
Industrial Application
Suitable for water treatment, HVAC, utility systems, building services, and general industrial piping.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Universal Class Butterfly Valve |
| Available Size | DN50 – DN300 / Other sizes available upon request |
| Pressure Rating | JIS 5K / JIS 10K / PN10 / PN16 depending on configuration |
| Body Material | Cast Iron / Ductile Iron / Other material available upon request |
| Disc Material | Ductile Iron / CF8 / CF8M / Stainless Steel / Other material by request |
| Seat Material | EPDM / NBR / PTFE / Other material by application |
| Connection | Universal Lug / Wafer Type |
| Operation | Lever Operated / Gearbox Option |
| Application | Water, Utility, HVAC, Building Services, Process Industry, and General Industrial Fluid |
Product Details

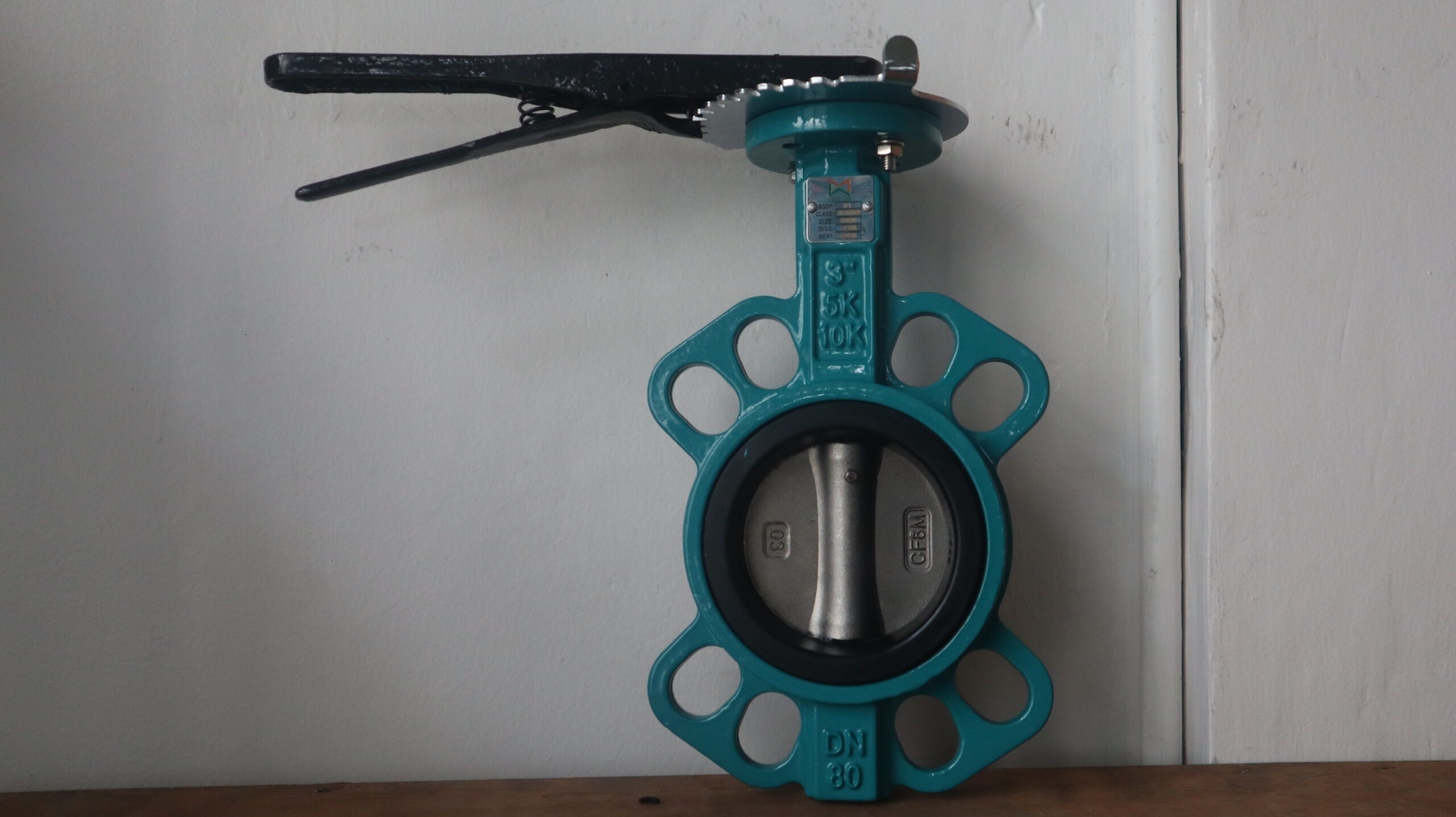

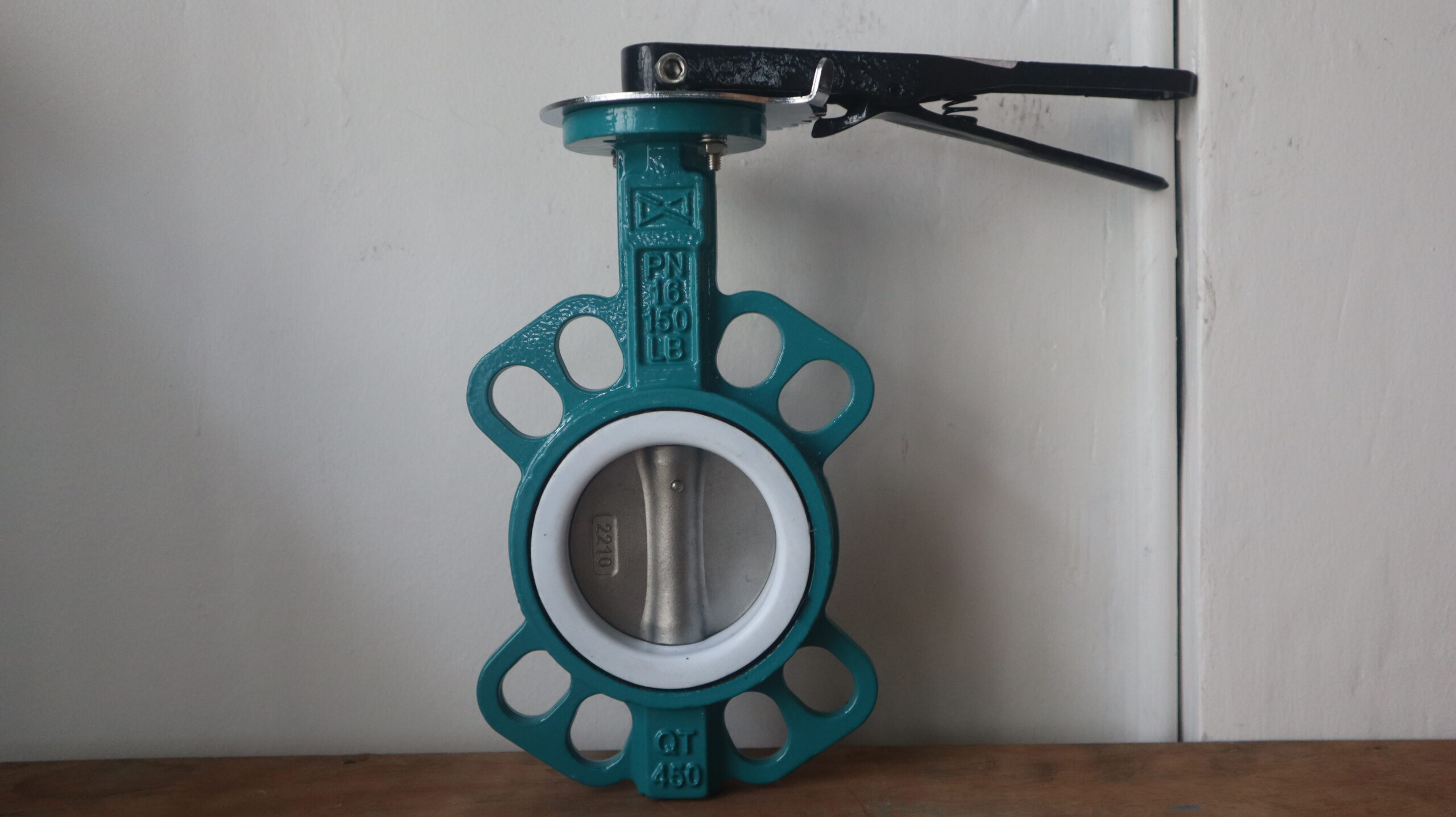

Additional product views showing the universal body design, lever operation, disc construction, sealing area, and nameplate details for easier product identification and technical reference.
Applications
