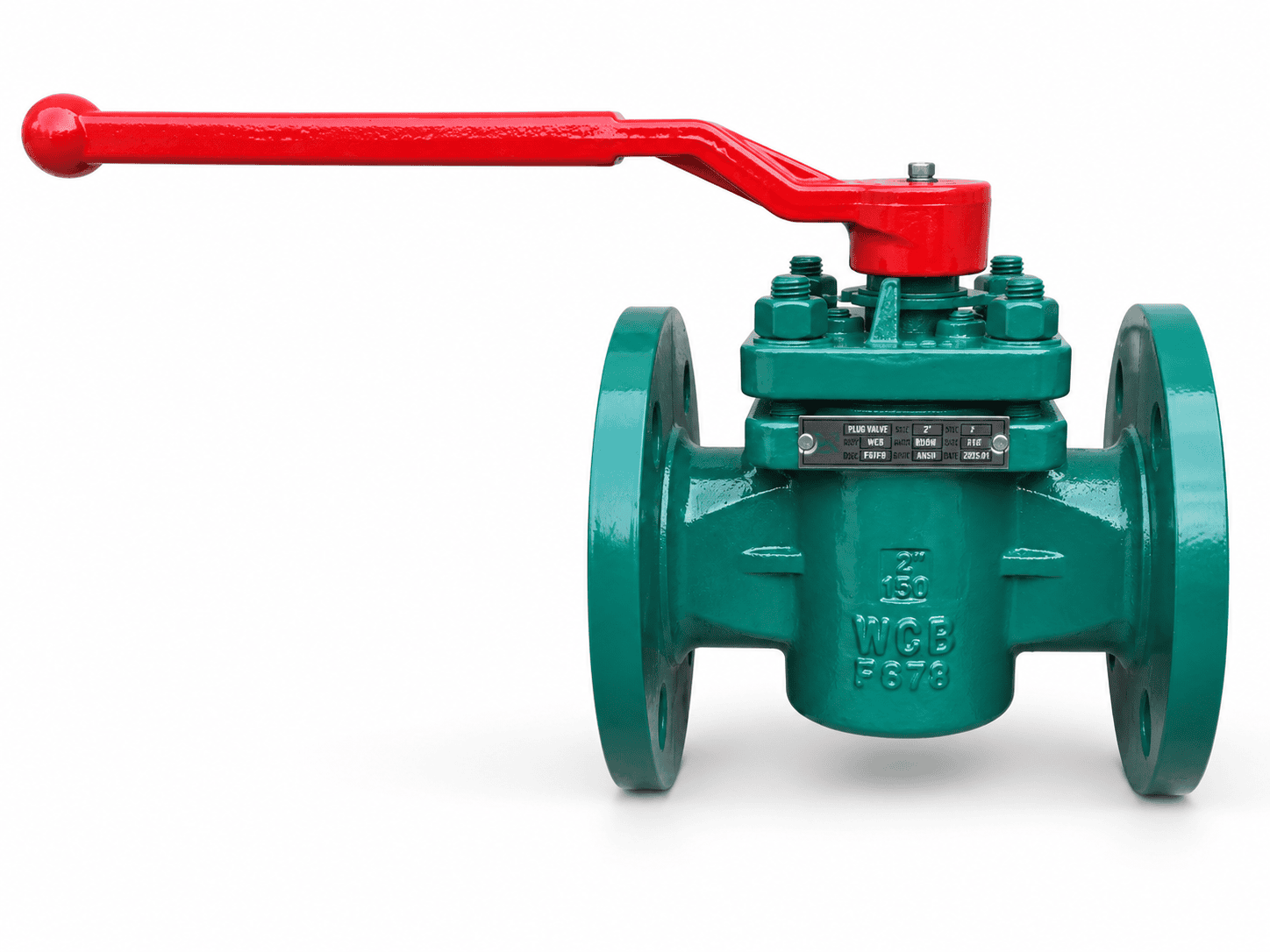

PTFE Lined Flanged Plug Valve
2 Inch JIS 10K Plug Valve with WCB + PTFE Construction, FF Flange Connection, and Manual Lever Operation
WEISSMILLER PTFE Lined Flanged Plug Valve is designed for reliable on-off flow isolation in industrial piping systems. The PTFE-lined construction provides additional protection for applications involving corrosive or chemically aggressive media, subject to final process compatibility.
Request Quotation
Product Overview
This WEISSMILLER Plug Valve uses a quarter-turn plug mechanism for fast open and close operation. The valve shown is supplied in 2 inch size with JIS 10K pressure rating and FF flanged connection.
According to the product nameplate, both the valve body and plug/disc are specified as WCB + PTFE. The valve is manually operated using a lever and is intended primarily for isolation service.
Key Features
PTFE Lined Construction
WCB body and plug/disc with PTFE lining for improved media resistance in suitable industrial applications.
Quarter-Turn Operation
Simple 90-degree lever movement enables fast opening and closing of the valve.
FF Flange Connection
Supplied with flat face flange connection for installation in compatible flanged piping systems.
Manual Lever Operation
Long lever handle provides straightforward manual operation for open and close service.
JIS 10K Rating
Designed with JIS 10K pressure rating as indicated on the product nameplate.
Industrial Isolation Service
Suitable for on-off isolation in compatible process and industrial piping applications.
Technical Specification
| Item | Specification |
|---|---|
| Product Type | Plug Valve |
| Brand | WEISSMILLER |
| Size | 2 Inch |
| Body Material | WCB + PTFE |
| Plug / Disc Material | WCB + PTFE |
| Seat Material | Not Specified on Nameplate |
| Connection | FF Flange |
| Pressure Rating | JIS 10K |
| Operation | Manual Lever |
| Valve Function | On-Off Flow Isolation |
| Valve Type | Not Specified on Nameplate |
| Manufacturing Date | 2026.07 |
Note: Seat material, detailed PTFE grade, face-to-face dimension, temperature limit, test pressure, and other design details are not specified on the available product nameplate and should be confirmed based on final project requirements.
Product Details

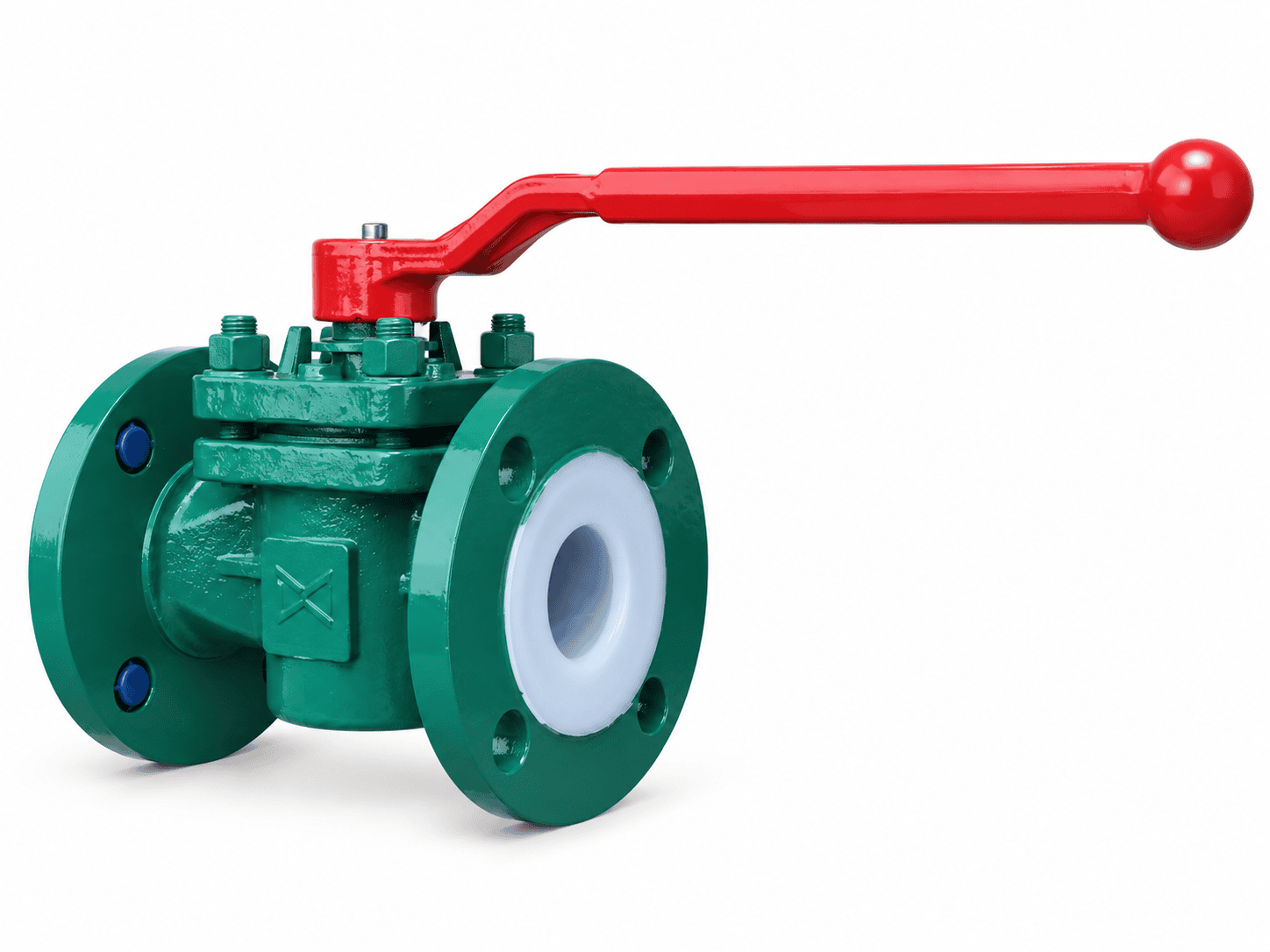

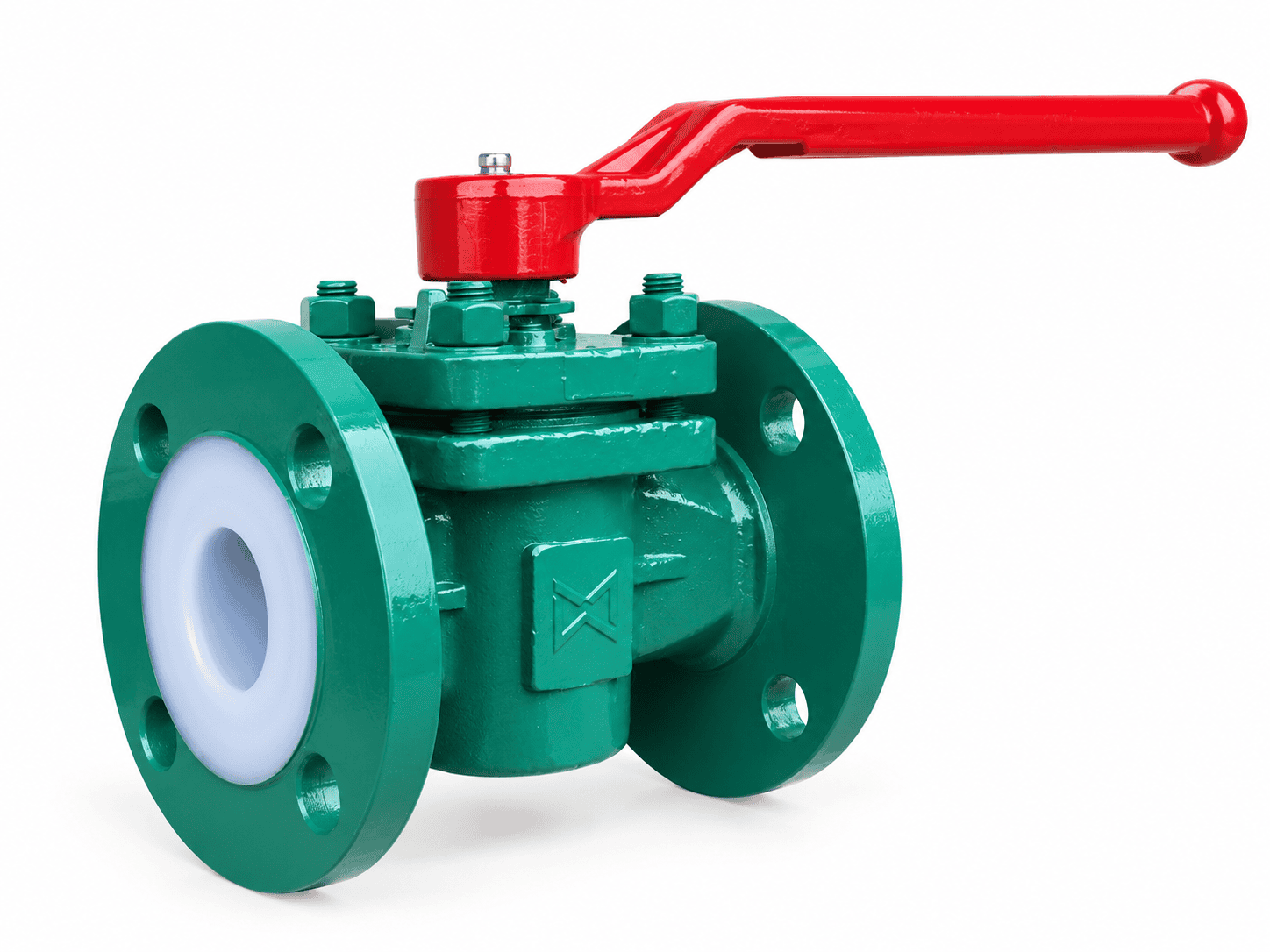

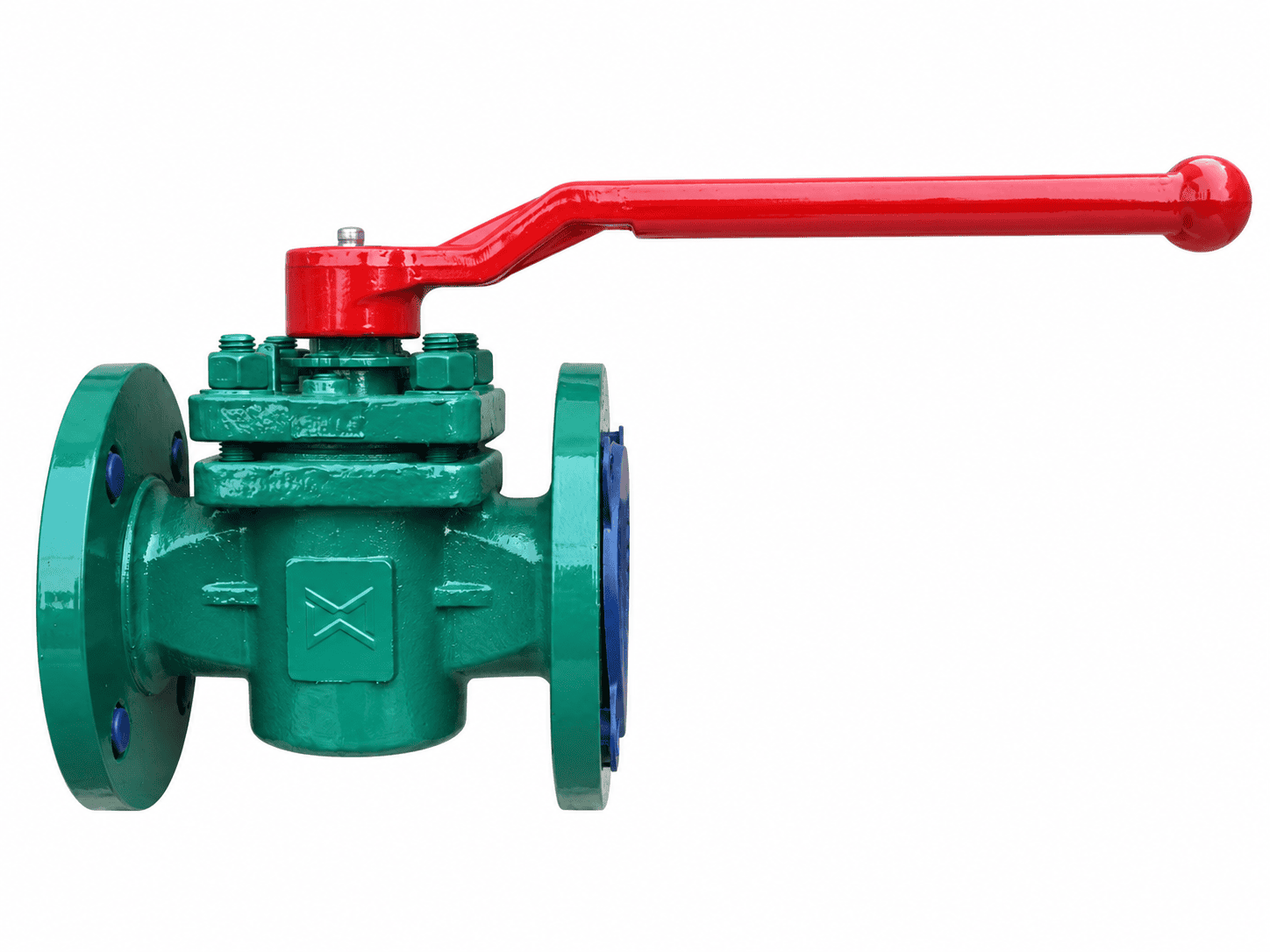

Additional product views show the manual lever arrangement, FF flanged ends, valve body construction, PTFE-lined flow passage, and product nameplate.
Applications
Related Products
Plug Valve
General plug valve solutions available in various materials, ratings, and connection configurations.
Ball Valve
Quarter-turn valve solution for reliable industrial flow isolation.
PTFE Lined Valve
Lined valve solution for process applications requiring improved chemical resistance.
Need PTFE Lined Plug Valve?
Contact our technical sales team for material compatibility review, flange standard confirmation, pressure rating, application support, and quotation.
