Description
Single disc wafer type check valve designed for compact installation and efficient backflow prevention, featuring lightweight construction, fast response, and reliable sealing performance in industrial piping systems.

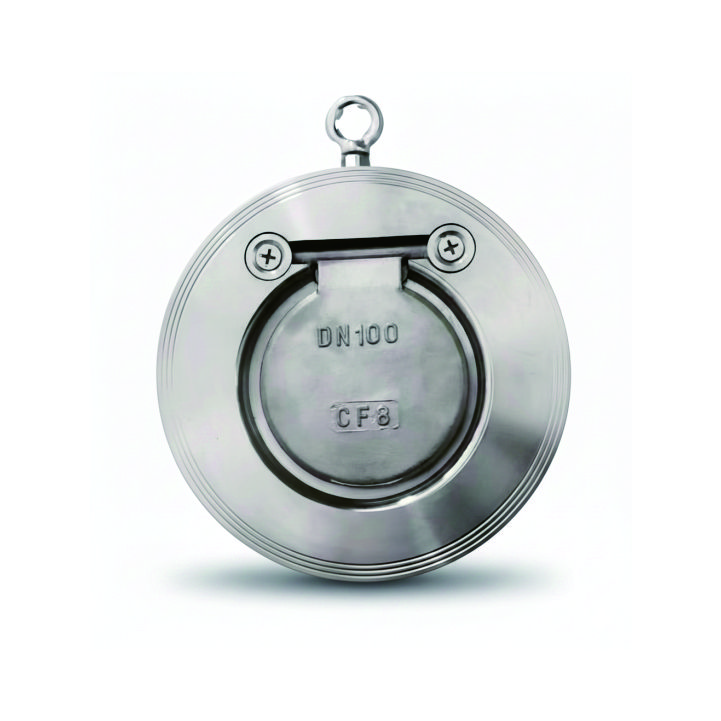

Check Valve Single Disc Wafer Type
| Type | Single Disc Wafer Type Check Valve |
| Design Standard | API 594 / EN 12334 |
| Face to Face | API 594 / EN 558 |
| Connection | Wafer Type (Between Flanges) |
| Flange Standard | ANSI B16.5 / DIN / JIS |
| Body Material | Cast Iron / Ductile Iron / Stainless Steel |
| Disc Type | Single Disc (Tilting / Spring Loaded) |
| Disc Material | Stainless Steel |
| Seat Material | Metal Seat / EPDM / NBR / PTFE |
| Spring Material | Stainless Steel |
| Size Range | DN40 – DN600 (1½” – 24”) |
| Pressure Rating | PN10 / PN16 / Class 150 / 300 |
| Temperature Range | -10°C to +200°C |
| Operation | Automatic (Non-Return) |
| Applicable Media | Water, Oil, Gas |
| Sealing Type | Soft Seated / Metal Seated |
| Installation | Horizontal / Vertical (Upward Flow) |
| Leakage Standard | API 598 |
| Testing Standard | API 598 / EN 12266-1 |
