Description
Flanged foot valve designed for efficient suction line operation, featuring a built-in strainer, reliable sealing, and durable construction to prevent backflow and maintain pump priming in industrial and water system applications.

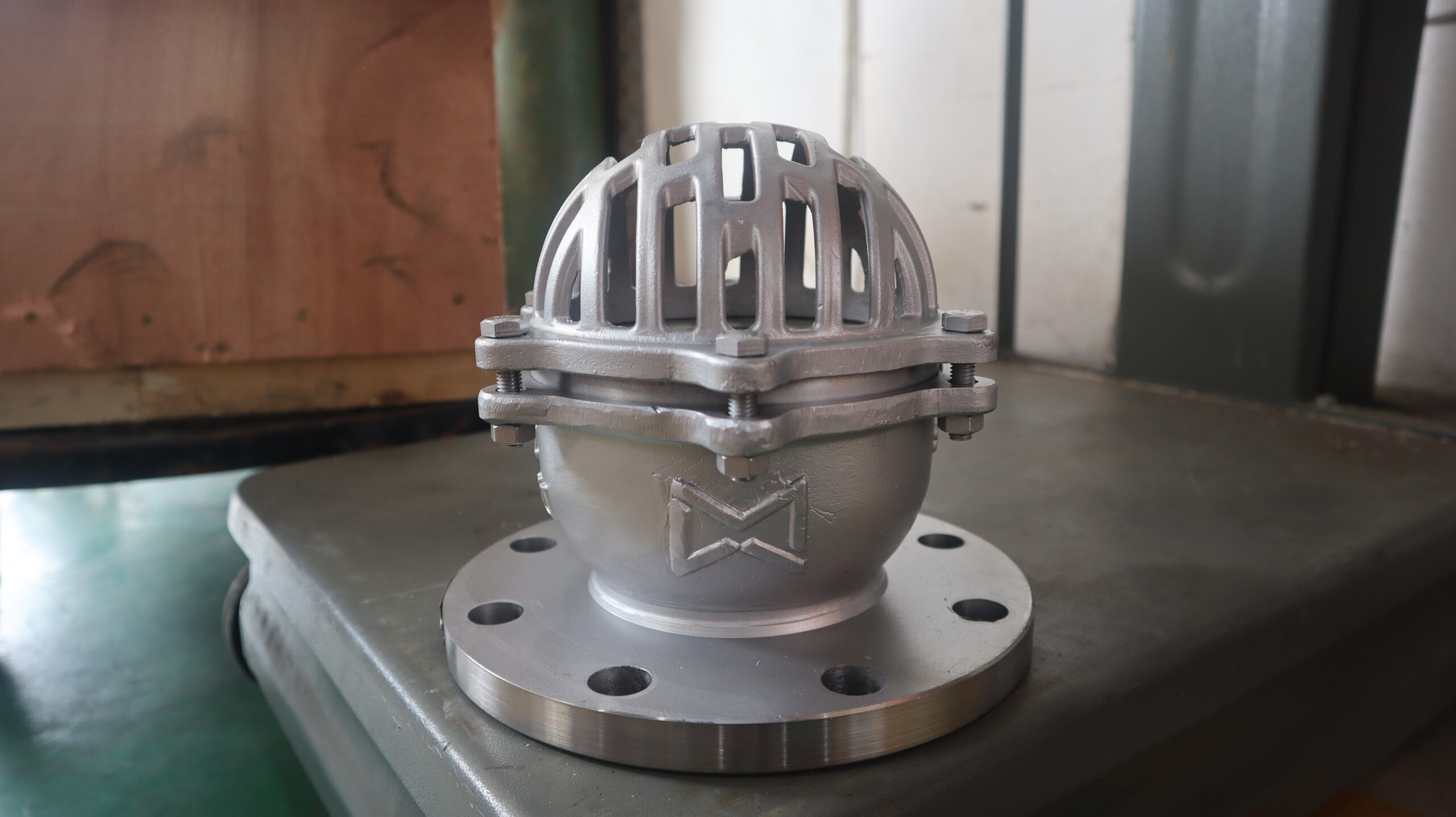

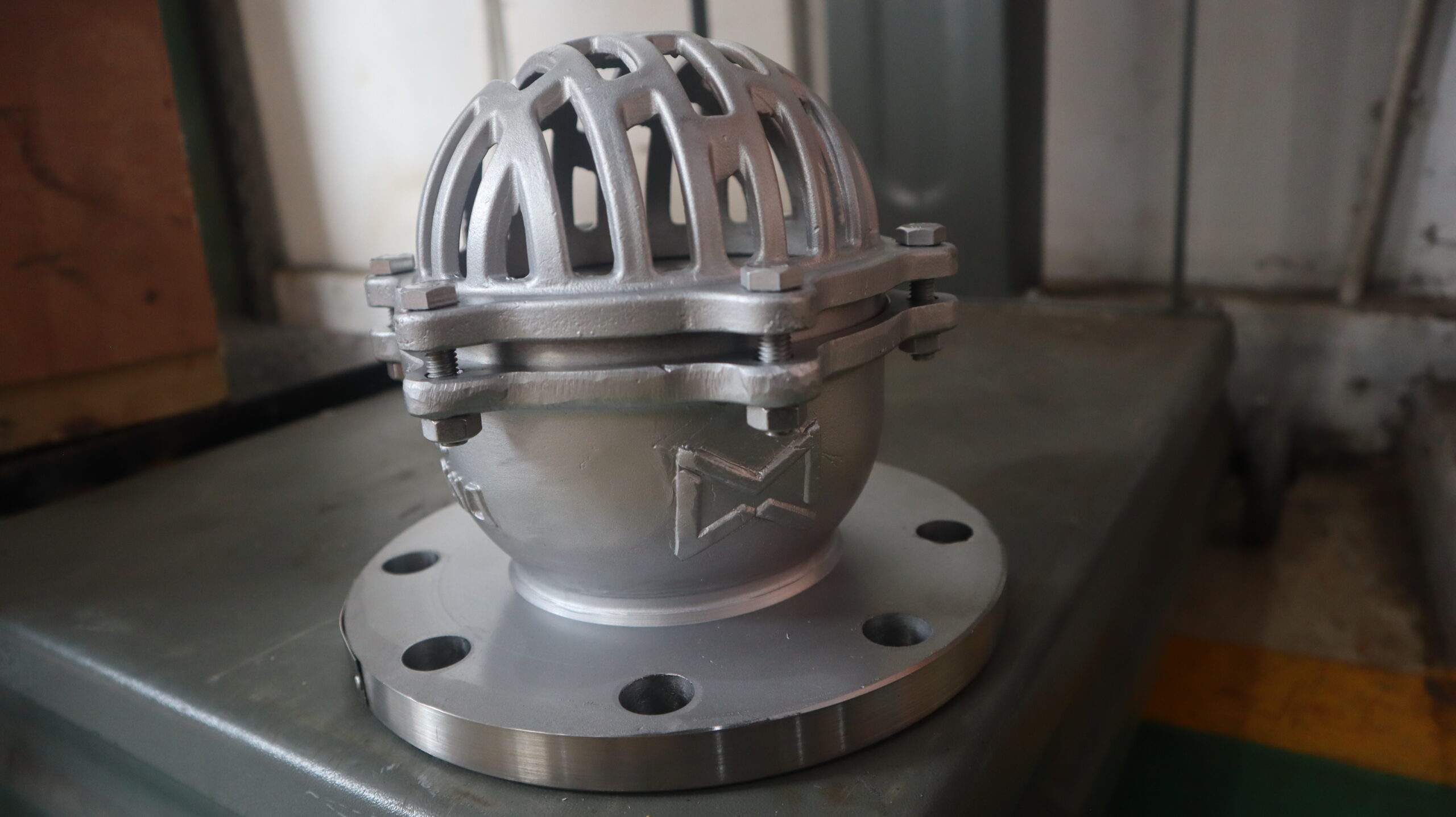

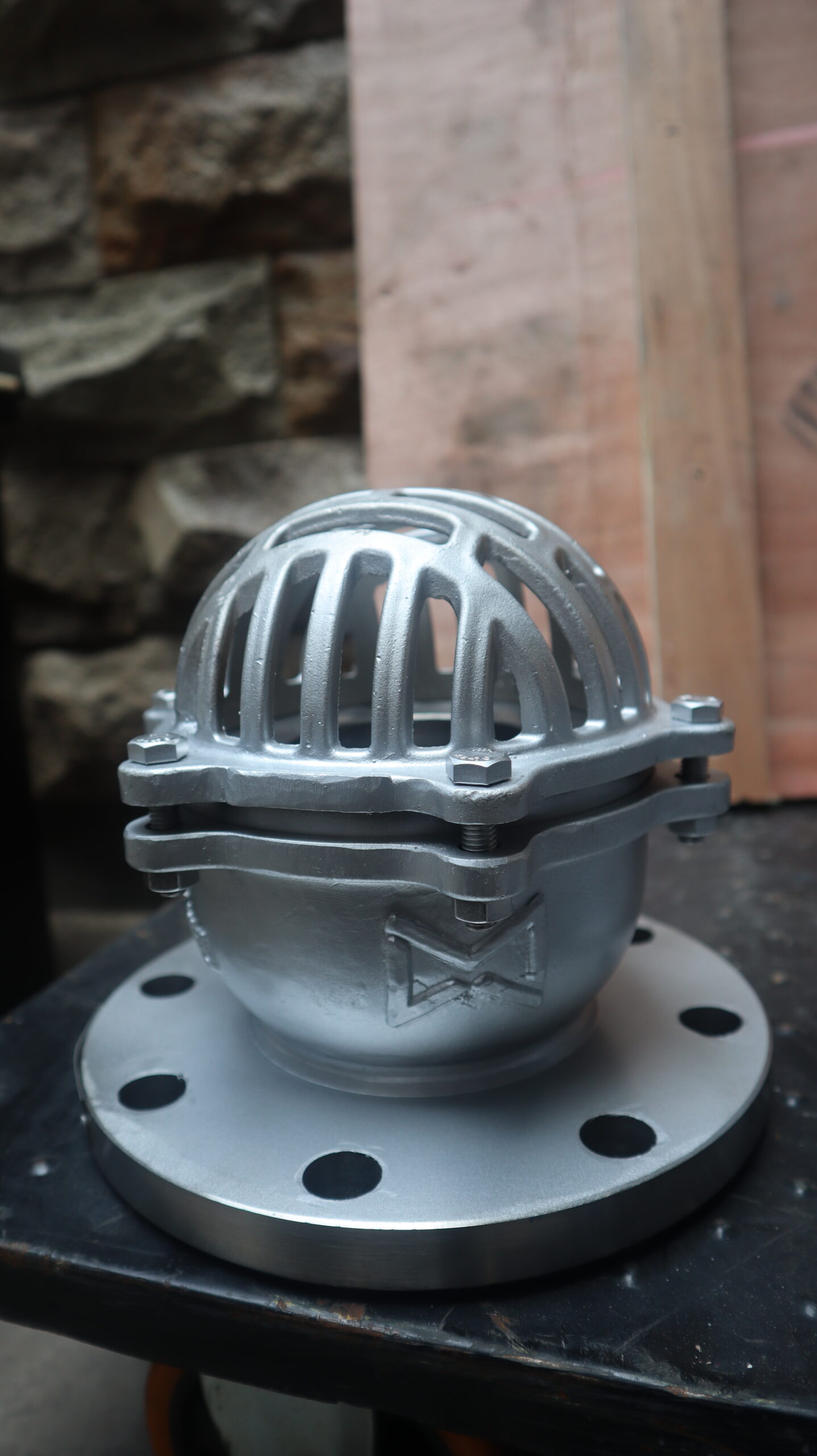

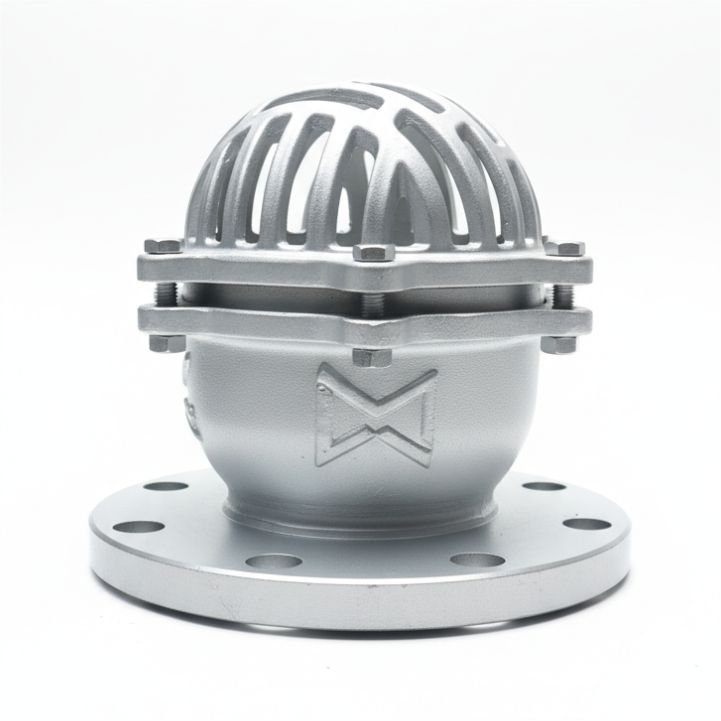

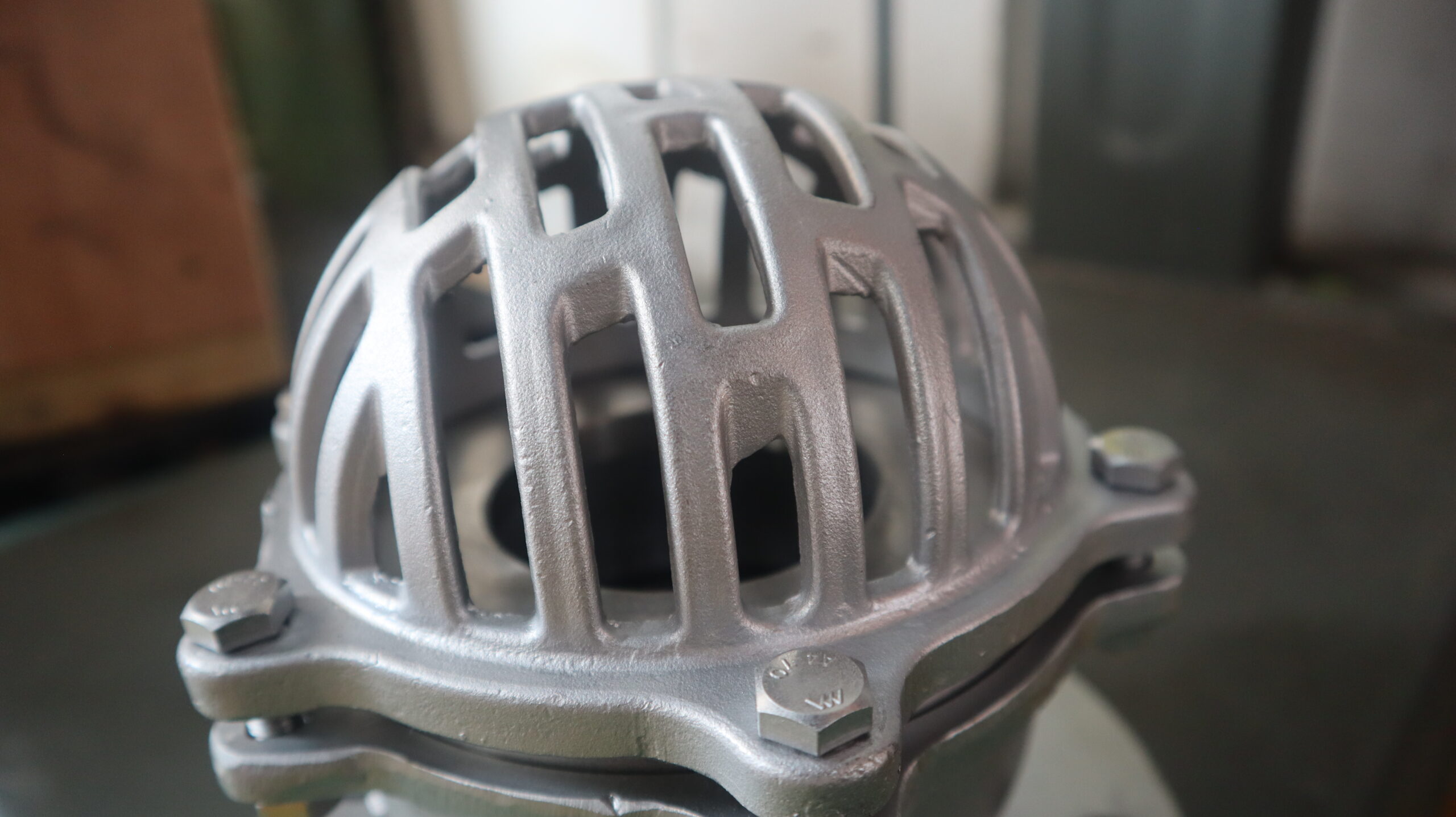

FOOT VALVE (FLANGE JIS 10K)
| Type | Foot Valve (Flanged End) |
| Connection | Flange JIS 10K |
| Size Range | 2” – 12” (DN50 – DN300) |
| Body Material | Cast Iron / Ductile Iron / Stainless Steel |
| Disc / Valve Type | Spring Loaded Disc |
| Seat Material | NBR / EPDM / PTFE |
| Strainer | Stainless Steel Screen |
| Pressure Rating | JIS 10K |
| Working Temperature | -10°C to +80°C (Depending on Seat Material) |
| Installation | Vertical (Suction Line) |
| Application | Water Pump System, Industrial Water Supply, Irrigation |
