Description
Forged steel check valve designed for high pressure and high temperature applications, offering compact construction, reliable backflow prevention, and long service life in critical industrial systems.

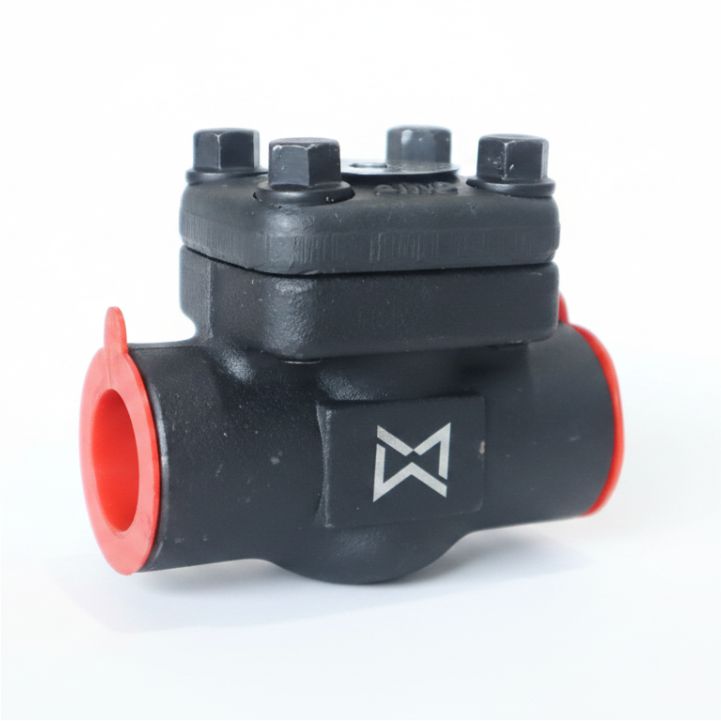

High Pressure Forged Steel Check Valve
| Type | Forged Steel Check Valve |
| Design Standard | API 602 / BS 5352 |
| Face to Face | ASME B16.10 |
| Connection | Threaded (NPT) / Socket Weld / Butt Weld |
| End Standard | ASME B16.11 / ASME B1.20.1 / ASME B16.25 |
| Body Material | Forged Steel (A105 / F11 / F22 / Stainless Steel) |
| Disc Type | Swing Type / Lift Type |
| Disc Material | Stainless Steel / Alloy Steel |
| Seat Material | Metal Seat (Hardened Alloy / Stellite) |
| Spring Option | Available for Lift Type |
| Size Range | DN15 – DN50 (½” – 2”) |
| Pressure Rating | Class 800 / 1500 / 2500 |
| Temperature Range | -29°C to +425°C |
| Operation | Automatic (Non-Return) |
| Applicable Media | Steam, Oil, Gas |
| Sealing Type | Metal Seated |
| Leakage Standard | API 598 |
| Testing Standard | API 598 / EN 12266-1 |
