Description
Non rising stem soft sealing gate valve designed for water and utility systems, providing bubble-tight shut-off, corrosion resistance, and reliable long-term performance in compact installation environments.

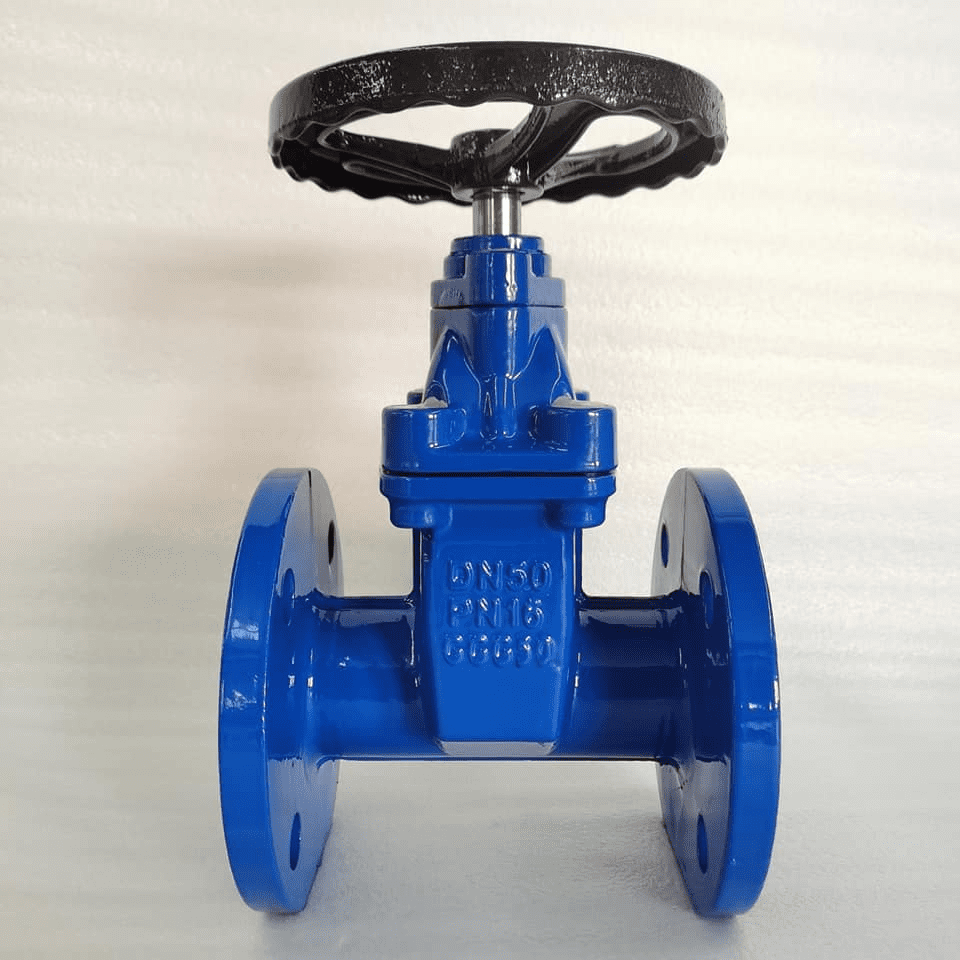

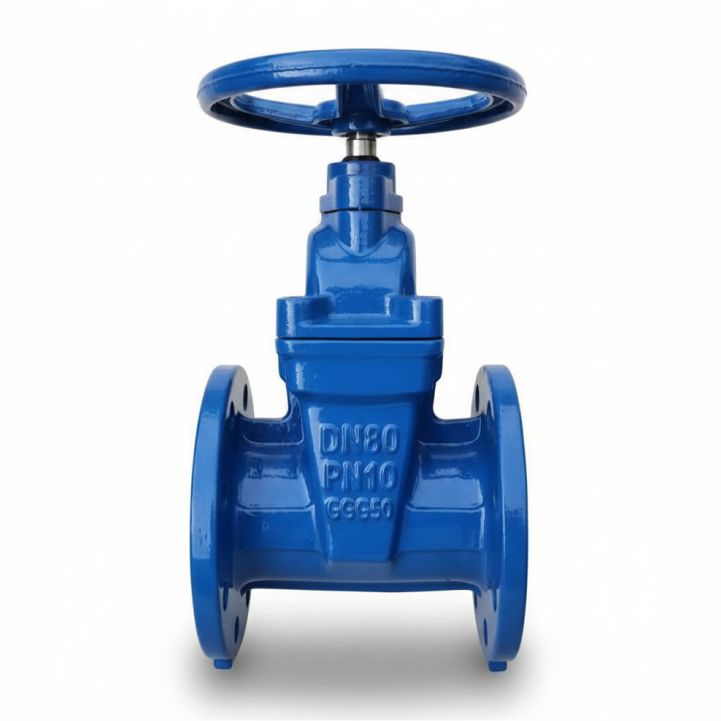

Non Rising Stem Soft Sealing Gate Valve
| Type | Non Rising Stem Soft Sealing Gate Valve |
| Design Standard | BS 5163 / DIN 3352 / AWWA C509 |
| Face to Face | EN 558 / ISO 5752 |
| Connection | Flanged Type |
| Flange Standard | DIN PN10 / PN16 |
| Body Material | Ductile Iron (GGG40 / GGG50) |
| Wedge Type | Resilient Seated (Rubber Coated Wedge) |
| Seat Material | EPDM / NBR Rubber |
| Stem Material | Stainless Steel |
| Stem Type | Non Rising Stem (Inside Screw) |
| Coating | Fusion Bonded Epoxy (FBE) |
| Size Range | DN50 – DN600 (2” – 24”) |
| Pressure Rating | PN10 / PN16 |
| Temperature Range | 0°C to +80°C |
| Operation | Handwheel / Cap / Extension Spindle |
| Applicable Media | Water, Wastewater, Neutral Fluids |
| Sealing Type | Soft Seated (Bubble Tight Shut-Off) |
| Leakage Standard | Zero Leakage |
| Testing Standard | EN 12266-1 / ISO 5208 |
