Description
Compact 1-piece ball valve with internal threaded connection, designed for reliable shut-off, simple installation, and cost-effective performance in small to medium piping systems.

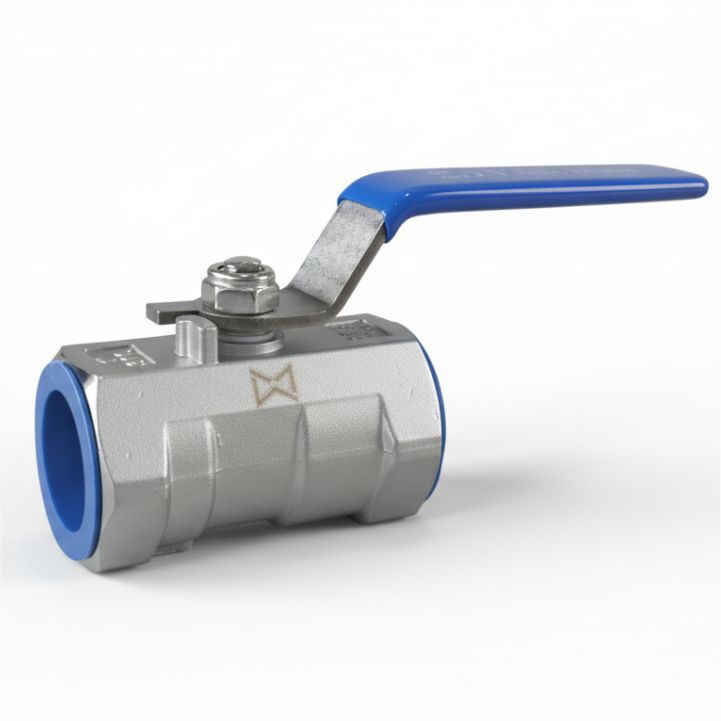

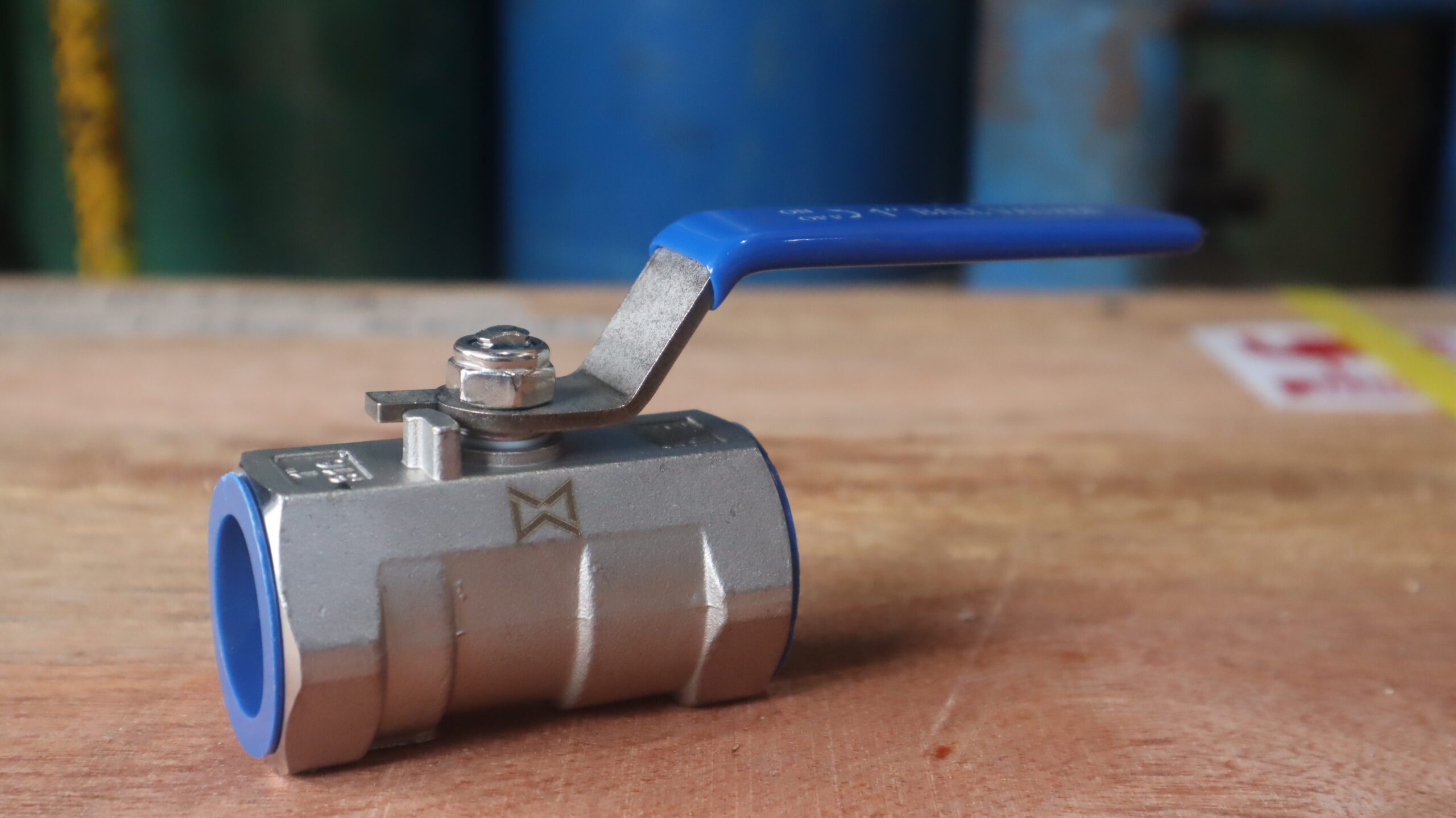

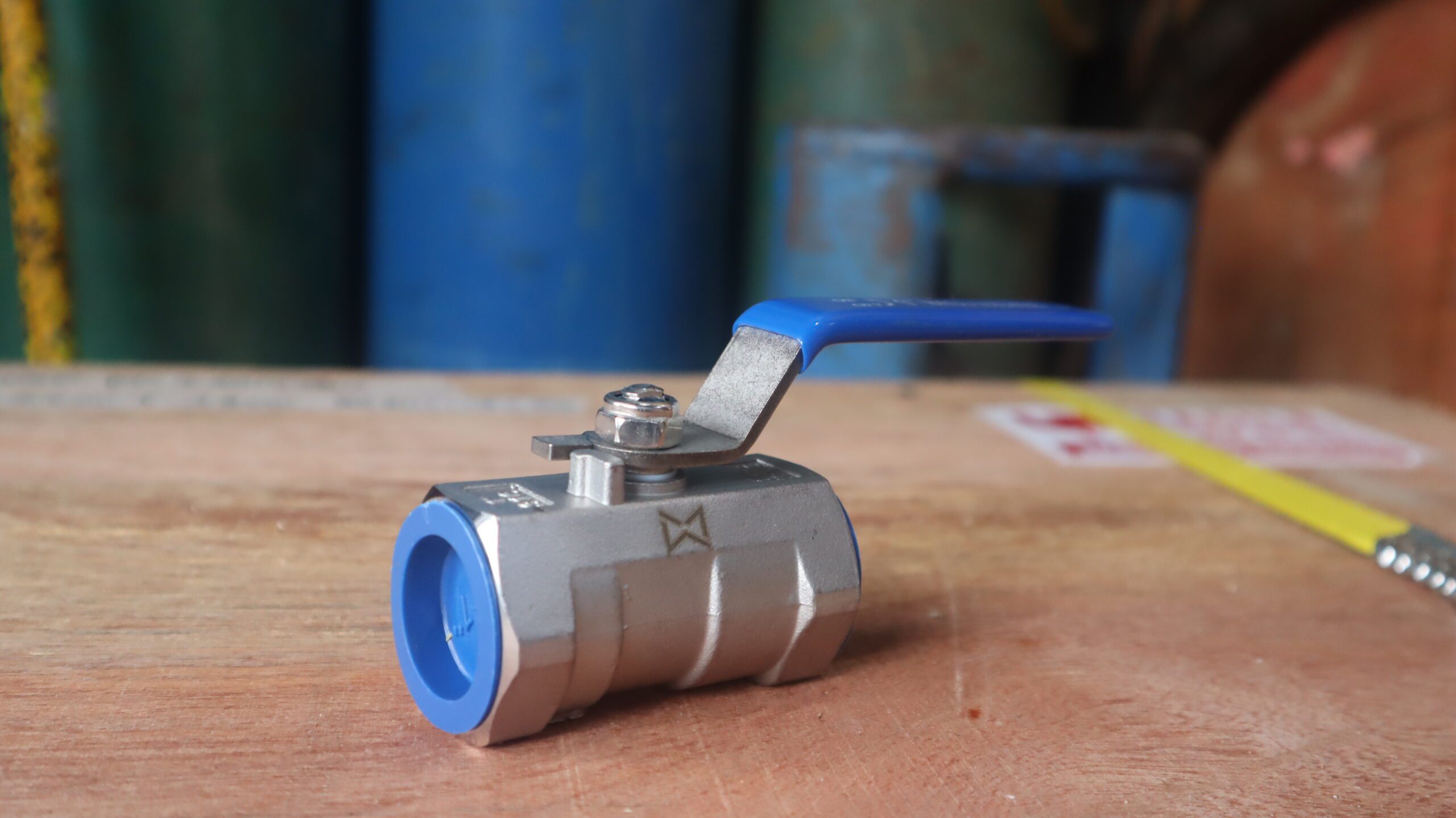

1 PC Thread Ball Valve
| Type | 1 Piece Ball Valve (Internal Thread) |
| Design Standard | API 608 / BS EN 1983 |
| Connection | Female Thread (BSP / NPT) |
| Body Construction | 1 Piece (One Body) |
| Body Material | Stainless Steel / Carbon Steel / Brass |
| Ball Material | Stainless Steel (SS304 / SS316) |
| Seat Material | PTFE |
| Stem Material | Stainless Steel |
| Size Range | DN8 – DN50 (¼” – 2”) |
| Pressure Rating | PN16 / PN25 / 1000 WOG |
| Temperature Range | -20°C to +180°C |
| Operation | Lever Operated |
| Applicable Media | Water, Oil, Gas, Air |
| Sealing Type | Soft Seated (PTFE) |
| Testing Standard | API 598 |
