Description
Bellow sealed globe valve designed to provide zero leakage performance, ensuring safe and reliable operation in high temperature and hazardous fluid applications.

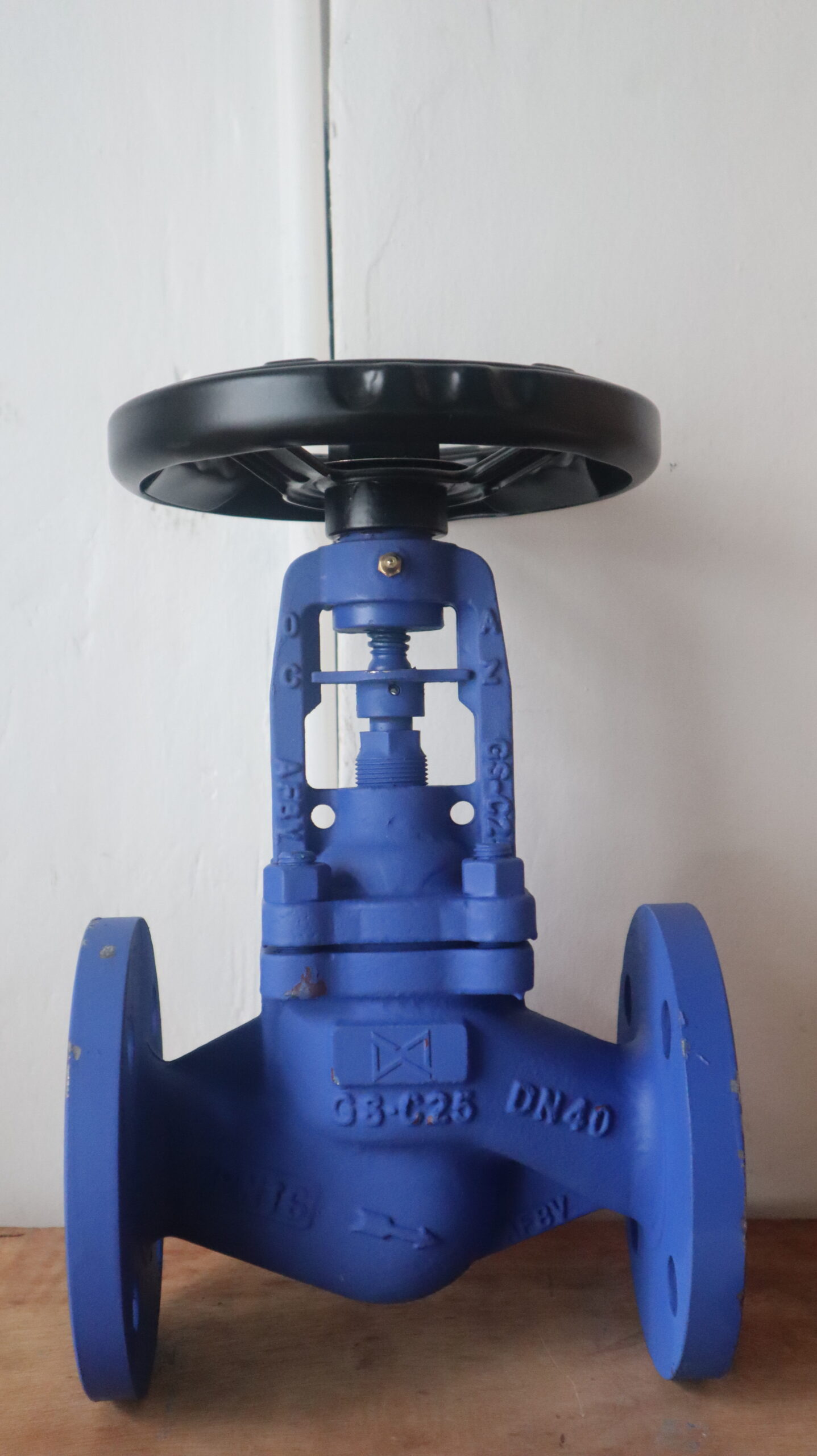

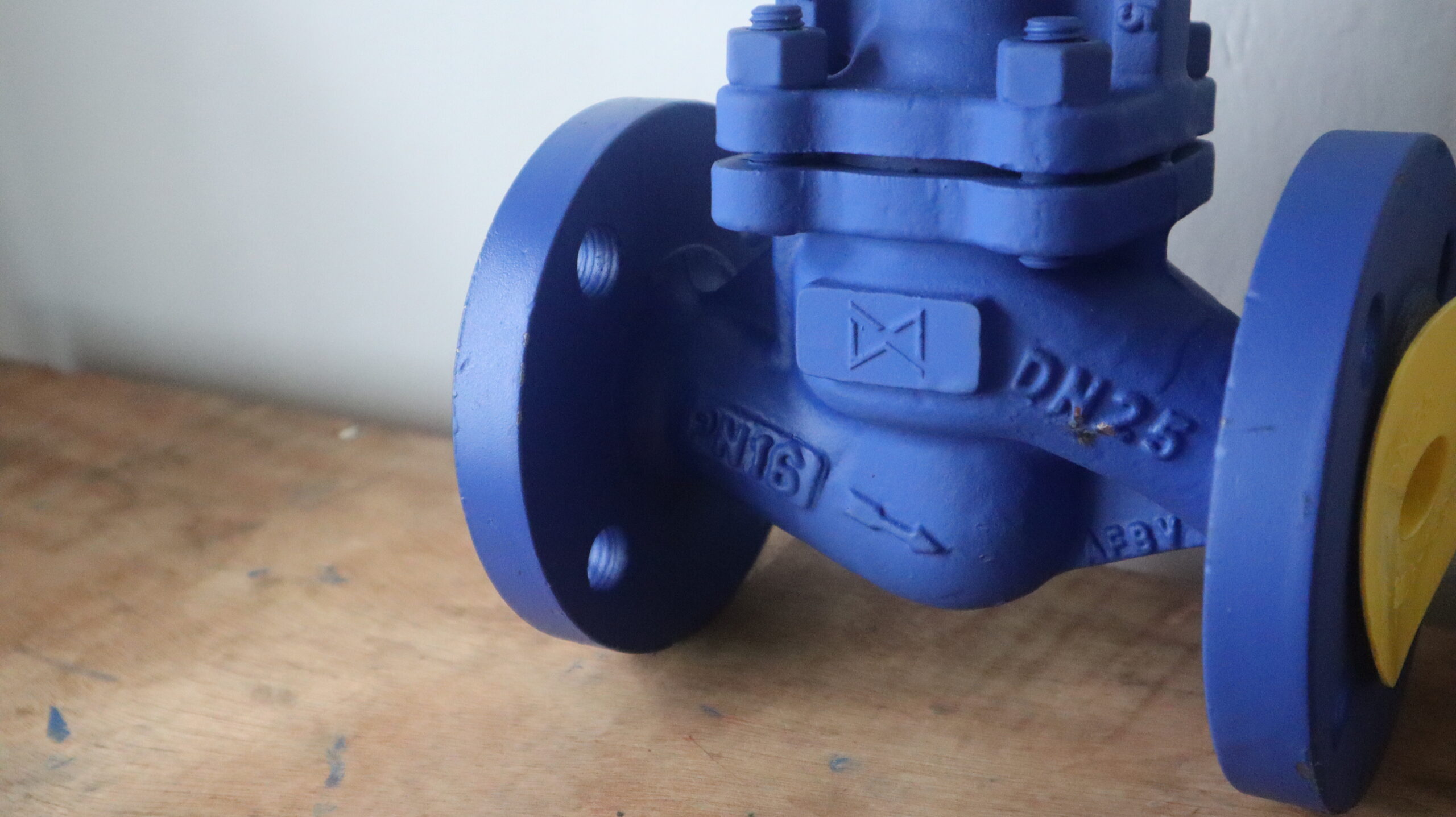

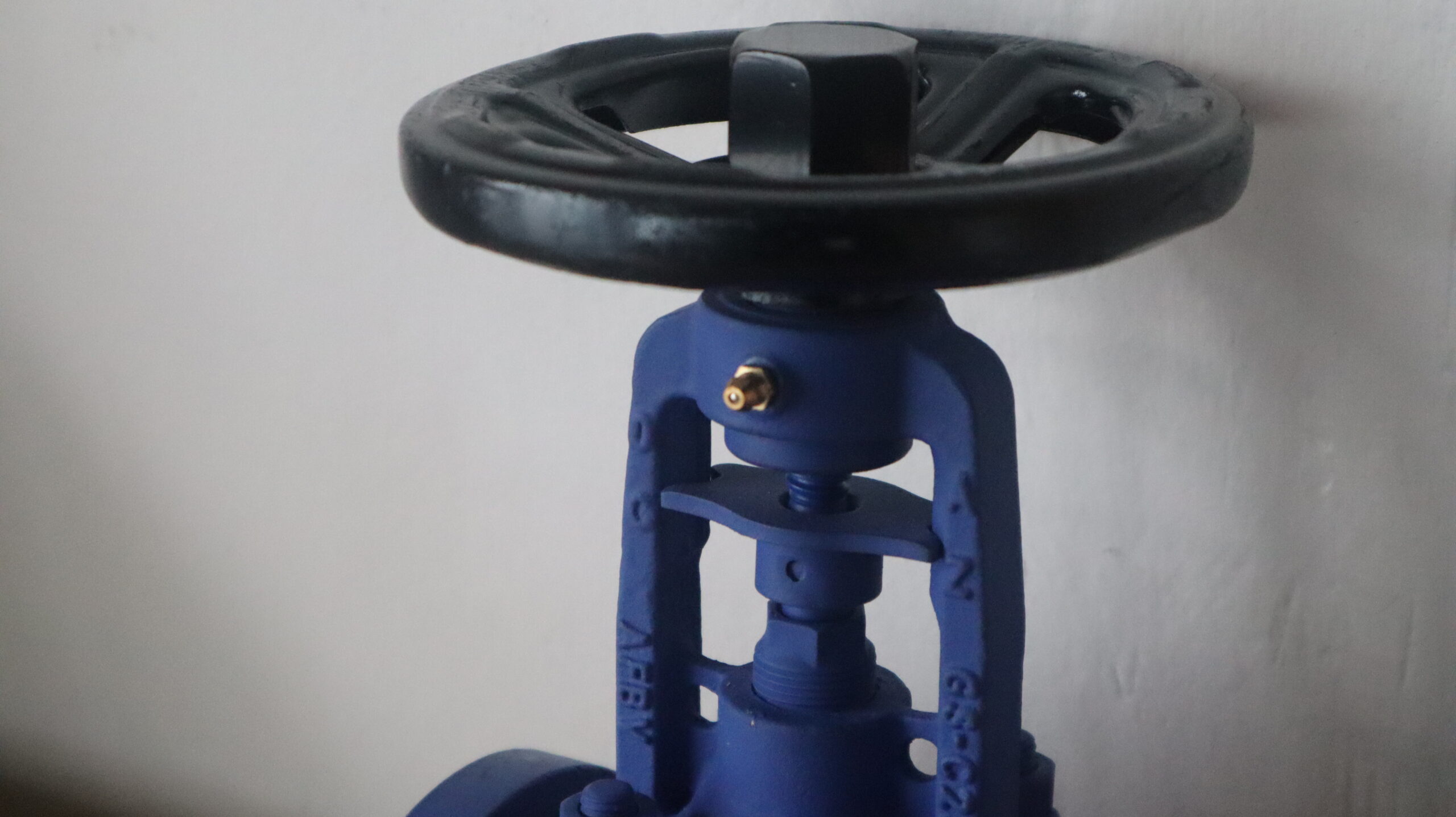

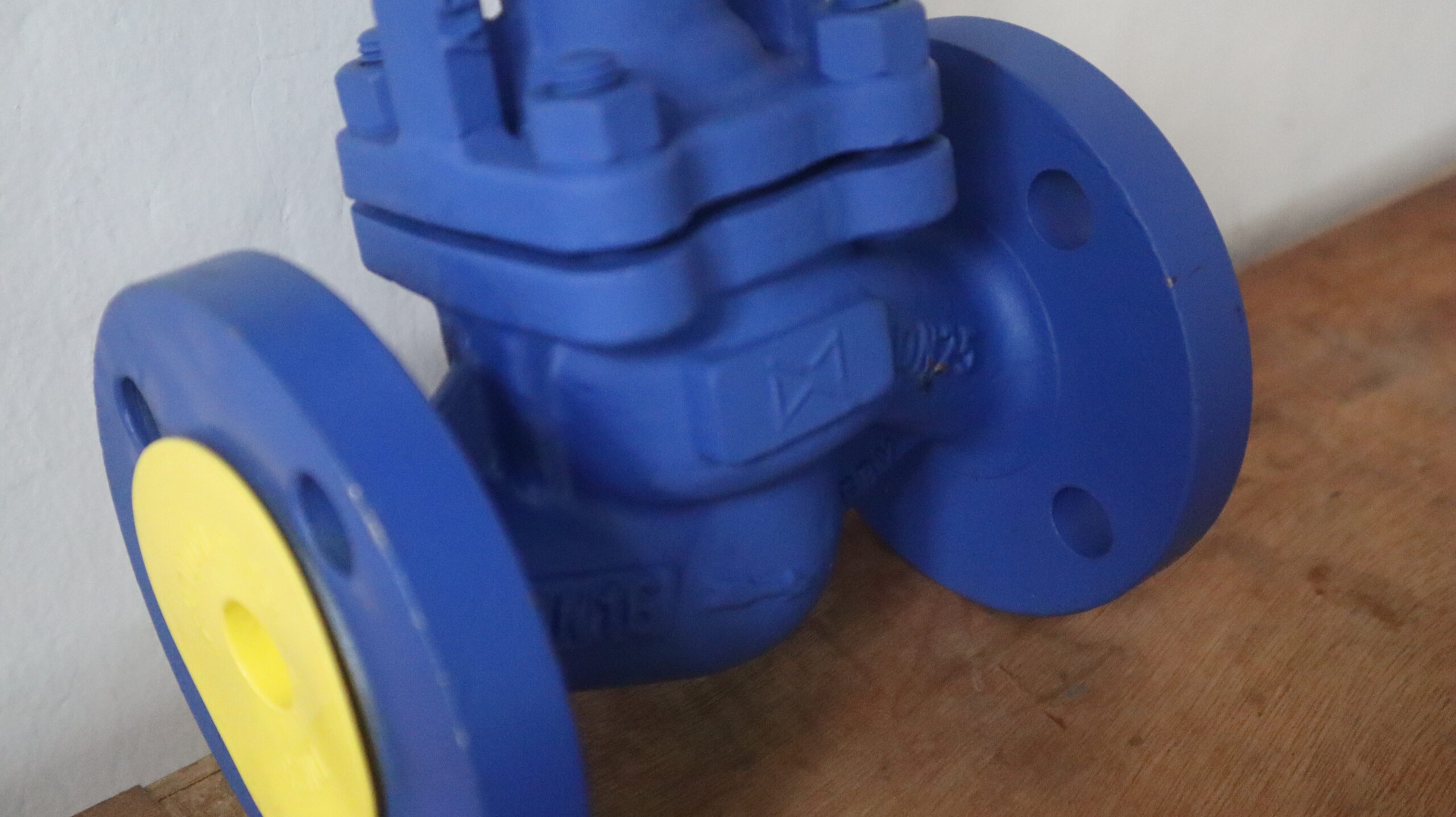

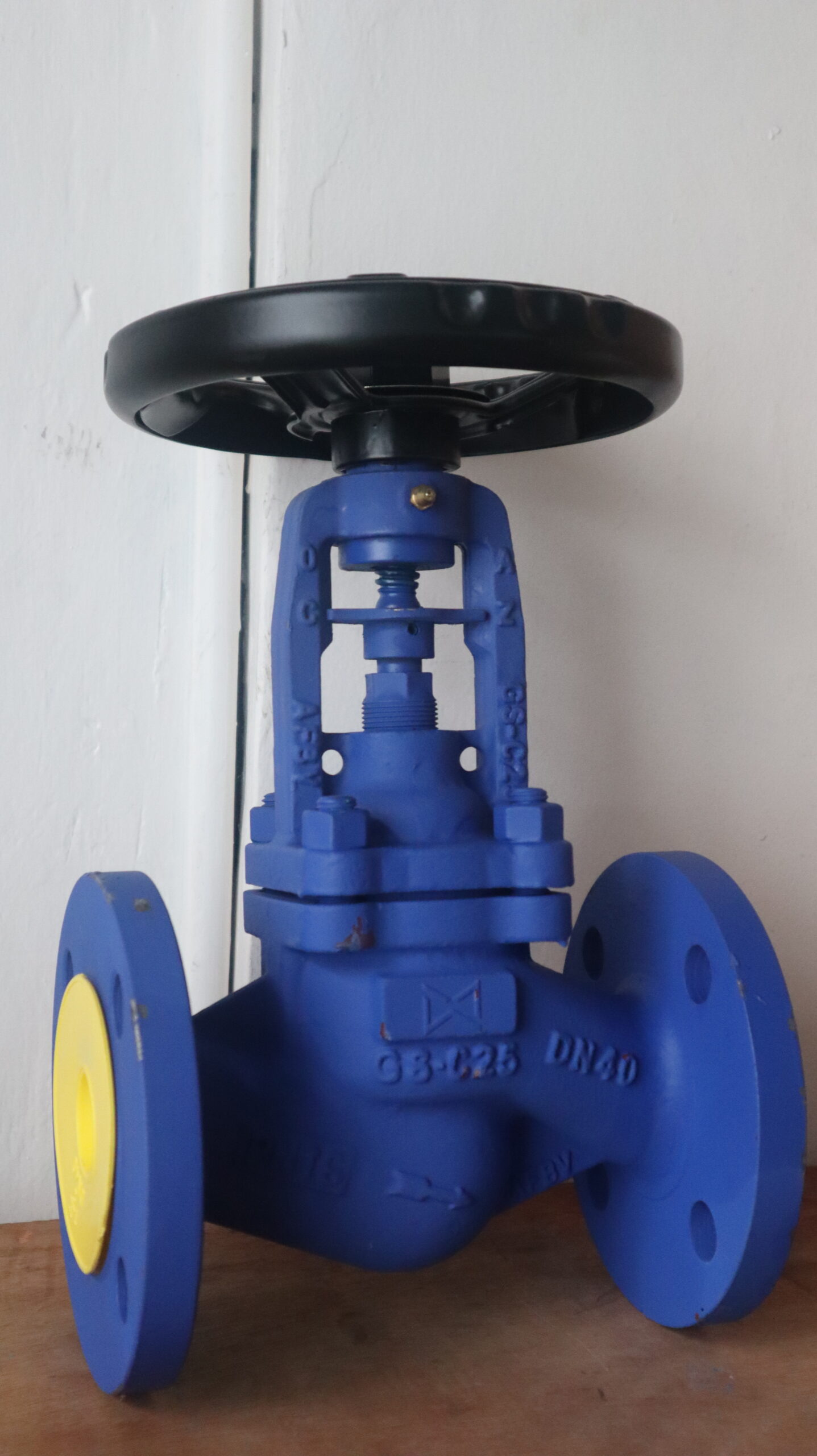

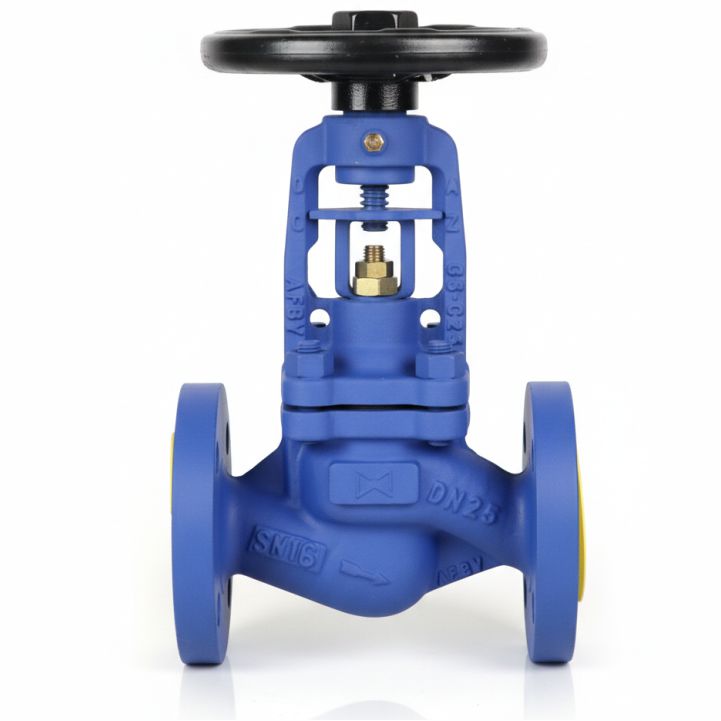

Industrial Bellow Sealed Globe Valve
| Type | Bellow Sealed Globe Valve |
| Design Standard | DIN 3356 / EN 13709 |
| Face to Face | EN 558 / DIN 3202 |
| Connection | Flanged / Butt Weld |
| Flange Standard | DIN / EN / ANSI B16.5 |
| Body Material | Cast Steel / Stainless Steel |
| Disc Material | Stainless Steel |
| Seat Material | Metal Seat (Hardened Alloy) |
| Stem Material | Stainless Steel |
| Bellow Material | Stainless Steel (Multi-layer) |
| Size Range | DN15 – DN300 (½” – 12”) |
| Pressure Rating | PN16 / PN25 / PN40 |
| Temperature Range | -29°C to +350°C |
| Operation | Handwheel / Gear / Electric Actuator |
| Applicable Media | Steam, Thermal Oil, Toxic Fluids, Gas |
| Sealing Type | Bellow Seal + Back-up Packing |
| Leakage Standard | Zero Stem Leakage |
| Testing Standard | EN 12266-1 / API 598 |
