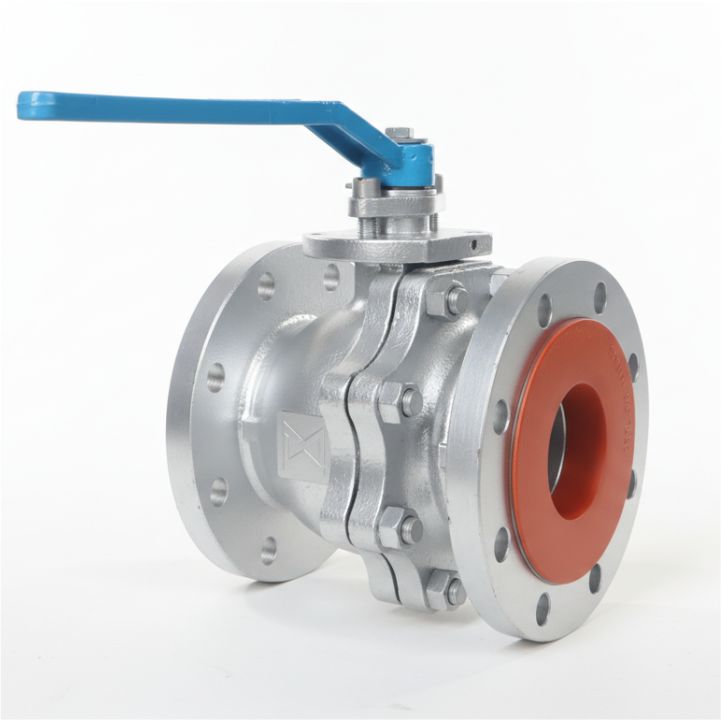

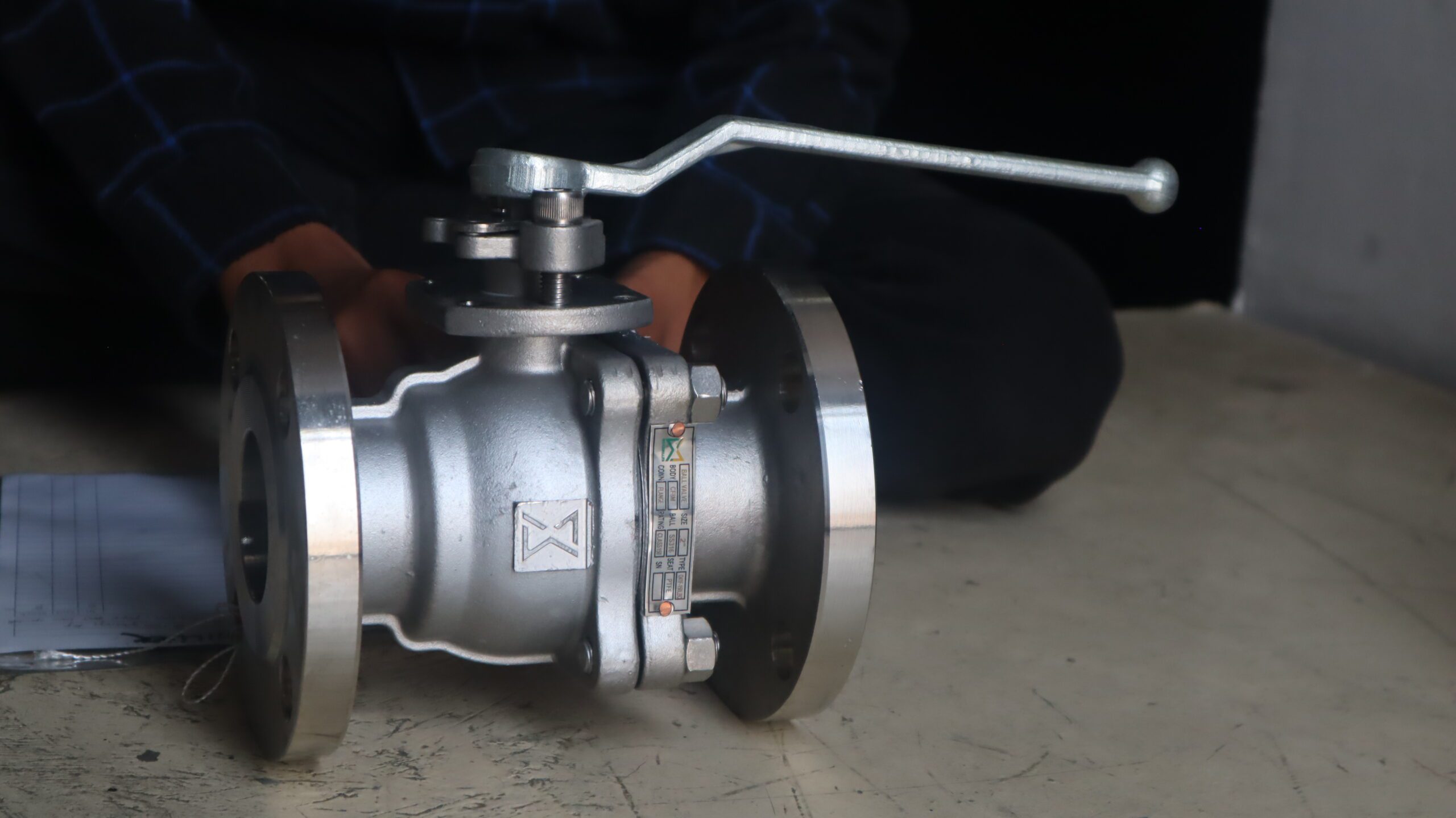

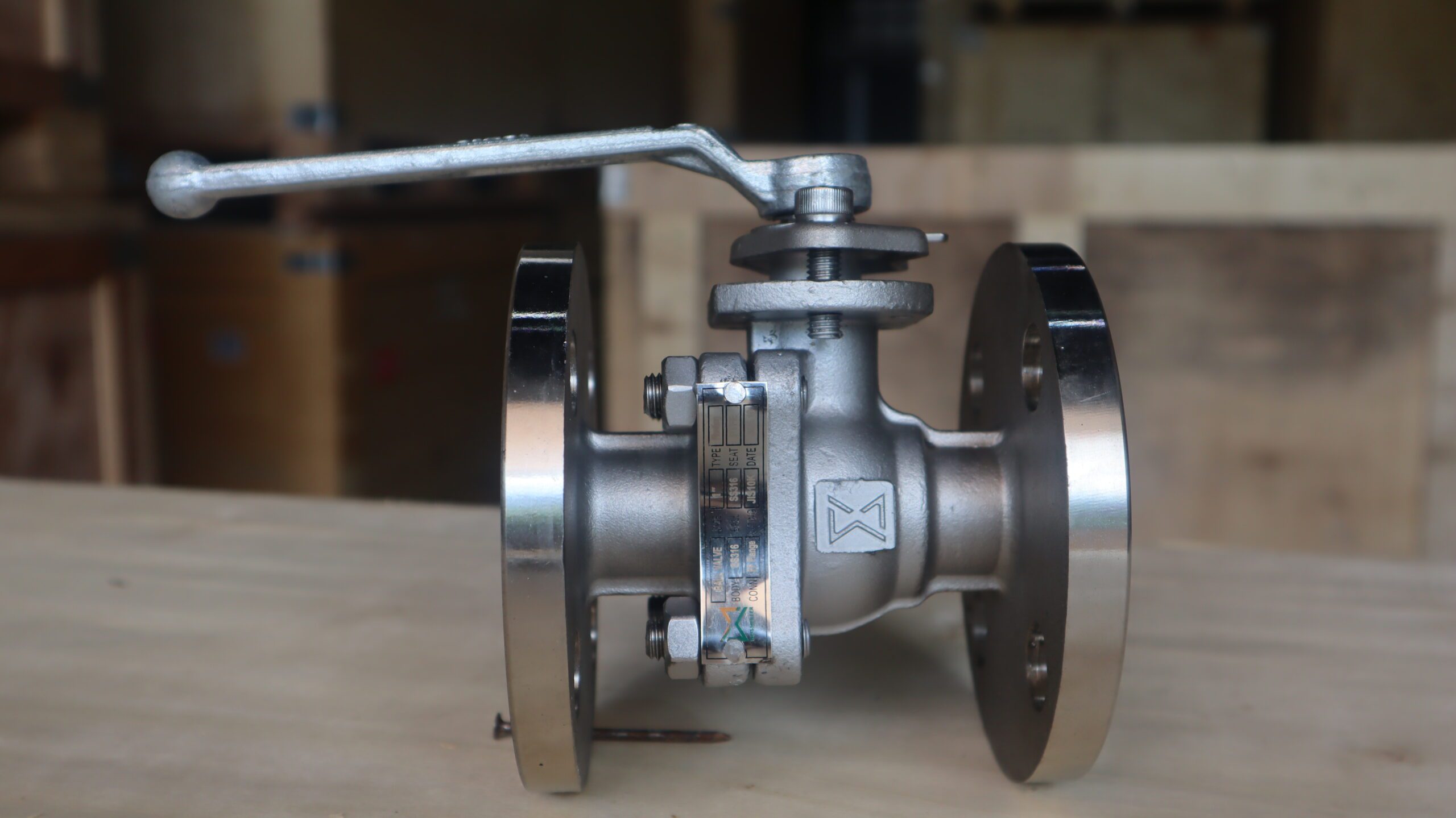

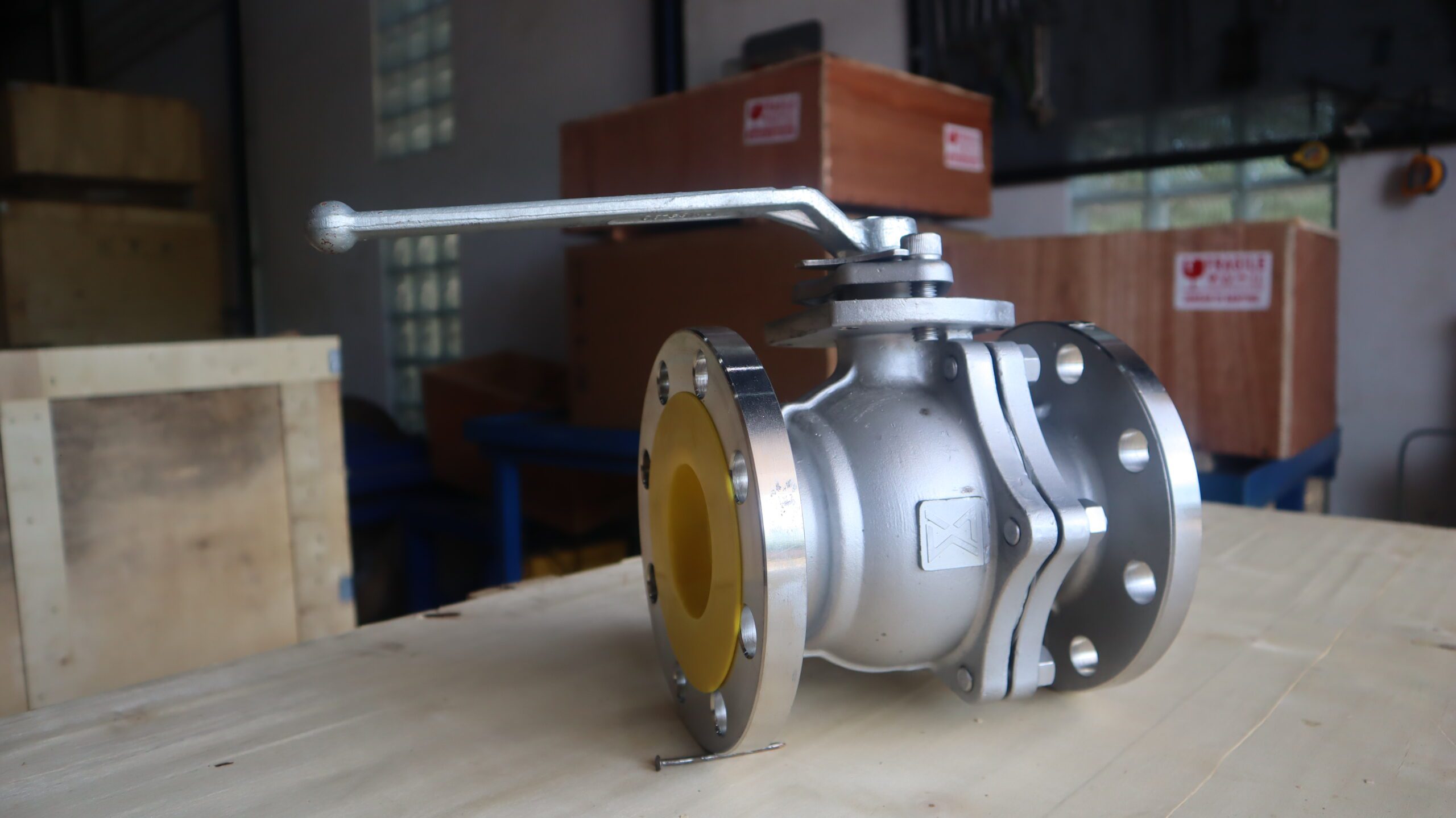

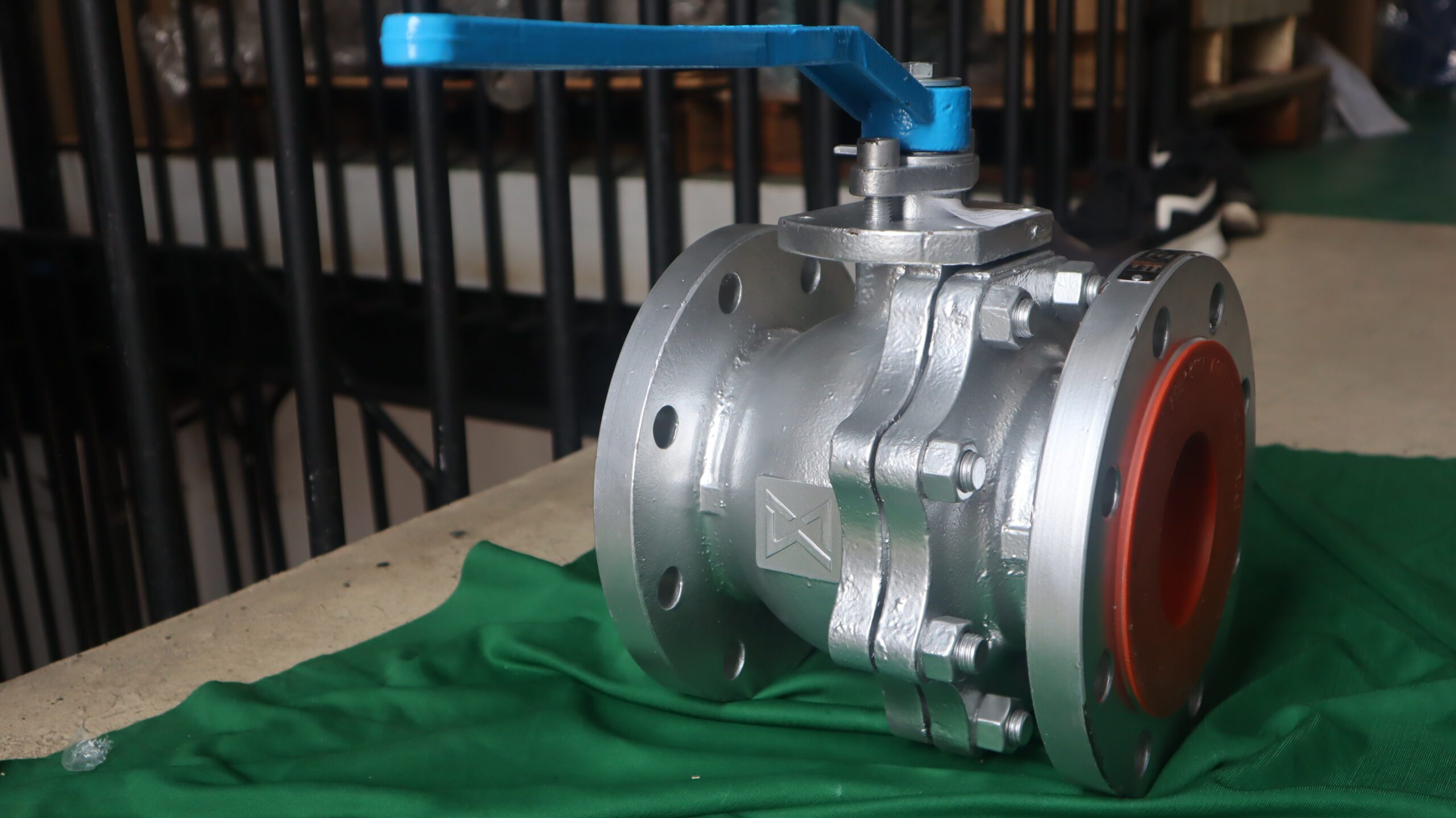

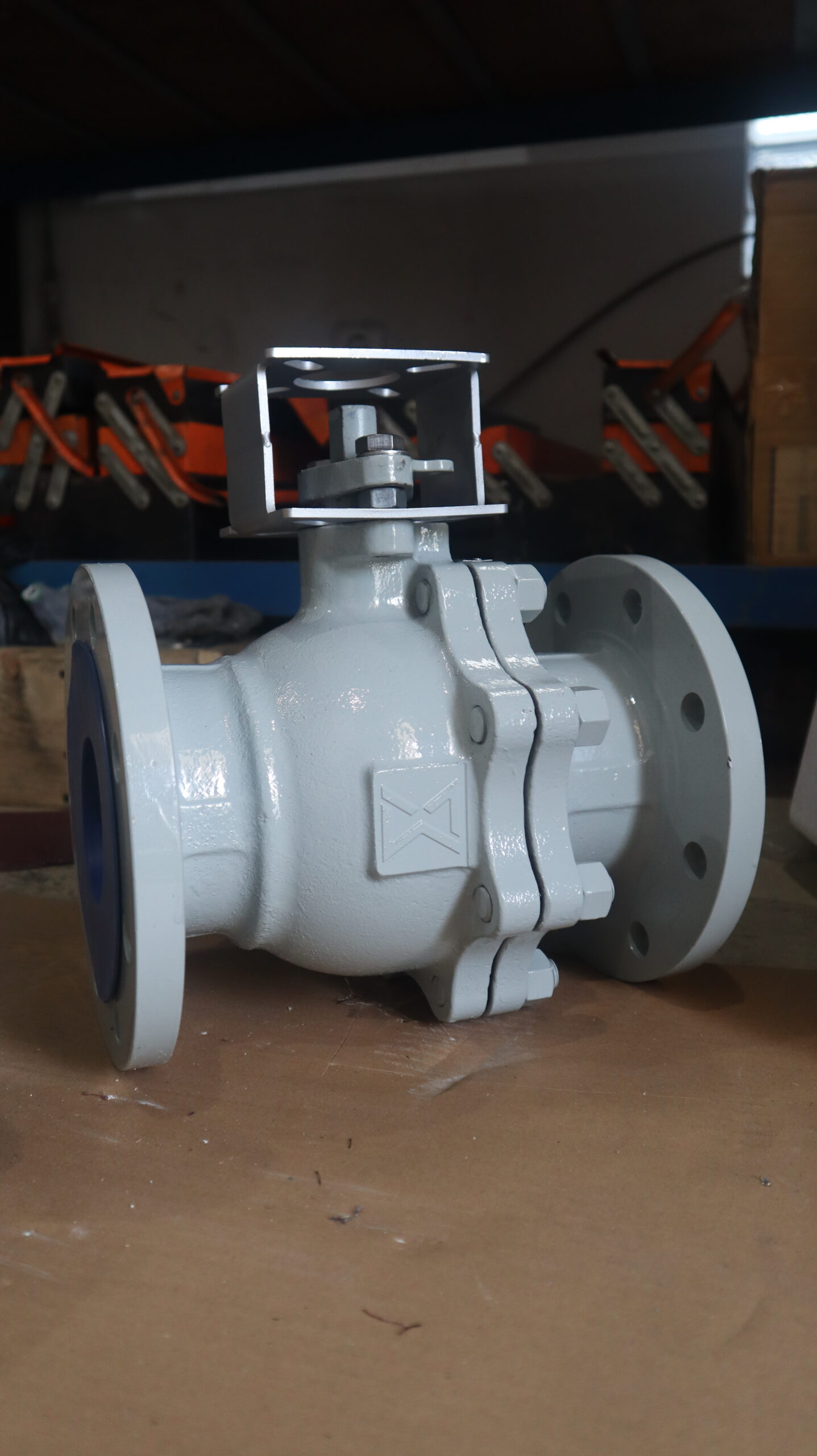

Flange Ball Valve

Type	Flanged Ball Valve
Design Standard	API 608 / API 6D
Face to Face	ASME B16.10
Connection	Flanged Type
Flange Standard	ANSI B16.5 / DIN / JIS
Body Material	Carbon Steel / Stainless Steel
Ball Material	Stainless Steel (SS304 / SS316)
Seat Material	PTFE / RPTFE / Nylon
Stem Material	Stainless Steel
Size Range	DN15 – DN600 (½” – 24”)
Pressure Rating	Class 150 / 300 / 600
Temperature Range	-29°C to +200°C
Operation	Lever / Gear / Pneumatic / Electric Actuator
Applicable Media	Water, Oil, Gas, Chemical Fluids
Sealing Type	Soft Seated (Bubble Tight Shut-Off)
Testing Standard	API 598 / API 6D
Fire Safe Standard	API 607 (Optional)
Mounting Standard	ISO 5211
