Description
Forged steel gate valve designed for high pressure and high temperature services, offering reliable shut-off, compact design, and superior strength for demanding applications such as steam, oil, and gas systems.

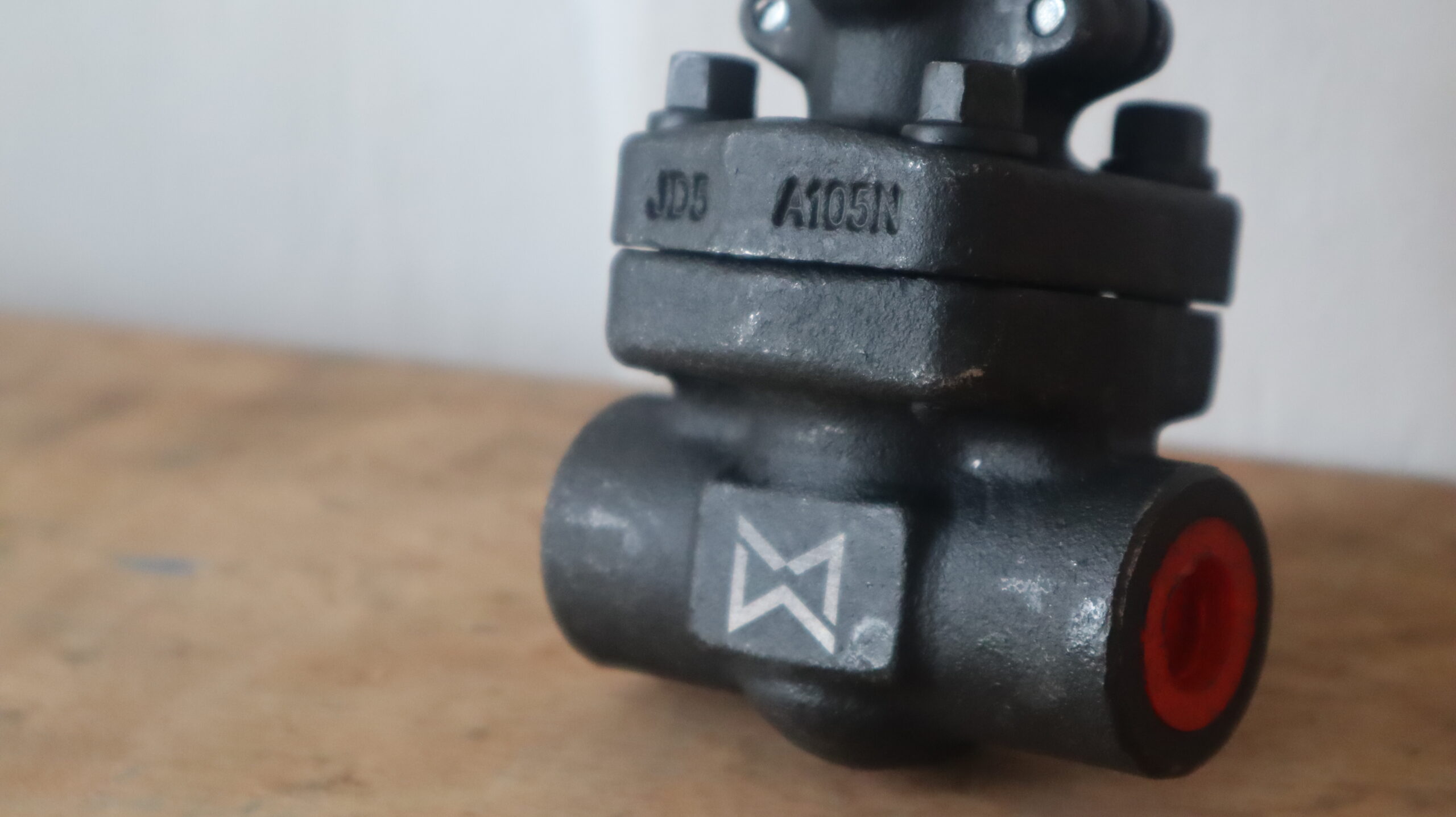

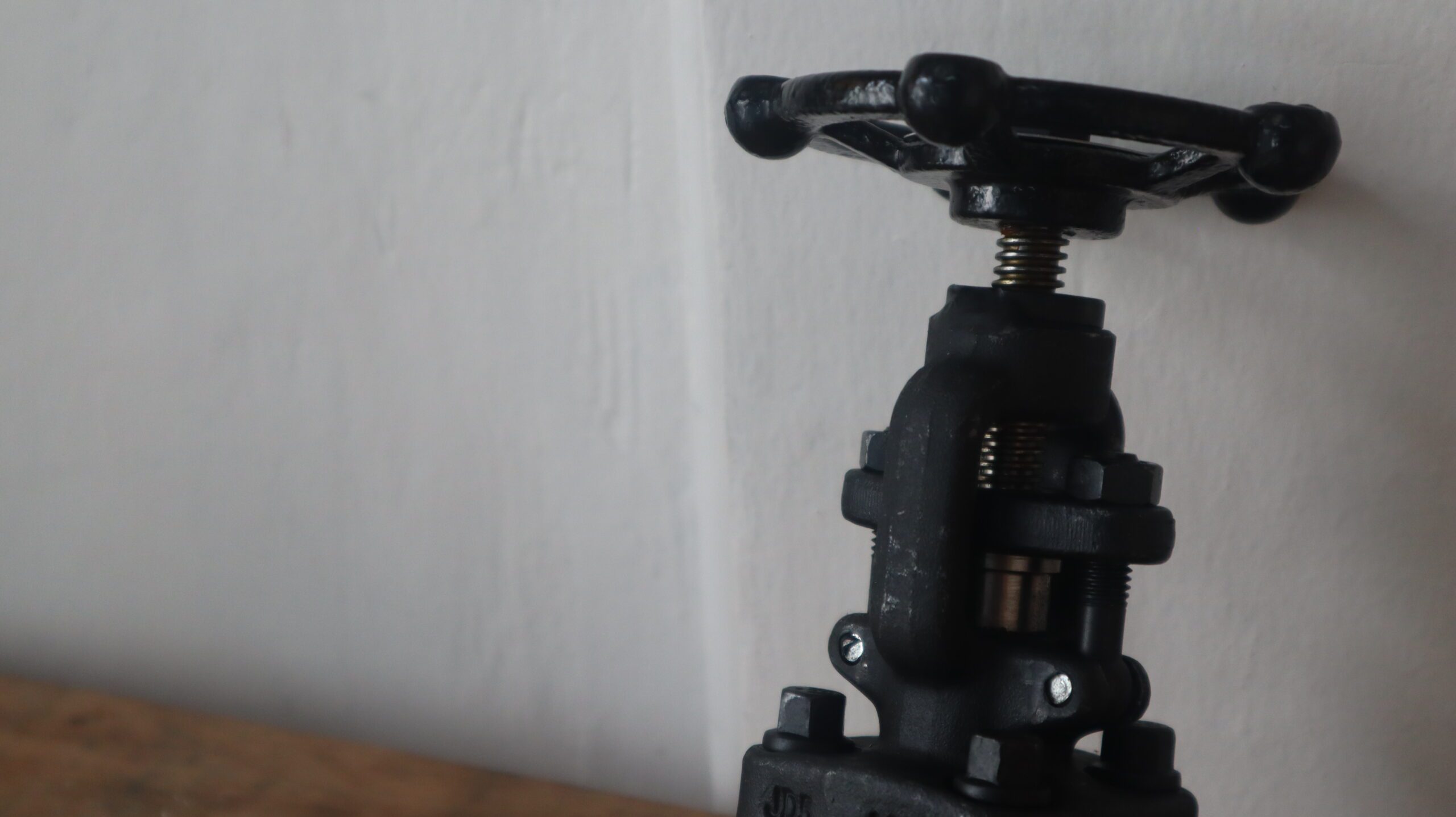

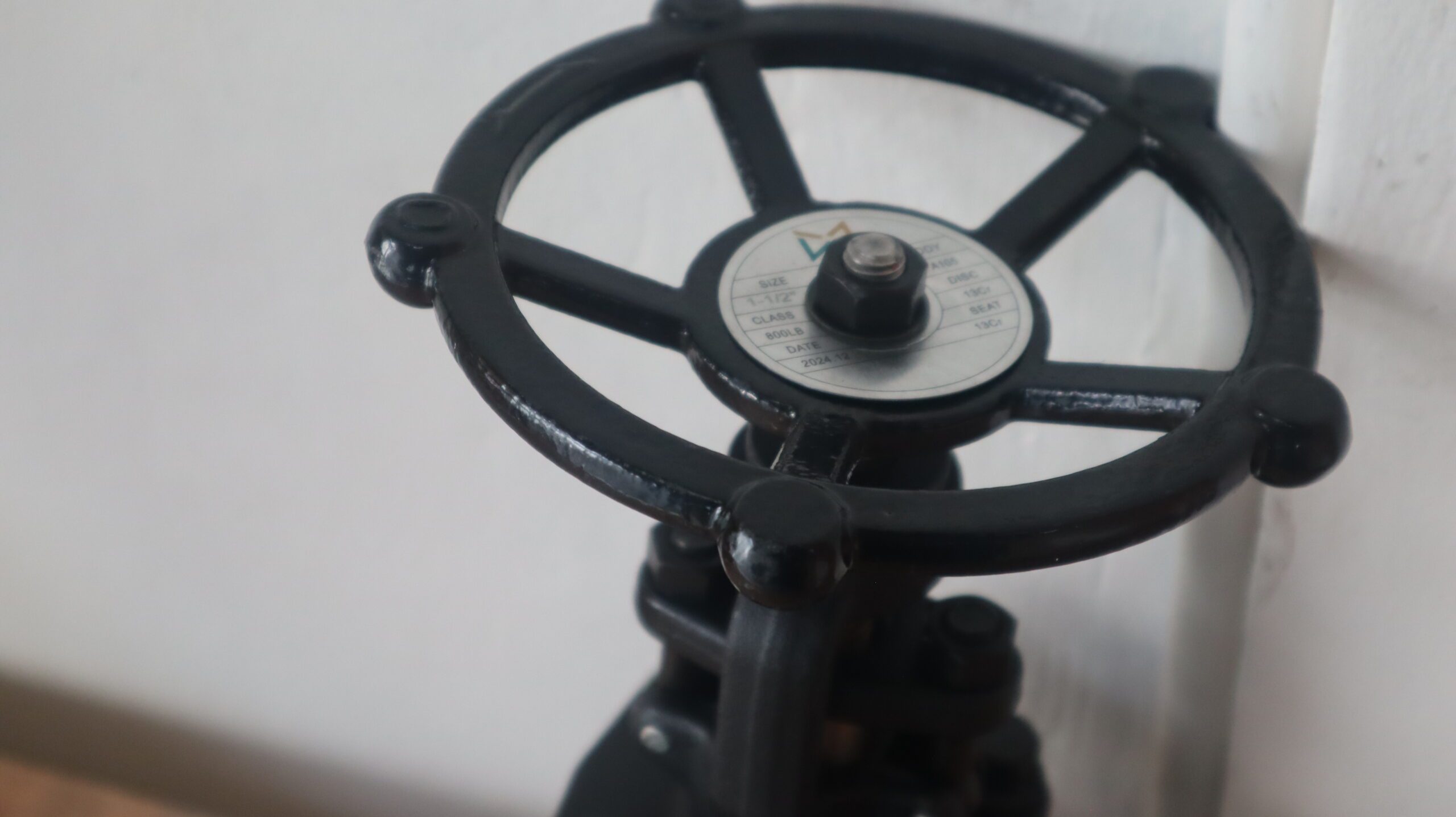

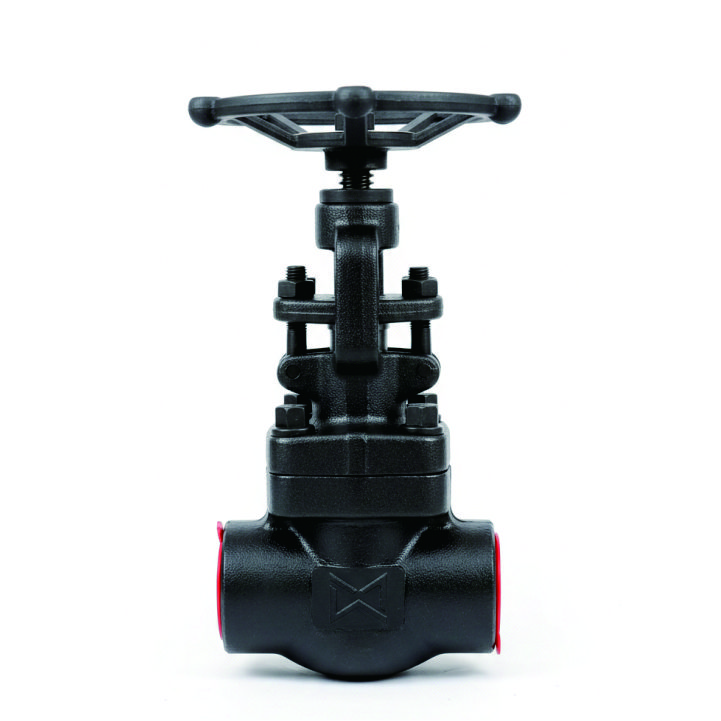

Forged Steel Gate Valve
| Type | Forged Steel Gate Valve |
| Design Standard | API 602 / ASME B16.34 |
| Face to Face | ASME B16.10 |
| Connection | Socket Weld / Threaded (NPT) / Flanged |
| Body Material | Forged Steel (A105 / F11 / F22 / Stainless Steel) |
| Gate Type | Solid Wedge |
| Seat Material | Metal Seat (Hardened Alloy / Stellite) |
| Stem Material | Stainless Steel |
| Bonnet Type | Bolted Bonnet / Welded Bonnet / Pressure Seal Bonnet |
| Size Range | DN15 – DN50 (½” – 2”) |
| Pressure Rating | Class 800 / 1500 / 2500 |
| Temperature Range | -29°C to +425°C |
| Operation | Handwheel |
| Applicable Media | Steam, Oil, Gas |
| Sealing Type | Metal Seated |
| Leakage Standard | API 598 |
| Testing Standard | API 598 / EN 12266-1 |
