Description
Rising stem gate valve designed for full open or full close operation, providing reliable shut-off performance and clear visual position indication in industrial piping systems.

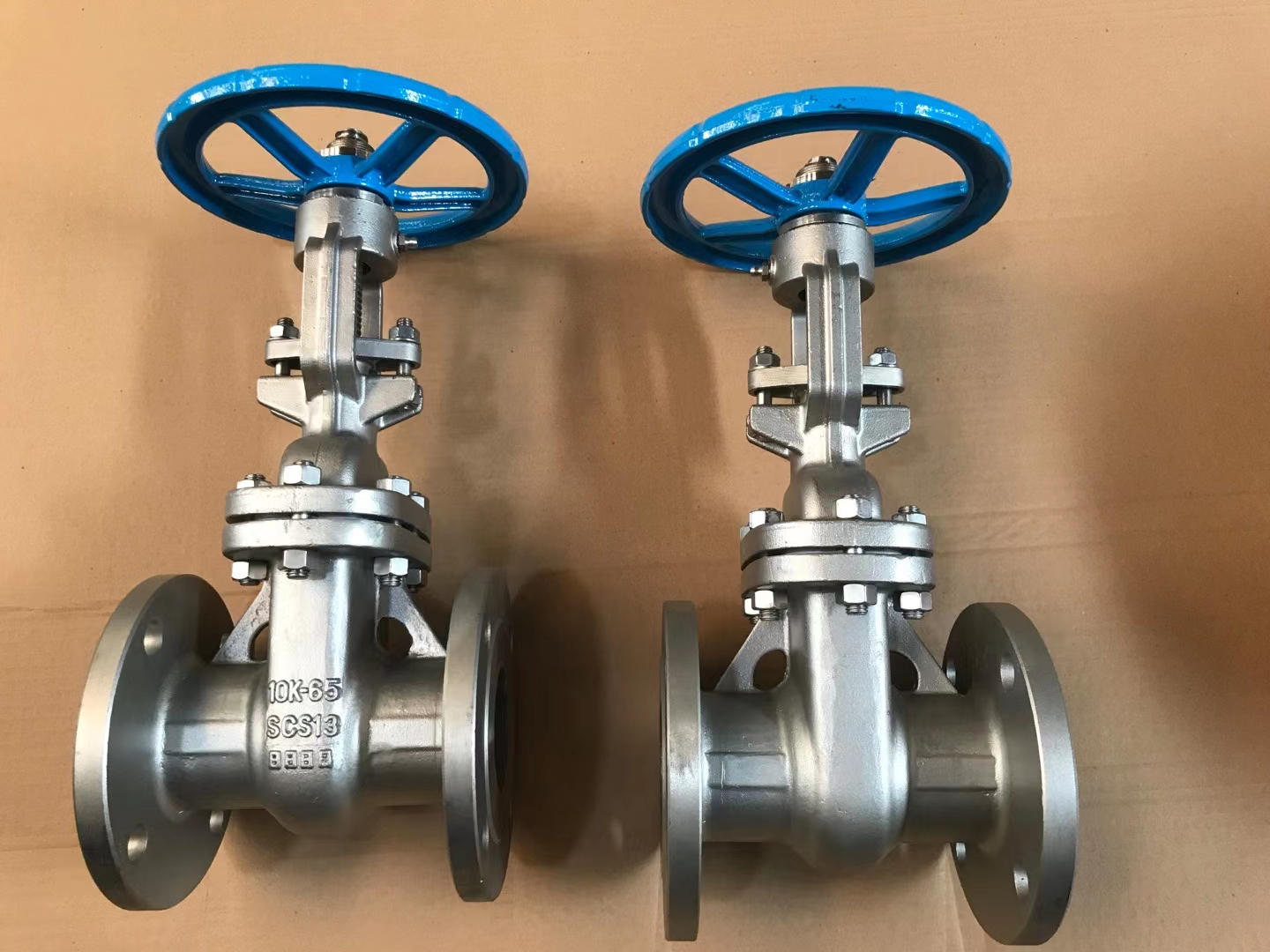

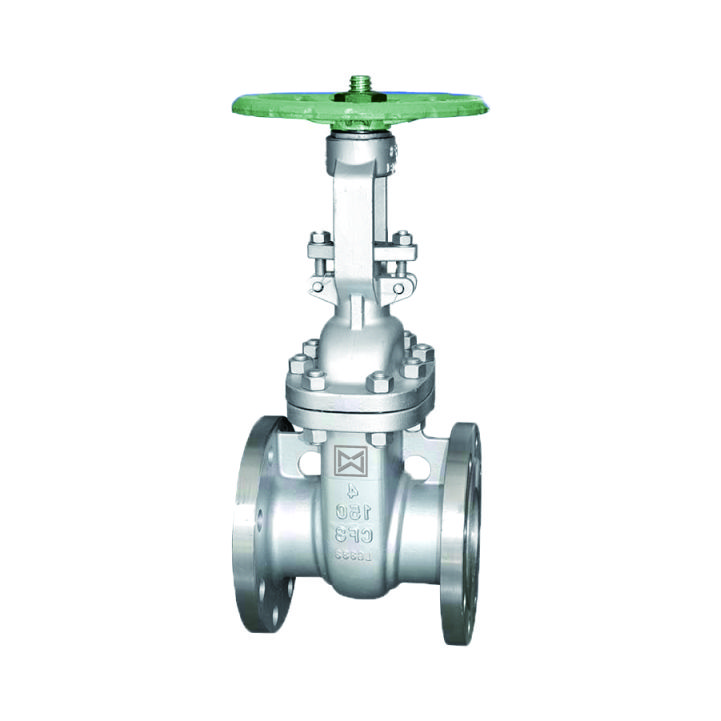

Rising Stem Soft Sealing Gate Valve
| Type | Rising Stem Gate Valve |
| Design Standard | API 600 / BS 1414 |
| Face to Face | ASME B16.10 |
| Connection | Flanged / Butt Weld |
| Flange Standard | ANSI B16.5 / ASME B16.47 |
| Body Material | Cast Steel (WCB) / Stainless Steel |
| Wedge Type | Flexible Wedge / Solid Wedge |
| Seat Material | Metal Seat (Stellite / Hardened Alloy) |
| Stem Material | Stainless Steel |
| Bonnet Type | Bolted Bonnet |
| Size Range | DN50 – DN600 (2” – 24”) |
| Pressure Rating | Class 150 / 300 / 600 |
| Temperature Range | -29°C to +425°C |
| Operation | Handwheel / Gear / Electric Actuator |
| Applicable Media | Water, Oil, Gas, Steam |
| Sealing Type | Metal Seated |
| Leakage Standard | API 598 |
| Testing Standard | API 598 / EN 12266-1 |
