Description
Forged steel ball valve designed for high pressure applications, offering compact construction, superior strength, and reliable tight shut-off performance for oil, gas, steam, and industrial systems.

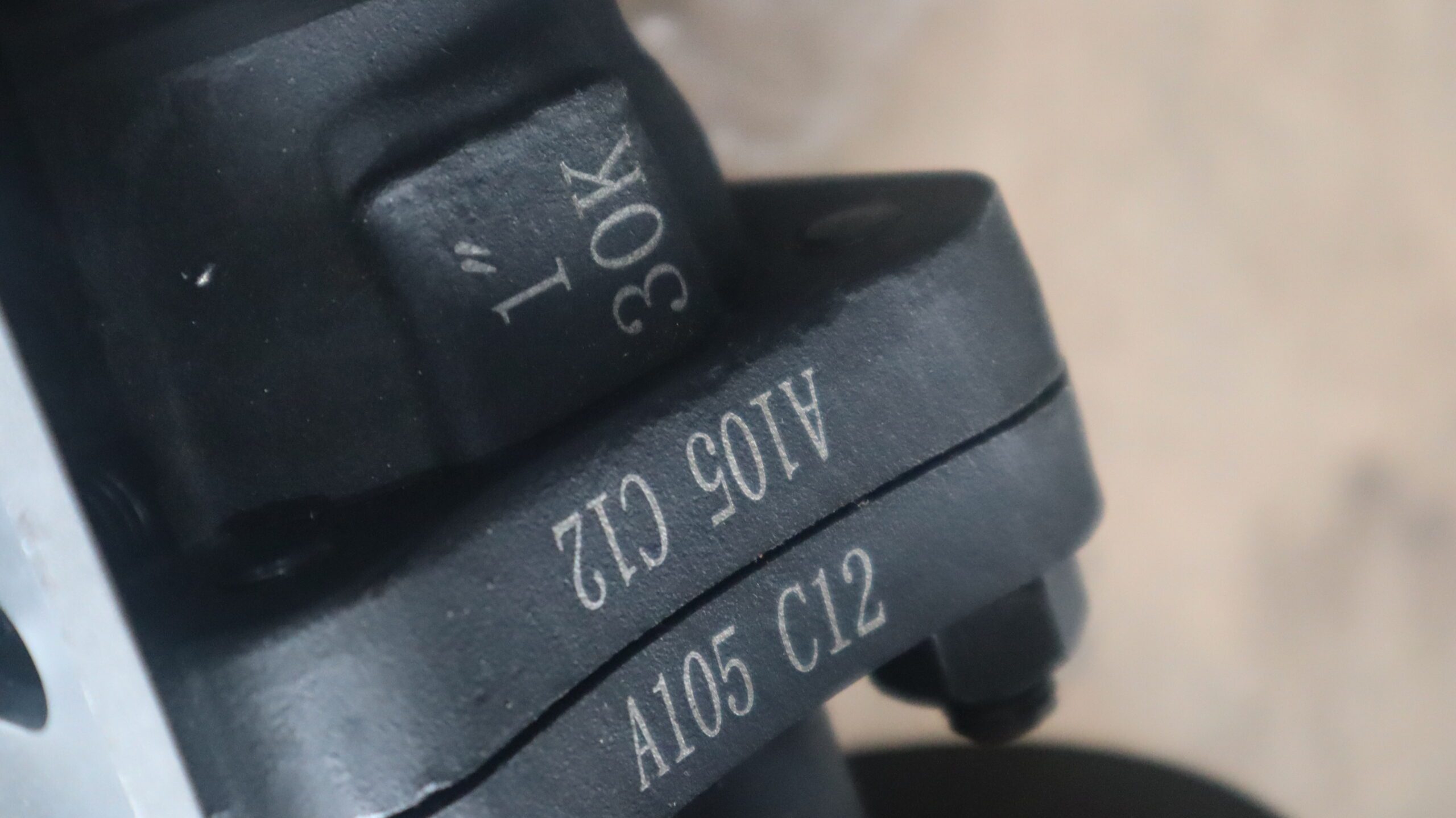

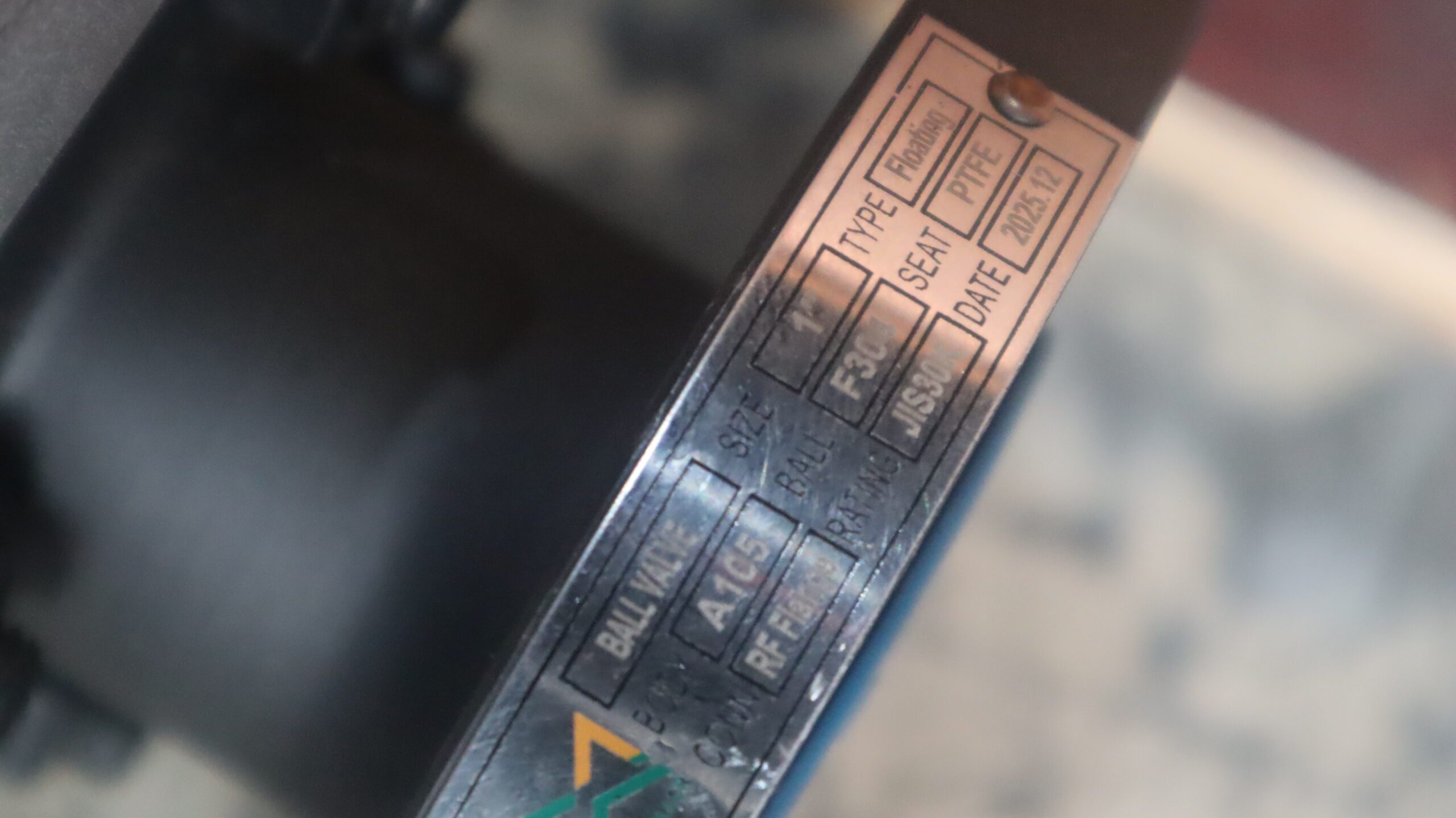

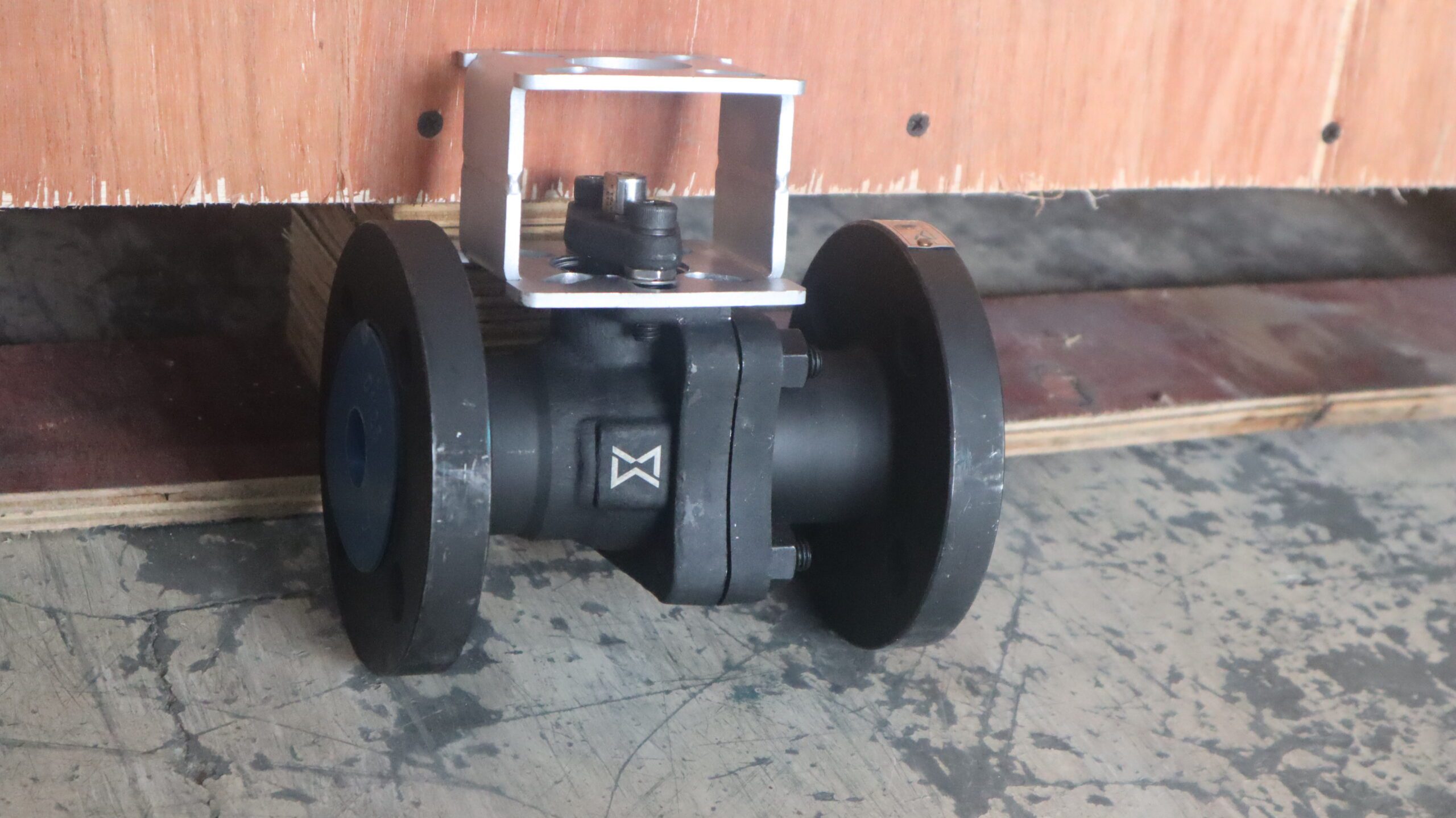

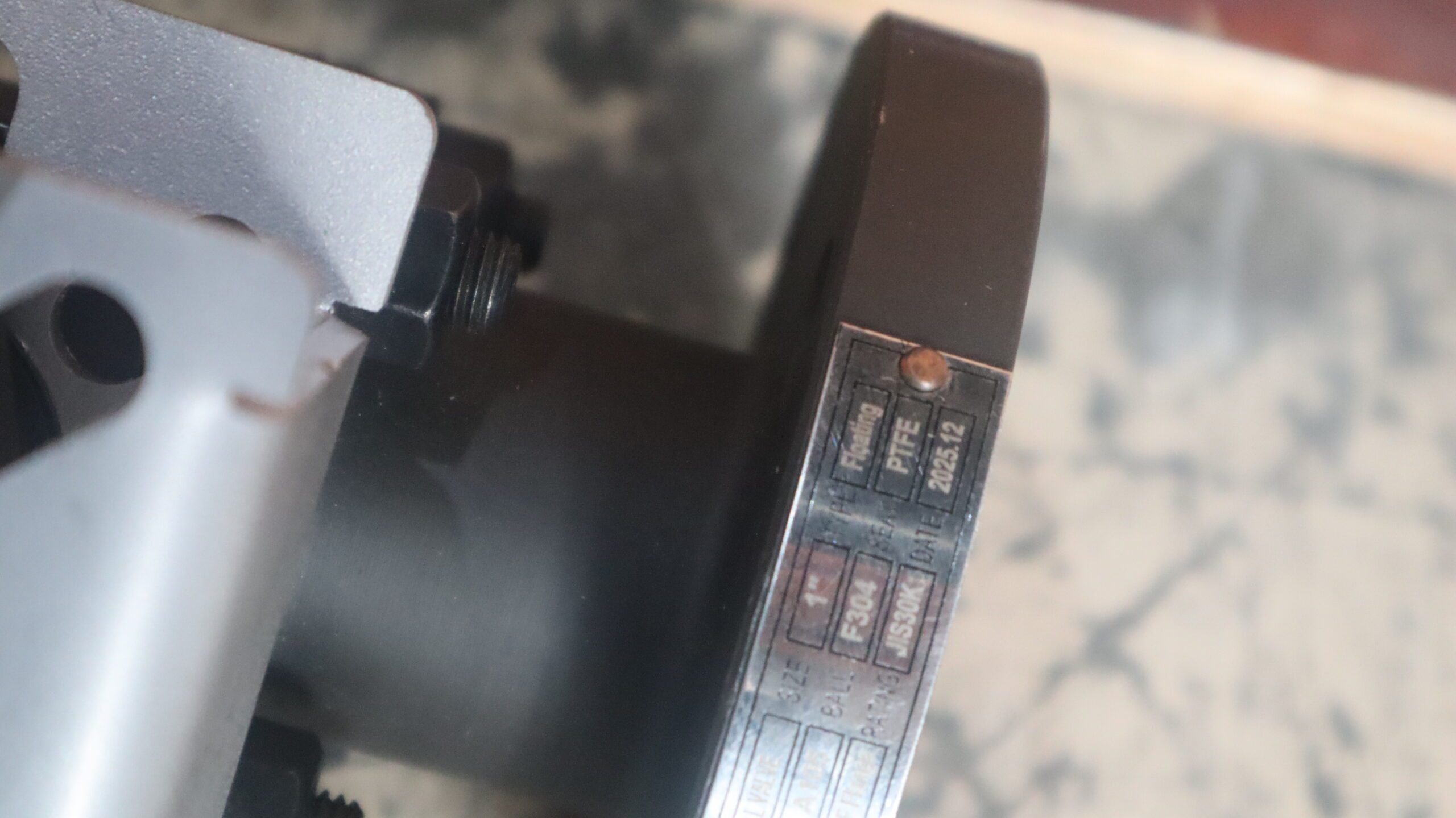

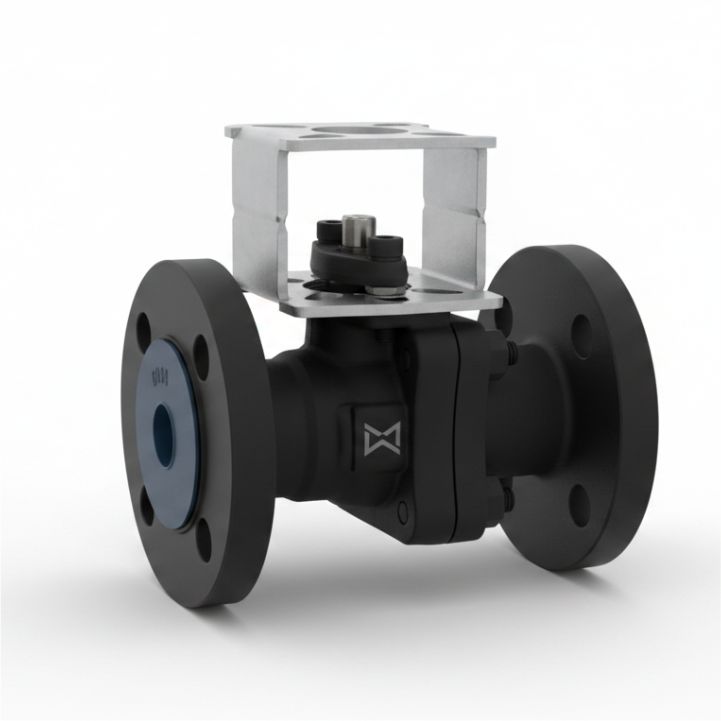

Industrial Forged Steel Ball Valve
| Type | Forged Steel Ball Valve |
| Design Standard | API 602 / API 608 / ASME B16.34 |
| Face to Face | ASME B16.10 |
| Connection | Threaded (NPT) / Socket Weld / Flanged |
| Body Material | Forged Steel (A105 / F304 / F316) |
| Ball Material | Stainless Steel (SS304 / SS316) |
| Seat Material | PTFE / RPTFE / PEEK |
| Stem Material | Stainless Steel |
| Body Design | 2 Piece / 3 Piece |
| Size Range | DN15 – DN50 (½” – 2”) |
| Pressure Rating | Class 800 / 1500 / 2500 |
| Temperature Range | -29°C to +200°C |
| Operation | Lever Operated |
| Applicable Media | Oil, Gas, Water, Steam |
| Sealing Type | Soft Seated |
| Fire Safe | API 607 (Optional) |
| Anti-Static Device | Provided |
| Leakage Standard | API 598 |
| Testing Standard | API 598 / EN 12266-1 |
