Description
API gate valve designed for reliable shut-off in high pressure and high temperature applications, providing full bore flow, minimal pressure drop, and long service life in demanding industrial systems.

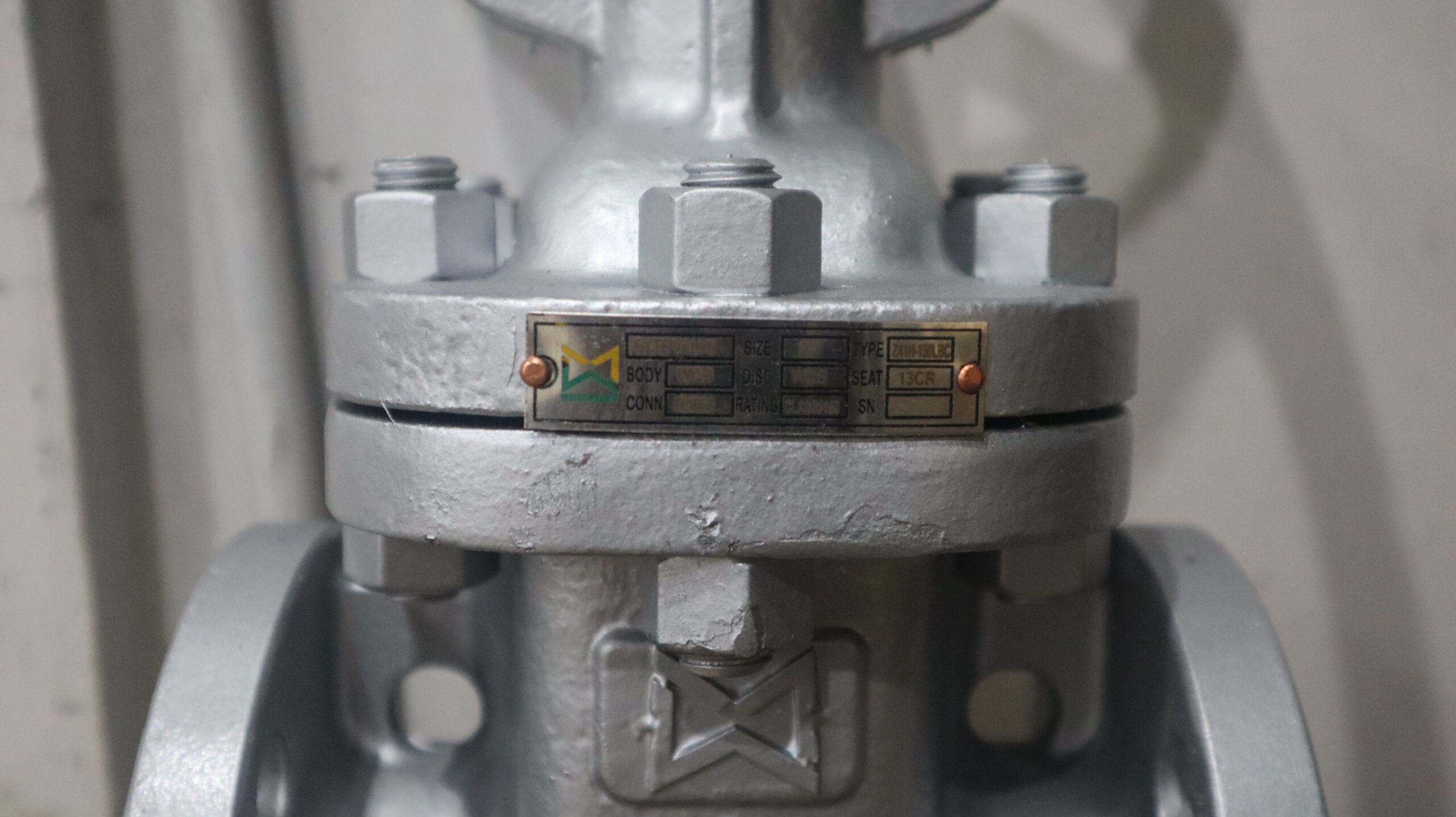

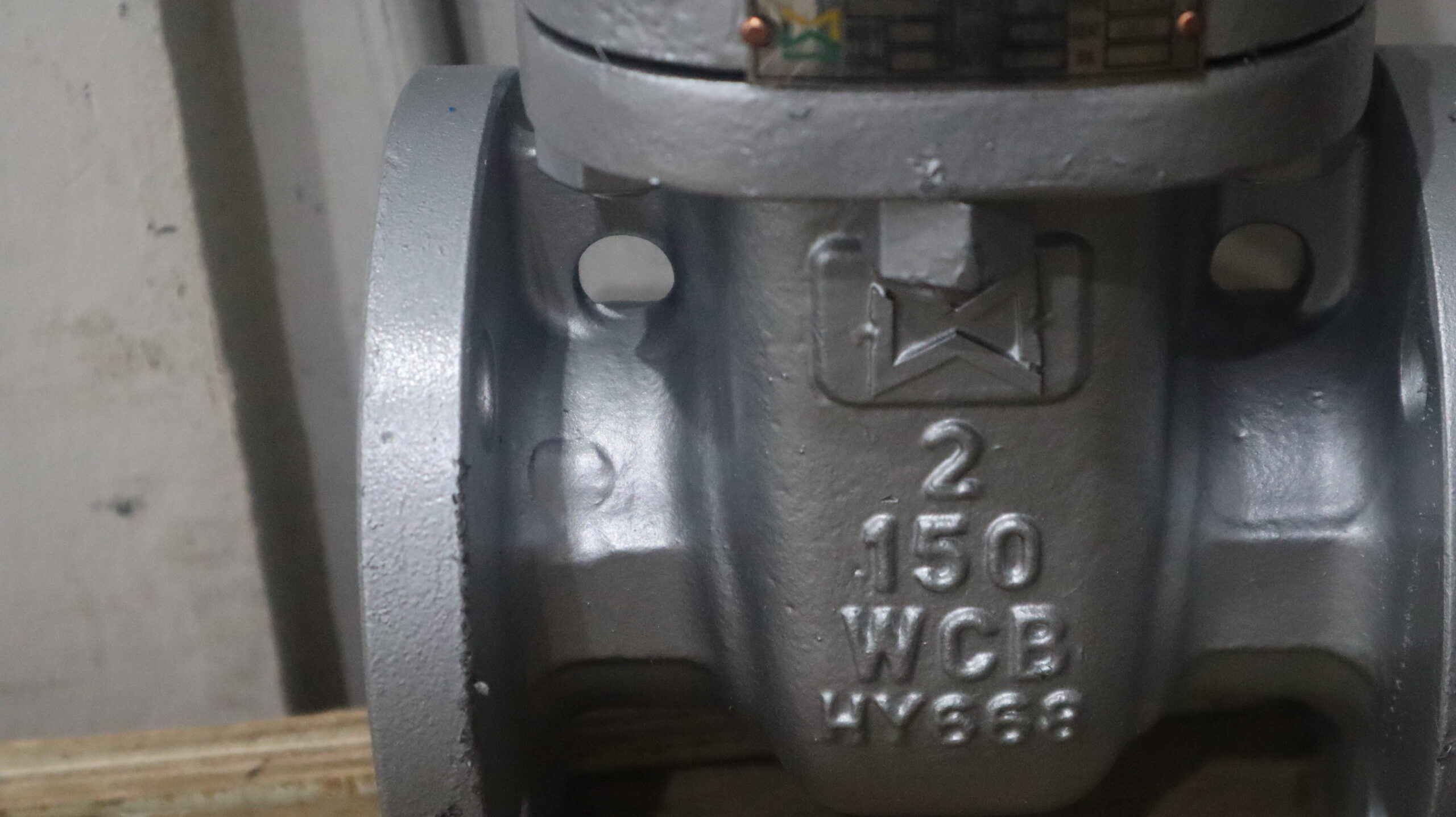

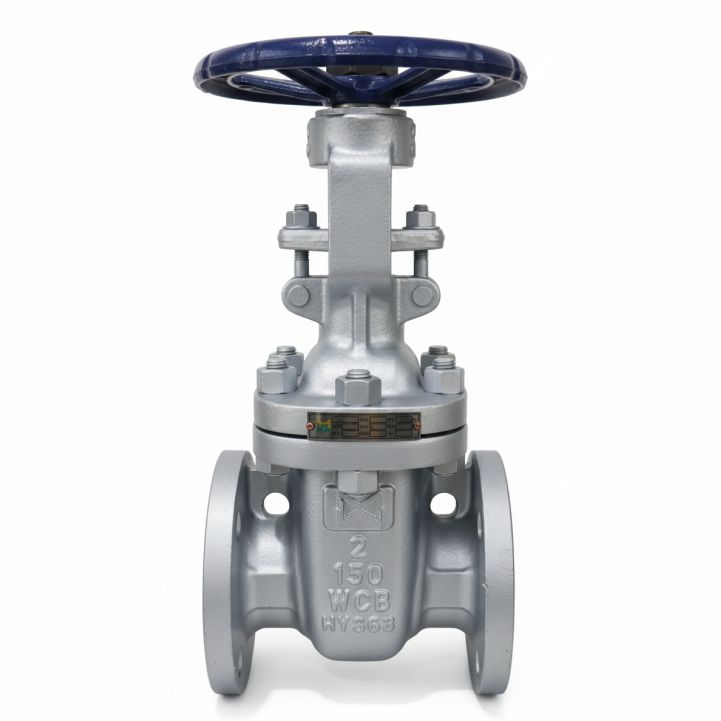

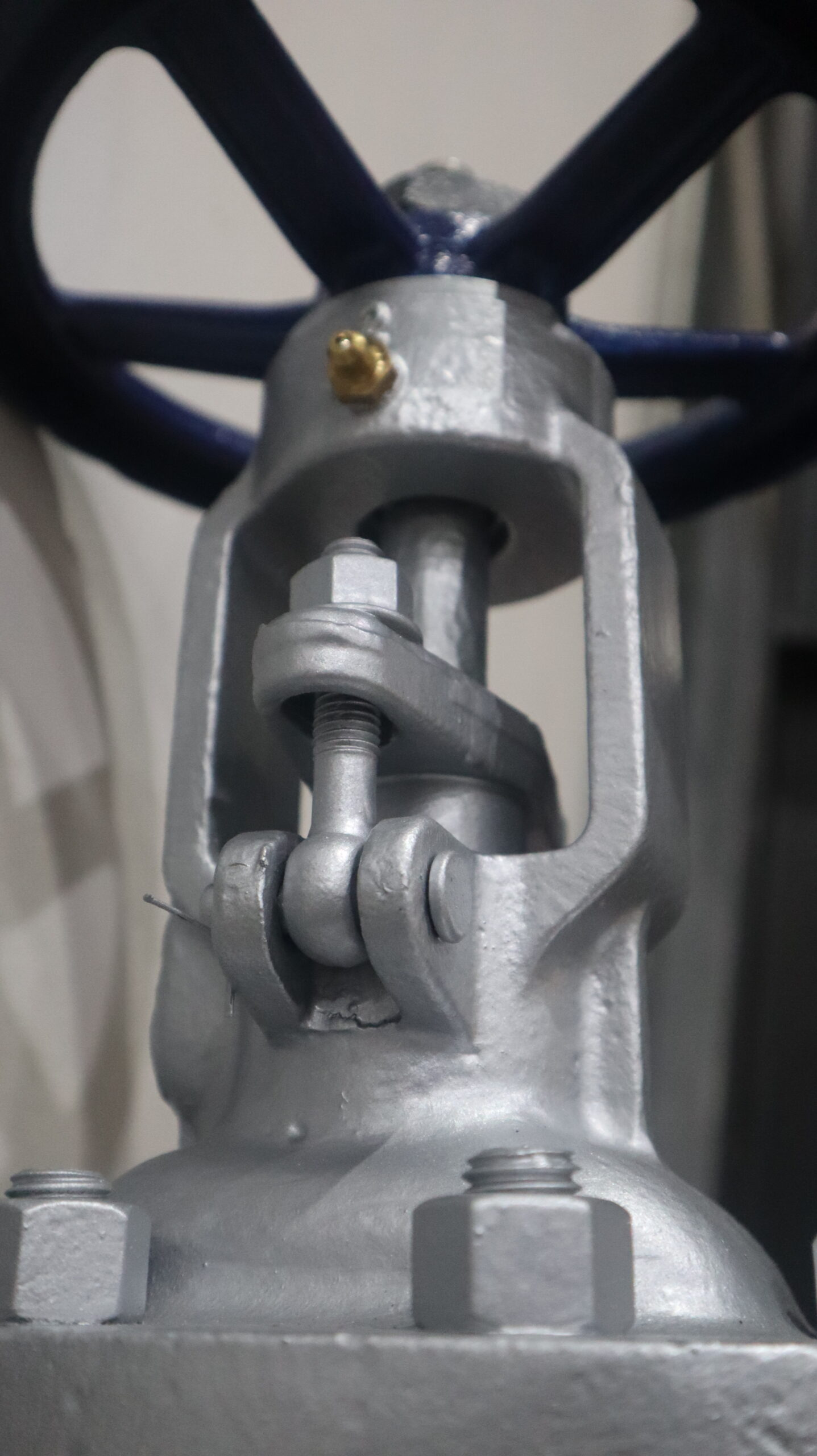

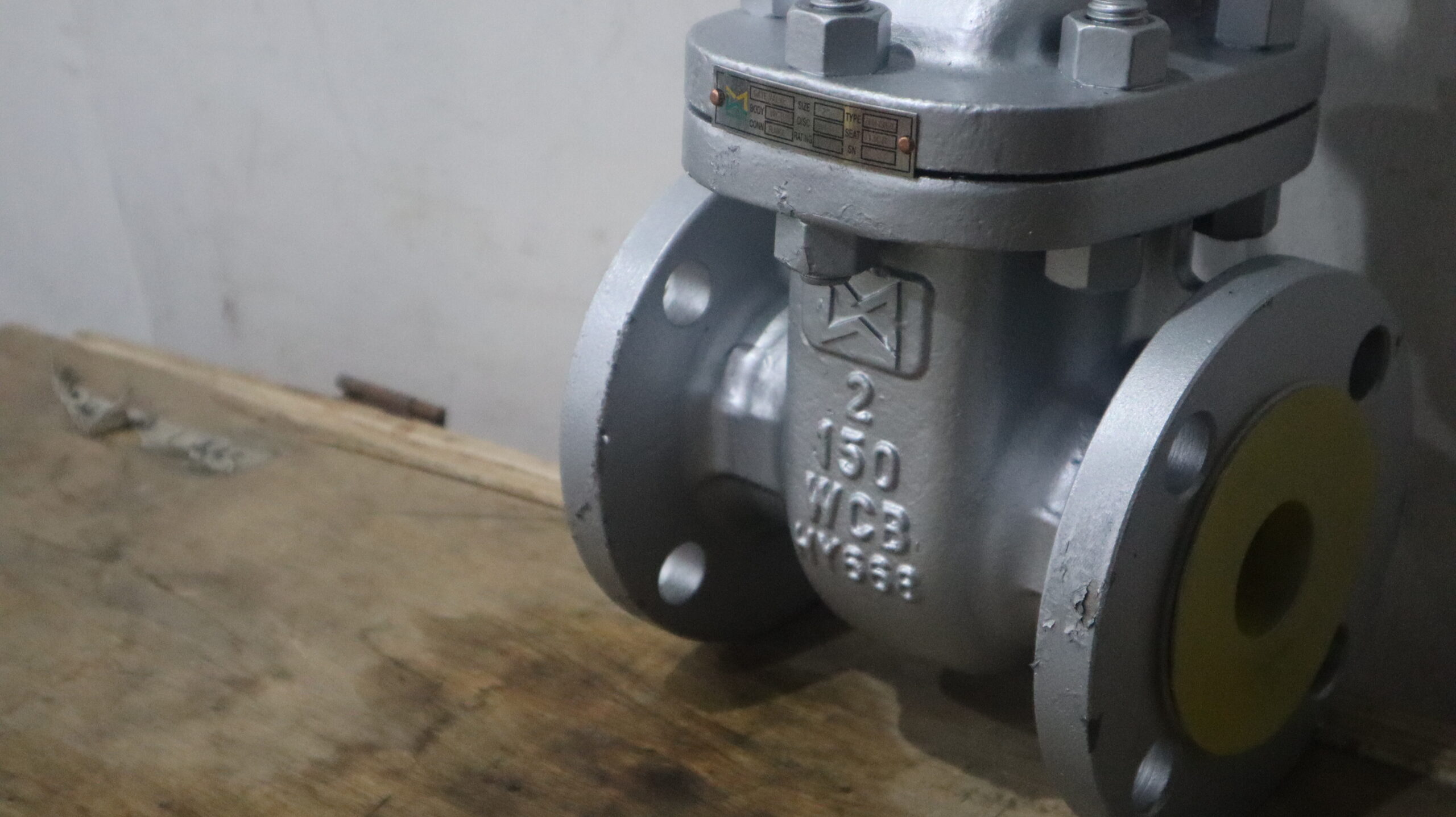

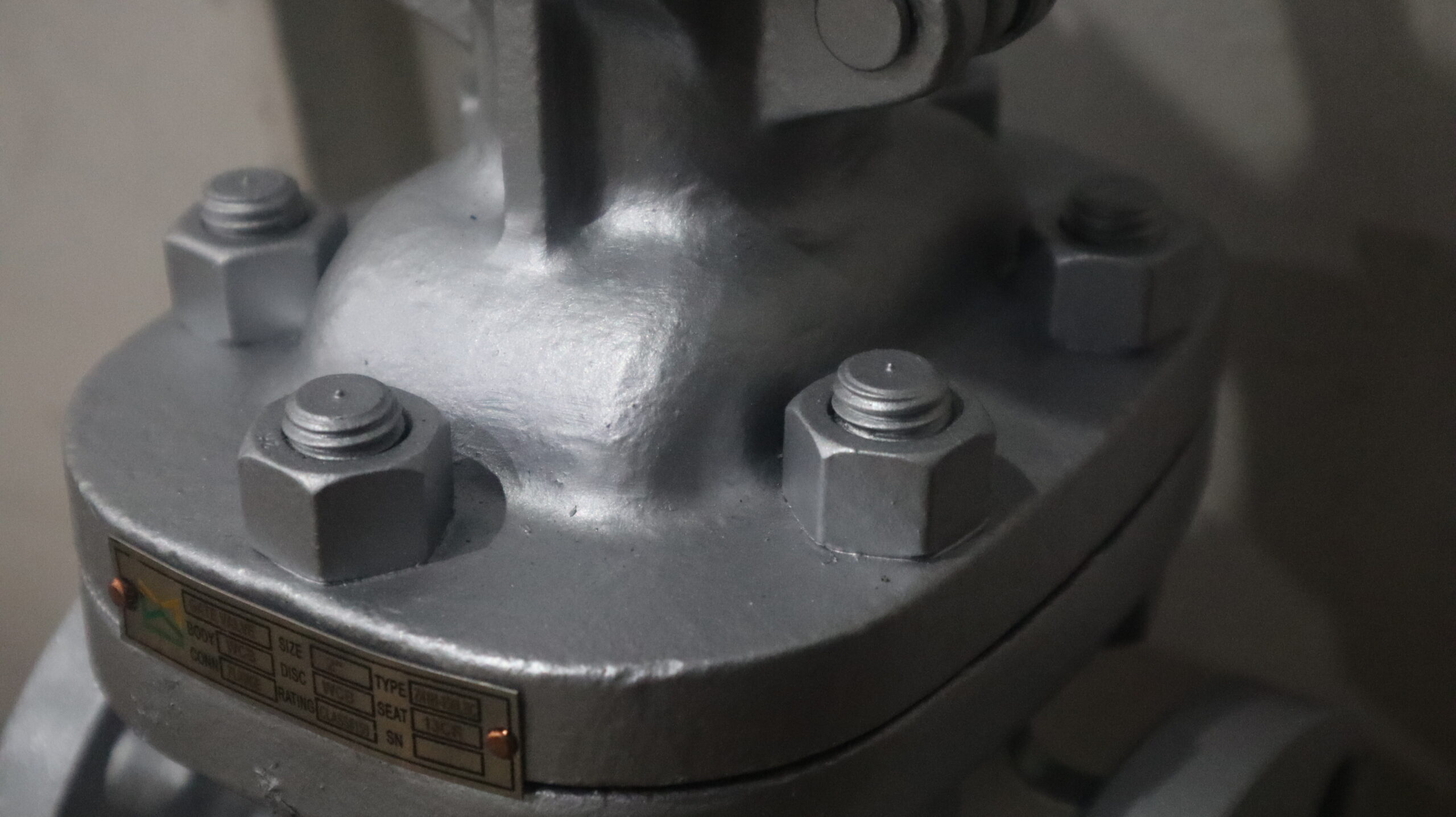

Industrial API Cast Steel Gate Valve
| Type | API Gate Valve |
| Design Standard | API 600 / API 6D |
| Face to Face | ASME B16.10 |
| Connection | Flanged / Butt Weld |
| Flange Standard | ANSI B16.5 / ASME B16.47 |
| Body Material | Cast Steel (WCB) / Stainless Steel |
| Gate Type | Flexible Wedge / Solid Wedge |
| Seat Material | Metal Seat (Stellite / Hardened Alloy) |
| Stem Material | Stainless Steel |
| Bonnet Type | Bolted Bonnet / Pressure Seal Bonnet |
| Size Range | DN50 – DN900 (2” – 36”) |
| Pressure Rating | Class 150 / 300 / 600 / 900 / 1500 |
| Temperature Range | -29°C to +425°C |
| Operation | Handwheel / Gear / Electric Actuator |
| Applicable Media | Oil, Gas, Steam, Water |
| Sealing Type | Metal Seated |
| Leakage Standard | API 598 |
| Testing Standard | API 598 / EN 12266-1 |
