Description
API bellow sealed globe valve engineered for zero leakage performance, ensuring maximum safety and reliability in high temperature, high pressure, and hazardous fluid applications.

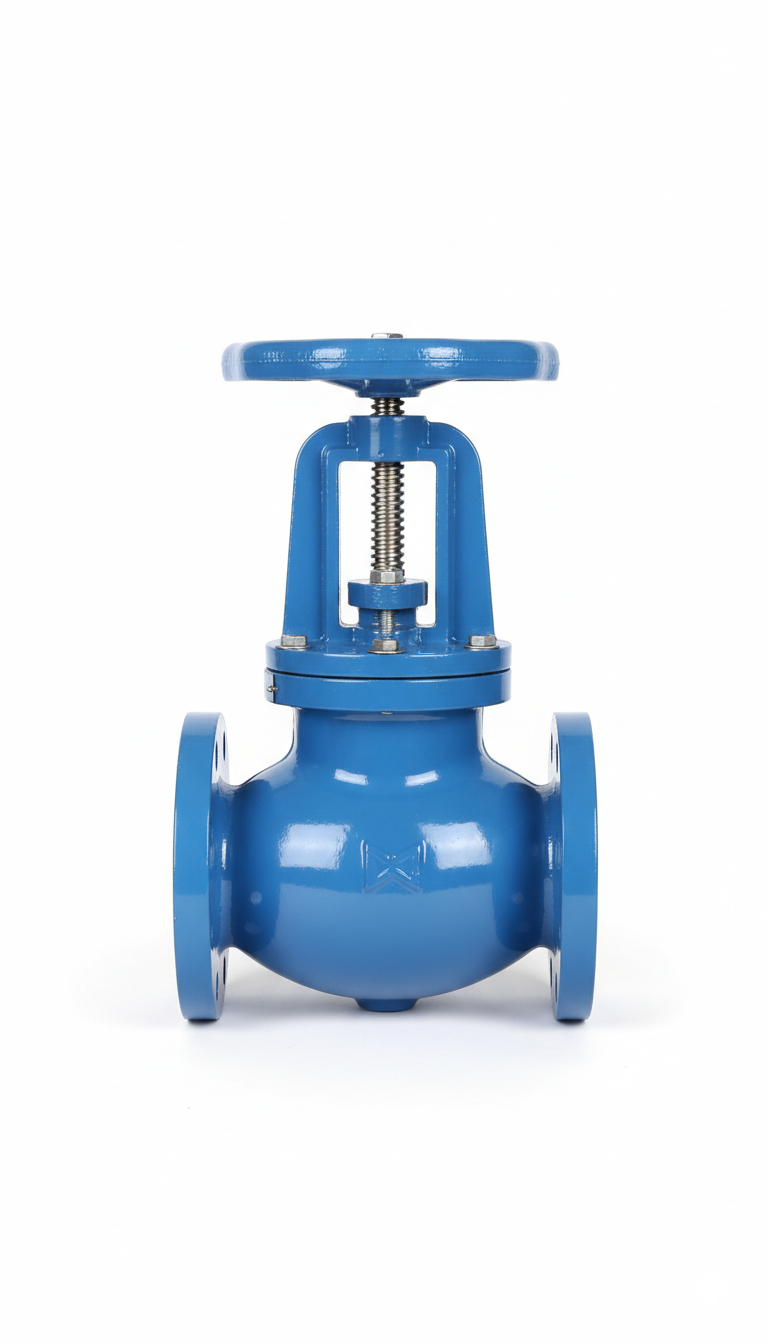

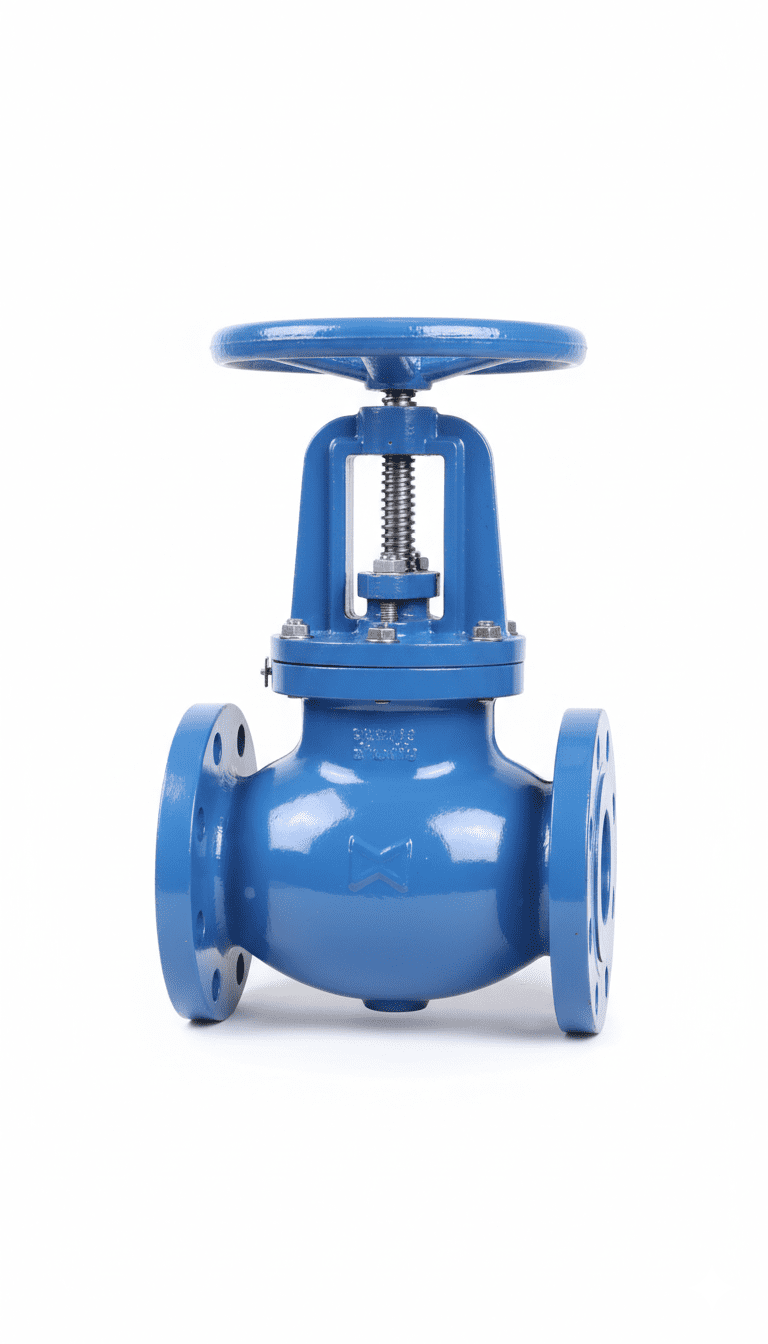

API Bellow Sealed Globe Valve
| Type | API Bellow Sealed Globe Valve |
| Design Standard | API 600 / BS 1873 |
| Face to Face | ASME B16.10 |
| Connection | Flanged / Butt Weld |
| Flange Standard | ANSI B16.5 / ASME B16.47 |
| Body Material | Cast Steel (WCB) / Stainless Steel |
| Disc Material | Stainless Steel / Alloy Steel |
| Seat Material | Metal Seat (Hardened Alloy) |
| Stem Material | Stainless Steel |
| Bellow Material | Stainless Steel (Multi-layer) |
| Size Range | DN15 – DN300 (½” – 12”) |
| Pressure Rating | Class 150 / 300 / 600 |
| Temperature Range | -29°C to +425°C |
| Operation | Handwheel / Gear / Electric Actuator |
| Applicable Media | Steam, Thermal Oil, Toxic Fluids, Gas |
| Sealing Type | Bellow Seal + Back-up Packing |
| Leakage Standard | Zero Stem Leakage |
| Testing Standard | API 598 / EN 12266-1 |
