Description
Forged steel globe valve designed for high pressure and high temperature applications, providing precise flow control, superior strength, and reliable performance in compact piping systems and critical industrial services.

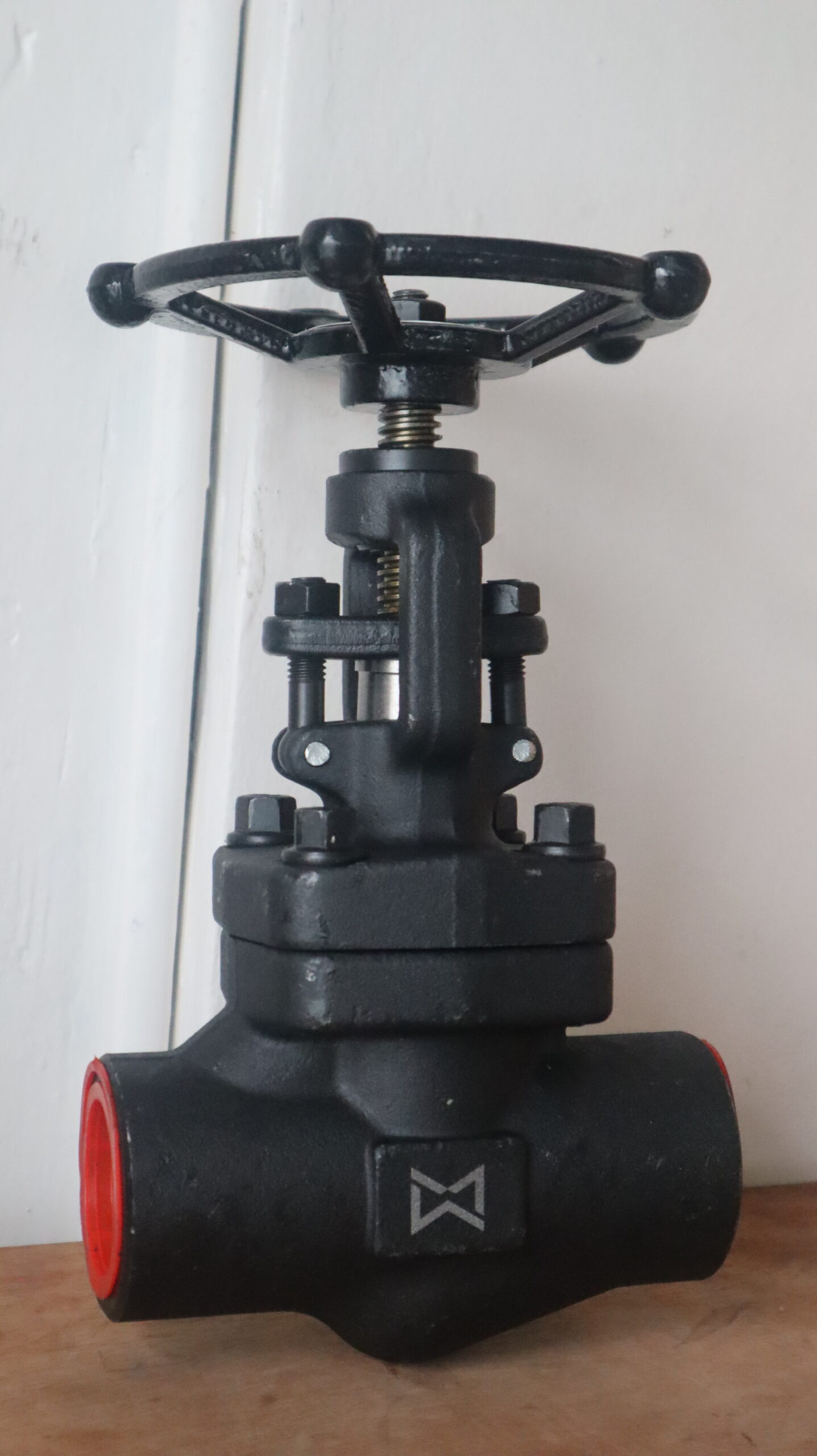

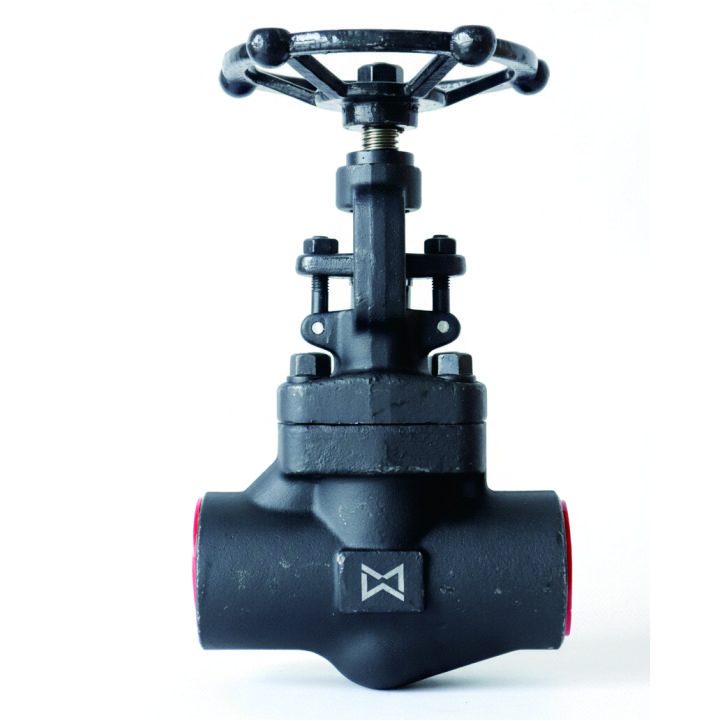

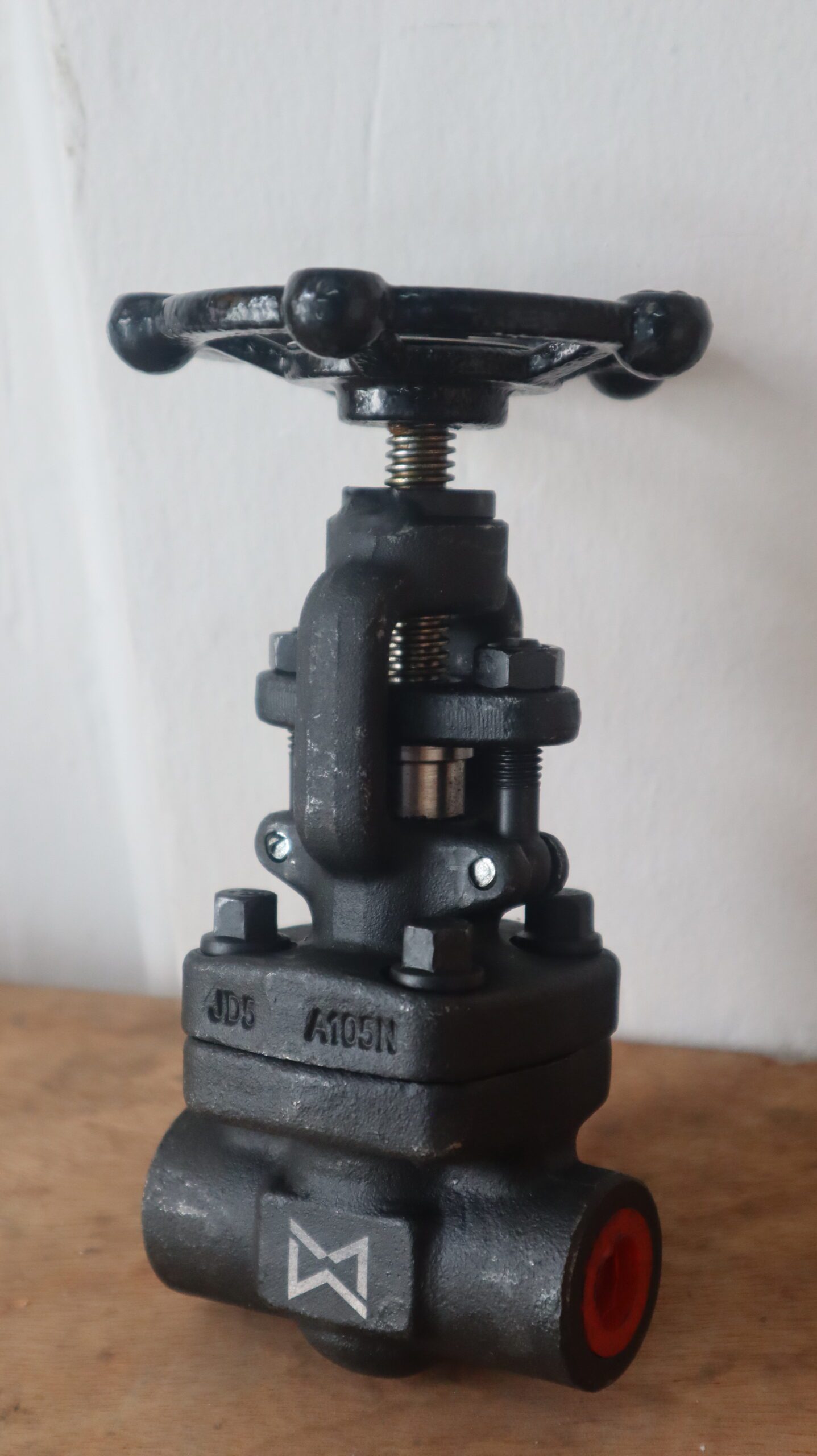

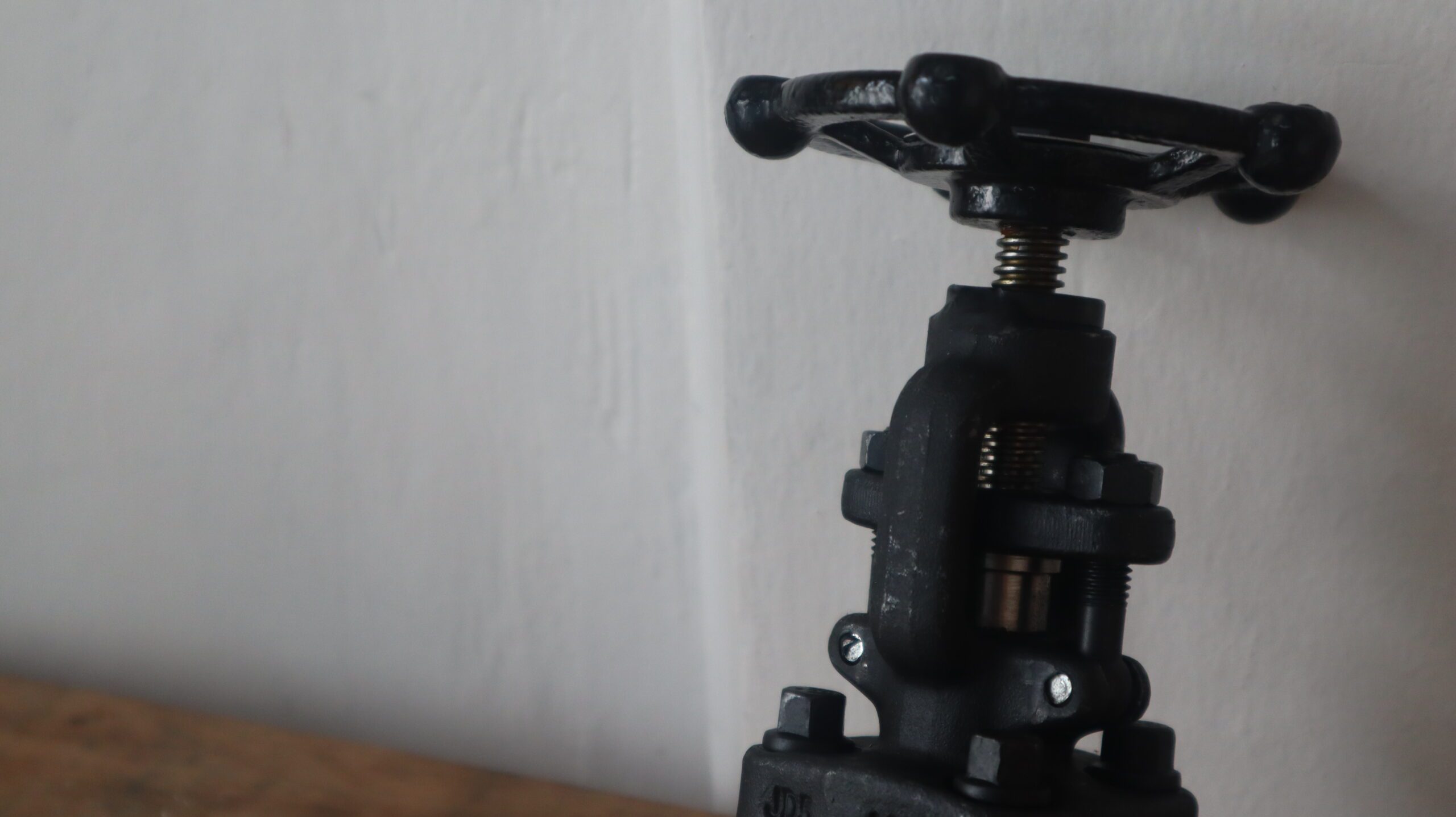

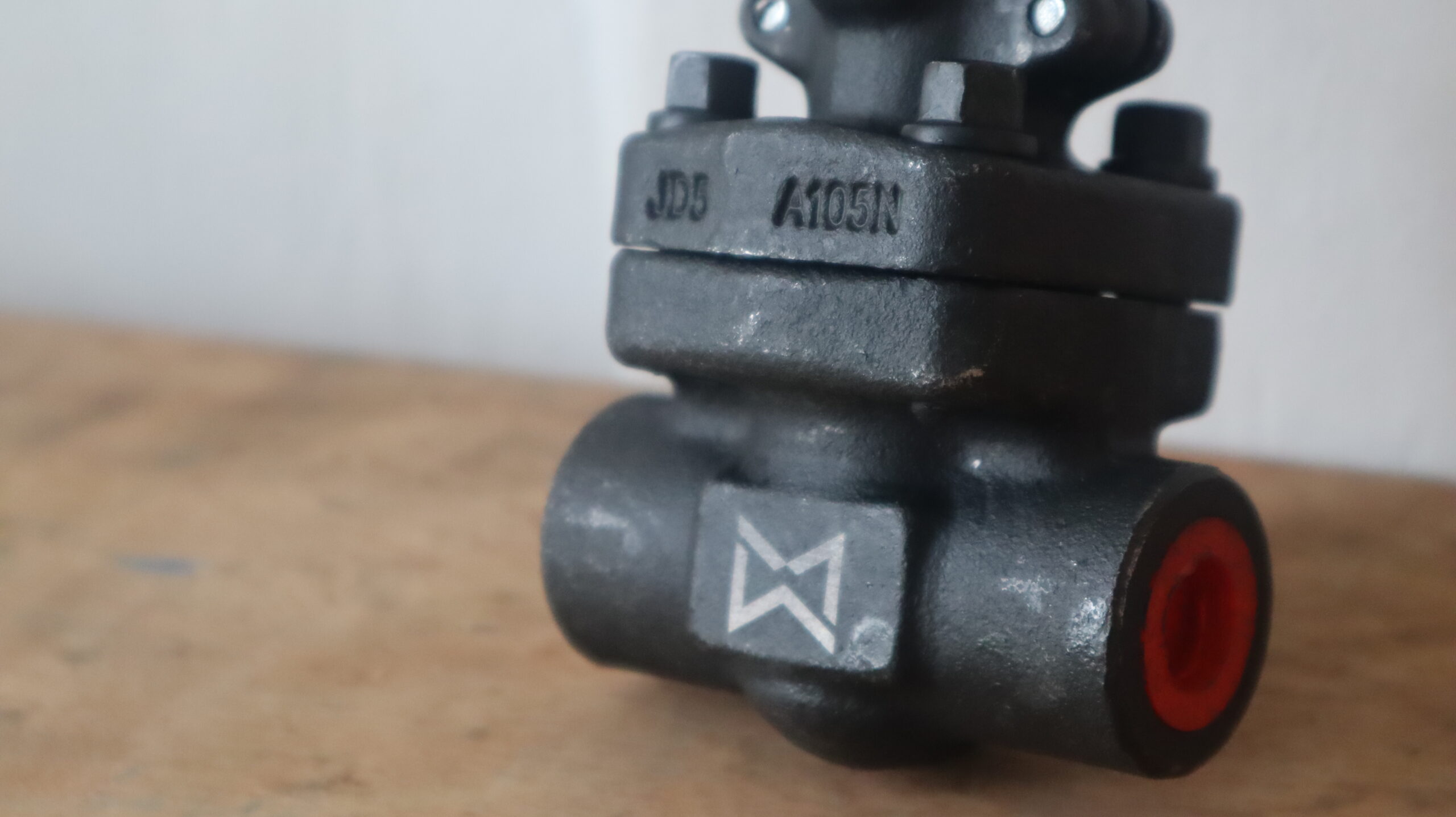

Forged Steel Globe Valve
| Type | Forged Steel Globe Valve |
| Design Standard | API 602 / BS 5352 |
| Face to Face | ASME B16.10 |
| Connection | Socket Weld / Threaded / Butt Weld |
| End Standard | ASME B16.11 / ASME B1.20.1 / ASME B16.25 |
| Body Material | Forged Steel (A105 / LF2 / F11 / F22 / Stainless Steel) |
| Disc Material | Stainless Steel / Alloy Steel |
| Seat Material | Metal Seat (Hardened / Stellite) |
| Stem Material | Stainless Steel / Alloy Steel |
| Bonnet Type | Bolted Bonnet / Welded Bonnet / Pressure Seal Bonnet |
| Size Range | DN8 – DN50 (¼” – 2”) |
| Pressure Rating | Class 800 / 1500 / 2500 |
| Temperature Range | -29°C to +550°C |
| Operation | Handwheel |
| Applicable Media | Steam, Oil, Gas, High Pressure Fluids |
| Sealing Type | Metal Seated |
| Leakage Standard | API 598 |
| Testing Standard | API 598 / EN 12266-1 |
